Better Pipe Organ Database

Gress-Miles Organ Co. (1976)

Grace Presbyterian Church: Sanctuary
444 York Rd.
Jenkintown, PA

Images

2021-04-03 - Chancel and organ chambers (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

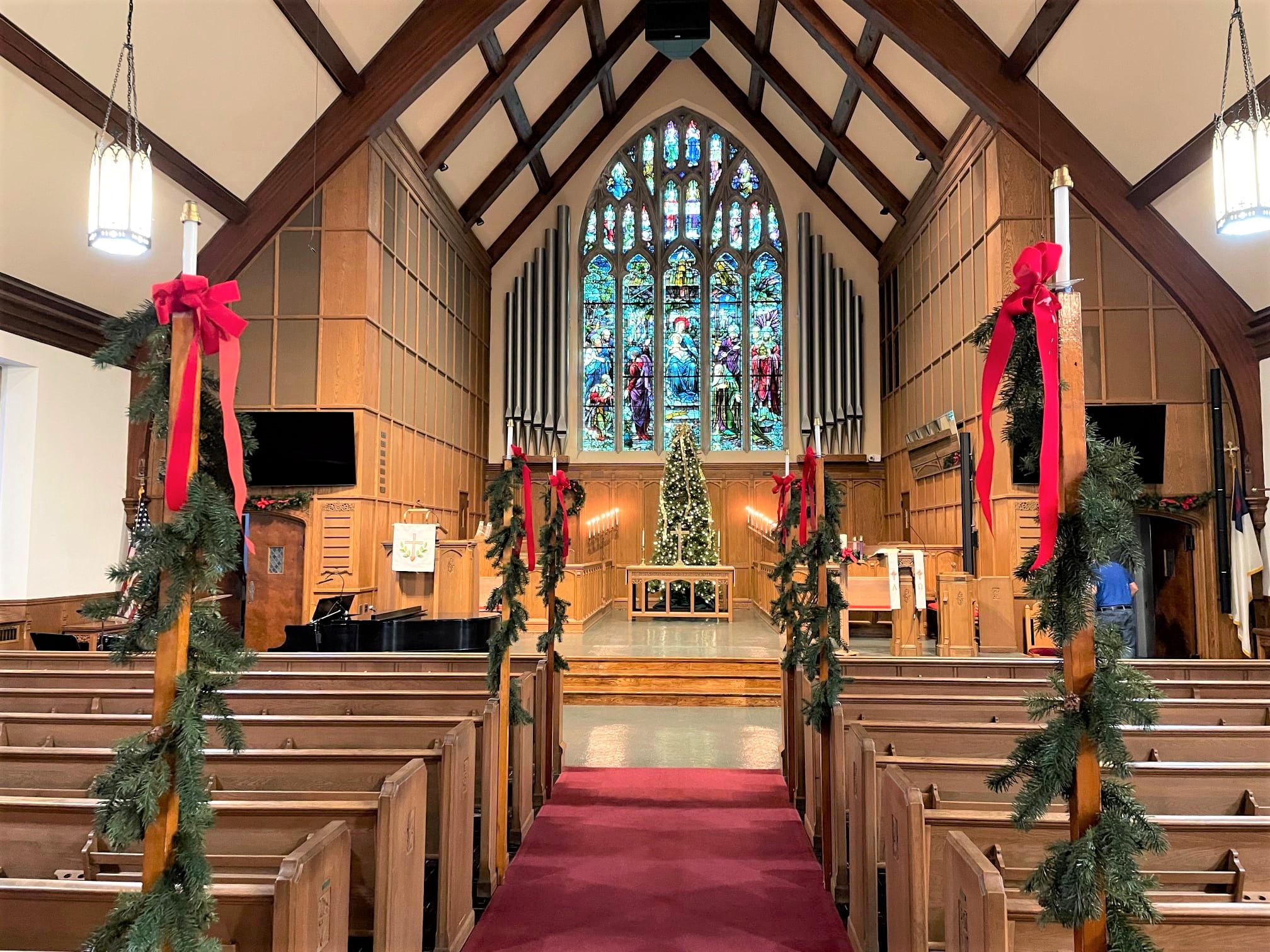

2021-12-24 - Church interior and chancel (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Movable Console
4 manuals
79 registers
5 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons

Notes

2016-06-12 - Some pipework from the previous organ was retained and revoiced; bottom octave of a 16' Principal rank is displayed to each side of the chancel window. -Database Manager

Stoplist

Stoplist copied from <i>The American Organist</i> May 1976 Source: Source not recorded Date not recorded

       Jenkintown, Pennsylvania
       Grace Presbyterian Church

       Gress-Miles   1976   4/58
       __________________________________________________

       GREAT                         POSITIV

   16' Montre                    16' Gedecktpommer
   16' Rohrgedeckt                8' Montre
    8' Principal                  8' Holzgedeckt
    8' Rohrfloete                 8' Flute à Cheminée
    8' Harmonic Flute             8' Flauto Dolce
    4' Octave                     8' Flute Celeste
    4' Spitzfloete                4' Principal
    2' Superoctave                4' Rohrfloete
    2' Waldfloete                 4' Flauto Dolce
   II  Cornet                     4' Flute Celeste
   VI  Mixture                2 2/3' Nasat
    8' Trumpet                    2' Octave
    4' Clarion                    2' Blockfloete
                              1 3/5' Tierce
       SWELL                  1 1/3' Quintfloete
                                  1' Siffloete
   16' Bourdon                    1' Zimbelfloete
   16' Contre Viole               V  Scharf
    8' Bourdon                    8' Cromorne
    8' Viole de Gambe                Tremulant
    8' Voix Céleste               8' Trompette-en-Chamade
    4' Traversflöte
    4' Octave Viole                  PEDAL
    4' OCtave Céleste
2 2/3' Quint                     32' Acoustic Bass II
    2' Principal                 16' Principal
    2' Piccolo                   16' Subbass
1 3/5' Terz                      16' Contre Viole      SW
1 1/3' Quint                     16' Bourdon           SW
    1' Octave                     8' Principal
   IV  Zimbel                     8' Rohrgedeckt       GT
   16' Basson                 5 1/3' Quintfloete
    8' Trompette Harmonique       4' Octave
    8' Hautbois                   4' Harmonic Flute    GT
    8' Voix humaine               2' Superoctave
    4' Clairon Harmonique         2' Harmonic Flute    GT
       Tremulant               V-VI  Basse de Cornet   --
       Octaves Graves            VI  Mixture
                                 16' Posaune
       ANTIPHONAL                16' Basson            SW
                                  8' Trumpet
    8' Gedeckt                    8' Basson            SW
    4' Principal                  4' Cromorne          PO
    2' Octave
   IV  Mixture
    8' Trompette-en-Chamade
    4' Clairon-en-Chamade            Zimbelstern

          [Received from Jeff Scofield June 12, 2016]
