Damian Kaczmarczyk Opus 7 (2006)

Images

Unknown - Console (Photograph by Adam Chlebek/Database Manager)

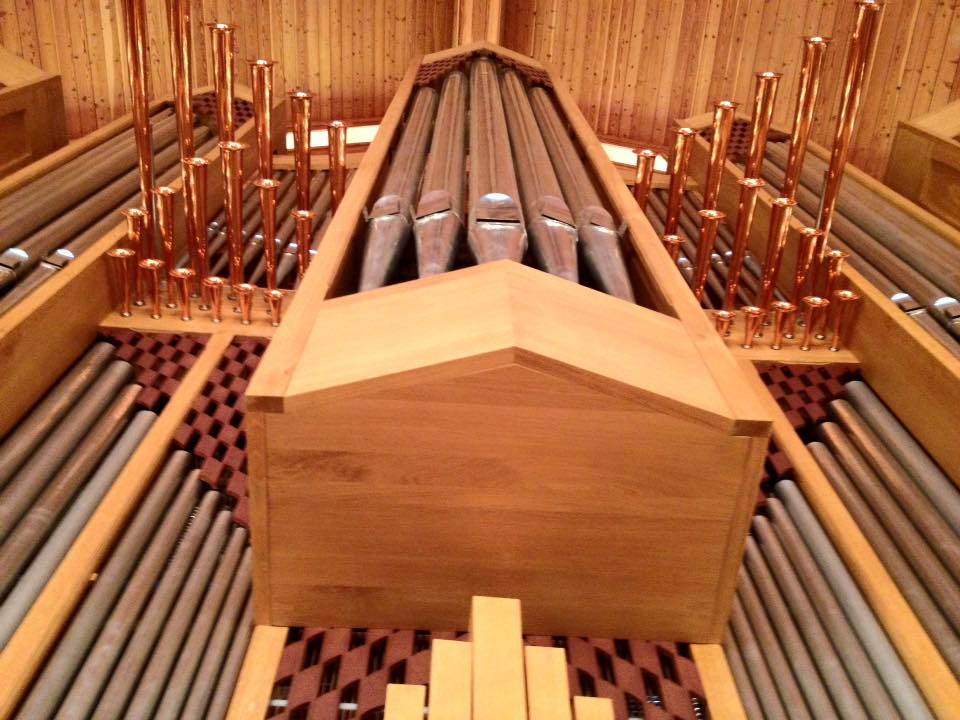

2016-04-24 - Main Organ Case (Photograph by Adam Chlebek/Database Manager)

2016-04-24 - Sanctuary Interior and Altar (Photograph by Adam Chlebek/Database Manager)

Consoles

Main

• Organ type: Traditional Without Cover
• Console position: Keydesk Attached, Manuals Set Into Case
• 4 manuals
• 54 stops
• 5 divisions
• Key action Type: Mechanical (Details Unknown)
• Stop action Type: Mechanical
• Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
• Pedal compass: 30 notes
• Pedal Type: Flat Straight
• Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
• Combination action: None

Notes

2016-06-12 - This entry describes an original installation of a new pipe organ. Identified by Adam Chlebek, based on personal knowledge of the organ.<br><br>Mechanical action organ with an antiphonal Swell division in the front of the church. Action can be very heavy when fully coupled. -Database Manager

2016-10-12 - Updated through online information from Adam Chlebek. <br>Swell shoe is broken, and Cornetwerk and Schellwerk are in separate side chambers at the front of the room. The organ has a very unique sound that I have not seen replicated on any other instrument. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

Willow Springs, Illinois
Our Lady Mother of the Church Roman Catholic Polish Mission

Damian Kaczmarczyk, Opus 7, 2006

Manual I-Hauptwerk:
Burdon 16'
Principal 8'
Rohrflöte 8'
Octave 4'
Hohlflöte 4'
Quinte 2 2/3'
Super Octave 2'
Mixtur IV 2'
Trompette 8' (en chamade)

Manual II-Positiv:
Gedackt 8'
Principal 4'
Blockflöte 4'
Nasard 2 2/3'
Querflöte 2'
Terz 1 3/5'
Larigot 1 1/3'
Krumhorn 8'
Tremolo

Manual III-Schellwerk:
Singend gedeckt 16'
Geigen Principal 8'
Offenflöte 8'
Viola di Gamba 8'
Schwebung II 8'
Ital. Principal 4'
Traversflöte 4'
Waldflöte 2'
Progresja II-III fach
Oboe 8'
Tremolo

Manual IV-Cornetwerk:
Praestant 8'
Lieblich gedeckt 8'
Minorflöte 4'
Sesquilatera II
Oktavin 2'
Clairon 4'
Tremolo

Pedal:
Subbas 16'
Echobass 16'
Octavbass 8'
Cello 8'
Basflöte 8'
Choralbass 4'
Posaune 16'

Koppel:
General koppel
II-I
III-I
IV-I
III-II
IV-II
IV-III
I-Ped.
II-Ped.
III-Ped.
IV-Ped.

 [Received from Adam Chlebek 2016-10-12.]
