Better Pipe Organ Database

Schantz Organ Co. Opus 2213 (2002)

St. Luke's United Methodist Church: Chapel
3741 Westheimer Rd.
Houston, TX

Images

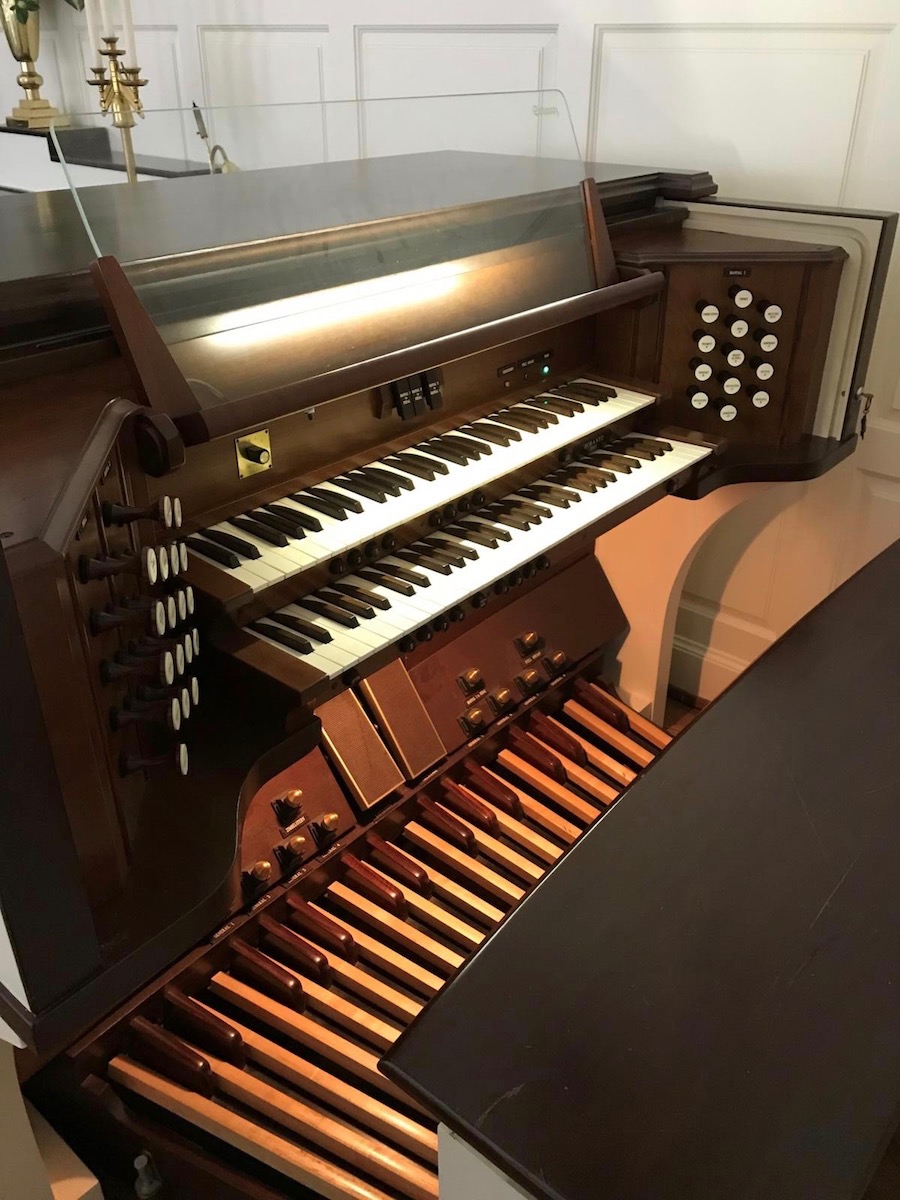

2018-06-27 - Console (Photograph by James Roman/Database Manager)

2018-06-27 - Right Stop Jamb - Manual I (Photograph by James Roman/Database Manager)

2018-06-27 - Left Stop Jamb - Manual II and Pedal (Photograph by James Roman/Database Manager)

2016-06-11 - Chapel Interior, Chancel, and Chamber Grillework (Photograph by T. Bradford Willis/Database Manager)

2016-06-11 - Facade Pipes (Photograph by T. Bradford Willis/Database Manager)

2016-06-11 - Dedication Plaque (Photograph by T. Bradford Willis/Database Manager)

2016-06-11 - Chapel Exterior (Photograph by T. Bradford Willis/Database Manager)

Consoles

Main

2 manuals
10 stops
28 registers
Key action Type: Electrical
Stop action Type: Electrical
Manual compass: 61 notes
Pedal compass: 32 notes

Notes

2016-06-13 - This entry describes an original installation of a new pipe organ that replaced the previous Moller organ. Identified by T. Bradford Willis, DDS, based on personal knowledge of the organ.<br><br>This information concerning the Schantz organ located in the Chapel of St. Luke's Church was sent to me by Mr. Rob Landes, organist and artist-in-residence. -Database Manager

Stoplist

Typed Specification Source: from Jeffrey D. Dexter Date not recorded

Houston, Texas
St. Luke's United Methodist Church - Chapel

Schantz Organ Co.   Opus 2213   2002              2 manuals, 28 registers, 14 ranks
___________________________________________________________________________________

         MANUAL I                 MANUAL II                PEDAL
     16' Gemshorn (TC)         8' Gemshorn             32' Resultant
      8' Principal             8' Gemshorn Celeste     16' Gedacktbass
      8' Gedackt               8' Gedackt               8' Principal
      8' Spitzflöte            4' Principal             8' Gemshorn
      4' Octave                4' Spitzflöte            8' Gedackt
      4' Spitzflöte            2' Gemshorn              4' Principal
      2' Gemshorn              8' Trumpet              16' Double Trumpet
         Sesquialtera II       8' Oboe                  8' Trumpet
         Mixture III-IV           Tremulant             4' Oboe
      8' Trumpet
      8' Oboe
         Chimes
         Zimbelstern

         COMBINATION ACTION (4 levels)                     COUPLERS
         Manual I       4  (thumb)                         Manual I to Pedal
         Manual II      4  (thumb)                         Manual II to Pedal
         General        8  (thumb & toe)                   Manual II to Manual I

         REVERSIBLES                                       EXPRESSION
         Manual I to Pedal (thumb)                         Balanced Swell Pedal
         Full Organ        (thumb & toe)                   Crescendo Pedal
         Zimbelstern       (toe)

                                        TONAL RESOURCES
                               16' Gedackt            61 pipes
                                8' Principal          44 pipes
                                8' Gemshorn           85 pipes
                                4' Gemshorn Celeste   49 pipes
                                4' Octave             61 pipes
                                4' Spitzflöte         54 pipes
                            2 2/3' Sesquialtera II
                                       (c13-c49)      74 pipes
                                   Mixture III-IV    176 pipes
                               16' Trumpet            73 pipes
                                8' Oboe               61 pipes
                                   Chimes             25 bells


[Received from Steven E. Lawson  2018-07-25]

Original document from James Roman. Source: Stoplist taken from console. 2018-06-27
