St. Michael's Cathedral Basilica
65 Bond Street
Toronto, ON, CA
OHS convention: 2023
Images
2022-06-15 - Organ in rear gallery (Photograph from an archival source: 2023 OHS Handbook, Len Levasseur, submitted by Paul R. Marchesano/Paul R. Marchesano)
Date unknown - Aerial view of Basilica (Photograph from an archival source: https://www.musiqueorguequebec.ca, submitted by Jim Stettner/Jim Stettner)

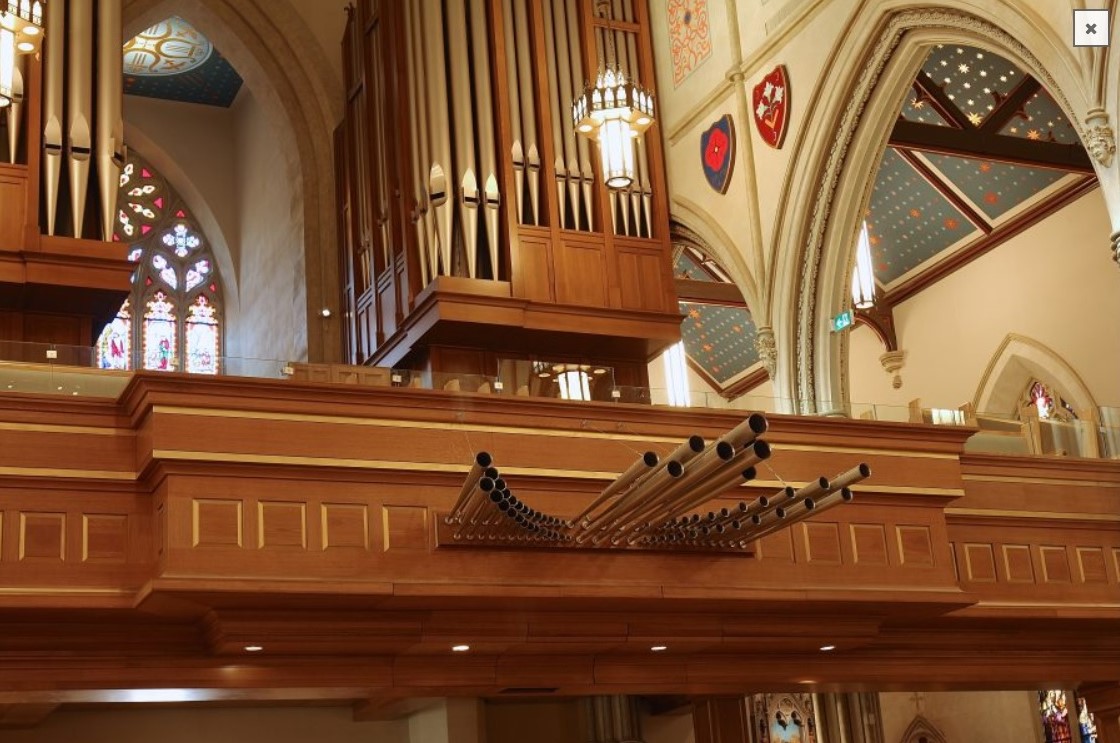

Sept. 2016 - En Chamade pipes projecting off of rear gallery (Photograph by Paul Cormack - Concrete Pictures, submitted by Jim Stettner/Jim Stettner)

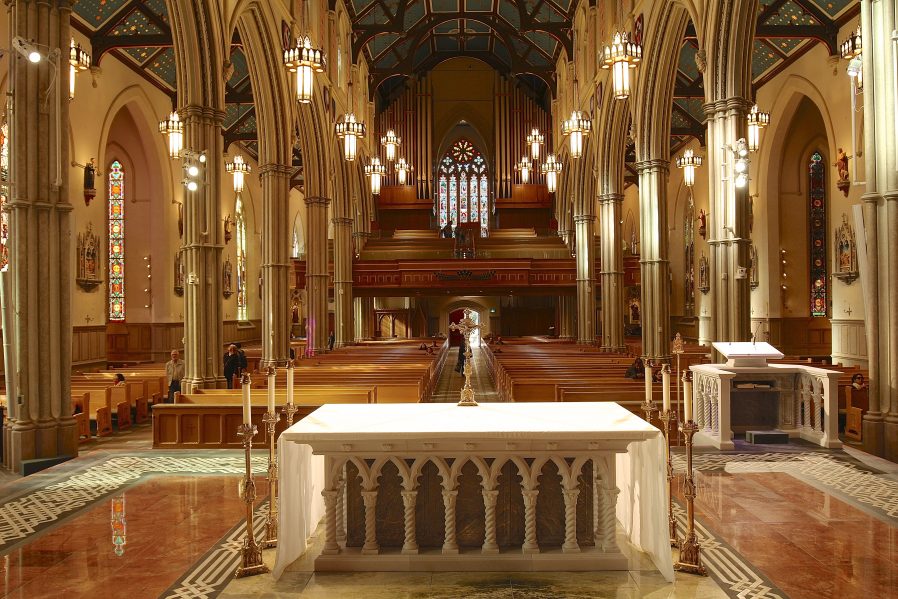

Sept. 2016 - Organ in rear gallery (Photograph by Paul Cormack - Concrete Pictures; , submitted by Jim Stettner/Jim Stettner)
Unknown - Nave interior, gallery cases and en-chamade (Photograph courtesy of Casavant Freres/Database Manager)
Consoles
Main - gallery
- Organ type: Traditional With Roll Top
- Console position: Movable Console
- 3 manuals
- 56 stops
- 76 registers
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Has sequencer
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2023-03-31 - This entry represents the installation of a new organ. Identified from the builder's website and opus list. -Jim Stettner
Stoplist
Source: Stoplist courtesy of the Casavant Freres Archives Date not recorded
Toronto, Ontario
St. Michael's Cathedral
Casavant Op. 3907 2016 3/76
___________________________________________________________
GREAT SWELL
16' Dbl Open Diapason 61 16' Bourdon 61
8' Open Diapason 61 8' Diapason 61
8' Violon 29 PD 8' Bourdon 61
8' Harmonic Flute 61 8' Gamba 61
8' Chimney Flute 61 8' Celeste 54 GG
4' Octave 61 4' Principal 61
4' Open Flute 61 4' Traverse Flute 61
2 2/3' Quint 61 2' Octavin 61
2' Super Octave 61 III Mixture 2' 183
V Cornet 160 tc III-V Plein Jeu 1' 269
IV Fourniture 1 1/3' 244 16' Bombarde 1/12 L/2 61
III Cymbale 1/2' 183 8' Trompette 61
16' Bombarde F/L 61 8' Oboe 61
8' Trumpet 61 8' Vox Humana 61
4' Clarion 61 4' Clairon 61
Tremulant Tremulant
Unison Off Sub
8' Horizontal Trumpet 61 Unison Off
8' Festival Trumpet CH Super
8' Horizontal Trumpet GT
PEDAL 8' Festival Trumpet CH
32' Violinbass 6 CHOIR
32' Subbass 12 a
16' Contrabass 32 b 8' Principal 61
16' Dbl Open Diapason GT 8' Gedeckt 61
16' Violone 12 c 8' Dulciane 61
16' Subbass 32 8' Unda Maris 49 tc
16' Bourdon SW 4' Prestant 61
10 2/3' Quint 7 4' Chimney Flute 61
8' Octavebass 32 2 2/3' Nazard 61
8' Violoncello 32 2' Flute 61
8' Stopped Flute 5 1 3/5' Tierce 61
8' Bourdon 32 1 1/3' Larigot 61
4' Choral Bass 32 1' Sifflet 61
4' Open Flute 32 III Mixture 1' 183
2' Flute 12 8' Trumpet 61
II Theorbo 38 d 8' Clarinet 61
IV Mixture 2 2/3' 128 Tremulant
32' Contra Trombone L/2 12 Sub
16' Trombone 32 Unison Off
16' Bombarde GT Super
8' Trumpet 32 16' Festival Trumpet tc
4' Clarion 12 8' Festival Trumpet 61
8' Horizontal Trumpet GT 4' Festival Trumpet --
8' Festival Trumpet CH 8' Horizontal Trumpet GT
[Received from Jeff Scofield February 21, 2019]
