Better Pipe Organ Database

Bond Organ Builders, Inc. (1993)

First Lutheran Church of Richmond Beach
18354 8th Ave. N.W.
Shoreline, WA

Images

2009-08-28 - Organ in rear gallery from the front (Photograph by Michael A. Way/Database Manager)

2009-08-28 - Organ in rear gallery (closer view) (Photograph by Michael A. Way/Database Manager)

2009-08-28 - Organ in rear gallery (Photograph by Michael A. Way/Database Manager)

2009-08-28 - Facade from lower, left (Photograph by Michael A. Way/Database Manager)

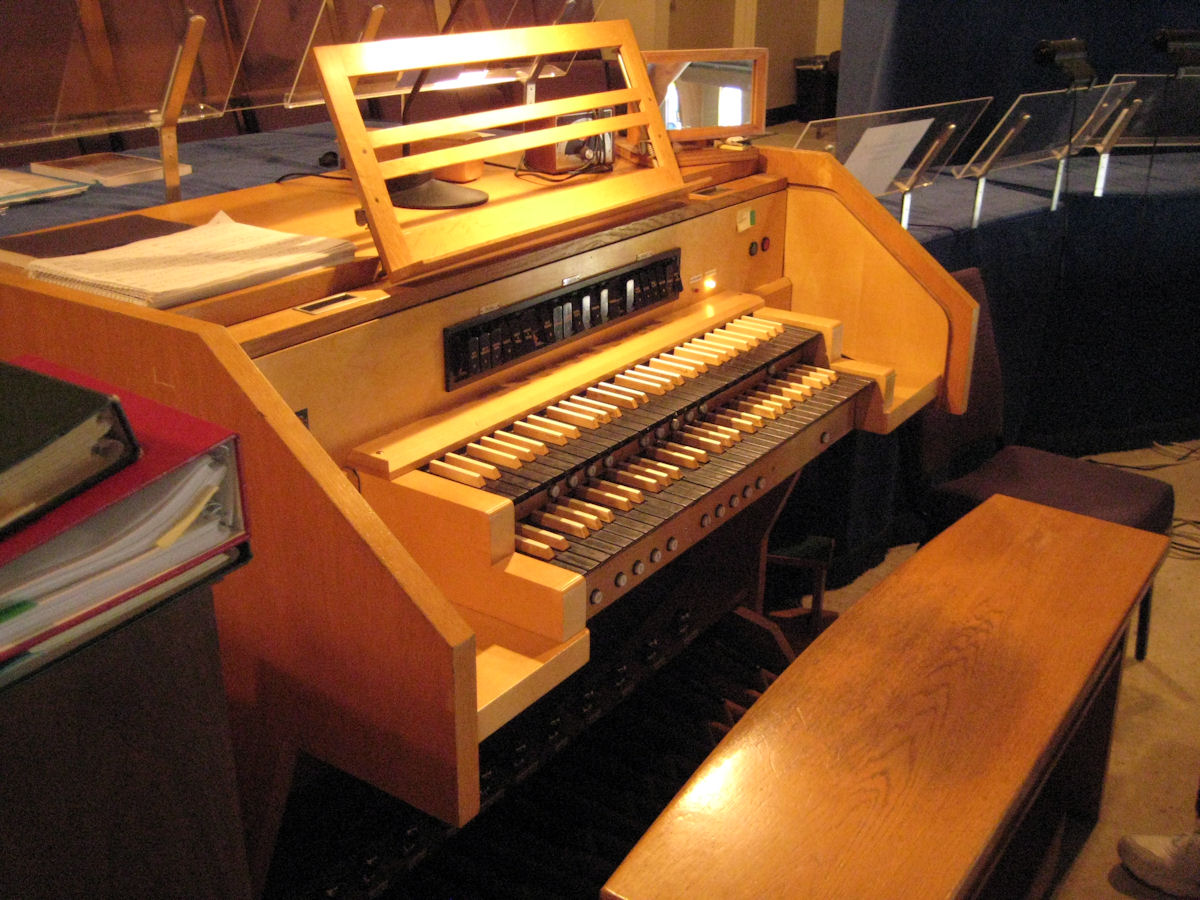

2009-08-28 - Detached console from left (Photograph by Michael A. Way/Database Manager)

2009-08-28 - Manuals and stops (Photograph by Michael A. Way/Database Manager)

2009-08-28 - Stoprail (Photograph by Michael A. Way/Database Manager)

2009-08-28 - Bond nameplate (Photograph by Michael A. Way/Database Manager)

2009-08-28 - Action rollerboards (Photograph by Michael A. Way/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
2 manuals
17 stops
17 registers
3 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: No Enclosed Divisions
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2005-07-22 - On-line update from James R. Stettner -- Organ augmented by Bond Pipe Organs of Portland, OR. in 199?. New flamed copper 8' Principal added to Great en facade. -Database Manager

2009-08-31 - Updated through online information from James R. Stettner. -- This was two tonal changes, and five tonal additions to the existing 1965 Detlef Kleuker. The console's original Frei Kombination system was replaced with a new, standard combination action. The stoprail was entrely new. The original Great 8' Oboe-Schalmei was replaced with a new 8' Trompete. The new, flamed copper 8' Principal was added to the Great to provide an actual facade. It has 35 pipes arranged in three sections as: 11-13-11. On the Positiv, the 8' Gemshorn and Gemshorn Celeste are new, as is the 1-3/5' Tierce. The 2-2/3' Quinte is made from the original 1-1/3' Nasat rescaled. And the Pedal 16' Fagott is new. The Positiv windchest has one more prepared-for toeboard. This will likely be a reed register, and will require the Positiv Tremulant to be relocated to a finger piston and/or toe stud since a blank stopkey was not provided. -Database Manager

Stoplist

Stoplist copied from the console June 29, 1993 Source: Source not recorded Date not recorded

Shoreline (Seattle), Washington
First Lutheran Church of Richmond Beach

Detlef Kleuker, 1965 - Original Specifications
Bond Organbuilders, 1993 - Rebuild & Additions

GREAT
   8'     Principal                61   1993. 1-35 in flamed copper en façade.
   8'     Rohr Flöte               61
   4'     Octave                   61
   2'     Wald Flöte               61
   IV     Mixtur  1-1/3'          244   19-22-26-29.
   8'     Trompette                61   1993.

POSITIV
   8'     Holz Gedackt             61
   8'     Gemshorn                 61   1993.
   8'     Gemshorn Celeste   (tc)  49   1993.
   4'     Koppel Flöte             61
   2-2/3' Quinte                   61   1993. Former 1-1/3' Nasat rescaled.
   2'     Prinzipal                61
   1-3/5' Terz                     61   1993.
          Tremolo

PEDAL
   16'    Sub Bass                 32
   8'     Spitz Principal          32
   4'     Choral Bass              32
   16'    Fagott                   32   1993.

COUPLERS
   Positiv to Pedal
   Great to Pedal
   Positiv to Great

FINGER PISTONS
   General                      1 - 4
   Positiv                      1 - 4
     Pos to Ped                 (rev)
   Great                        1 - 4
     Gt to Ped                  (rev)
   Pedal                        1 - 4
   SFZ                          (rev)
   Set
   G.C.

TOE STUDS (Unlabeled; l - r)
   General                      1 - 4
   Gt to Ped                    (rev)
   Pos to Ped                   (rev)
   Pedal                        1 - 4
   SFZ                          (rev)

PEDAL MOVEMENTS
   None

ACTION: Mech. key; Elec. stop
VOICES: 17
STOPS: 17
RANKS: 20
PIPES: 1,092

[Received on line from James R. Stettner September 02, 2009.]
