Better Pipe Organ Database

Casavant Frères Opus 1083 (2016)

First Presbyterian Church: Sanctuary
125 N. Meeting St.
Statesville, NC

Images

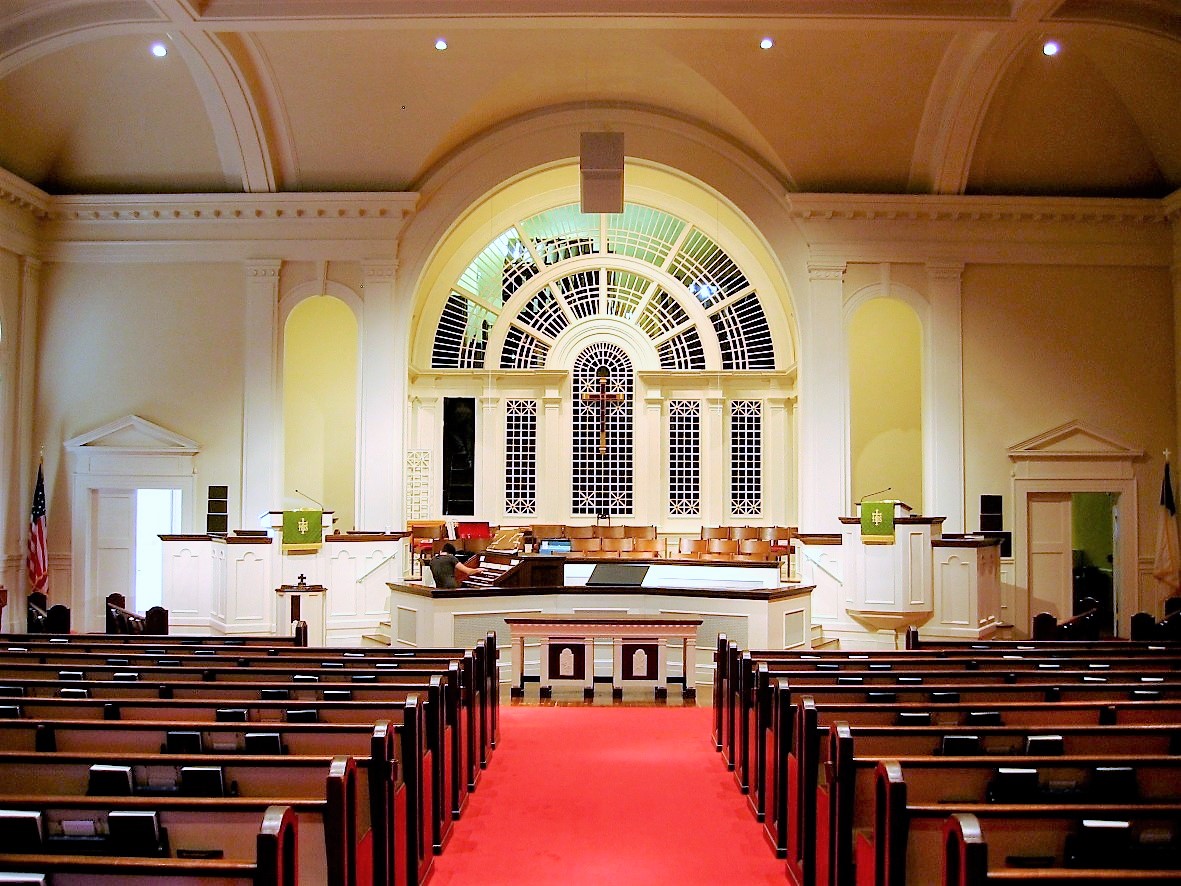

2016-10-25 - Sanctuary Interior, Chancel, and Chamber Grillework (Photograph by Jeff Scofield/Database Manager)

2016-10-25 - Chance and Chamber Grillework (Photograph by Jeff Scofield/Database Manager)

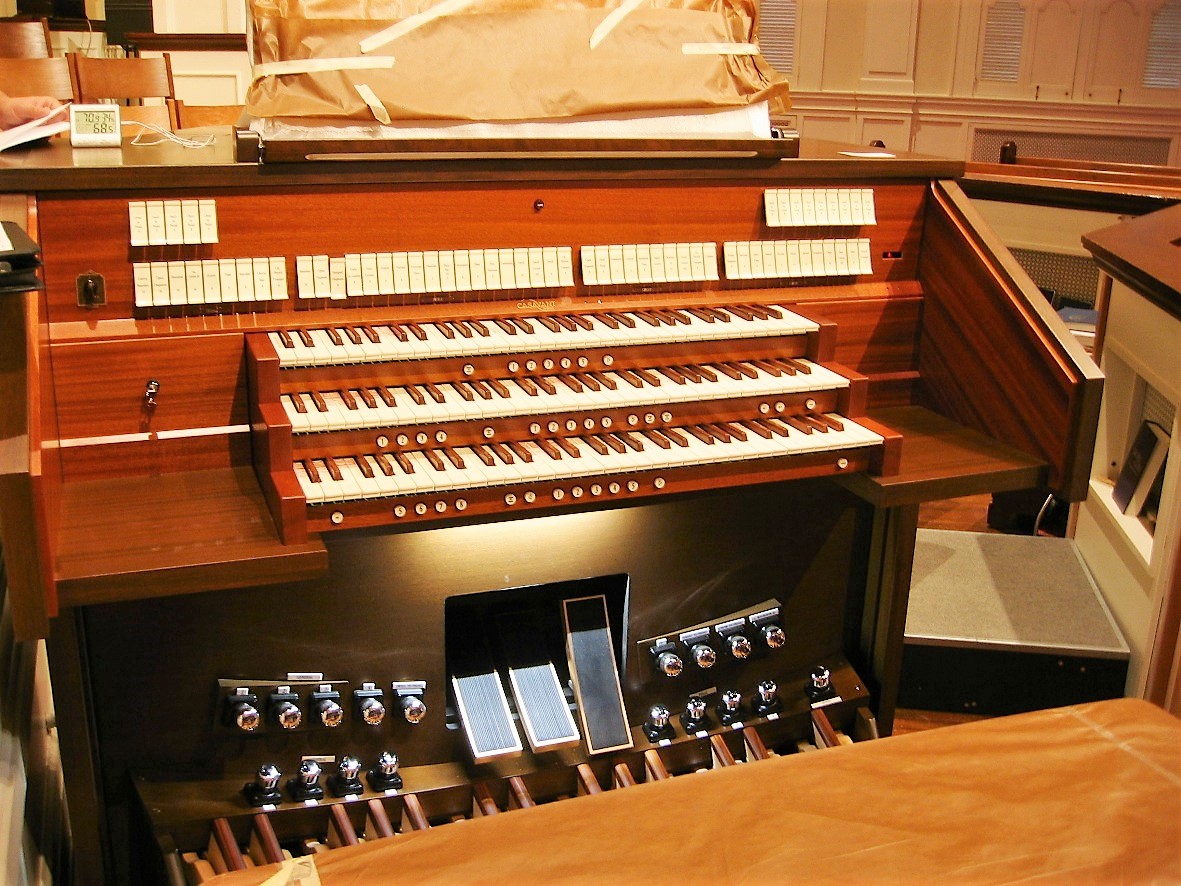

2016-10-25 - Console (Photograph by Jeff Scofield/Database Manager)

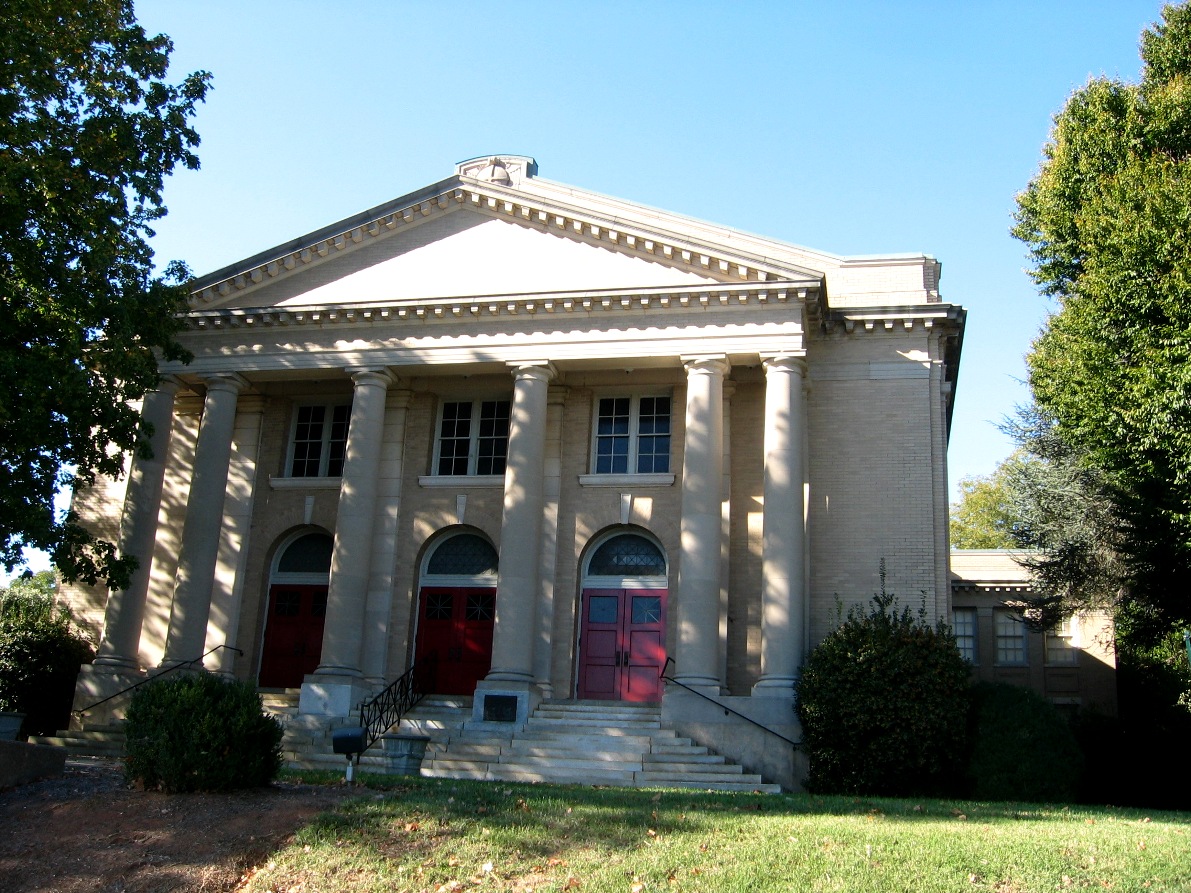

2016-10-25 - Church Exterior ((side) Photograph by Jeff Scofield/Database Manager)

2016-10-25 - Church Exterior ((front) Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Left
3 manuals
30 stops
39 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has sequencer
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2016-11-06 - From Joby Bell: Oldest Casavant in North Carolina. Organ in continuous use since installation. Austin console added ca. 1971. Façade removed and wooden grillwork installed ca. 2000 during building renovation and chancel enlargement; rebuild, new console and tonal changes by Casavant in 2016. -Database Manager

2016-11-06 - The photos were taken on the first day that factory finishers had begun their work. -Database Manager

Stoplist

Stoplist courtesy of Casavant FrÃ¨res Source: Source not recorded Date not recorded

    Statesville, North Carolina
    First Presbyterian Church

    Casavant   Op. 1083   1925   3/31
    Casavant   Op. 1083   2016   3/35
    _____________________________________________________

    GREAT                            CHOIR

 8' Open Diapason    61 a         8' Violin Diapason 61
 8' Hohl Flute       61           8' Bourdon         61 e
 8' Gemshorn         61           4' Rohr Flute      61 b
 4' Octave           61 b     2 2/3' Nasard       tc 49 b
 4' Harmonic Flute   61           2' Piccolo         61 b
 2' Super Octave     61       1 3/5' Tierce       tc 49 b
IV  Mixture         244 b         8' Clarinet        61 d
    Unison Off                       Tremulant
 8' Herald Trumpet   CH              Sub
    Chimes           25              Unison Off
                                     Super
    SWELL                         8' Herald Trumpet  61 b

16' Bourdon          61              PEDAL
 8' Open Diapason    61
 8' Stopped Diapason 61          32' Contra Bourdon  -- f
 8' Viola da Gamba   61          16' Open Diapason   32 g
 8' Voix Celeste     61          16' Bourdon         32 g
 4' Octave           61 c        16' Gedackt         SW
 4' Violina          61           8' Octave          GT
 4' Traverse Flute   61           8' Flute (Op Diap) 12
 2' Flautino         61           8' Bourdon         12
III Plein Jeu       183 b         4' Choral Bass     GT
 8' Cornopean        61 d         8' Herald Trumpet  CH
 8' Oboe             61 d
 8' Vox Humana       61
    Tremulant
    Sub
    Unison Off
    Super
 8' Herald Trumpet   CH

 a  1-12 new pipes; 13-61 present pipes rebuilt
 b  new pipes
 c  Former GT Octave 4
 d  Repaired and voiced with new tongues
 e  1-12 existing Concert Flute; 13-61 new pipes
 f  From Pedal Bourdon 16
 g  Re-regulated

      [Received from Jeff Scofield November 7, 2016]
