St. Matthew's Episcopal Church: St. Mary's Chapel - rear gallery
2120 Lincoln Street
Evanston, IL
Images

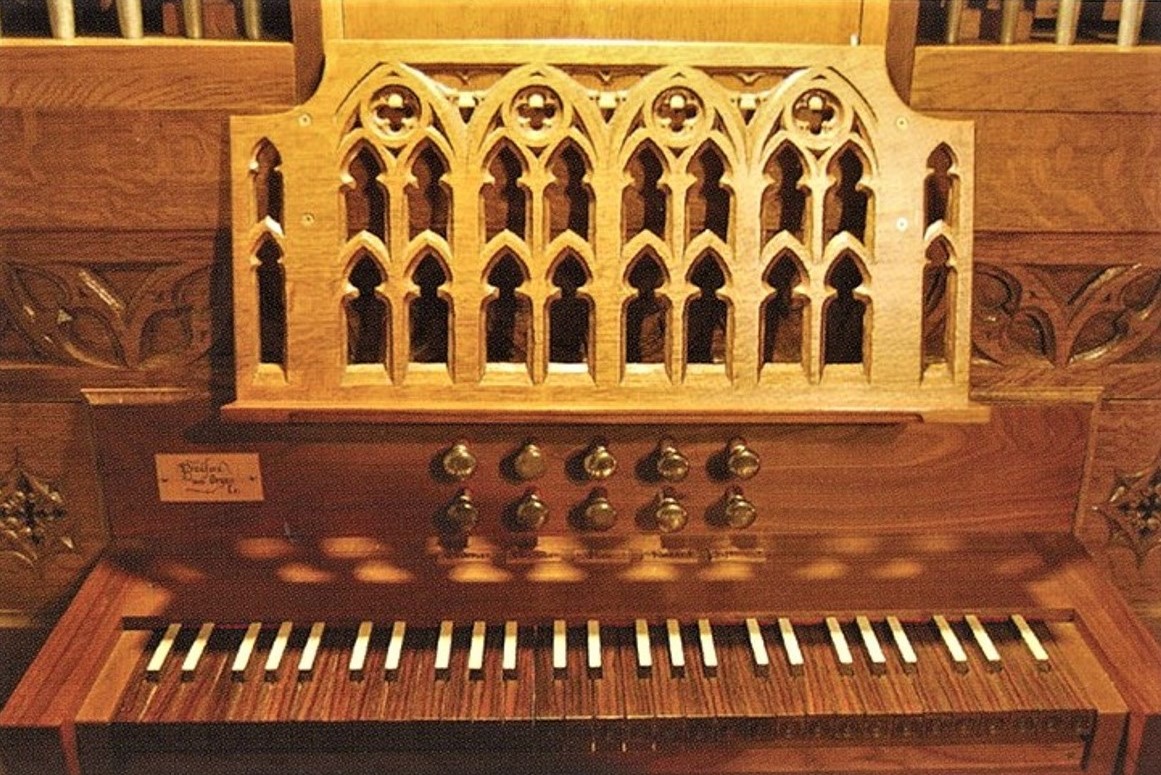

Date unknown - Keydesk: manual and stops (Photograph from an archival source: musiqueorguequebec.ca, submitted by Jim Stettner/Jim Stettner)
Date unknown - Organ case/facade with keydesk (Photograph from an archival source: musiqueorguequebec.ca, submitted by Jim Stettner/Jim Stettner)

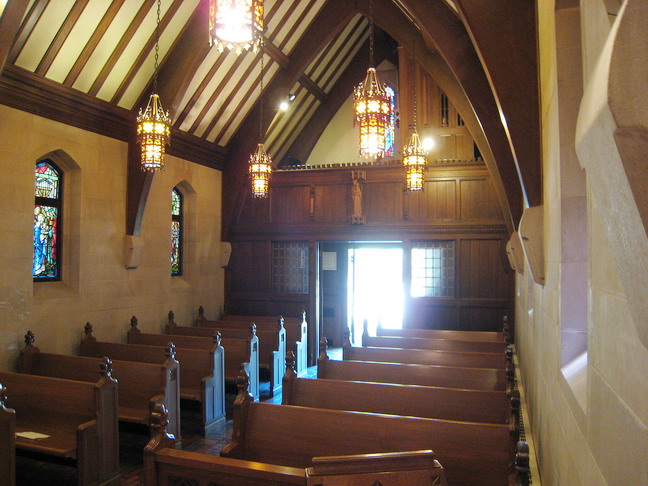

Date unknown - Organ on right side of rear gallery (Photograph from an archival source: musiqueorguequebec.ca, submitted by Jim Stettner/Jim Stettner)
2013-05-07 - Chapel exterior (Photograph from an archival source: Parish Facebook page, submitted by Jim Stettner/Jim Stettner)
Consoles
Gallery
- Organ type: Traditional Without Cover
- Console position: Keydesk Attached
- 1 manuals
- 5 stops
- 10 registers
- 1 divisions
- Key action Type: Mechanical (Details Unknown)
- Stop action Type: Mechanical
- Stop layout Type: Drawknobs in Horizontal Row Above Top Manual
- Manual compass: 56 notes
- Pedal compass: 30 notes
- Pedal Type: Flat Straight
- Expression Type: No Enclosed Divisions
- Combination action: None
Notes
2016-11-26 - This entry describes an original installation of a new pipe organ.
Identified by Ronald Damholt, based on personal knowledge of the organ.
All five stops of this mechanical action instrument are divided at B/c. Compass is 61 manual, 32 pedal. [ed.: corrected 2025. It is 56/30] The pedal board is concave and radiating and simply couples to the manual. -Database Manager
2022-10-08 - Correction: Manual/Pedal compasses are 56/30, not 61/32 as stated below. The drawknobs are non-engraved metal heads on wooden shanks. Engraved nameplates are below the stops which are in two rows above the manual. -Jim Stettner
2025-03-26 - All carving of the organ's casework was done by George Weissler of Evanston, Illinois. -Ronald Damholt
Stoplist
[Original document from Connor Annable]. [Updated/Corrected by James R. Stettner 2022-10-08]. [Corrected with further information from Ronald Damholt 2025-03-31] Source: Typed stoplist from pipe organ database
PEDAL (Permanently coupled to manual)
MANUAL Gedeckt 8 (Divided Tenor B/Middle c - 2 knobs), Principal 4 (Divided Tenor B/Middle c - 2 knobs), Flute 4 (Divided Tenor B/Middle c - 2 knobs), Fifteenth 2 (Divided Tenor B/Middle c - 2 knobs), Nazard 2 2/3 (Divided Tenor B/Middle c - 2 knobs)
