Stephen J. Russell (& Co.) Opus 38 (1999)

University United Methodist Church: Sanctuary
150 E. Franklin St.
Chapel Hill, NC

Images

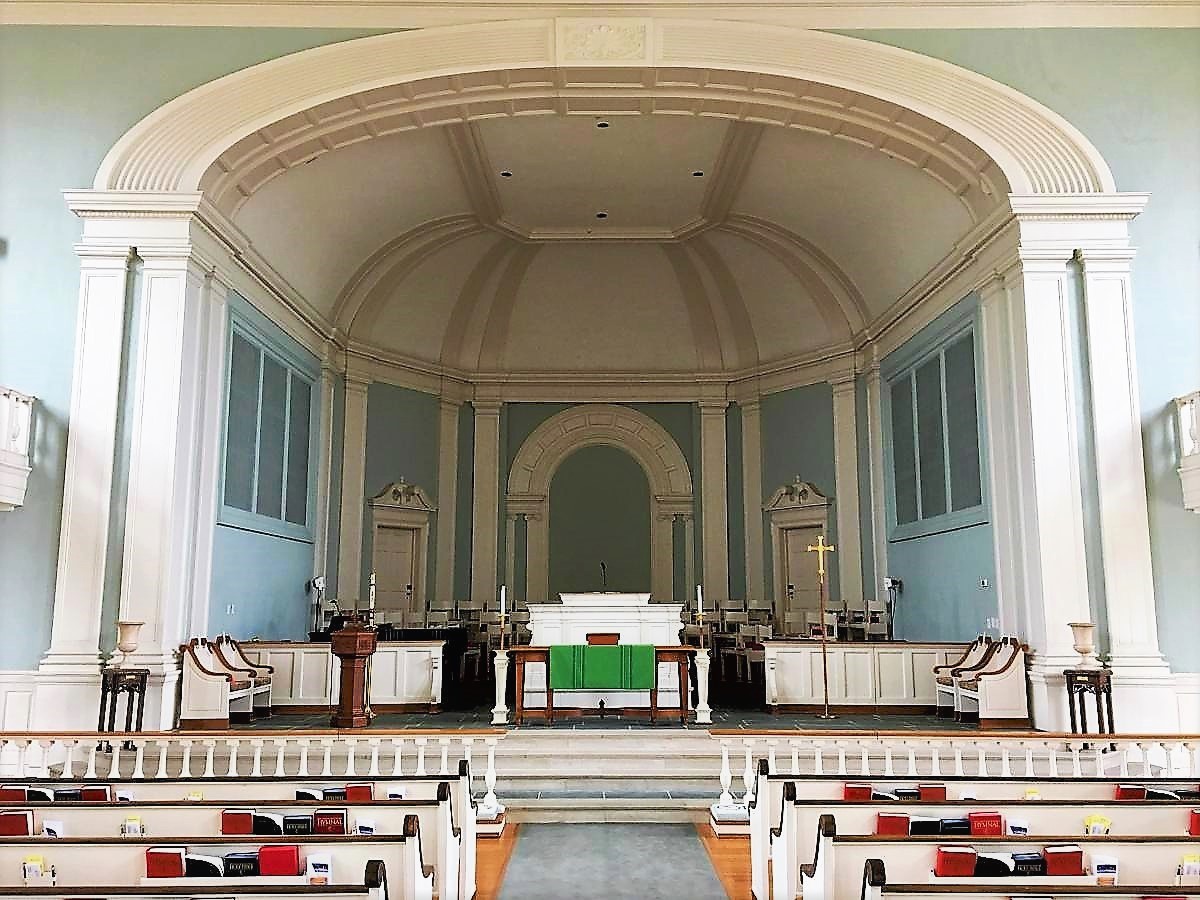

2020-11-02 - Chancel and Chamber Grillework (Photograph by Samuel Freedman/Database Manager)

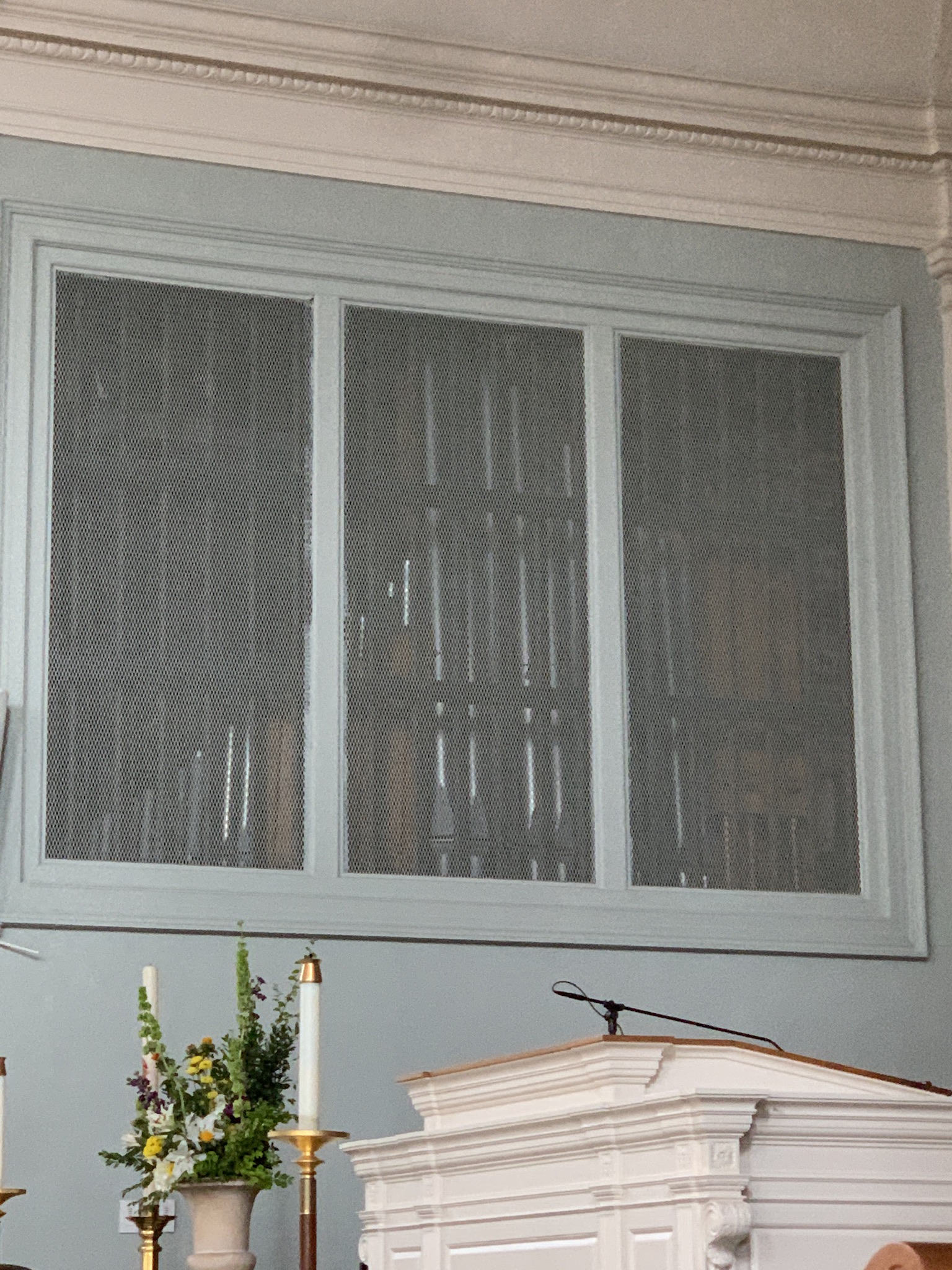

2020-05-12 - Chancel great grillwork (Photograph by Samuel Freedman/Database Manager)

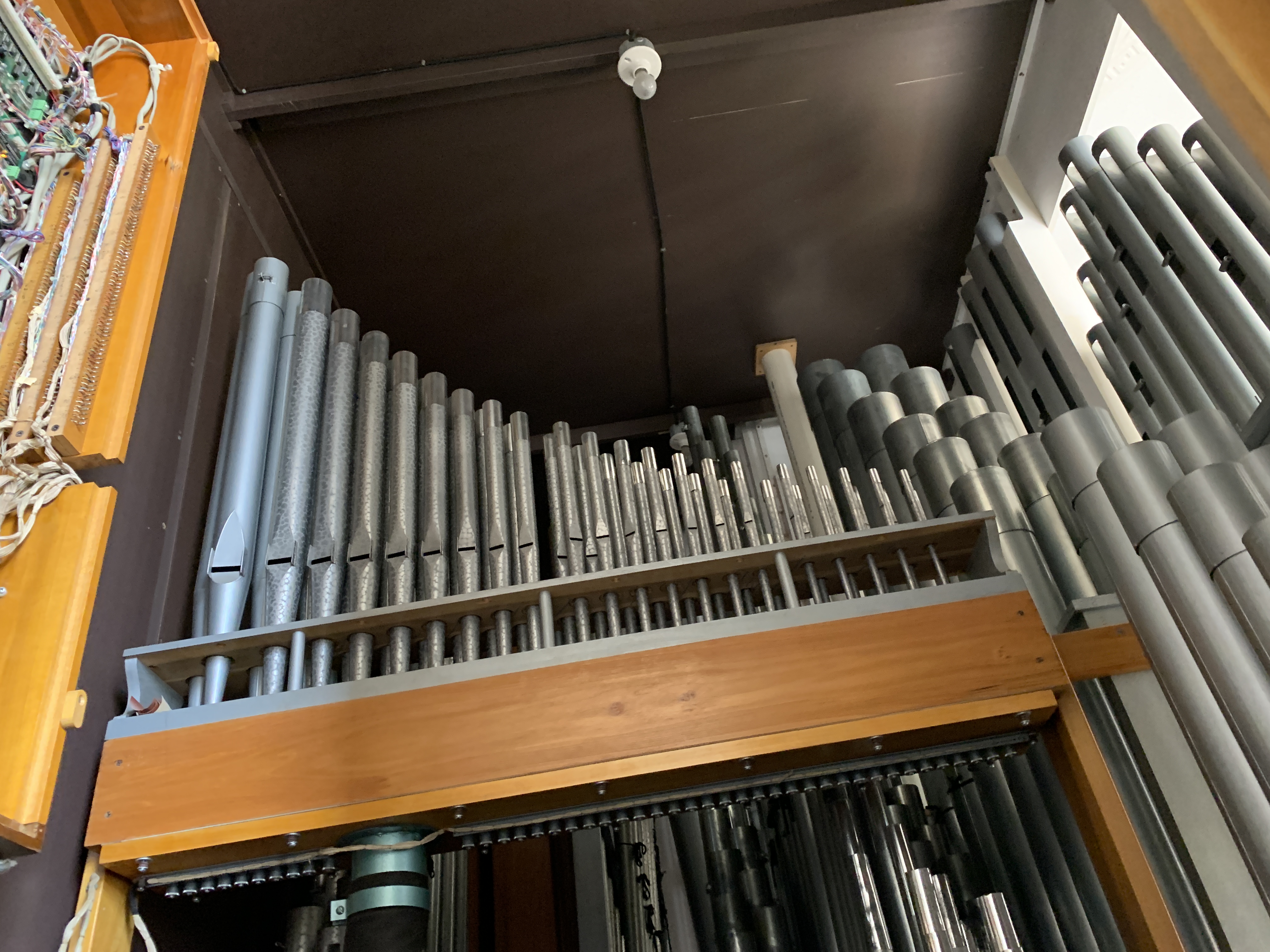

2020-07-20 - Gallery great chamber (Photograph by Samuel Freedman/Database Manager)

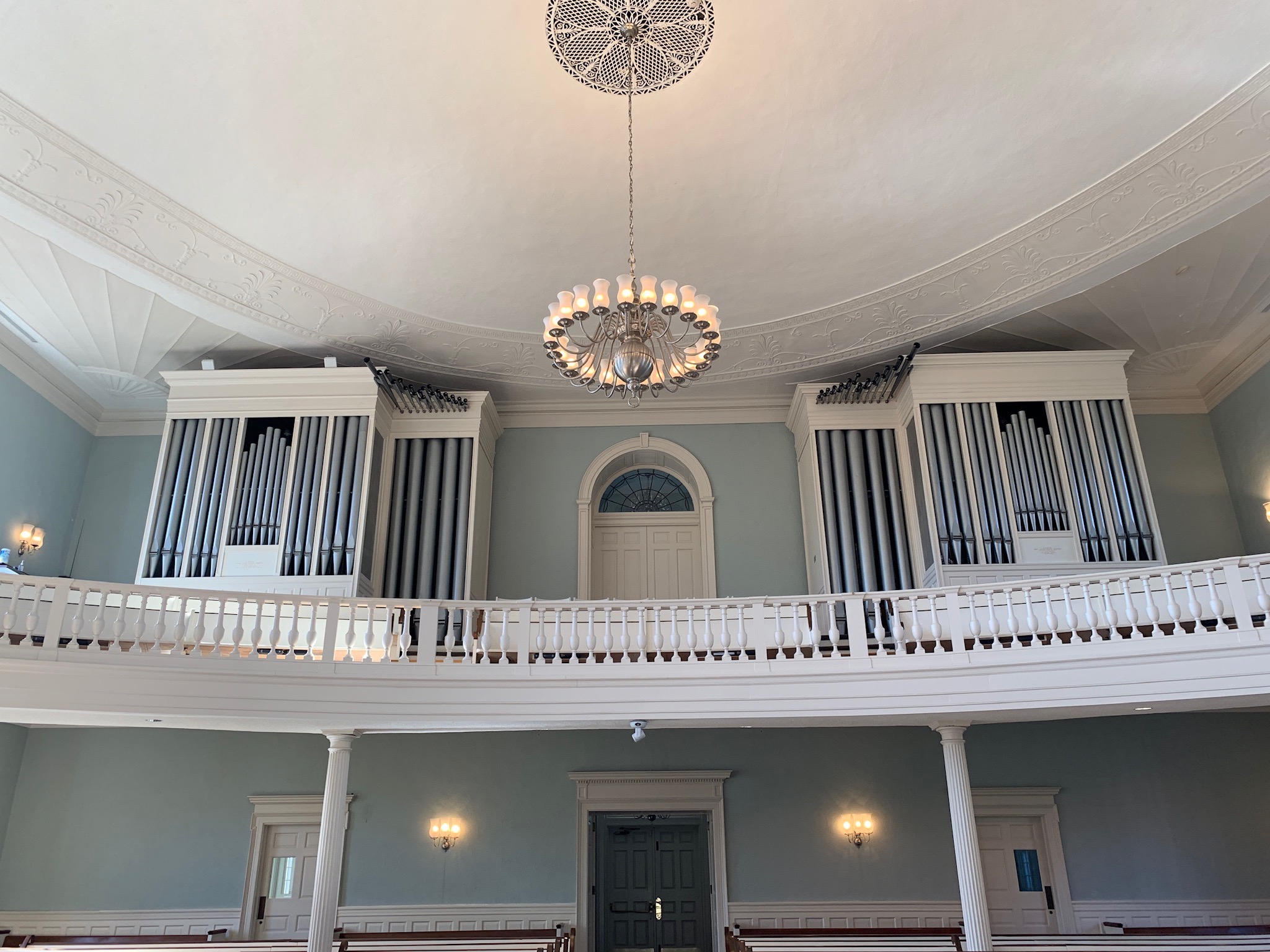

2020-10-16 - Gallery organ (Photograph by Samuel Freedman/Samuel Freedman)

2020-07-20 - Console (Photograph by Samuel Freedman/Database Manager)

2020-10-01 - Console (Photograph by Samuel Freedman/Database Manager)

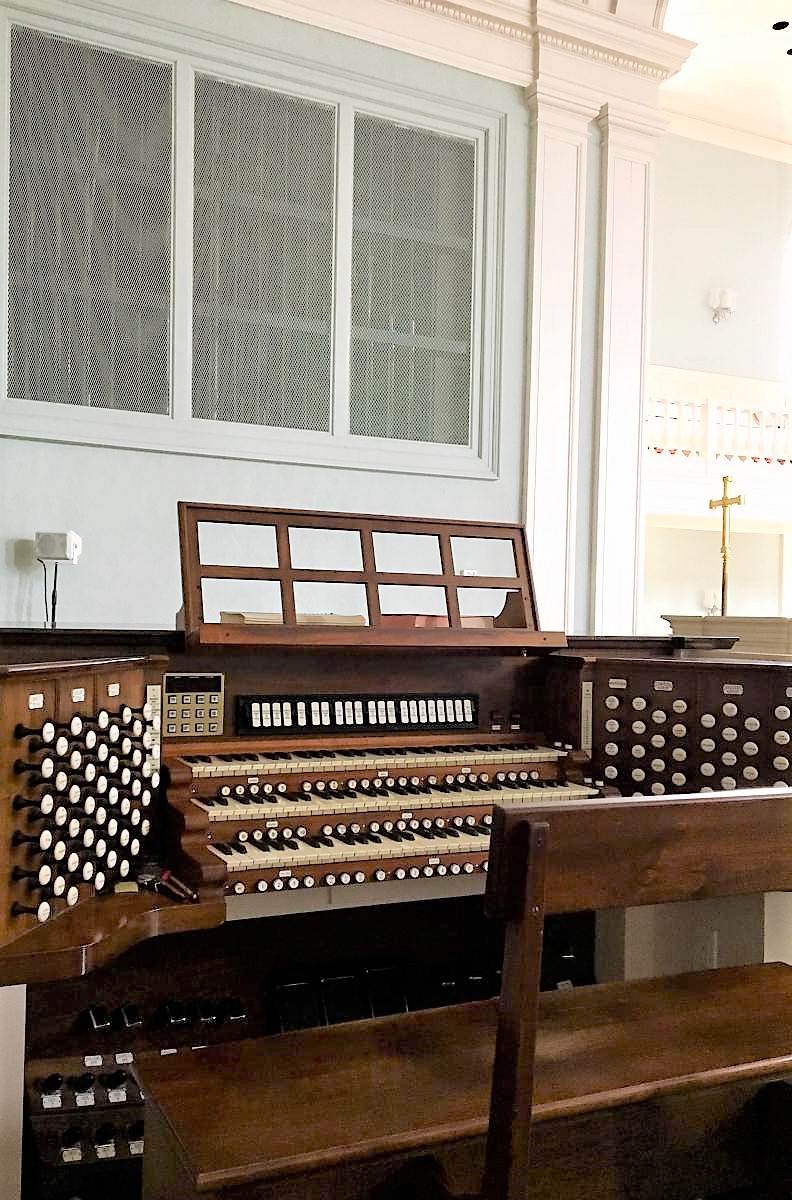

2017-01-17 - Console and Chamber Grillework (Photograph by Don Sizemore/Database Manager)

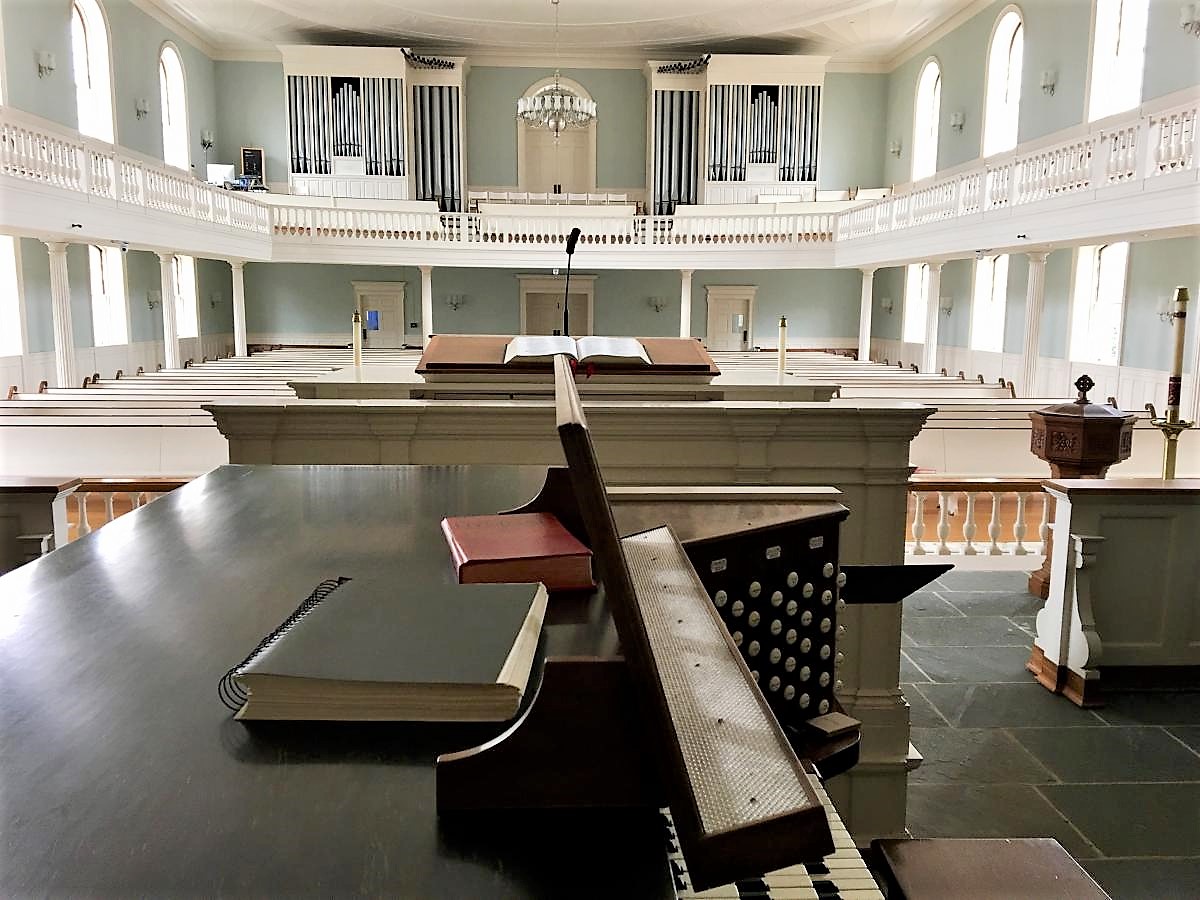

2017-01-17 - Console, Nave, and Gallery Organ Cases (Photograph by Don Sizemore/Database Manager)

2017-01-17 - Chancel and Chamber Grillework (Photograph by Don Sizemore/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Movable Console
3 manuals
38 stops
77 registers
7 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Details Unknown)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has sequencer
Has combination thumb pistons
Has combination toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Auxiliary keyboard

Organ type: Non-Traditional Style, As Consoles by Holtkamp, Schlicker, et al
Console position: Movable Console
1 manuals
Key action Type: Electrical
Manual compass: 61 notes
Pedal Type: No Pedalboard
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has tutti thumb pistons

Notes

2017-01-29 - This was a new console for 1977 3/44 Moller Op. 11370, with digital additions. -Database Manager

2020-10-20 - There was a 4' Rhor Schalmey added to the Gallery Positv. (Mostly used in the Gallery Pedal.) -Samuel Freedman

Stoplist

Stoplist of Russell & Co. revision Source: Stoplist provided by Organ Student at UUMC

        Chapel Hill, North Carolina
        Univeristy United Methodist Church

        M. P. Möller    Op. 11370   1977   3/44
        Russell & Co.   Op. 38      1999   3/45 + 12 digital ranks
        _________________________________________________________________

    CHANCEL GREAT II          CHANCEL SWELL III          CHANCEL PEDAL

    16' Bourdon .........61   8' Rohrflöte..........61   32' Contre Violone..dg
     8' Principal........61   8' Gemshorn...........61   32' Contre Bourdon..dg
     8' Flute Harmonique.dg   8' Gemshorn Celeste...49   16' Principal.......dg
     8' Bourdon..........12   8' Flute Celeste II...dg   16' Bourdon Gt.
     8' Gambe............dg   4' Spitz Principal....61    8' Octave Gt.
     8' Gambe Celeste....dg   4' Rohrflöte..........12    8' Bourdon Gt.
     4' Octave...........12   2' Spitz Principal....12    8' Gemshorn Sw.
     4' Bourdon..........12   1 1/3' Gemshorn.......19    4' Octave Gt.
     2' Blockflöte.......12  16' Fagotto............dg    4' Rohrflöte Sw.
    II  Sesquialtera.....98   8' Trompette..........61   IV  Mixture Gt.
    III-IV  Mixture.....183   8' Hautbois...........dg   32' Contre Fagotto..dg
     8' Trompete.........dg   8' Clarinette.........dg   16' Trompette..12 Sw.
     Tremulant                8' Voix Humaine.......dg   16' Fagotto Sw.
     Chimes                   4' Trompette..........12    8' Trompette Sw.
                              Tremulant                   8' Hautbois Sw.
                                                          4' Trompette Sw.
    GALLERY GREAT II          GALLERY POSITIV I
                                                         GALLERY PEDAL
    16' Quintaton........61   8' Spitz Principal....61
     8' Principal........61   8' Holzgedeckt........61   32' Resultant
     8' Bourdon..........61   4' Principal..........61   16' Principal....12 Gt.
     8' Spitzflöte (Pd.)      4' Koppelflöte........61   16' Bourdon......12 Gt.
     8' Dolce............61   2' Octave.............61   16' Quintaton....Gt.
     4' Octave...........61  1 1/3' Larigot.........61    8' Octave.......32
     4' Flachflöte.......12  III  Scharf............183   8' Gedecktpommer.32
     2' Spindleflöte.....12   8' Cromorne...........61    8' Spitzflöte...32
    II  Sesquialtera.....98   4' Rohr Schalmey......61    4' Octave.......12
    IV  Fourniture......244   Tremulant                   4' Gedeckt......12
     8' Trompete.........61                               4' Spitzflöte...12
        Tremulant              FANFARE                   III  Mixture.....96
        Zimbelstern         8' State Trumpet on GT  47   16' Posaune......32
                            8' State Trumpet on SW  --    8' Trompet......12
                            8' State Trumpet on PO  --    4' Clarion......12
                            8' State Trumpet on PD  --    4' Rohr Schalmey (Po.)
Total pipes: 3176
The organ is in good condition, and in regular use.


                [Received from Samuel Freedman September 5, 2020]
