Austin Organs, Inc. Opus 2334A (1996)

Presbyterian Church in Morristown
57 East Park Place
Morristown, NJ

Images

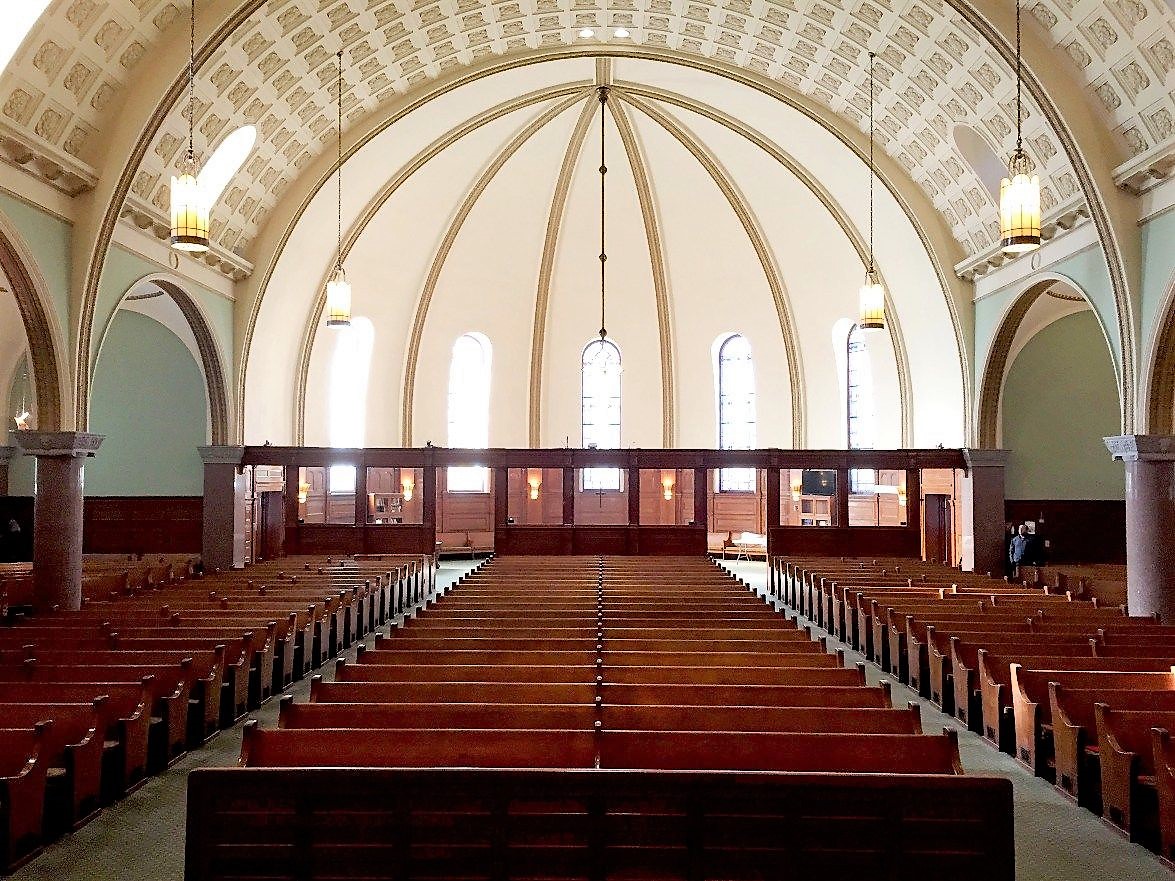

2017-02-06 - Nave (Photograph by Patrick E. Parris/Database Manager)

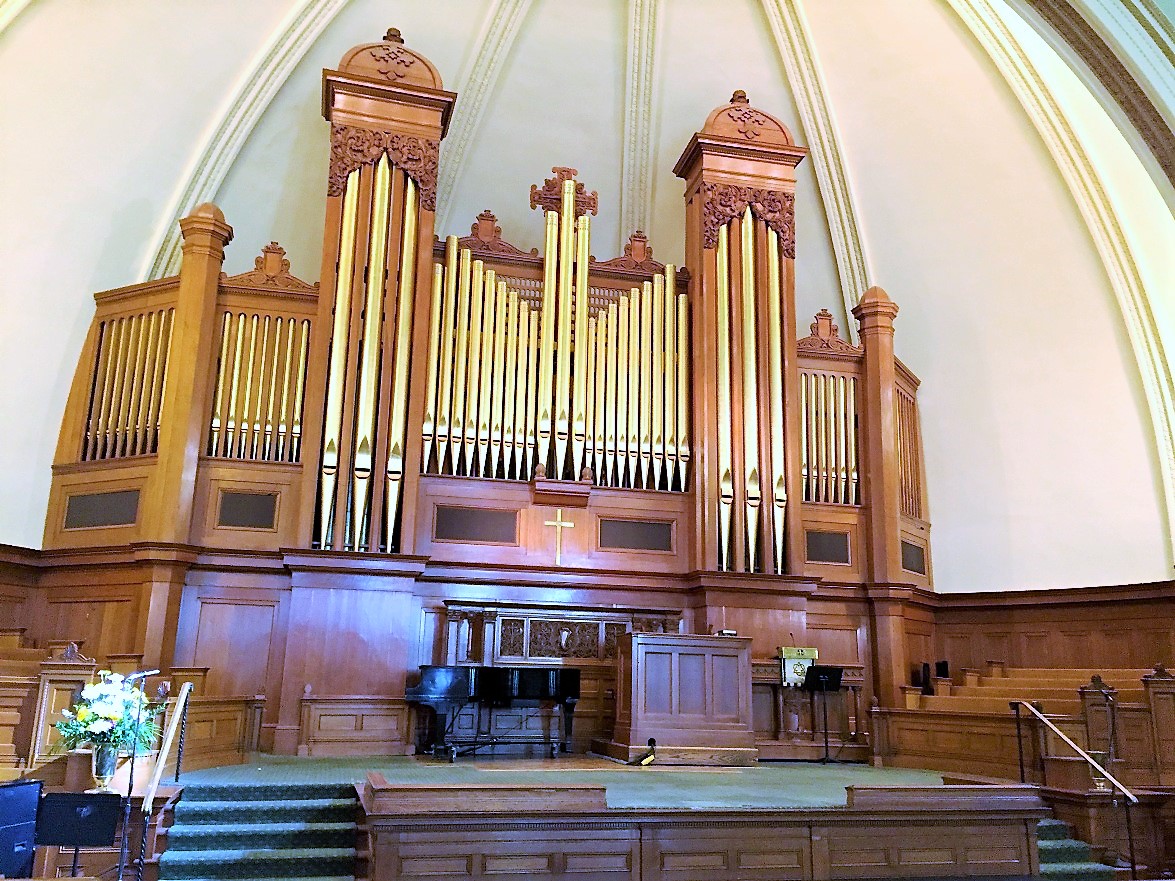

2017-02-06 - Chancel and Organ Case (Photograph by Patrick E. Parris/Database Manager)

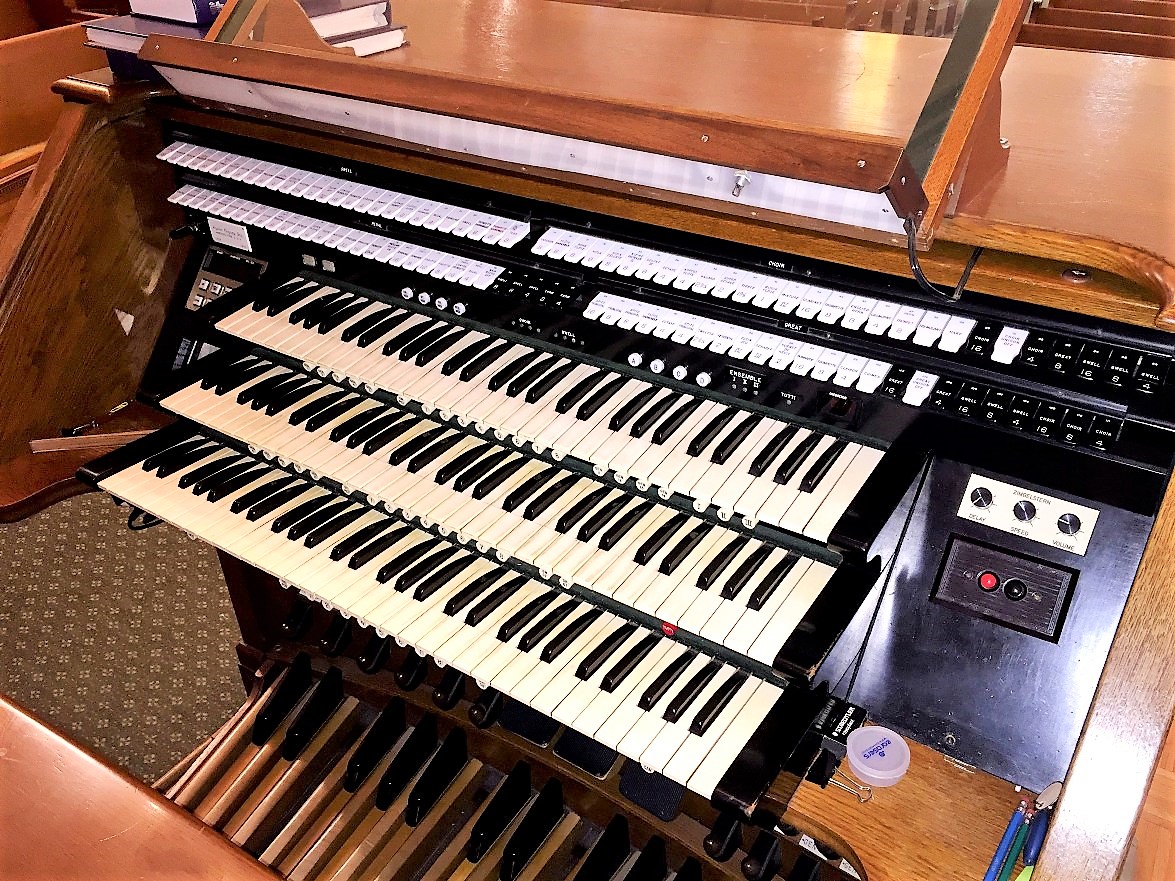

2017-02-06 - Console (Photograph by Patrick E. Parris/Database Manager)

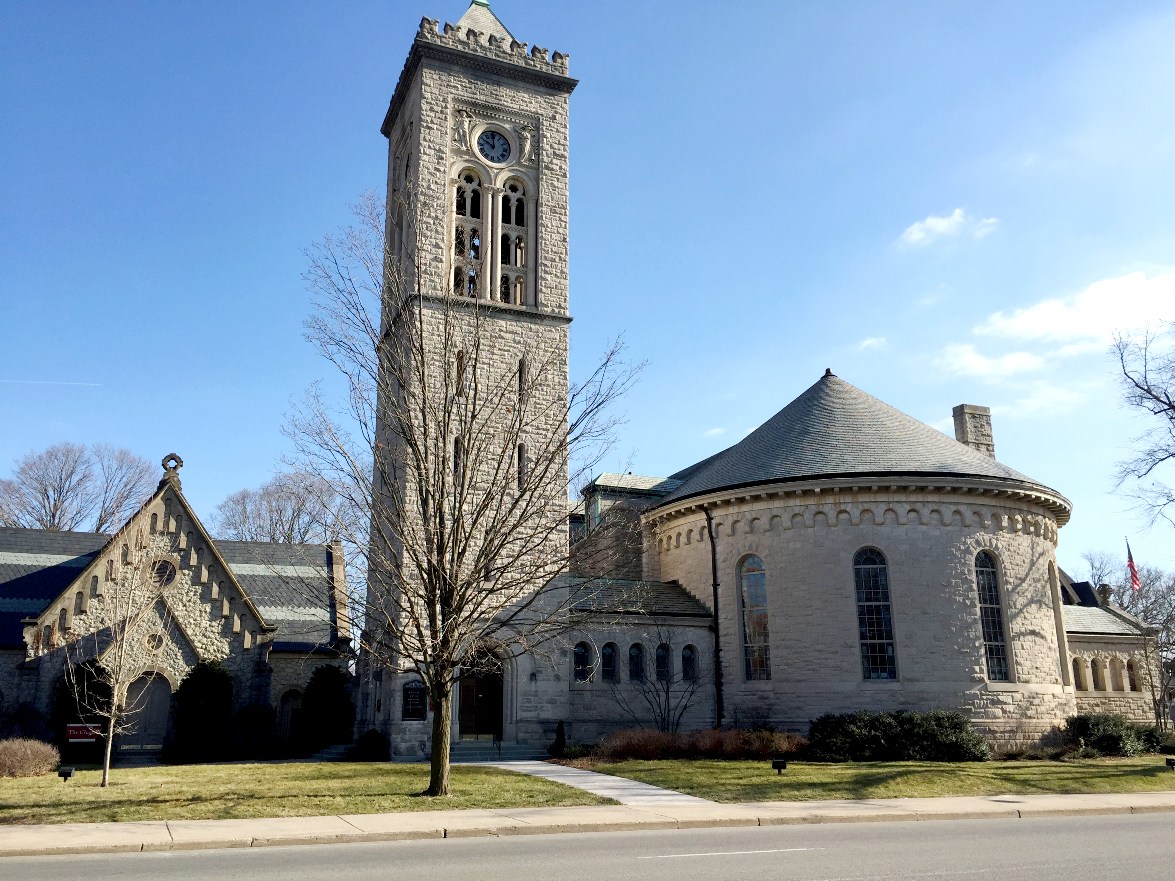

2017-02-06 - Church Exterior (Photograph by Patrick E. Parris/Database Manager)

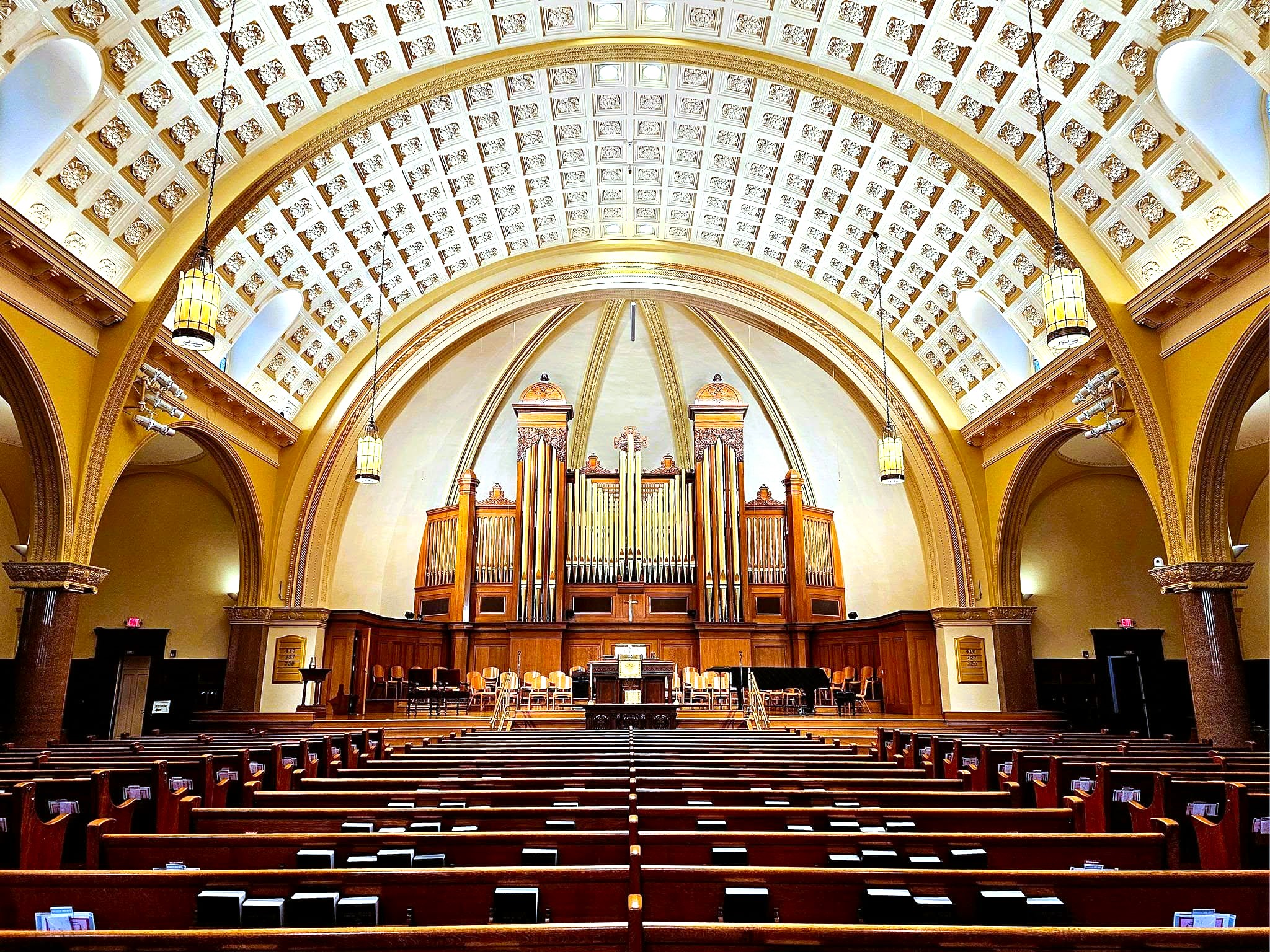

2025-03-01 - Church interior (Eric Plutz, via Facebook/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
3 manuals
41 stops
65 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2017-02-23 - Originally installed in 1960 as 3/46 Austin Op. 2334. -Database Manager

Stoplist

Typed stoplist from Jeff Scofield Source: Stoplist from the church website Date not recorded

       Morristown, New Jersey
       The Presbyterian Church in Morristown

       Austin   Op. 2334   1960/1996   3/56
       _____________________________________________________

            Stops without pipecounts are Walker digital

       GREAT                             CHOIR

   16' Spitz Principal   12           8' Diapason         68
    8' Principal         61           8' Flute Harmonique 68
    8' Spitz Principal   61           8' Rohrflöte        68
    8' Flute Harmonique  49           8' Viola
    4' Octave            61           8' Viola Celeste
    4' Spitz Principal   12           8' Kleinerzähler II
2 2/3' Twelfth           61           8' Dulcet II
    2' Fifteenth         61           4' Octave           68
    V  Cornet de Récit  150           4' Koppelflöte      68
   IV  Plein Jeu        244       2 2/3' Nasard           61
  III  Scharff          183           2' Super Octave     61
   16' Bombarde          12       1 3/5' Tierce           61
    8' Trompette         61           1' Blockflöte       61
    4' Clairon           12          IV  Mixture         244
       Chimes                        16' Clarinet
                                      8' Trompette        68
       SWELL                          8' English Horn
                                      4' Cromorne         68
   16' Spitzflöte        12              Tremulant
   16' Bourdon           12              Sub
    8' Geigen            68              Unison Off
    8' Flûte Traverse                    Super
    8' Bourdon           68              Harp
    8' Viole de Gambe    68           8' Trumpet          24 PD
    8' Voix Céleste      68
    8' Dolcan            68              PEDAL
    8' Dolcan Celeste    68
    4' Prestant          68          32' Violone
    4' Flute Harmonique              32' Bourdon
    4' Lieblichflöte     12          16' Contra Bass      32
2 2/3' Nazard                        16' Flute Ouverte
    2' Octavin           61          16' Spitz Principal  GT
   IV  Plein Jeu        244          16' Bourdon          SW
   16' Contra Trompette  12          16' Gamba
    8' Trompette         68          16' Erzähler         32
    8' Trumpet           68           8' Octave           32
    8' Flugel Horn                    8' Spitz Principal  GT
    8' Vox Humana                     8' Bourdon          SW
    4' Octave Trumpet    68           8' Erzähler         12
    4' Clairon           12           4' Super Octave     12
    4' Regal             61           4' Flute            CH
       Tremulant                    III  Mixture          96
       Super                         32' Ophicleide  F/L  12 a
    8' Trompette Harmonique c        16' Ophicleide       32
    8' Trompette Harmonique nc       16' Bombarde         GT
    8' Tuba                          16' Contra Trompette SW
                                     16' Fagotto          32
    a  added 1985                     8' Trumpets 8+4     24
    c  coupling'                      8' Bombarde         GT
   nc  non-coupling                   8' Fagotto          12
                                      4' Regal            SW
    b  Ancillary reeds at                Ancillary Reeds  ON b
       32, 16, 8 & 4                     Main Reeds      OFF b

          [Received from Jeff Scofield February 24, 2016]
