All Saints' Episcopal Church
201 Scarborough Road
Briarcliff Manor, NY
Images
2022-07-07 - Pedal stop tabs (Photograph by Justin Tokke/Justin Tokke)

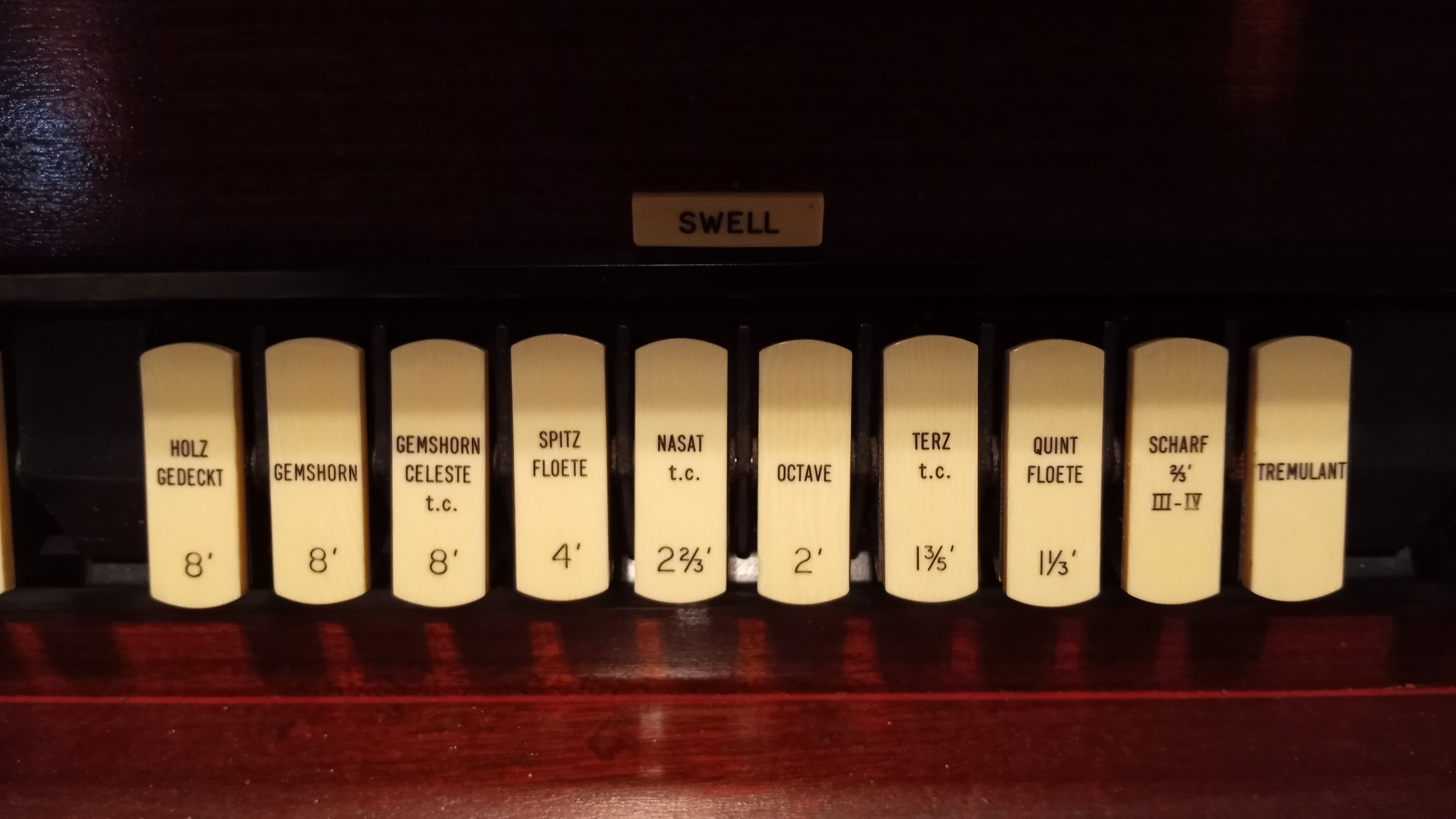

2022-07-07 - Swell stop tabs (Photograph by Justin Tokke/Justin Tokke)
2022-07-07 - Great stop tabs (Photograph by Justin Tokke/Justin Tokke)
2022-07-07 - Console (Photograph by Justin Tokke/Justin Tokke)
2022-07-07 - Builder's nameplate (Photograph by Justin Tokke/Justin Tokke)
2022-07-07 - Organ façade to the left of the altar (Photograph by Justin Tokke/Justin Tokke)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Console in Fixed Position, Left
- 2 manuals
- 3 divisions
- Stop layout Type: Tilting/Rocking Tablets Above Top Manual
- Manual compass: 58 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Adjustable Combination Pistons
Stoplist
Source: Taken from Console 6/27/2022
Great Principal 8, Rohr Floete 8, Octave 4, Rohr Pfeiffe 2, Mixture IV-V 1⅓, Dulzian 8, Chimes, Swell to Great
Swell (Enclosed) Holz Gedeckt 8, Gemshorn 8, Gemshorn Celeste T.C. 8, Spitz Floete 4, Nasat T.C. 2⅔, Octave 2, Terz T.C. 1⅗, Quint Floete 1⅓, Scharf III-IV ⅔, Tremulant
Pedal Resultant 32, Sub Bass 16, Principal 8, Rohr Gedeckt 8 (Great), Octave 4, Super Octave 2, Mixture III-IV 2', Dulzian 16 (Great), Dulzian 8 (Great), Great to Pedal, Swell to Pedal
