Schlicker Organ Co. (1972)

Redeemer Lutheran Church
78 John Street W
Waterloo, ON, CA

Images

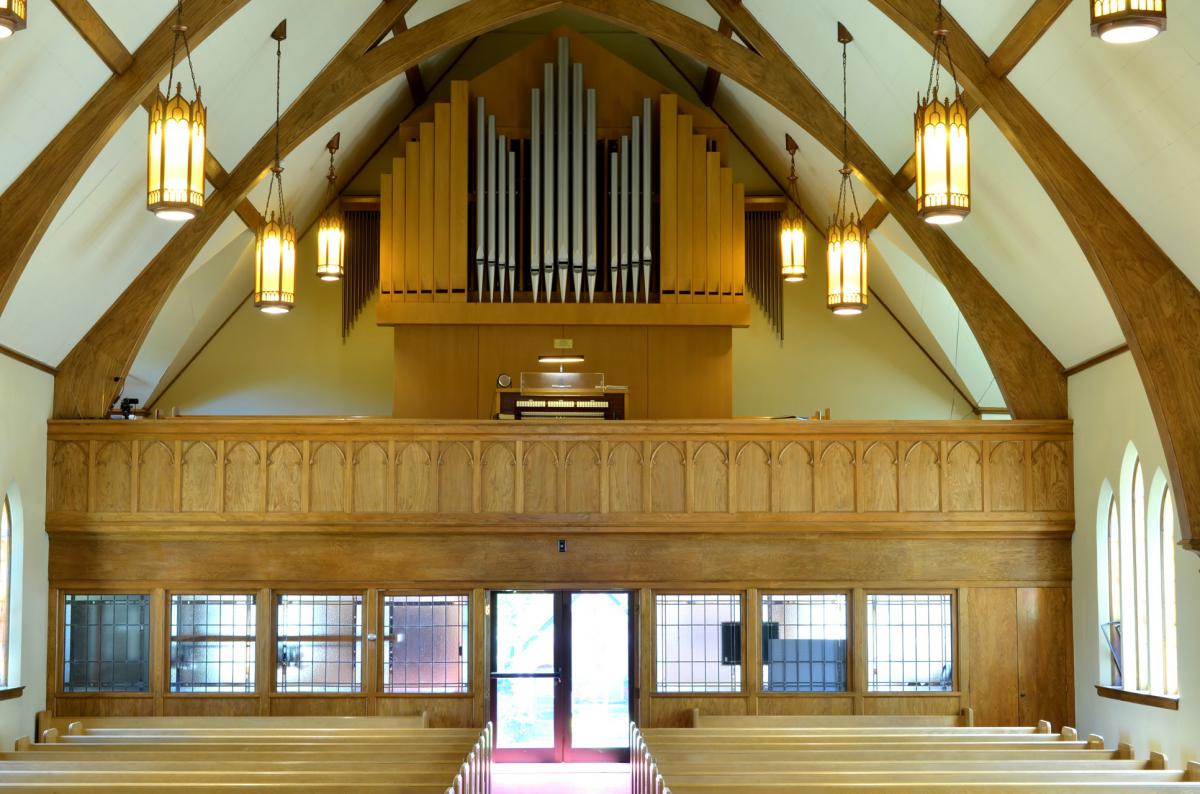

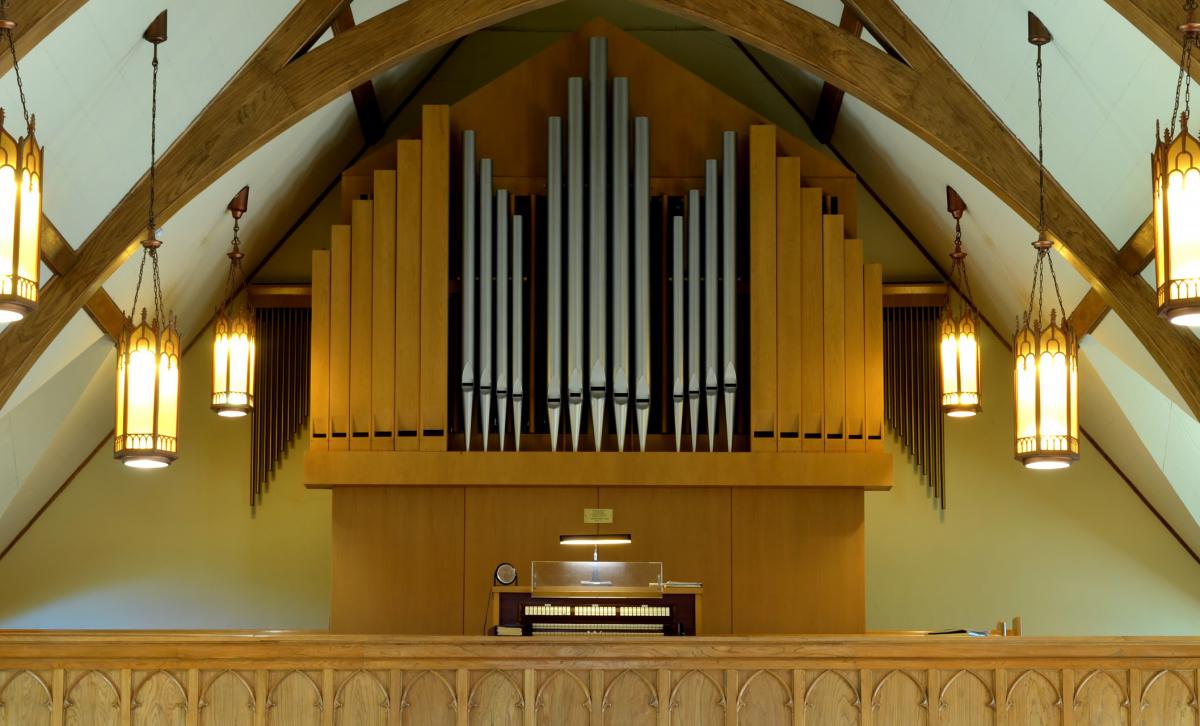

2017-09-02 - Organ Case in Gallery (Photograph by Paul A. Walrath/Database Manager)

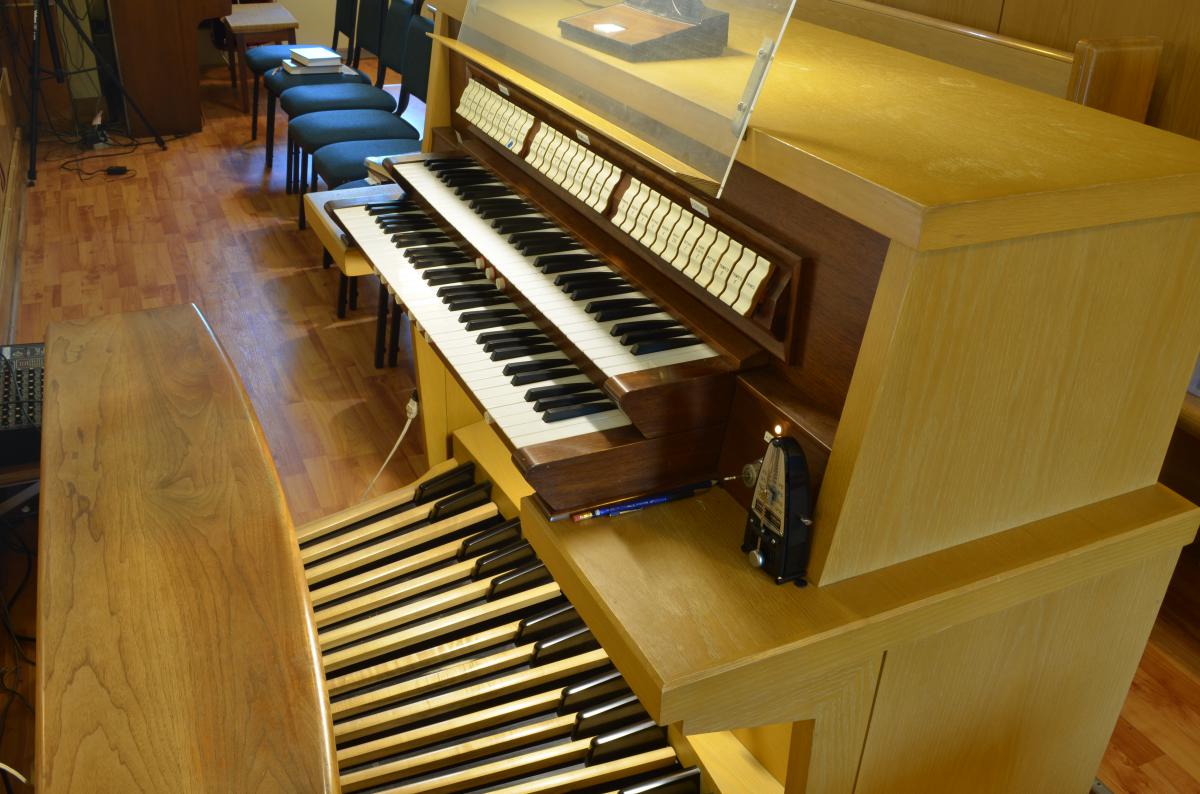

2017-09-02 - Console (Photograph by Paul A. Walrath/Database Manager)

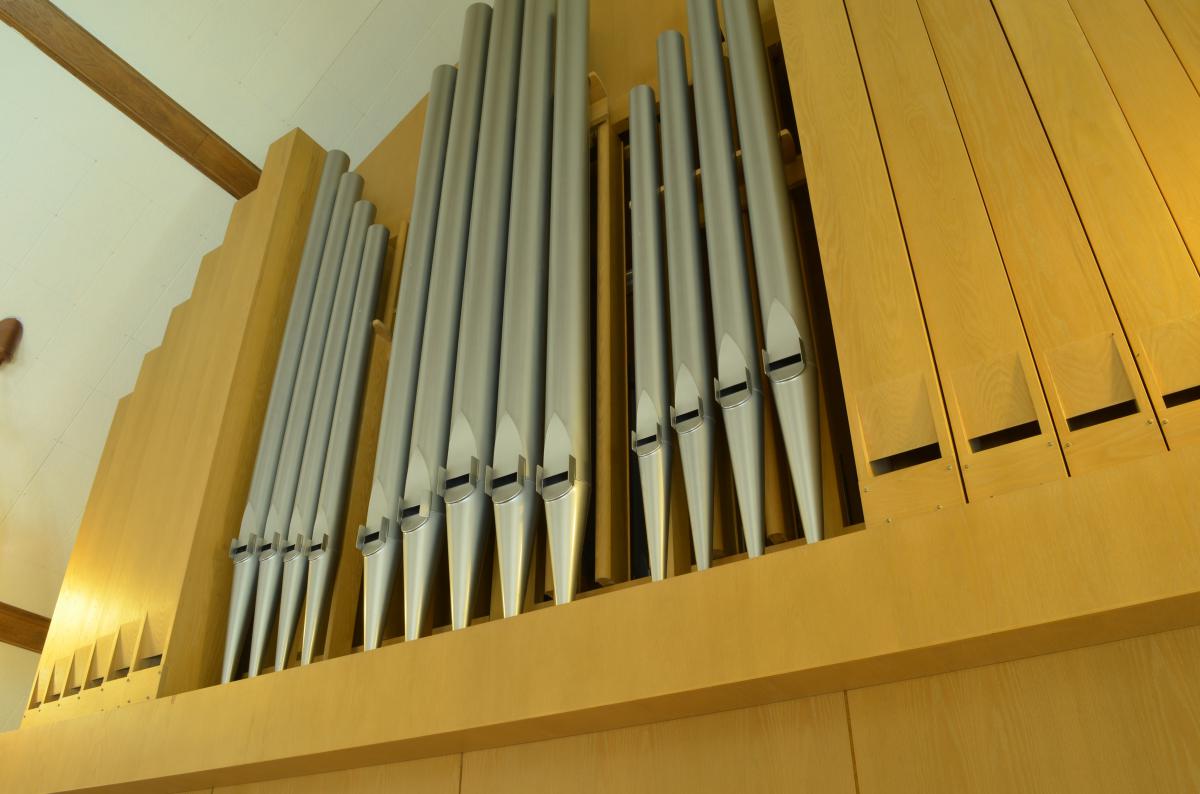

2017-09-02 - Pipework (Photograph by Paul A. Walrath/Database Manager)

Consoles

Main

Organ type: Non-Traditional Style, As Consoles by Holtkamp, Schlicker, et al
Console position: Console in Fixed Position, Center
2 manuals
31 registers
1 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has combination toe pistons

Notes

2017-08-23 - This entry describes an original installation of a new pipe organ. <br>Identified by Paul A. Walrath, who has heard or played the organ. -Database Manager

2017-08-24 - Updated by Paul A. Walrath, who has heard or played the organ. -Database Manager

Stoplist

Original document from Paul A. Walrath. Source: Stoplist taken from console 2017-08-24

Waterloo, ON
Redeemer Lutheran Church

Schlicker Organ Co. (1972)


GREAT:

 8' Principal
 8' Gedeckt
 8' Salicional
 4' Octave
 4' Gedeckt
2⅔' Nasat
 2' Octave
 2' Rohrfloete
Mixture III
 8' Trompete
 4' Trompete
Chimes


SWELL:

 8' Gedeckt
 8' Salicional
 4' Rohrfloete
 4' Salicional
 2' Principal
 2' Gedeckt
1⅓' Larigot
 1' Siffloete
 8' Trompete
Tremolo


PEDAL:

16' Untersatz
 8' Principal
 8' Salicional
 8' Gedeckt
 4' Octave
 4' Gedeckt
 2' Rohrfloete
Rausch-quint II
16' Trompete
 8' Trompete
 4' Clarion



RANKS:
16' Gedeckt (wood)
8' Principal
8' Salicional
4' Rohrfolete (metal)
16' Trompete
Mixture III



No couplers.
