Organ Historical Society Headquarters - "Stoneleigh"
330 North Spring Mill Road
Villanova, PA
Images
2019-01-23 - Console and room (Photograph by Joseph Routon, submitted by Jeff Scofield/Jeff Scofield)
2019-10-13 - Console (Photograph by Jeff Scofield/Database Manager)
2019-10-13 - Console (Photograph by Jeff Scofield/Database Manager)
2019-10-13 - Console and Room (Photograph by Jeff Scofield/Database Manager)
2019-10-13 - Left Stopjamb (Photograph by Jeff Scofield/Database Manager)
2019-10-13 - Right Stopjamb (Photograph by Jeff Scofield/Database Manager)
2019-10-13 - Coupler rail (Photograph by Jeff Scofield/Database Manager)
2019-10-13 - Stoneleigh Exterior (Photograph by Jeff Scofield/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- 3 manuals
- 31 stops
- 52 registers
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Tilting/Rocking Tablets on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Has crescendo
- Has combination thumb pistons
- Has combination toe pistons
Notes
2017-12-04 - Originally built in 1931 for the C. W. Nichols residence ("Pleasantdale Château") in West Orange, New Jersey. -Database Manager
Stoplist
Typed Specification Source: courtesy Chris Kehoe, Emery Brothers Date not recorded
Villanova, Pennsylvania
Organ Historical Society Headquarters - "Stoneleigh"
Aeolian-Skinner Organ Co., Inc. Opus 878 1931 3 manuals, 31 stops, 35 ranks
Originally built for the C. W. Nichols residence in West Orange, New Jersey
This installation by Emery Brothers (2017)
_________________________________________________________________________________
GREAT ORGAN (II) SWELL ORGAN (III)
8' First Diapason 73 16' Flute (ext. 8') 12
8' Second Diapason 73 8' Diapason 73
8' Flute F 73 8' Spanish Flute 73
8' Flute P 73 8' String F Vibrato (TC) 61
8' String F 73 8' String F 73
8' String P 73 8' String P Vibrato (TC) 61
4' Octave 73 8' String PP 73
4' Flute 73 4' Flute 73
2' Piccolo 61 2' Flageolet (fr. 4') --
8' Trumpet 73 Mixture V 305
8' Clarinet 73 8' Cornopean 73
Chimes 8' Oboe 73
8' Harp (TC) 8' Vox Humana 73
4' Celesta Swell Unison Release
Great Unison Release Swell 4
Great 4 Swell 16
Great 16 Tremolo
Tremolo
CHOIR ORGAN (I) (duplexed from Gt) SOLO ORGAN (floating)
8' Diapason [Second] 8' Flute F 73
8' Flute F 8' String F Vibrato 73
8' Flute P 8' String F 73
8' String F 8' French Horn 73
8' String P 8' Tuba 73
4' Flute Solo to Choir
2' Piccolo Solo to Great
8' Trumpet Tremolo
8' Clarinet
Chimes PEDAL ORGAN
8' Harp (TC) 32' Resultant --
4' Celesta 16' Diapason (ext. Gt) 12
Choir Unison Release 16' Flute F 44
Choir 4 16' Flute P (Sw) --
Choir 16 16' Violone 32
Tremolo 8' Flute F (fr. 16') --
8' Flute P (Sw) --

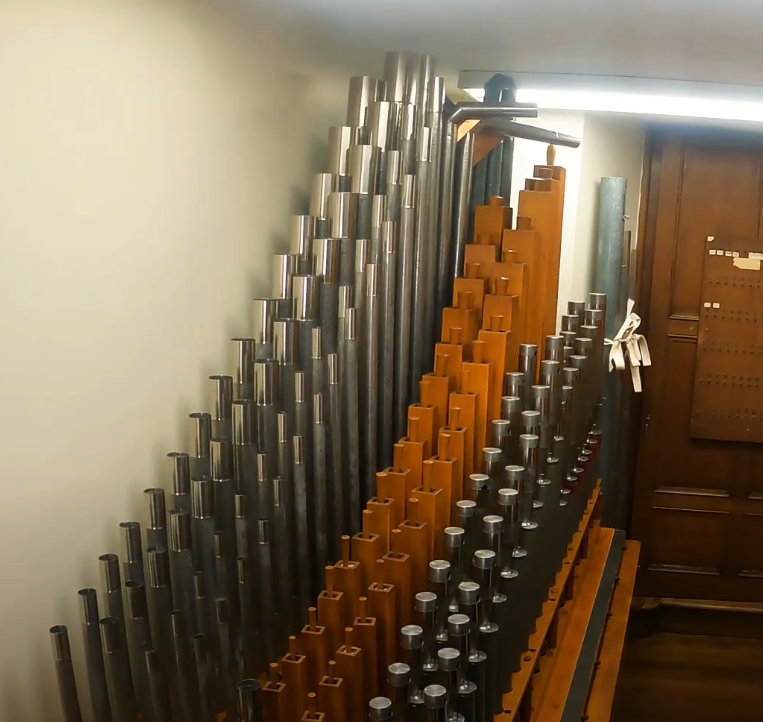

ECHO ORGAN (III) Chimes
8' Diapason 73
8' String 73
8' Flute 73
8' Vox Humana 73
Tremolo
ADJUSTABLE COMBINATIONS COUPLERS
Great 0-1-2-3-4-5 (thumb) Swell to Pedal 8
Swell 0-1-2-3-4-5 (thumb) Great to Pedal 8
Choir 0-1-2-3-4-5 (thumb) Choir to Pedal 8'
Solo 0-1-2-3-4 (thumb) Great to Pedal 4
Pedal 0-1-2-3-4 (thumb & toe) Swell to Pedal 4
General 0-1-2-3-4 (thumb & toe) Swell to Great 16
Set (thumb) Swell to Great 8
General Cancel (thumb) Swell to Great 4
Choir to Great 16
REVERSIBLES Choir to Great 8
Great to Pedal (thumb & toe) Choir to Great 4
Swell to Pedal (thumb & toe) Swell to Choir 16
All Swells (toe) Swell to Choir 8
Sforzando (red) (thumb & toe) Swell to Choir 4
Level (thumb & toe) Echo Only
Echo on Swell
PERCUSSIONS Echo Only
Harp/Celesta 61 bars Echo on Choir
P and F (buttons)
Chimes 21 tubes INDICATOR LIGHTS
P and F (buttons) Sforzando
Dampers On and Off (buttons) All Swells
Crescendo
DUO-ART PLAYER (in console)
Tempo (lever) EXPRESSION
Rewind (button) Balanced Swell Pedal
Balanced Great/Choir Pedal
CONCERTOLA PLAYER Balanced Solo/Echo Pedal
Separate cabinet holding 10 rolls Crescendo
[Received from Steven E. Lawson 2018-05-05]
