Paul Fritts & Co., Organbuilders Opus 42 (2019)

First Lutheran Church: Sanctuary
1019 W 5th Ave
Lorain, OH

Images

2019-07-15 - Pedalboard, toe studs, and expression pedal (Photograph by Erik McLeod/Database Manager)

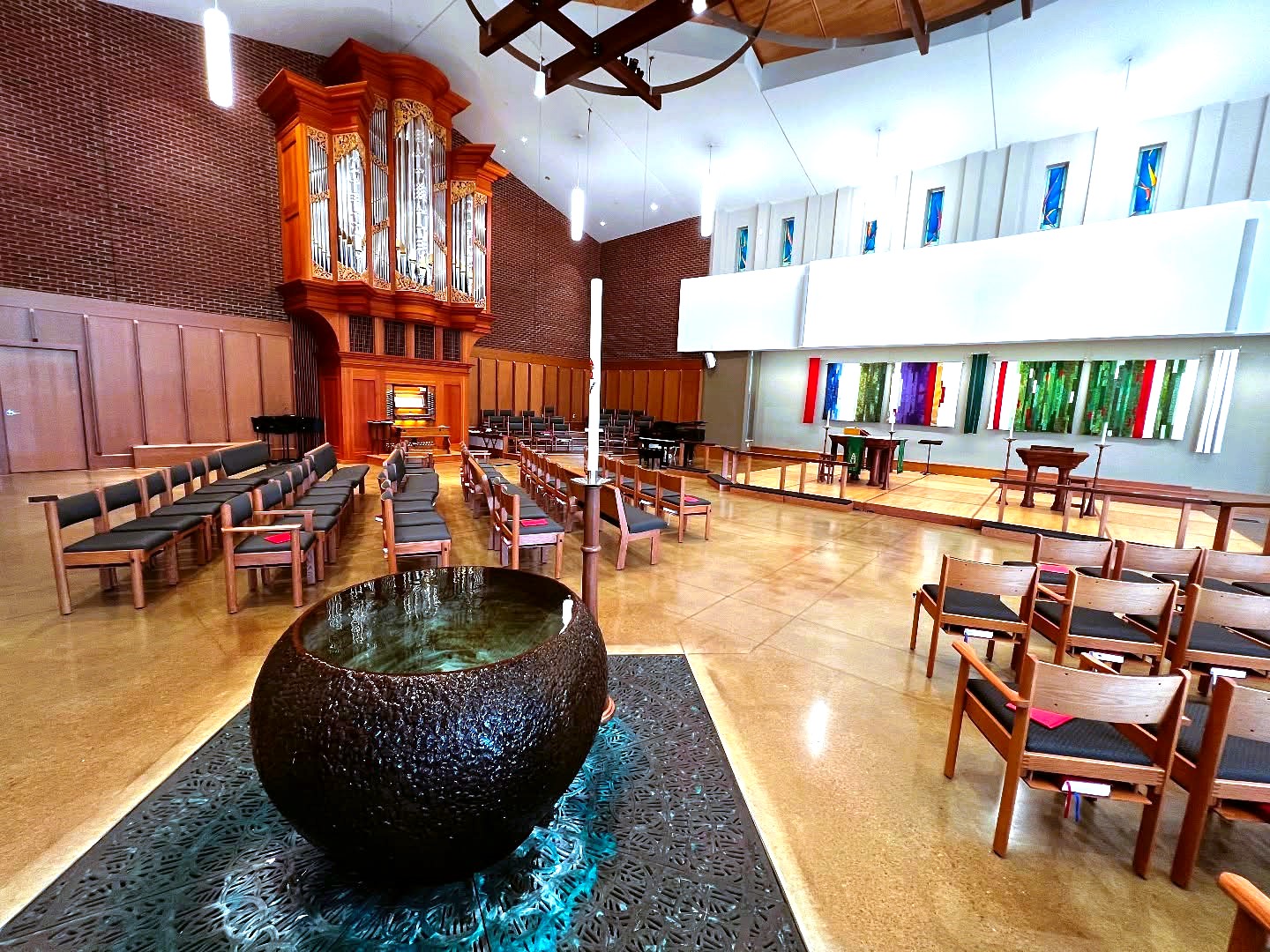

2019-07-15 - Organ case in front of sanctuary (Photograph by Erik McLeod/Database Manager)

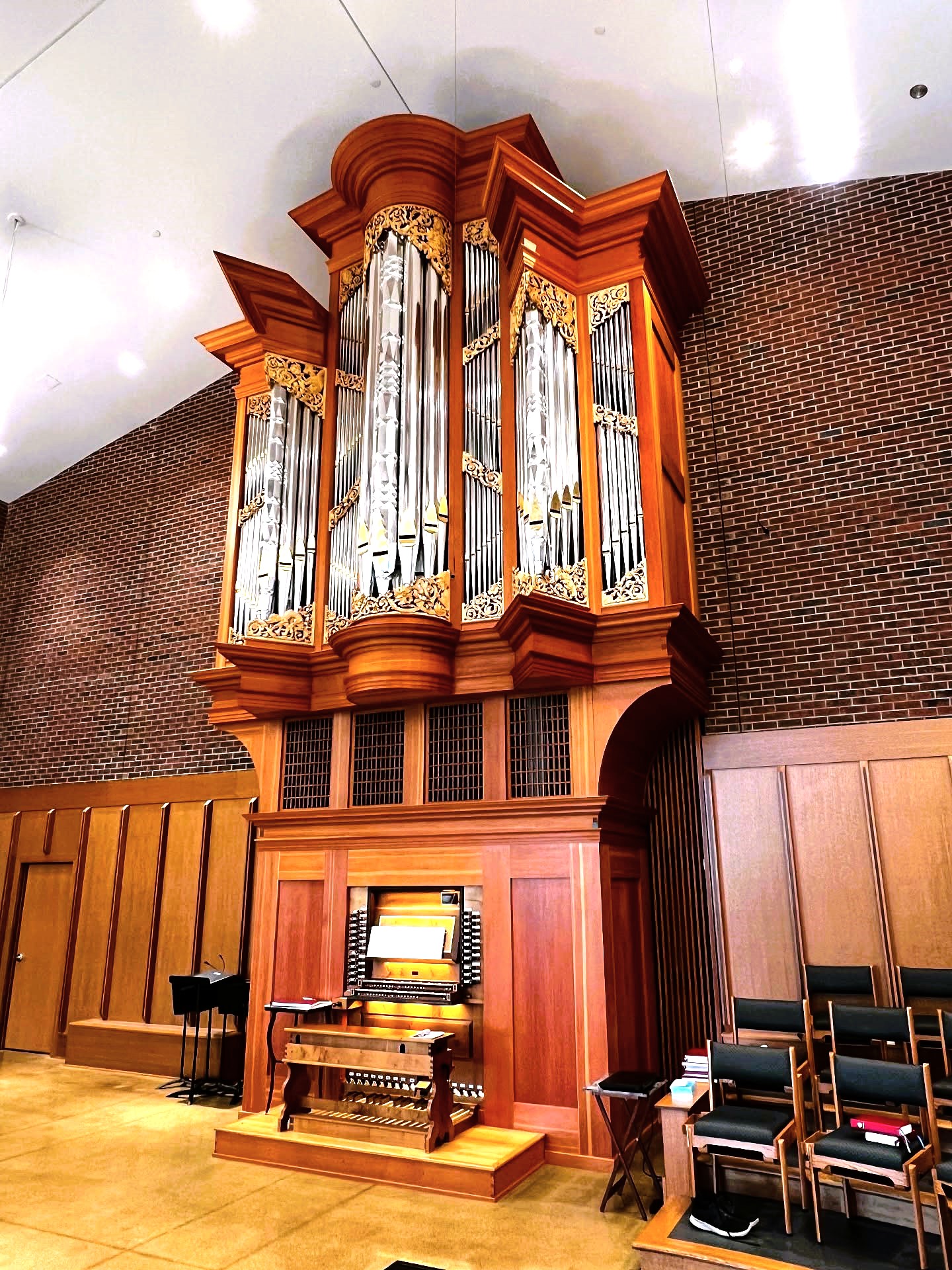

2019-07-15 - Organ Case (Photograph by Erik McLeod/Database Manager)

2019-07-15 - Left stopjamb (Photograph by Erik McLeod/Database Manager)

2019-07-15 - Right stopjamb (Photograph by Erik McLeod/Database Manager)

2019-07-15 - Keydesk (Photograph by Erik McLeod/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached, Manuals Set Into Case
2 manuals
37 stops
37 registers
3 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
Manual compass: 58 notes
Pedal compass: 30 notes
Pedal Type: Flat Straight
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: Computerized/Digital
Has sequencer
Has combination thumb pistons
Has combination toe pistons
Has coupler toe pistons

Notes

2019-07-22 - Per Erik McLeod of the Fritts staff - the stop action is mechanical, but has solenoids for the combination action. So in the event of an electrical problem, the organ is still playable. They refer to it as 'Dual stop action' in the shop. -Database Manager

Stoplist

Typed stoplist Source: from builder's website Date not recorded

Lorain, Ohio
First Lutheran Church

Paul Fritts & Co.   Opus 42   2018      2 manuals, 37 stops, 52 ranks
_____________________________________________________________________

         GREAT ORGAN                       SWELL ORGAN
     16' Praestant          58          8' Principal          58
      8' Octave             58          8' Bourdon            58
      8' Rohrflöte          58          8' Violdigamba        58
      8' Quintadena         58          8' Voix celeste       58
      4' Octave             58          4' Octave             58
      4' Spitzflöte         58          4' Spitzgedackt       58
      3' Quint              58          3' Nasat              58
      2' Octave             58          2' Octave             58
  1 3/5' Tierce             58          2' Blockflöte         58
         Mixture IV-VI       ?      1 3/5' Terz               58
         Scharff III       174      1 1/3' Larigot            58
      8' Trompet            58             Mixture IV-V        ?
      8' Baarpfeife         58         16' Fagott             58
                                        8' Trompet            58
                                        8' Hautbois           58
         PEDAL ORGAN
     16' Principal          24 *           COUPLERS
      8' Octave             30             Swell to Great
      8' Bourdon            30             Great to Pedal
      4' Octave             30             Swell to Pedal
      2' Nachthorn          30
         Mixture V         150
     16' Posaune            30
      8' Trompet            30
      4' Trompet            30

      *  1-6 transmission from Great Prestant 16'

         Tremulant
         Wind stabilizer
         Zymbelstern


[Received from Steven E. Lawson  2017-12-11]
