Better Pipe Organ Database

Schantz Organ Co. Opus 765 (1966)

First Baptist Church
119 W Washington St.
Rogersville, TN

Images

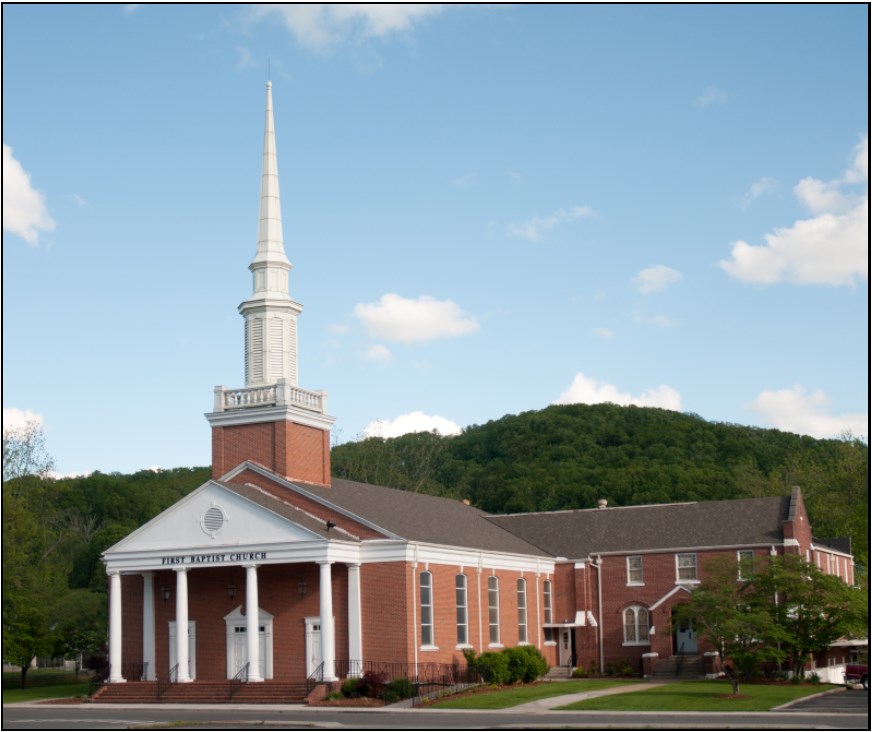

2021-04-29 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
15 stops
23 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has combination toe pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2021-07-08 - The organ is entirely enclosed as a single unit, with swell shades opening into the choir and into the nave; interestingly, each side has it's own expression pedal. -Jeff Scofield

Stoplist

Source: Courtesy of the Schantz Organ Co., via Justin Little

       Rogersville, Tennessee
       First Baptist Church

       Schantz   No. 765   1966   2/18
       ________________________________________

       All enclosed as one unit, with separate
        swell pedals for choir and nave sides

       GREAT                  SWELL
    8' Principal     61   16' Rohrflöte      61
    8' Bourdon       61    8' Rohrflöte      12
    8' Gemshorn      61    8' Viola da Gamba 61
    4' Octave        61    8' Viola Celeste  49
    2' Waldflöte     61    4' Koppelflöte    61
1 1/3' Quinte     a  --    2' Principal      61
   IV  Mixture    b 244    8' Trompette      61
       Tremulant           4' Oboe           61
       Super                  Tremulant
       Chimes                 Sub
       Blank                  Unison Off
                              Super
       PEDAL                  Blank
   16' Brummbass     32
   16' Rohrflöte     SW    a  from Mixture
    8' Principal     32    b  19-22-26-29
    8' Flötenbass    12
    8' Rohrflöte     SW
    4' Octave        12
    2' Super Octave  12
    8' Trompette     SW
       Blank

    [Received from Jeff Scofield July 8, 2021]
