Schantz Organ Co. Opus 1474 (1977)

St. John's Episcopal Church
625 Pecan St.
Helena, AR

Images

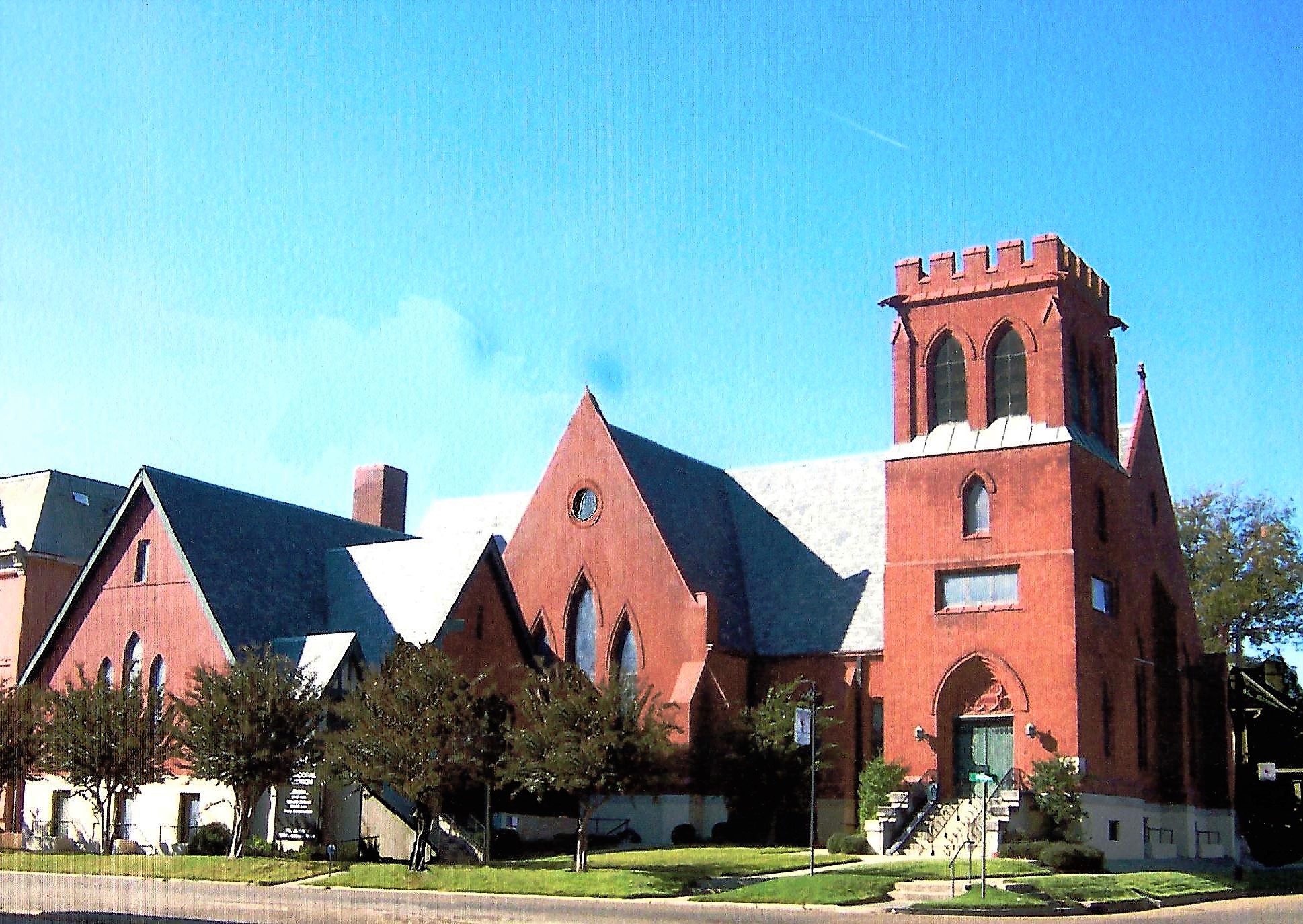

2012-09-13 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

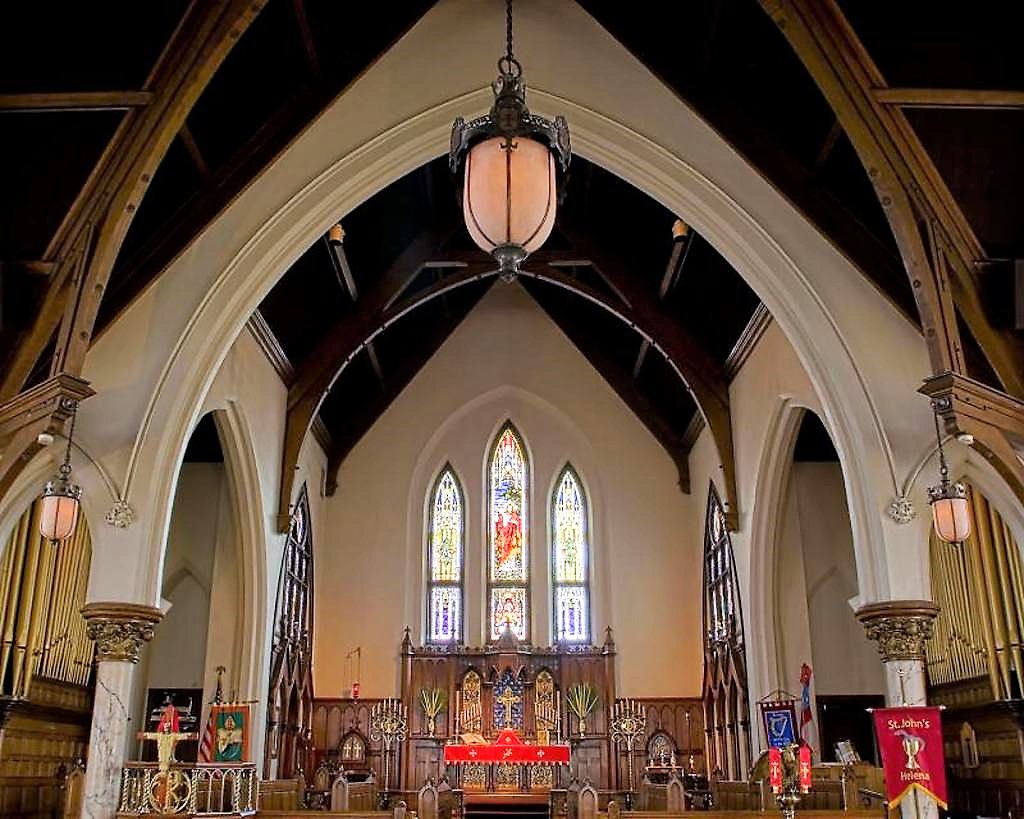

Unknown - Chancel and façade pipes (Photograph by Michael Saba, via St. John's Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
2 manuals
17 stops
23 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Stoplist

Source: Courtesy of the Schantz Organ Co., via Justin Little

    Helena, Arkansas
    St. John's Episcopal Church

    Schantz   No. 1474   1977   2/23
    ________________________________________________

    GREAT                        SWELL
 8' Principal        61       8' Bordun           61
 8' Gedackt          61       8' Viola da Gamba   61
 4' Octave           61       8' Viola Celeste [prep]
 4' Flute         [prep]      4' Principal        61
 2' Blockflöte       61       4' Rohrflöte        61
IV  Mixture         244   2 2/3' Nasat            61
 8' Trompette        61       2' Octave           61
    Sub                   1 3/5' Terz             61
    Unison Off              III  Scharf          183
    Super                     8' Hautbois         61
    Chimes                       Tremulant
                                 Sub
    PEDAL                        Unison Off
16' Principal        32          Super
16' Gedackt          32 *
16' Violone          32       *  present pipes
 8' Octave           12          and chests
 8' Gedackt          12 **   **  new pipes & chests
 4' Choral Bass      12
 2' Super Octave     12
16' Contre Trompette 12 GT
 8' Trompette        GT

      [Received from Jeff Scofield May 27, 2021]
