Better Pipe Organ Database

Schantz Organ Co. Opus 1639 (1981)

Images

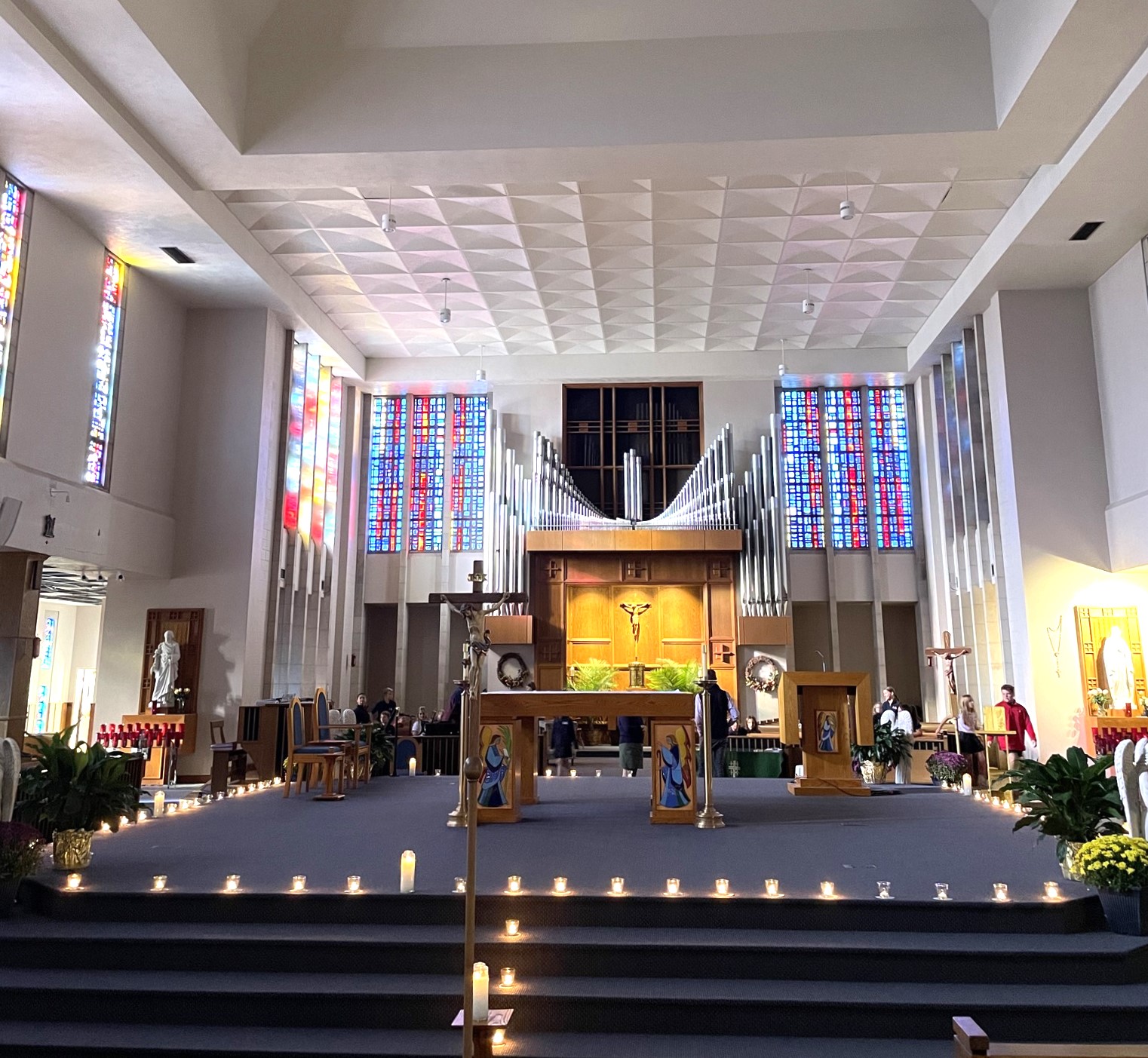

2023-10-11 - Church interior and exposed Pedal Principals (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

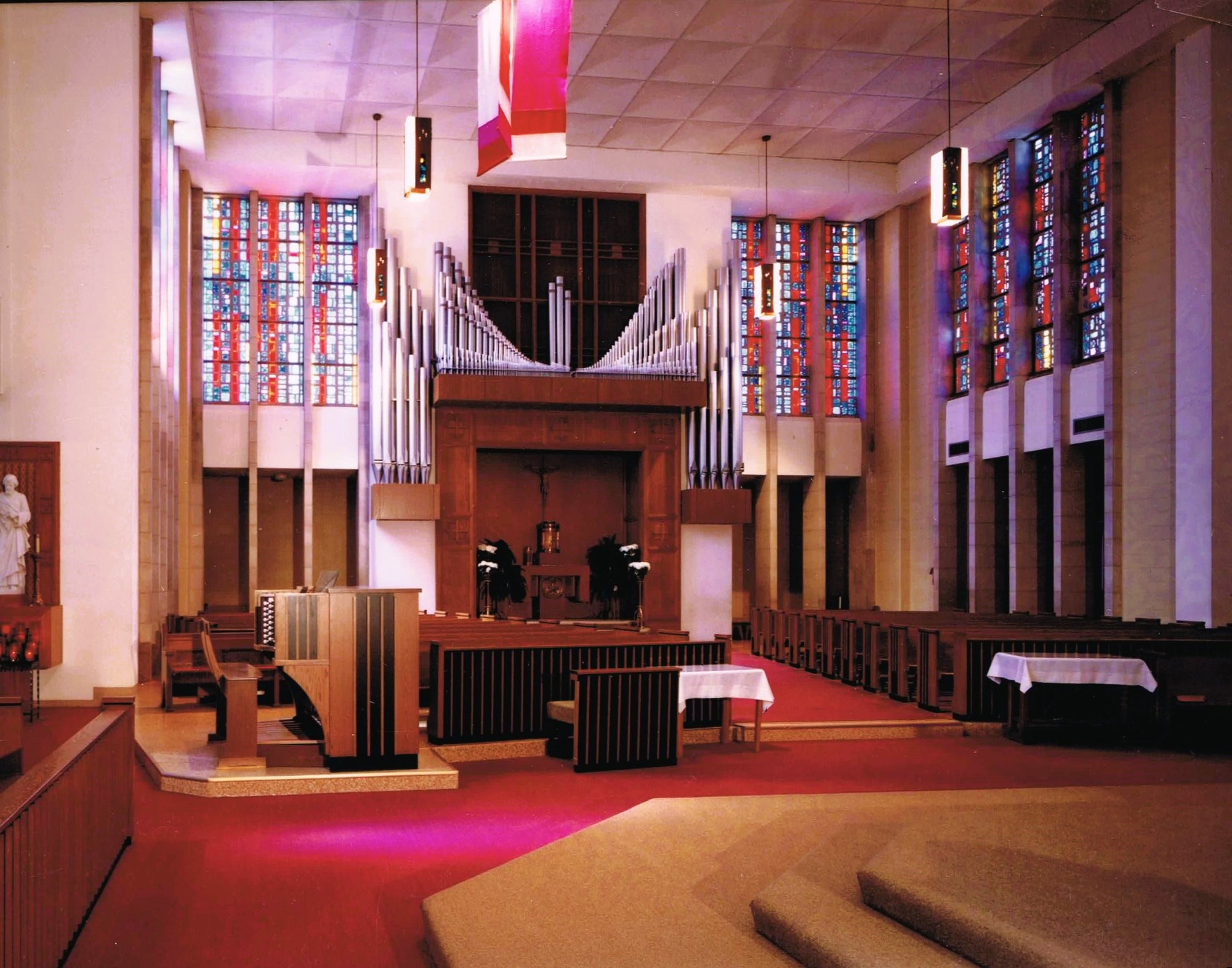

1981 - Church interior, organ and exposed pipes (Photograph by Schantz Organ Co., via Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

• Organ type: Traditional With Roll Top
• 3 manuals
• 22 stops
• 37 registers
• 4 divisions
• Key action Type: Electrical
• Stop action Type: Electrical
• Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
• Manual compass: 61 notes
• Pedal compass: 32 notes
• Pedal Type: Concave Radiating (Meeting AGO Standards)
• Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
• Has crescendo
• Combination action: Adjustable Combination Pistons
• Has combination thumb pistons
• Has combination toe pistons
• Has coupler thumb pistons
• Has coupler toe pistons
• Has tutti thumb pistons
• Has tutti toe pistons

Stoplist

Source: Schantz Organ Co.

GREAT Pommer 16, Principal 8, Rohrflöte 8, Octave 4, Pommer 4 (24 ext. Pommer 16), Super Octave 2, Fourniture IV, Trompete 8, Sub, Unison Off, Super, Chimes

SWELL Holzgedackt 8, Viole de Gambe 8, Viole Celeste 8, Flötenprinzipal 4, Blank, Blank, Octavin 2, Plein Jeu III, Blank, Blank, Hautbois 8, Hautbois 4, Tremulant, Sub, Unison Off, Super

CHOIR Bordun 8, Erzähler 8, Blank, Blank, Blockflöte 4, Blockflöte 2, Larigot 1 1/3, BLockflöte 1, Krummhorn 8, Tremulant, Sub, Unison Off, Super

PEDAL Resultant 32 (---), Principal 16 (32 exposed), Bourdon 16, Pommer 16 (Great), Octave 8 (12 exposed), Bourdon 8, Pommer 8 (Great), Choralbass 4 (12 exposed), Bourdon 4, Bourdon 2, Blank, Posaune 16 (12 Great), Blank, Trompete 8 (Great), Hautbois 8 (Swell), Krummhorn 4 (Choir)
