Schantz Organ Co. Opus 1588 (1980)

Images

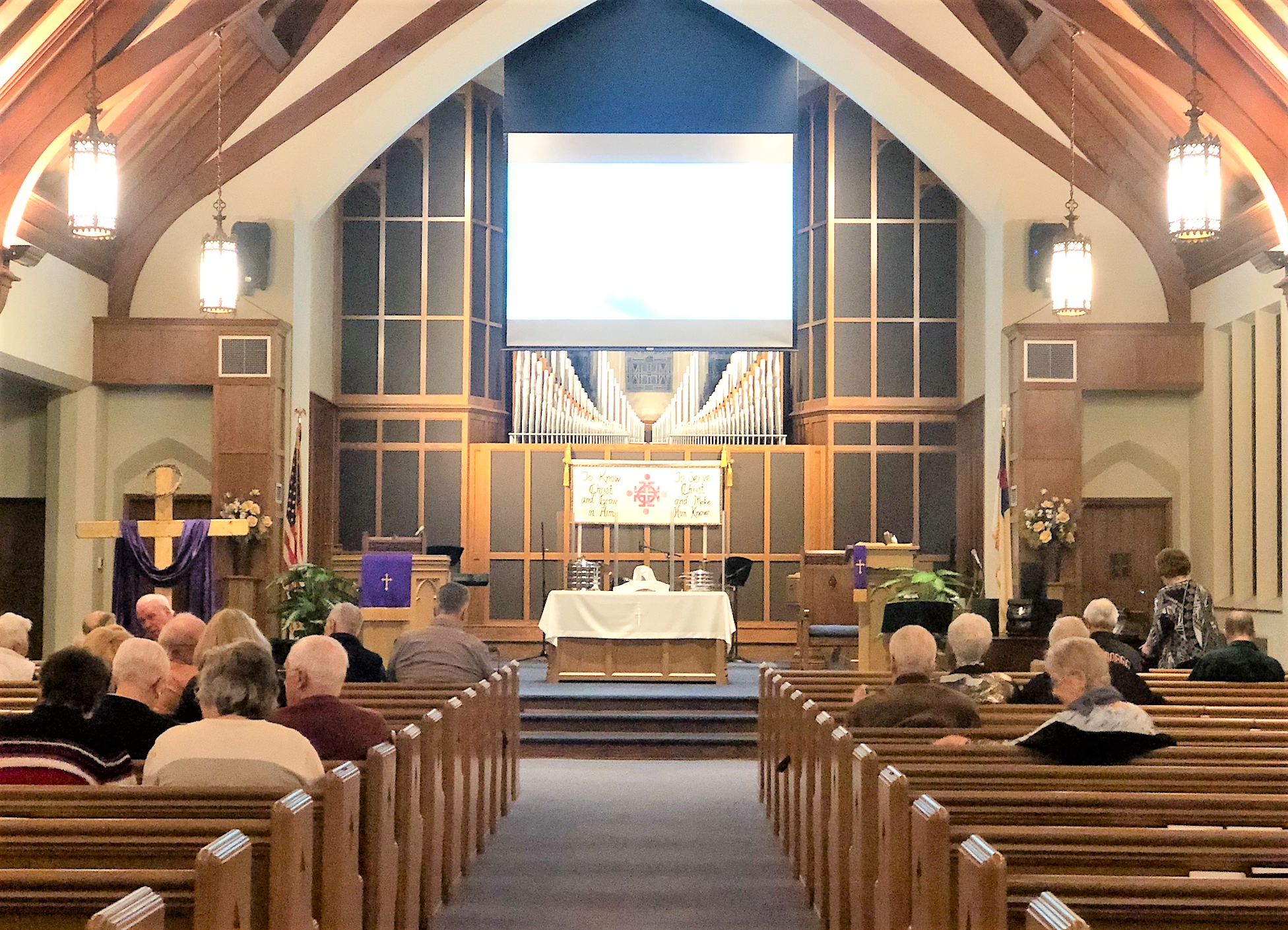

2018 - Church interior and exposed pipes (Photograph from an archival source: Church website, submitted by Jeff Scofield/Jeff Scofield)

2021-02-13 - Organ screen, pipework and console (Photograph by Steve Repasky/Steve Repasky)

Consoles

Main

• Organ type: Traditional With Roll Top
• Console position: Console in Fixed Position, Right
• 2 manuals
• 22 stops
• 30 registers
• 3 divisions
• Key action Type: Electrical
• Stop action Type: Electrical
• Manual compass: 61 notes
• Pedal compass: 32 notes
• Pedal Type: Concave Radiating (Meeting AGO Standards)
• Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
• Has crescendo
• Combination action: Adjustable Combination Pistons

Stoplist

Source: Stoplist taken from console. February 20, 2021

Schantz Organ Co. (Opus 1588, 1980) 2 manuals & pedals, 27 ranks
First Covenant Church
Youngstown, OH

GREAT
8' Principal
8' Holzgedeckt
8' Flauto Dolce
8' Flute Celeste TC
4' Octave
4' Koppelflöte
2' Waldflöte
IV Fourniture
8' Krumhorn
Tremulant
Chimes
Couplers: Gt/Gt 16', Gt/Gt 4', Great Unison Off

SWELL
16' Rohr Gedeckt
 8' Rohrflöte
 8' Viole de Gamba
 8' Viole Celeste TC
 4' Spitz Principal
 4' Hohlflöte
2 2/3' Nazard
 2' Blockflöte
1 1/3' Tierce
III Scharf
 8' Trompette
Tremulant
Couplers: Sw/Sw 16', Sw/Sw 4', Swell Unison Off, Sw/Gt 16', 8', & 4'

PEDAL
32' Resultant
16' Bourdon
16' Rohr Gedeckt
 8' Octave
 8' Bourdon
 8' Rohrflöte
 4' Choral Bass
 4' Bourdon
16' Contre Trompette
 4' Krummhorn
Couplers:  Gt/Ped 8', Gt/Ped 4, Sw/Ped 8', Sw/Ped 4'
