Better Pipe Organ Database

Schantz Organ Co. Opus 1862 (1988)

Christ Episcopal Church
90 Kings Hwy
Middletown, NJ

Images

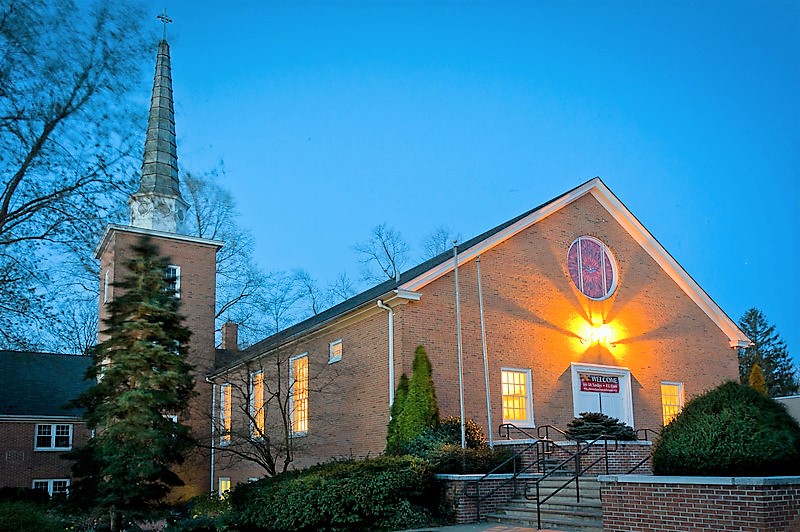

2013-04-13 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

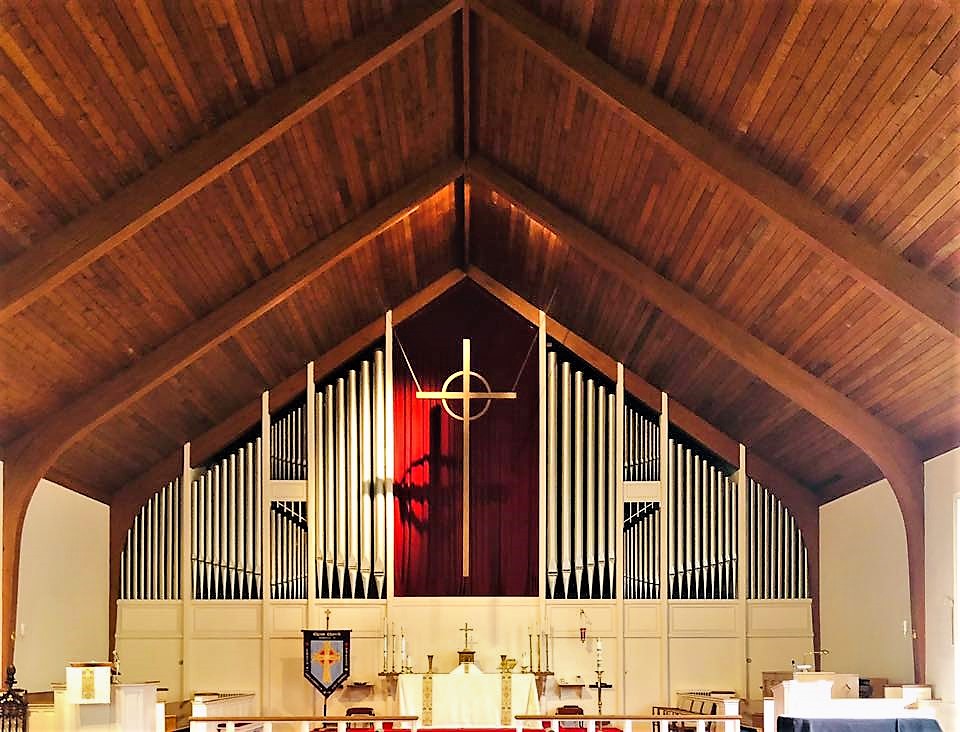

2019-05-03 - Chancel and pipe display (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

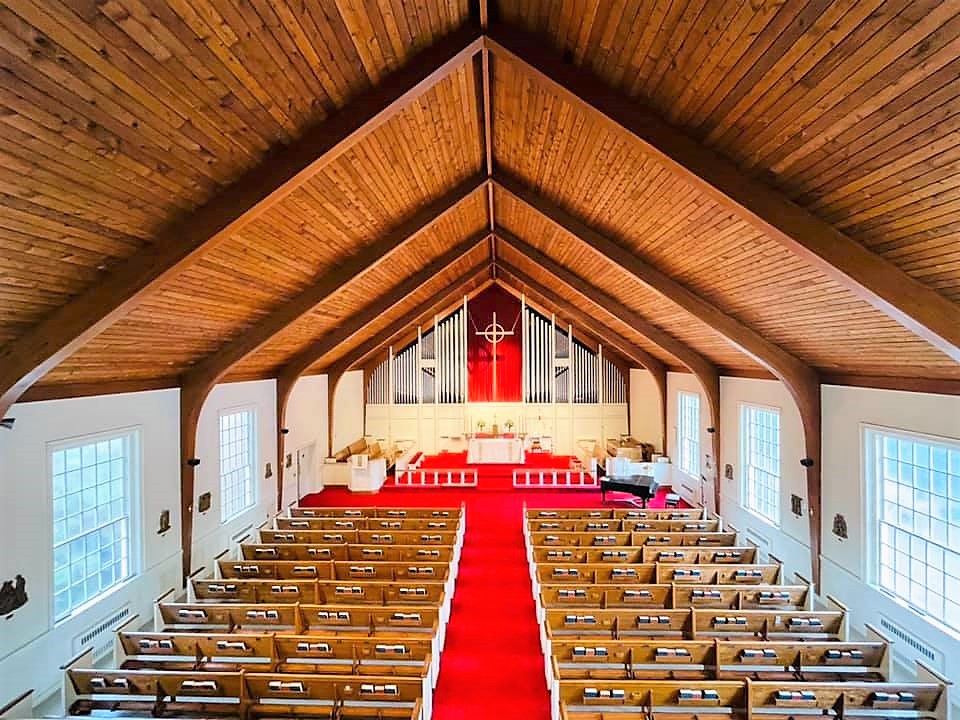

2021-10-09 - Church interior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
2 manuals
20 stops
38 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Stoplist

Source: Courtesy of the Schantz Organ Co.

    Middletown, New Jersey
    Christ Episcopal Church

    Schantz   No. 1862   1988   2/27
    ________________________________________________

    GREAT    3 1/2" wind         PEDAL   3 1/2" wind
 8' Montre            61 a   16' Rohrflöte        61
 8' Bourdon           61      8' Rohrflöte        12
 8' Rohrflöte         SW      8' Viole de Gambe   61
 4' Prestant          61      8' Viole Céleste    61
 4' Cor de Nuit       61      4' Principal        61
 2' Flûte à Bec       61      4' Koppelflöte      61
 V  Plein Jeu 1 1/3' 305      2' Octave           61
    Tremulant                II  Sesquialtera    122
    Sub                     III  Cymbale   2/3'  183
    Unison Off               16' Basson-Hautbois  61 *
    Super                     8' Trompette        61
 8' Fanfare Trumpet   61 *    8' Hautbois         12 *
                              4' Clairon          12
    PEDAL    3 1/2" wind         Tremulant
32' Resultant         --         Sub
16' Contrebasse       32 b       Unison Off
16' Soubasse          32         Super
16' Rohrflöte         SW      8' Fanfare Trumpet  GT *
 8' Octave            12
 8' Bourdon           12      *  added 1996
 8' Rohrflöte         SW      a  1-9  exposed
 4' Choralbass        32 c    b  3-39 exposed
 4' Flûte             12      c  1-16 exposed
 2' Super Octave      12
IV  Grand Cornet      --
16' Bombarde          12 SW
16' Basson            SW *
 8' Trompette         SW
 4' Clairon           SW
 8' Fanfare Trumpet   GT *

     [Received from Jeff Scofield January 31, 2022]

Documents

(1987-11-05) Factory specifications Fanfare Trumpet and Basson-Hautbois added 1996 -Jeff Scofield
