Better Pipe Organ Database

Schantz Organ Co. Opus 2047 (1994)

First Baptist Church
201 N Main St.
Oneida, TN

Images

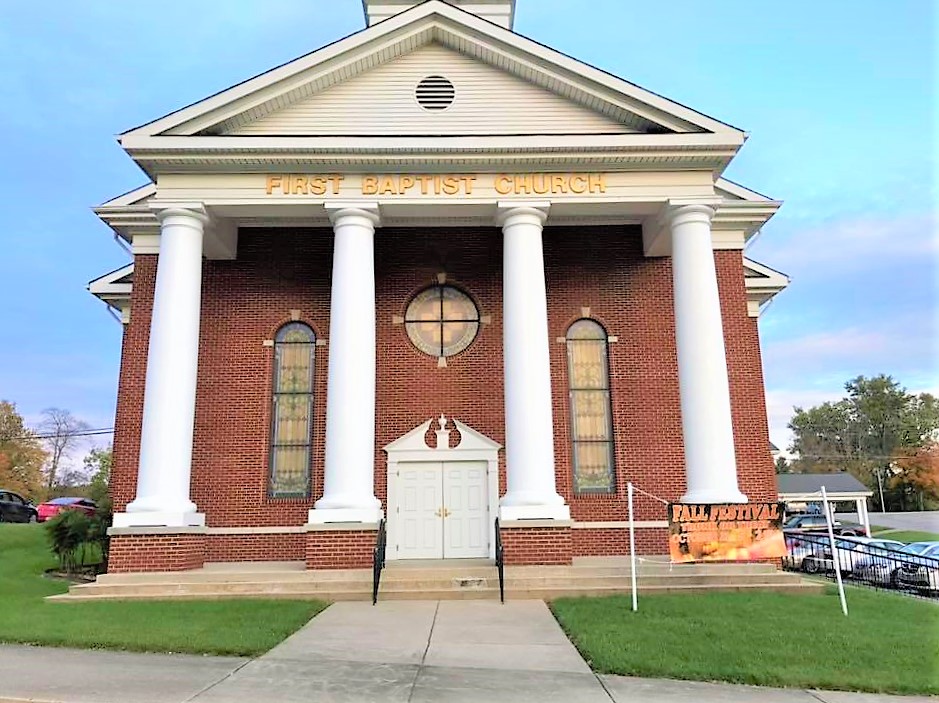

2019-09-29 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

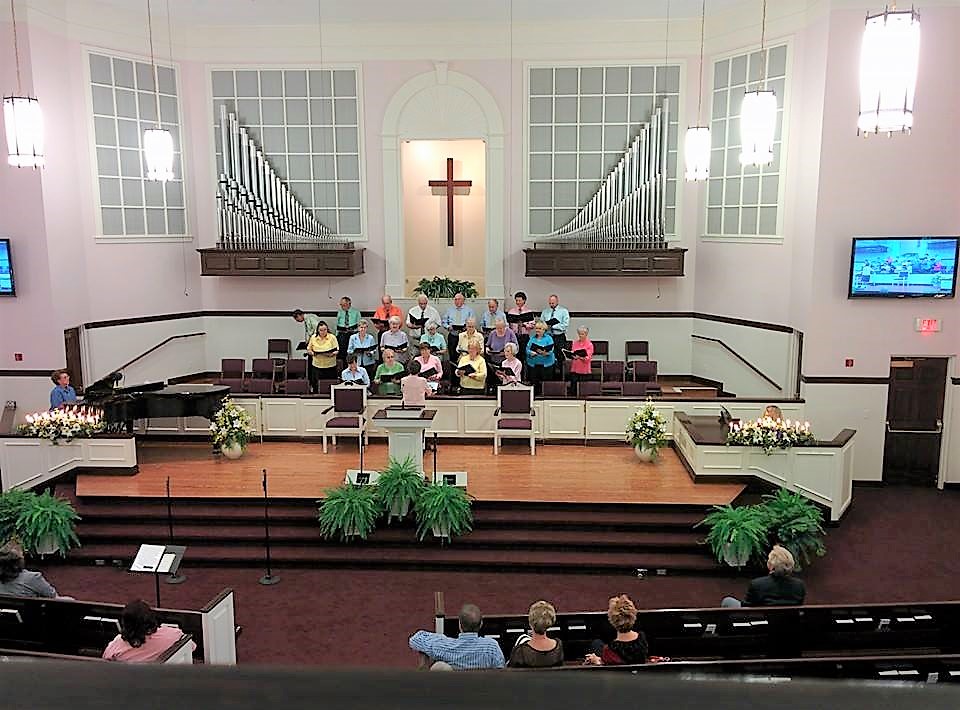

2014-04-13 - Chancel and exposed pipes (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

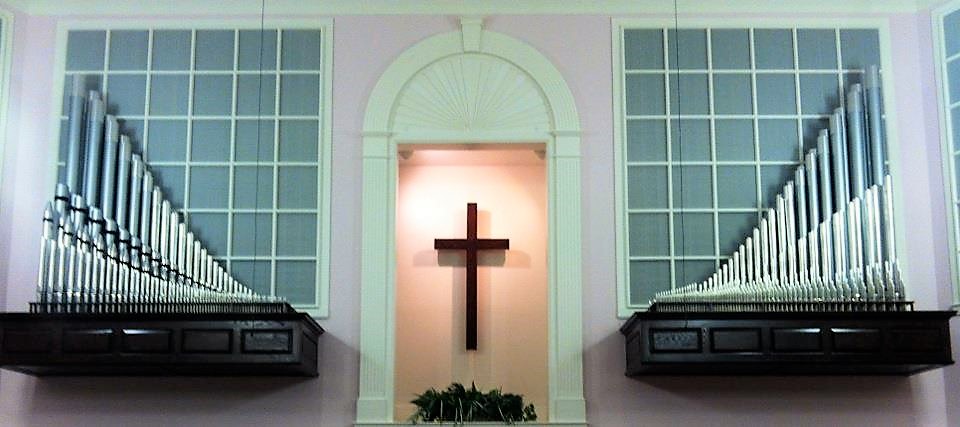

2012-05-14 - Exposed Pedal Principal and Great (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
2 manuals
17 stops
24 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Stoplist

Source: Courtesy of the Schantz Organ Co., via Justin Little

    Oneida, Tennessee
    First Baptist Church

    Schantz   #2047   1994   2/20
    ______________________________________________

    GREAT (exposed)            SWELL
 8' Principal      61      16' Rohrflöte        61
 8' Bordun         61       8' Rohrflöte        12
 4' Octave         61       8' Gemshorn         61
 4' Koppelflöte    61       8' Gemshorn Celeste 49
 2' Blockflöte     61       4' Principal        61
IV  Mixture       244       4' Harmonic Flute   61
 8' Cromorne  *    61       2' Octave           61
    Unison Off          1 1/3' Quinte           61
    Super                   8' Trumpet          61
                               Tremulant
    PEDAL                      Sub
16' Brummbass      32          Unison Off
16' Rohrflöte      SW          Super
 8' Principal      32 +
 8' Flötenbass     12       *  enclosed in Swell
 8' Rohrflöte      SW       +  exposed
 4' Choralbass     12 +
16' Double Trumpet 12 SW
 8' Trumpet        SW

     [Received from Jeff Scofield June 8, 2022]

Documents

(1994-05-04) Factory specifications courtesy of Schantz Organ Co., via Justin Little Stoplist and accessories -Jeff Scofield
