Better Pipe Organ Database

Schantz Organ Co. Opus 2329 (2017)

Siesta Key Chapel, Presbyterian
4615 Gleason Ave.
Sarasota, FL

Images

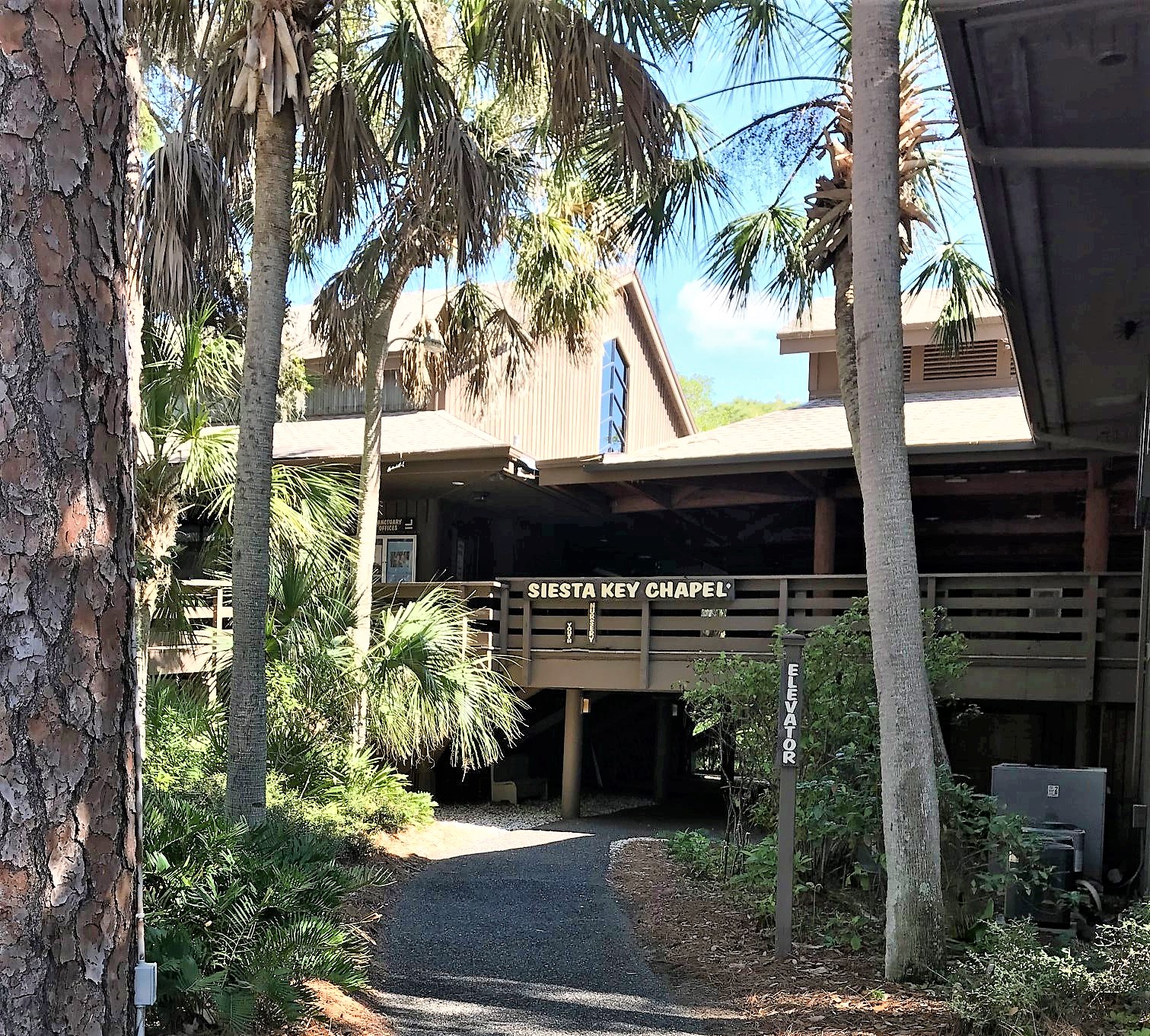

2019-06-03 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

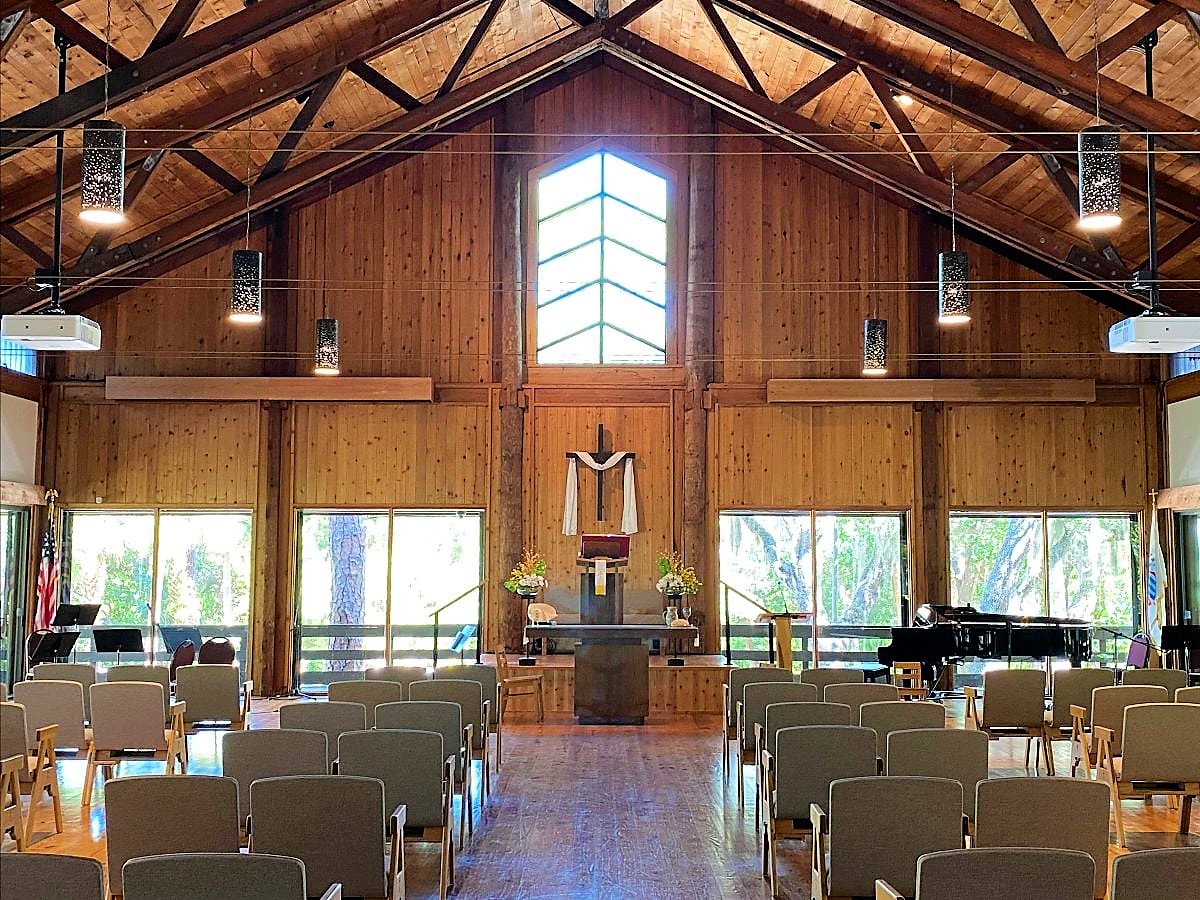

2021-05-03 - Church interior to front (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

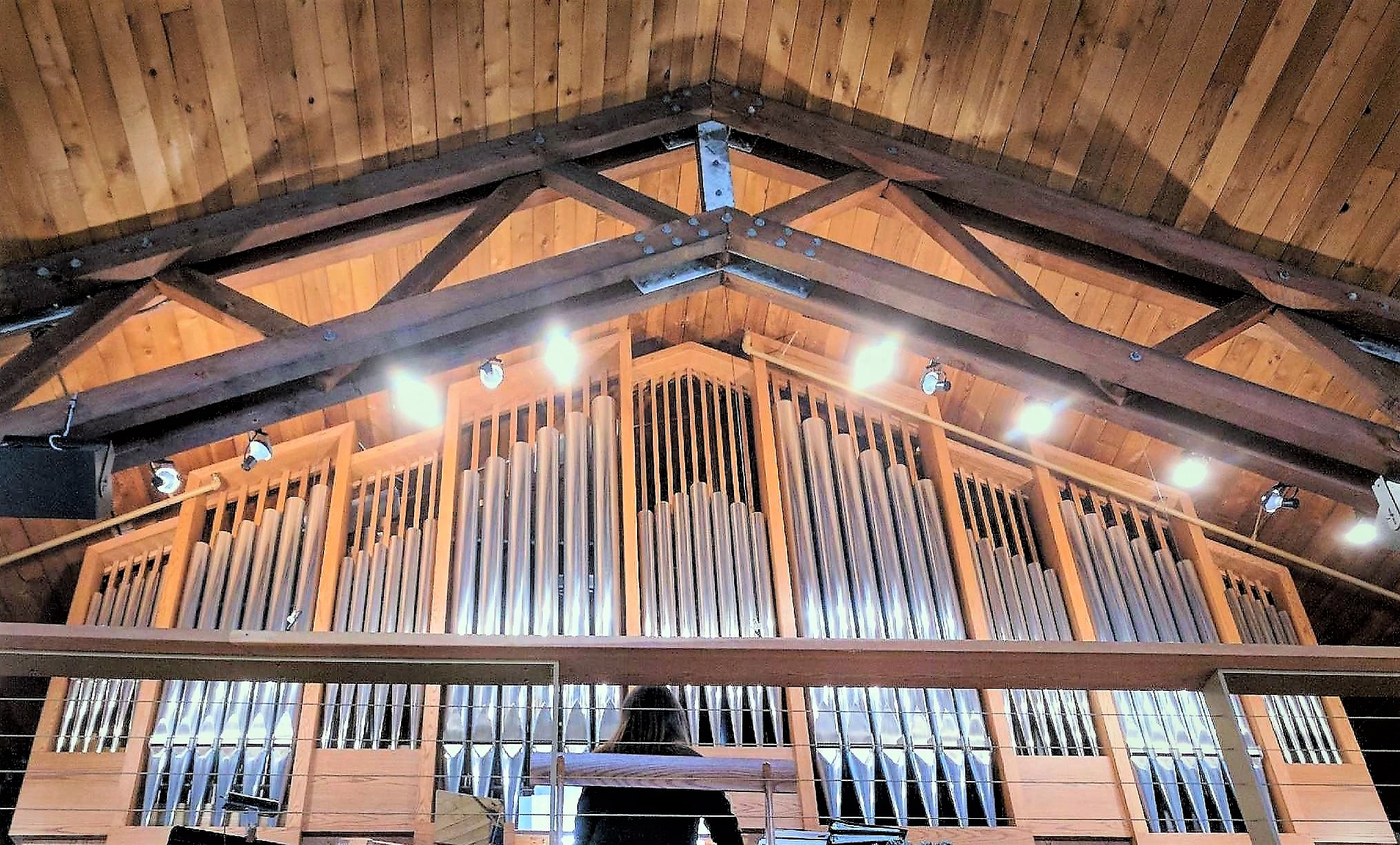

Unknown - Organ Case (Photograph by Sarasota-Manatee AGO Chapter, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Center
2 manuals
18 stops
29 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Peterson
Has sequencer
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Stoplist

Source: Courtesy of the Schantz Organ Co.

    Sarasota, FLorida
    Siesta Key Chapel, Presbyterian

    Schantz   No. 2329   2017   2/21
    ________________________________________________

    GREAT                           SWELL
16' Contra Salicional -- a       8' Hohlflöte     61
 8' Principal         61         8' Salicional    61
 8' Bourdon           61         8' Voix Celeste  49
 4' Octave            61         4' Fugara        61
 4' Harmonic Flute    61         4' Chimney Flute 61
 2' Fifteenth         -- b   2 2/3' Nasard        61
IV  Mixture          244         2' Zauberflöte   61
 8' Trumpet           61     1 3/5' Tierce        61
 8' Oboe              SW         8' Oboe          61
    Tremolo                         Tremolo
    Sub                             Sub
    Unison Off                      Unison Off
    Super                           Super
                                 8' Trumpet       GT
    PEDAL
32' Resultant         --         a  Salicional SW/PD
16' Bourdon           32         b  from Mixture
16' Contra Salicional 12 SW      c  from Bourdon 16
 8' Octave            32            and Open Flute 4
 8' Bourdon           -- c
 4' Fifteenth         12
 4' Open Flute        32
16' Double Trumpet    12 GT
 8' Trumpet           GT
 4' Oboe              SW

   [Received from Jeff Scofield September 23, 2021]

Documents

Console specifications Console specifications -Jeff Scofield
