Lauck Pipe Organ Co. (2016)

St. Paul's Episcopal Church: Sanctuary
914 Lane Drive
St. Joseph, MI

Images

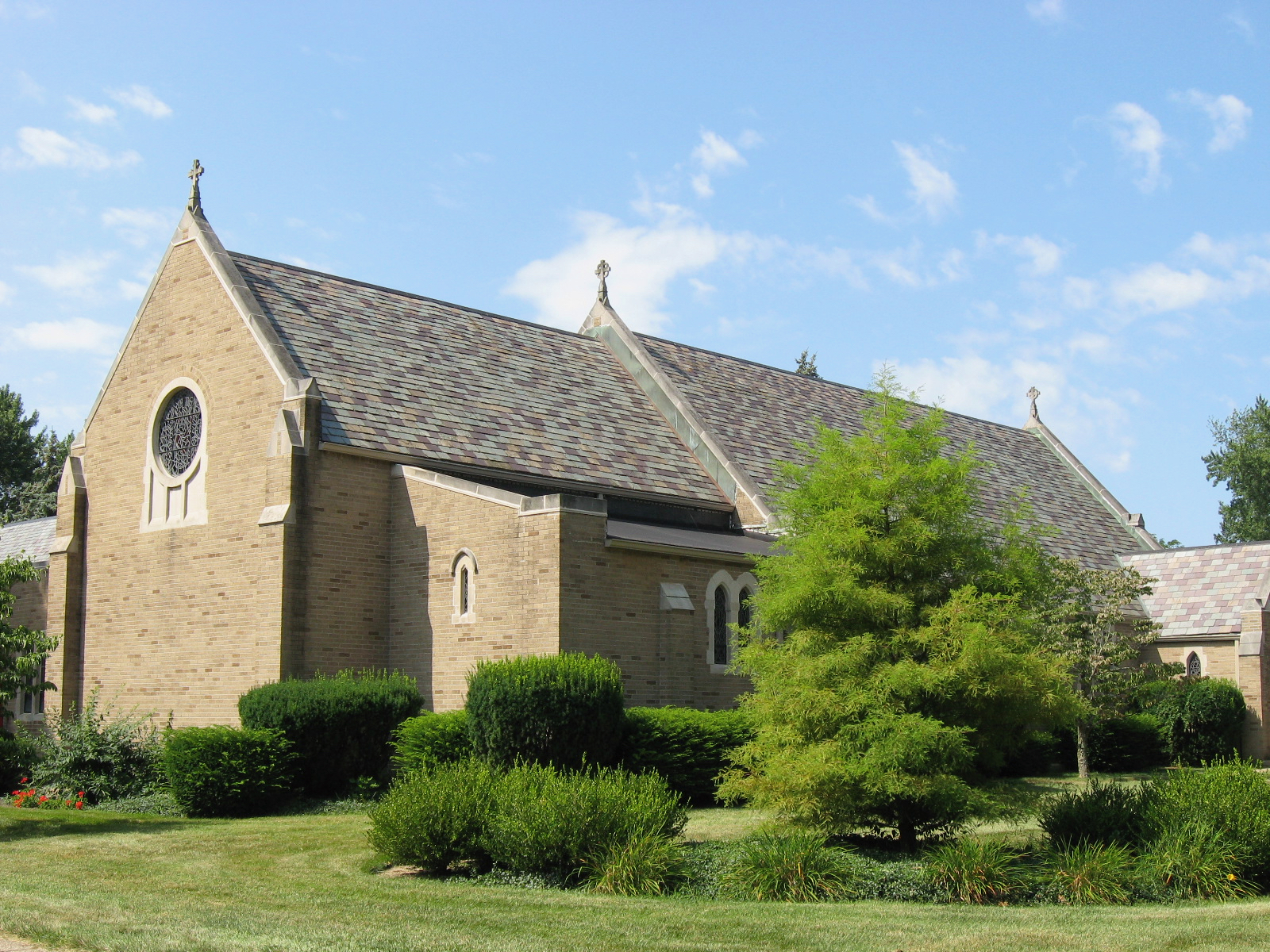

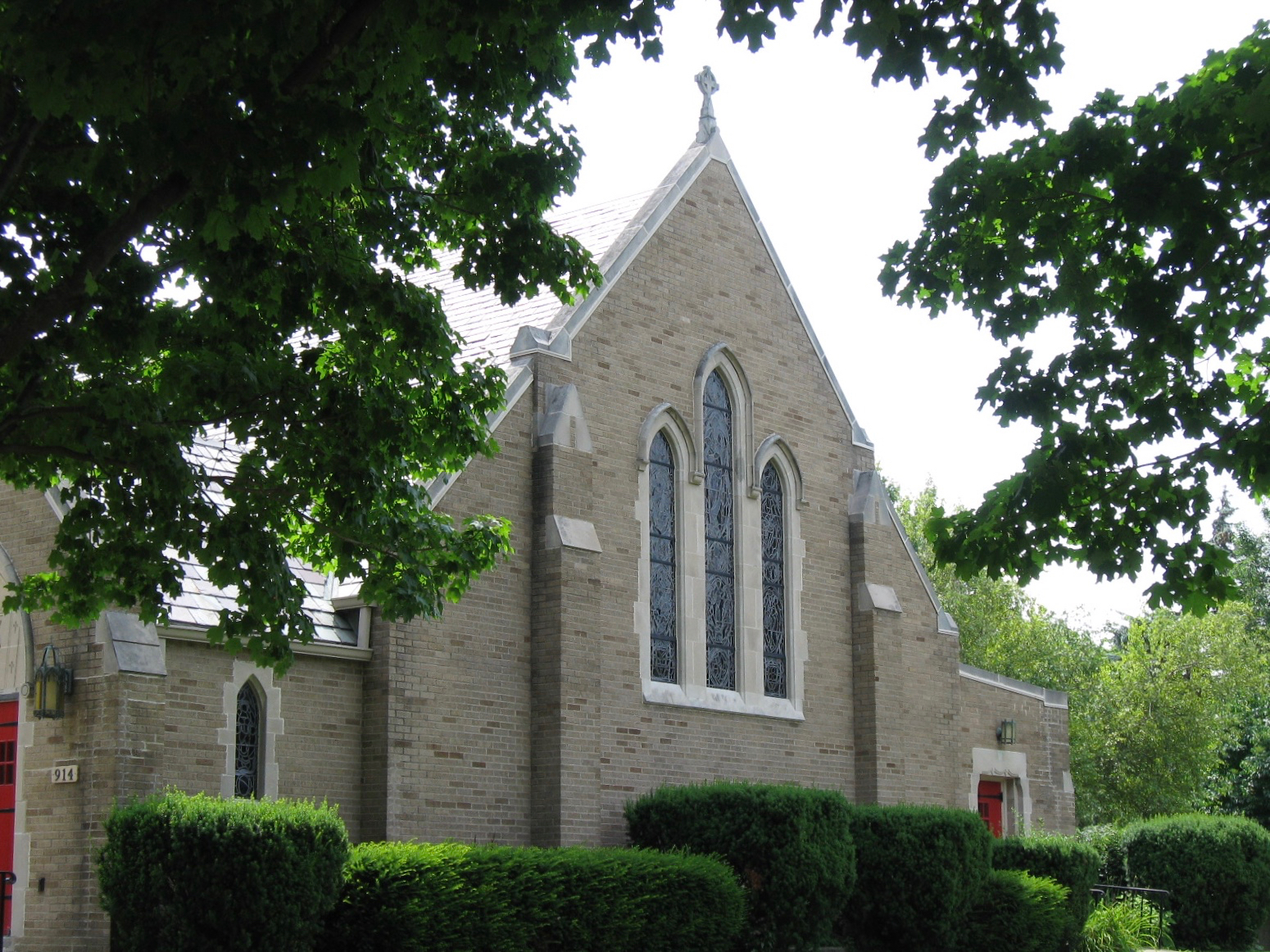

2018-08-02 - Church Exterior (Photograph by Chad Boorsma/Database Manager)

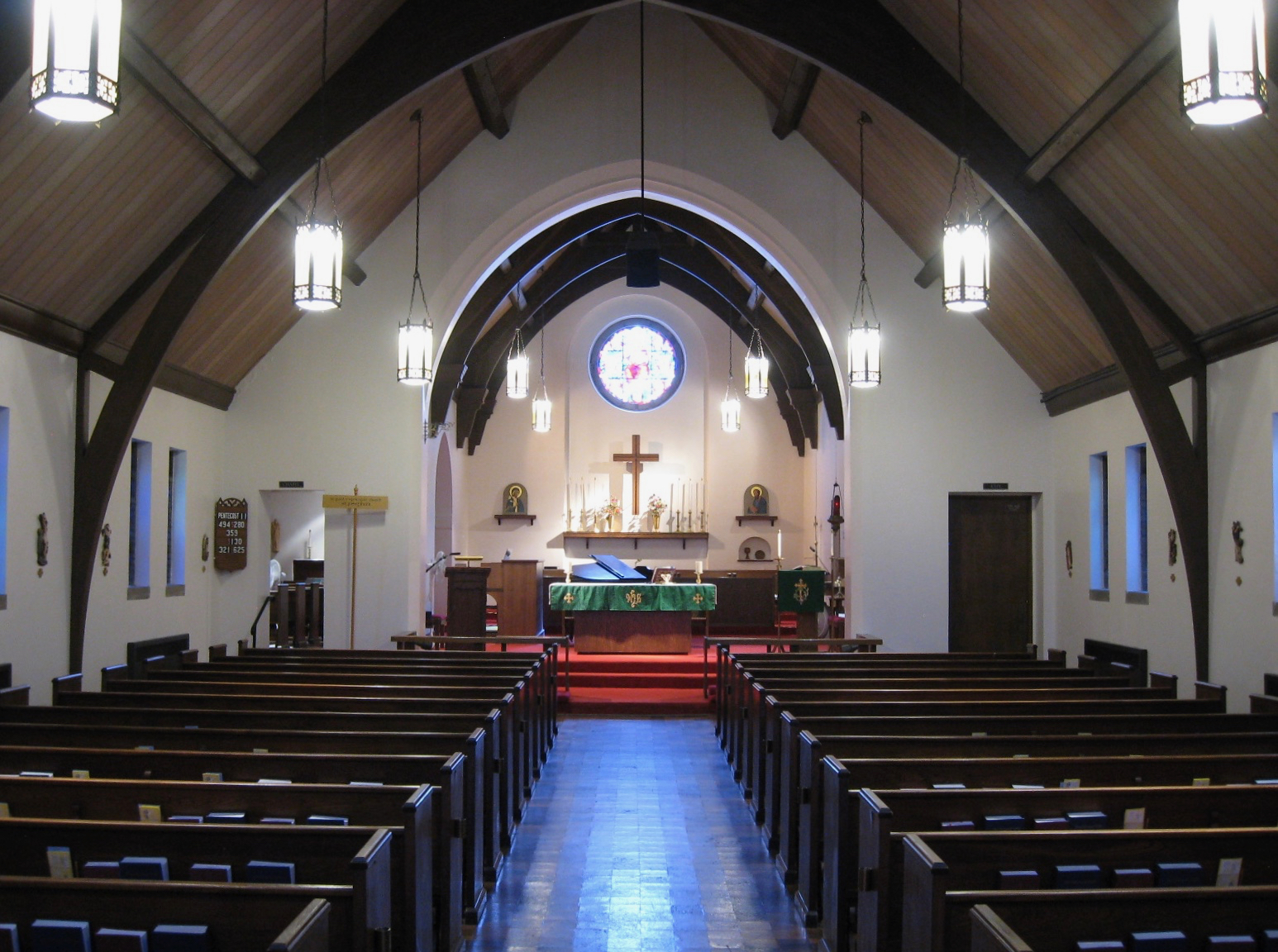

2018-08-02 - Church Interior and Altar (Photograph by Chad Boorsma/Database Manager)

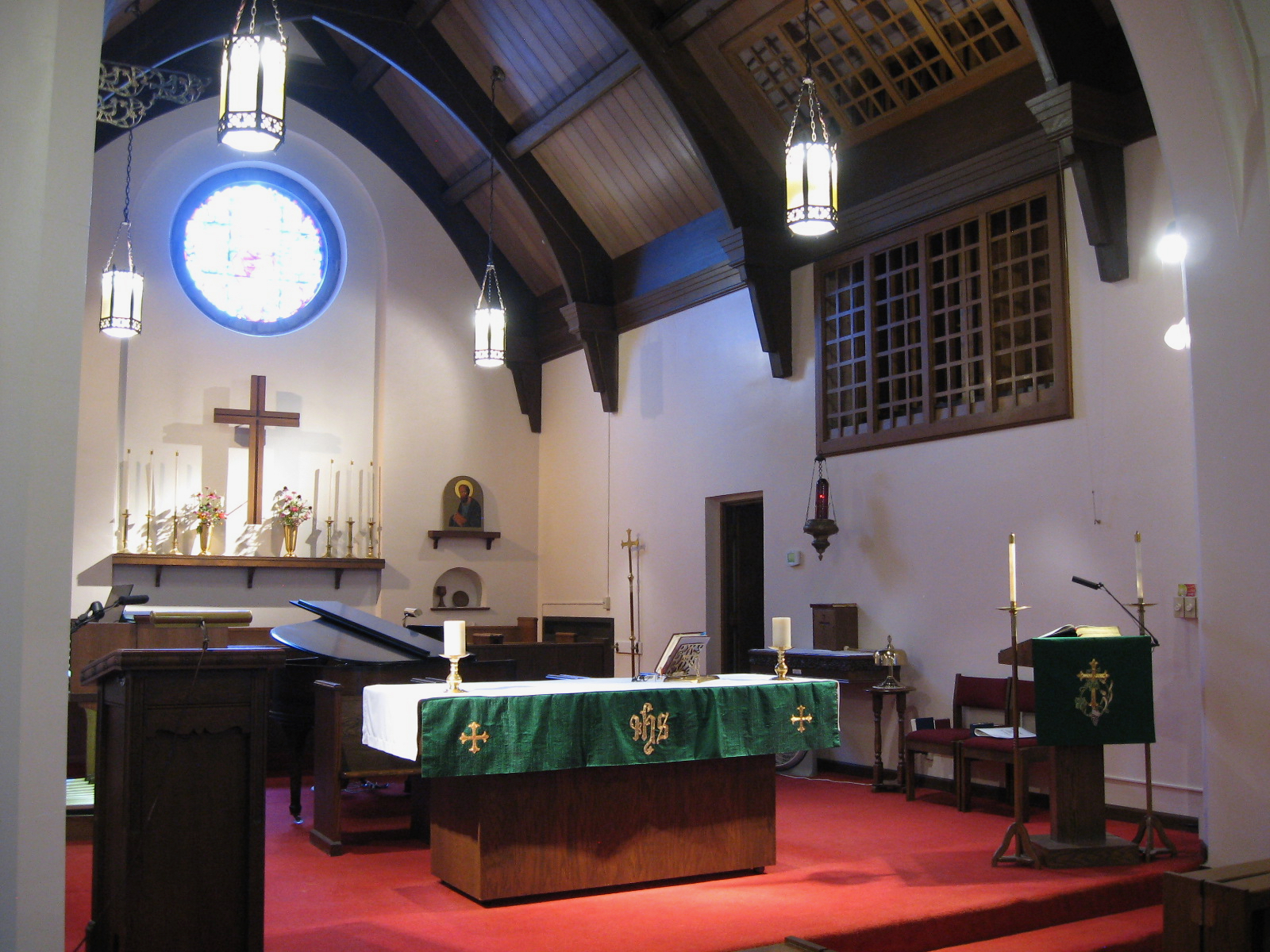

2018-08-02 - Altar and Chamber Grillework (Photograph by Chad Boorsma/Database Manager)

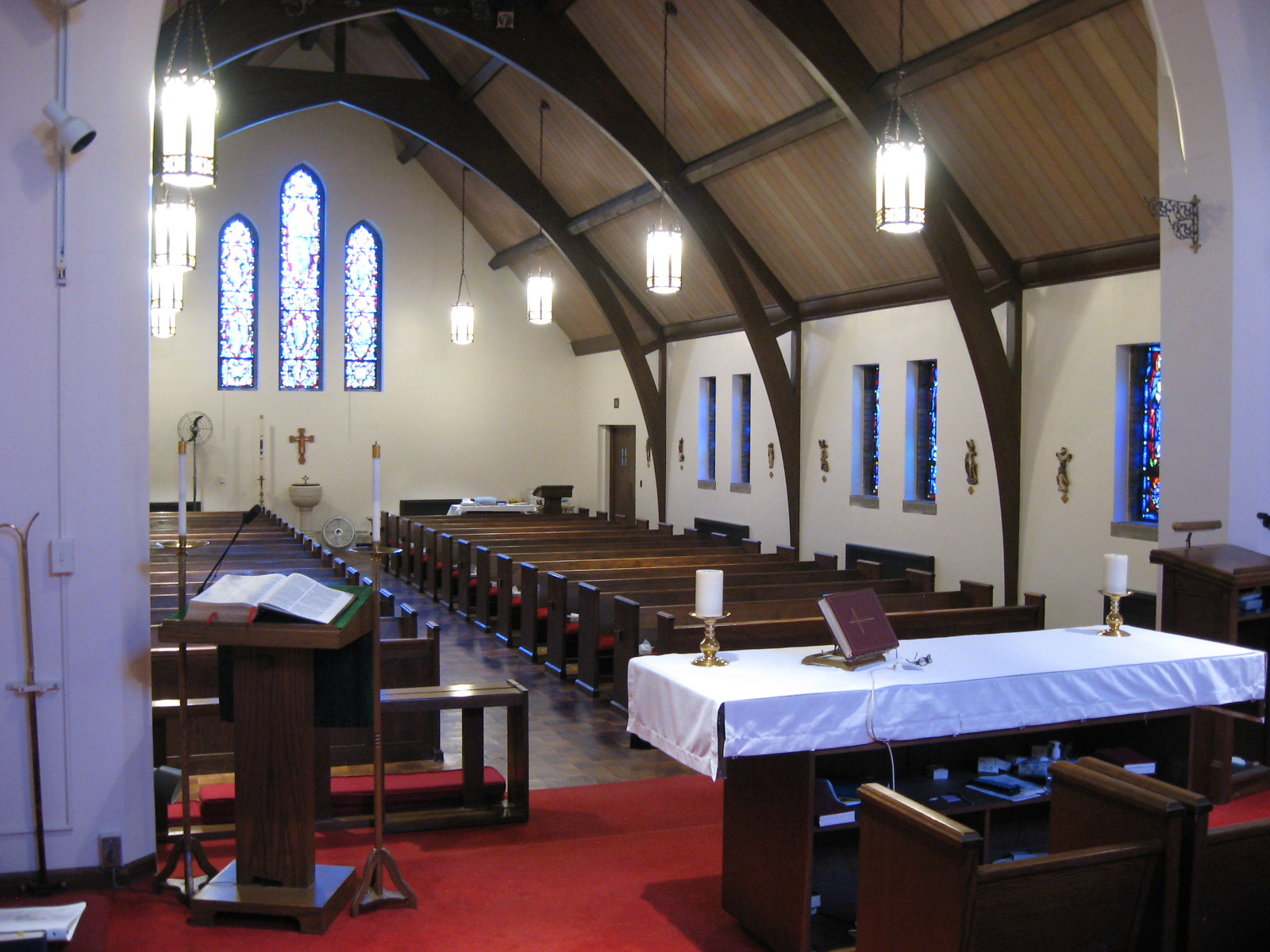

2018-08-02 - Altar and Nave (Photograph by Chad Boorsma/Database Manager)

2018-08-02 - Altar Stained Glass Window (Photograph by Chad Boorsma/Database Manager)

2018-08-02 - Nave Stained Glass Window (Photograph by Chad Boorsma/Database Manager)

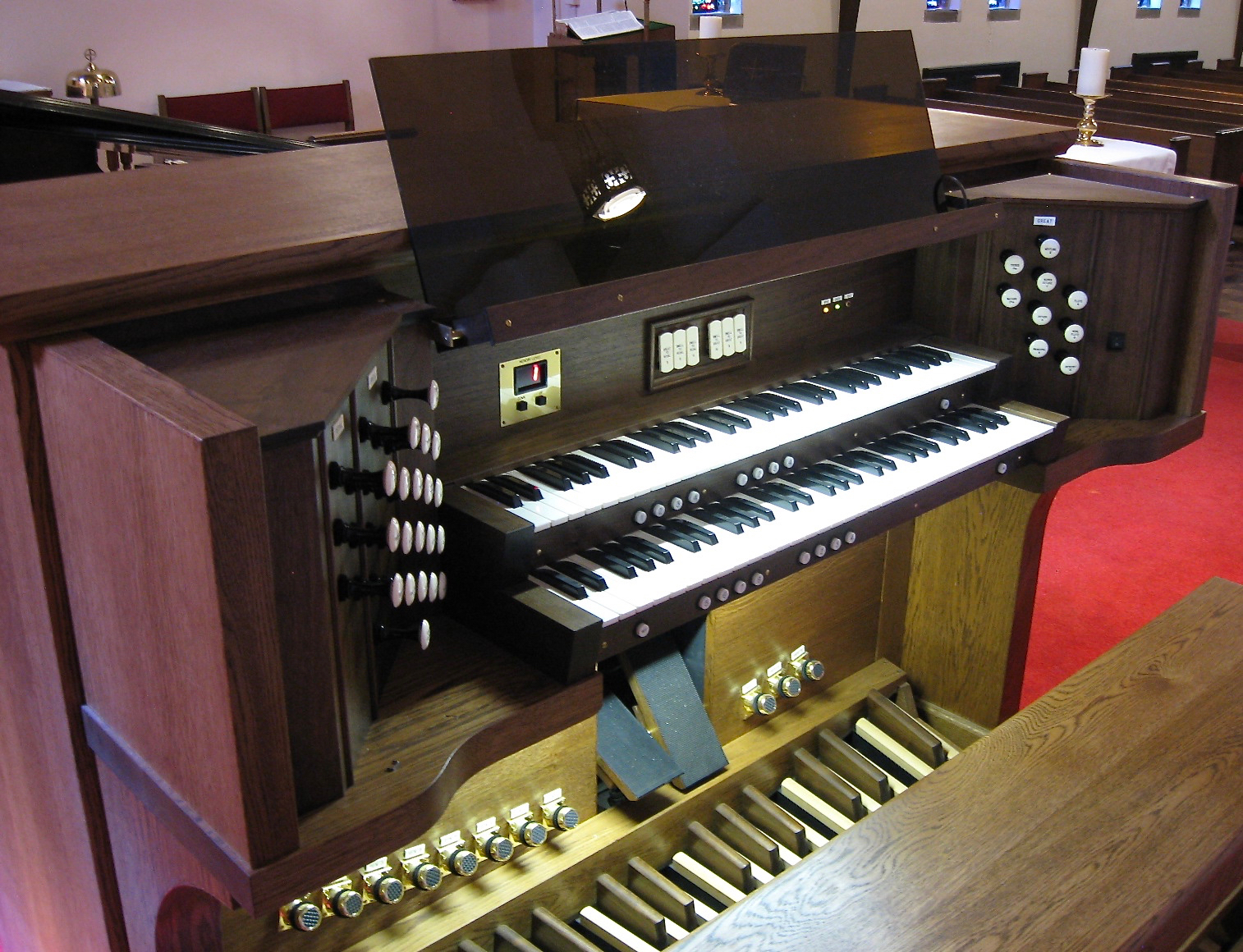

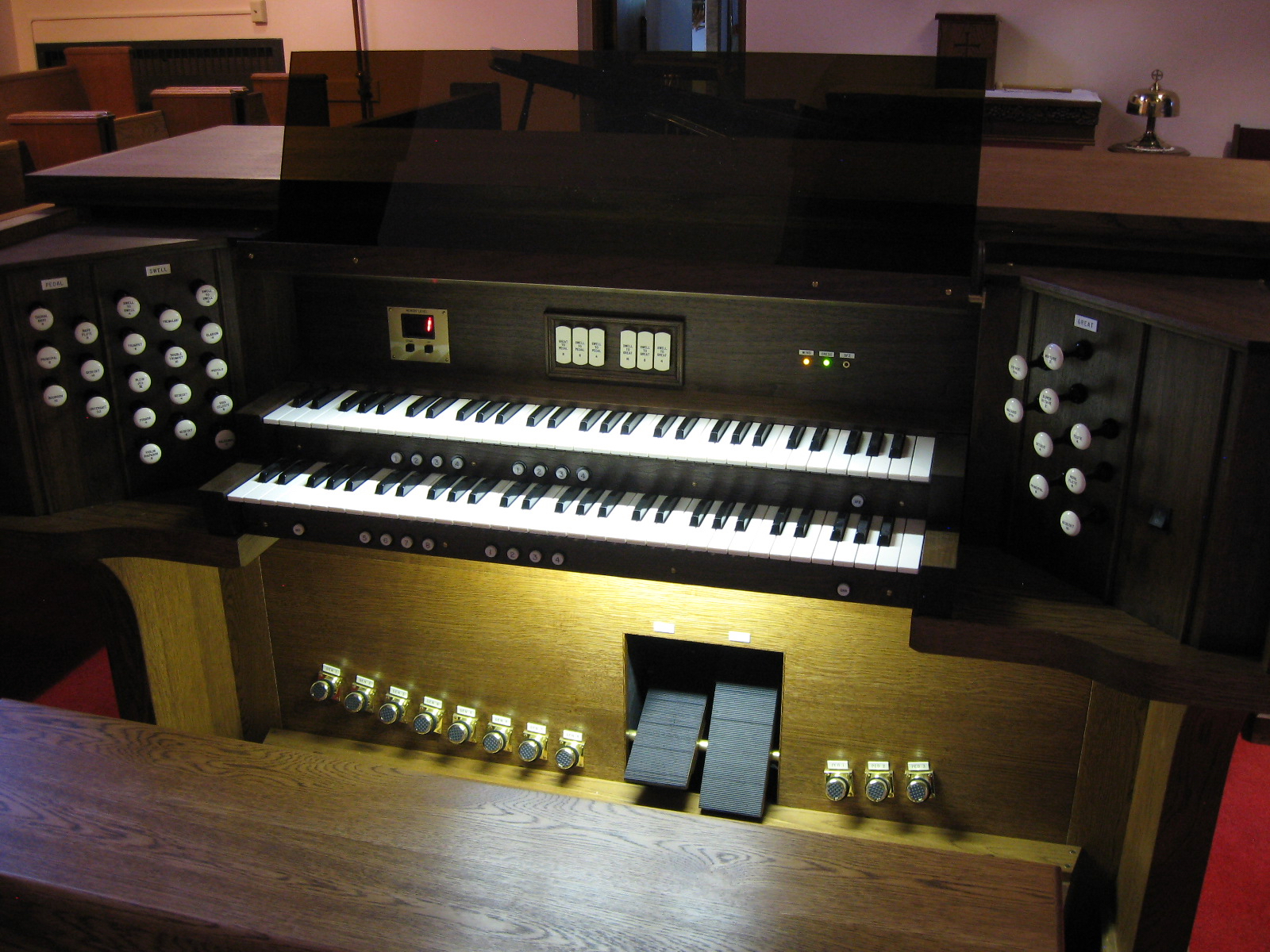

2018-08-02 - Console (Photograph by Chad Boorsma/Database Manager)

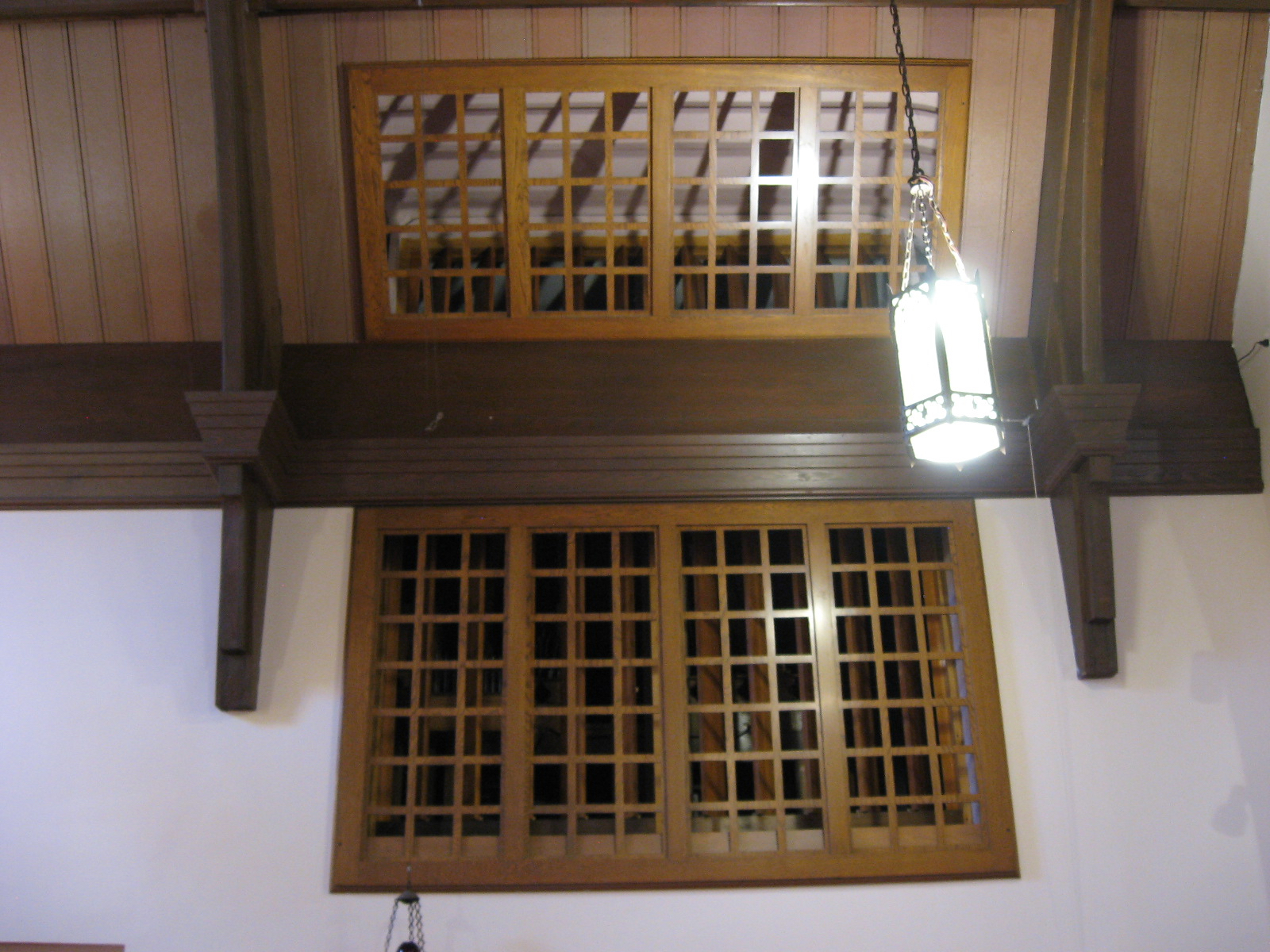

2018-08-02 - Chamber Grillework (Photograph by Chad Boorsma/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Left
2 manuals
26 stops
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has tutti thumb pistons

Notes

2018-08-09 - The organ was originally Wicks Opus #3025, installed in 1949, following a fire that destroyed the previous sanctuary. This work by Lauck included installing a new console, revoicing the pipework, and installed a new switching system. -Database Manager

Stoplist

Typed stoplist from the console (August 2, 2018) and from a conversation with the rebuilder Source: Source not recorded Date not recorded

St. Joseph, Michigan
ST. PAUL'S EPISCOPAL CHURCH

Originally built by Wicks Organ Company (Opus 3025)  1949
Rebuilt by Lauck Pipe Organ Company                  2016
_________________________________________________________________________________________

GREAT:                         SWELL:                              PEDAL:
   16' Gedeckt      SW            8' Violin Diapason       b         32' Undersatz
    8' Principal    61            8' Gedeckt              97         16' Bourdon      32
    8' Hohlflute    85            8' Salicional           85         16' Gedeckt      SW
    4' Octave       73            8' Voix Celeste [TC]    49          8' Principal    GT
    4' Flute         a            4' Fugara                c          8' Bass flute   12
2 2/3' Nazard        a            4' Gedeckt               d          4' Choral Bass  GT
    2' Super Octave  b            2' Piccolo               d
1 3/5' Tierce        a          III  Plein Jeu             c
   II  Mixture       b           16' Double Trumpet [TC]
                                  8' Trumpet              73
                                  4' Clarion
                                     Tremulant

a = stop plays from Hohlflute rank
b = stop plays from Octave rank
c = stop plays from Salicional rank
d = stop plays from Gedeckt rank

[Received online from Chad Boorsma • August 12, 2018]
