St. Mary's of the Assumption
420 High St.
Dedham, MA
Images

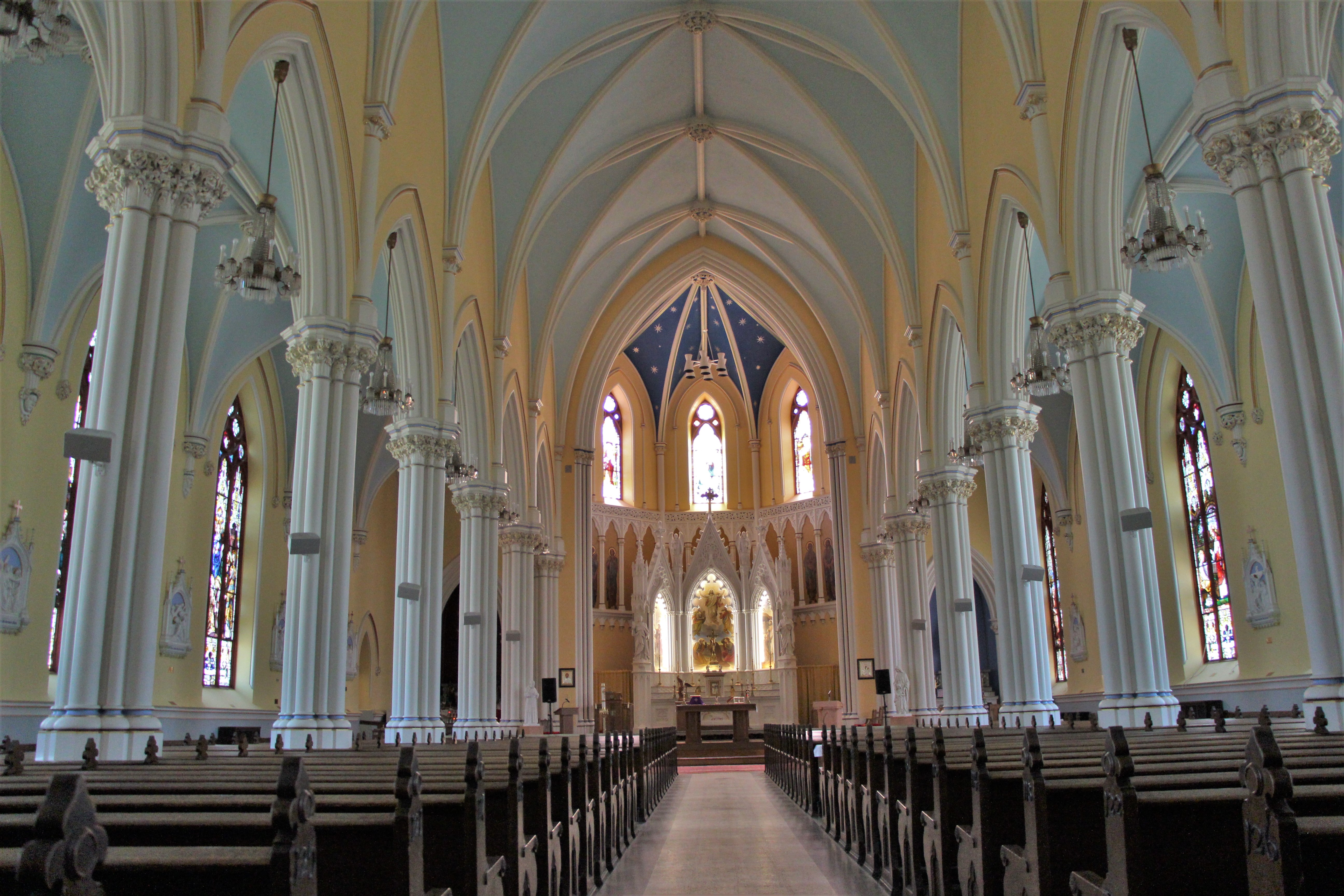

2019-03-18 - Church interior (Photograph by Stephen St. Denis/Stephen St. Denis)

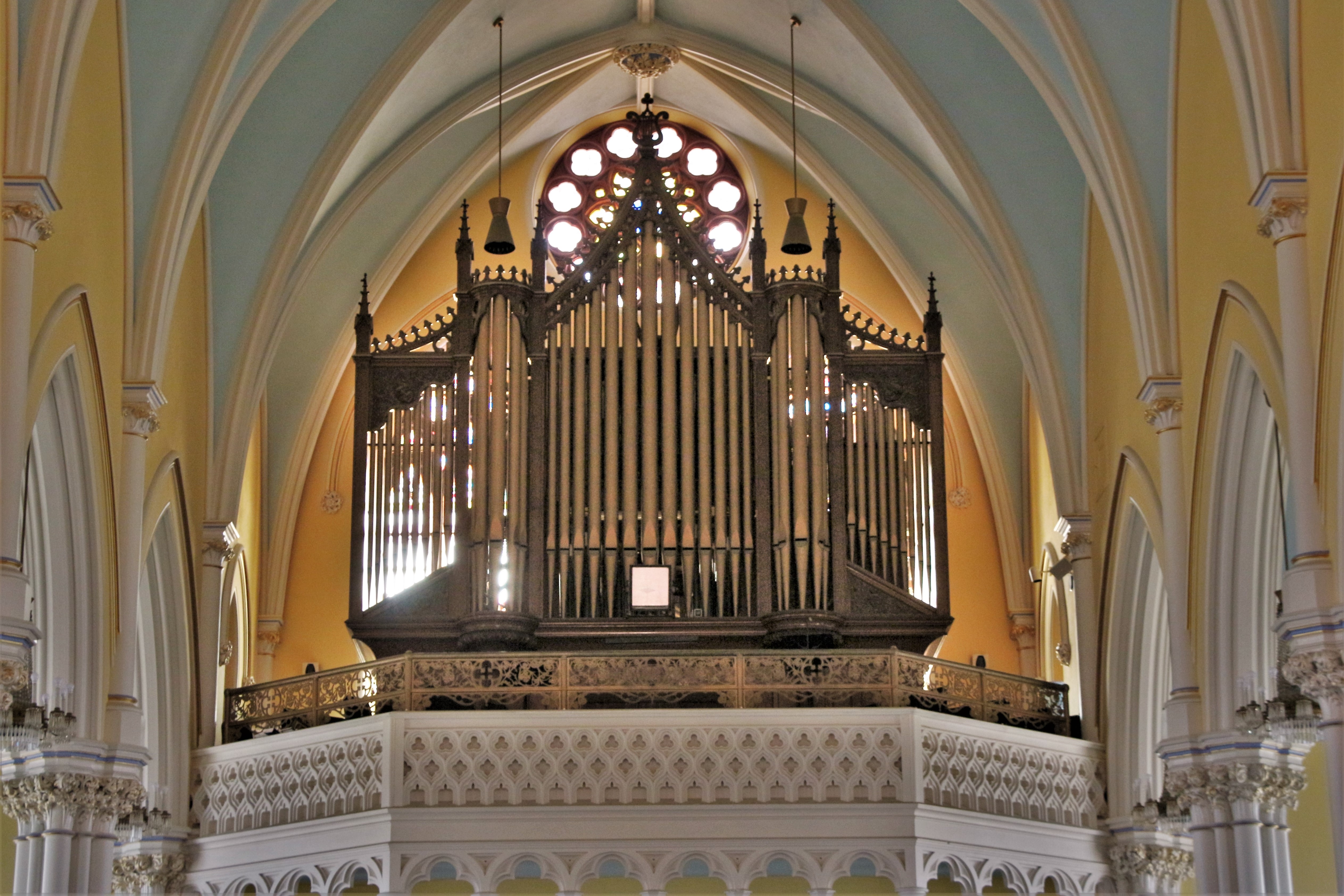

2019-03-18 - Organ case (Photograph by Stephen St. Denis/Stephen St. Denis)

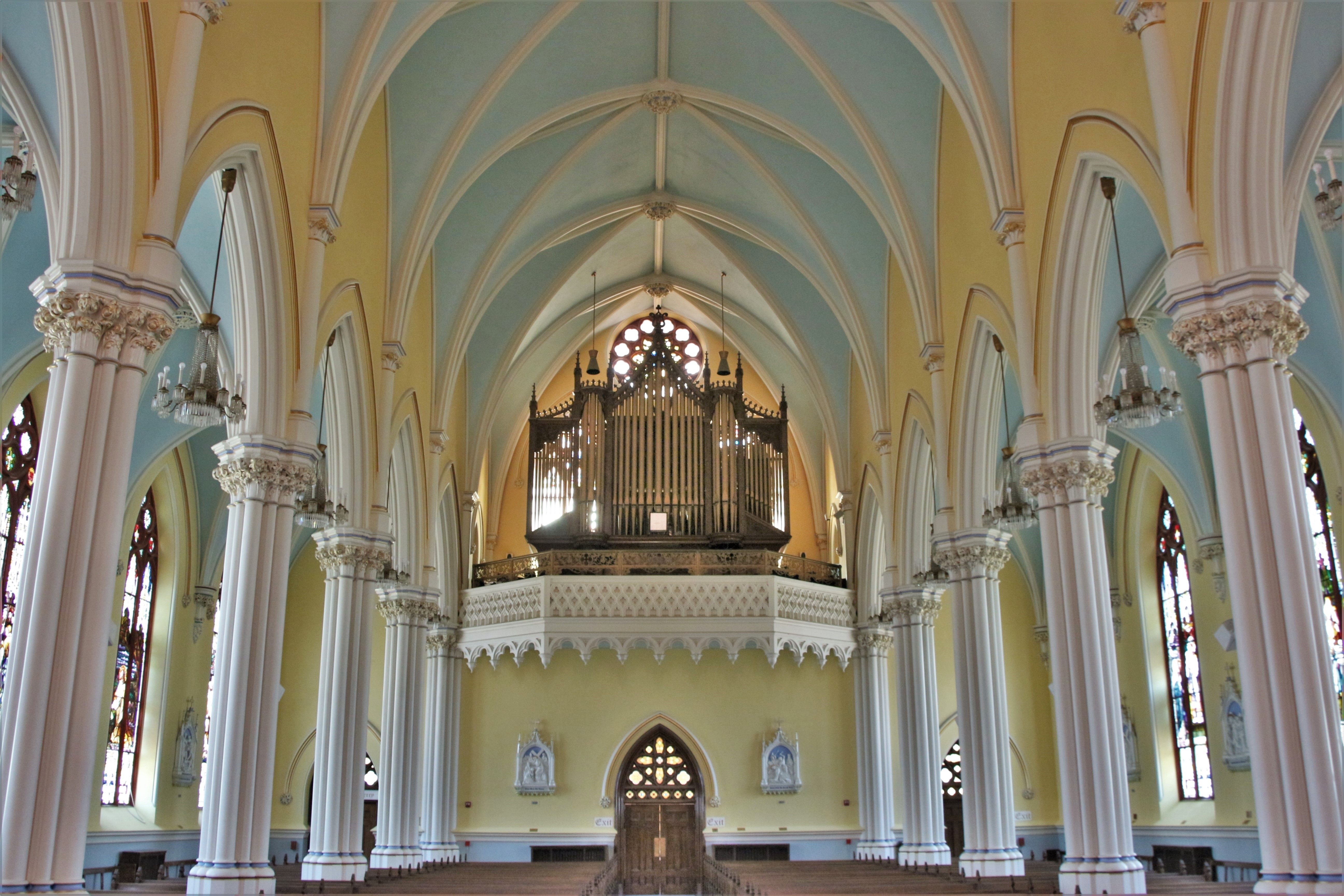

2019-03-18 - Organ in the rear balcony (Photograph by Stephen St. Denis/Stephen St. Denis)

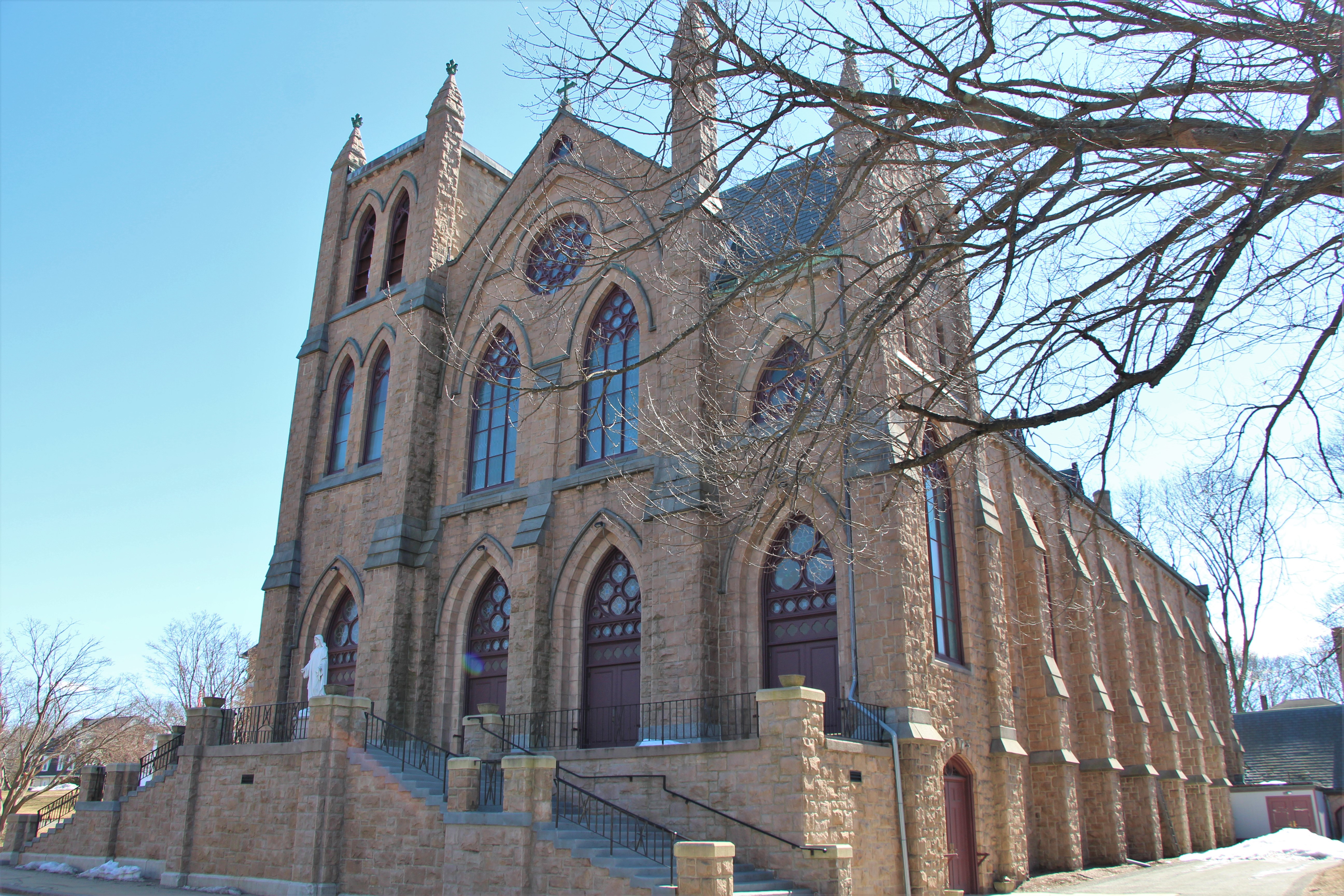

2019-03-18 - Church exterior (Photograph by Stephen St. Denis/Stephen A. St. Denis)
2025-05-03 - Console (Andrew Scanlon /Scanlon Andrew)
2025-05-03 - Pedalboard, swell shoe, and combination pedals (Andrew Scanlon/Scanlon Andrew)
2025-05-03 - Builder's nameplate (Andrew Scanlon/Scanlon Andrew)
2025-05-03 - Builder's nameplate from 1972 restoration (Andrew Scanlon/Scanlon Andrew)
2025-05-03 - Console w/ console cover folded down (Andrew Scanlon/Scanlon Andrew)
2025-05-03 - Organ in rear gallery (Andrew Scanlon/Scanlon Andrew)
2025-05-03 - 1972 restoration donor plaque (Andrew Scanlon/Scanlon Andrew)
2025-05-03 - Left stopjamb (Swell stops and couplers) (Andrew Scanlon/Scanlon Andrew)
2025-05-03 - Right stopjamb (Great and Pedal stops) (Andrew Scanlon /Scanlon Andrew)
2025-05-03 - Pipework (Andrew Scanlon /Scanlon Andrew)
2025-05-03 - Pedal pipework (Andrew Scanlon /Scanlon Andrew)
2025-05-03 - Great pipework and ladder looking up to swell box (Andrew Scanlon /Scanlon Andrew)
2025-05-03 - Reservoirs (Andrew Scanlon /Scanlon Andrew)
Consoles
Main
Notes
2018-10-18 - This entry describes alterations to an existing organ.
<br>Identified by James R. Stettner, who has heard or played the organ.<br> -Database Manager
Stoplist
Original document from James R. Stettner. Source: Stoplist copied from the console September 30, 1988 2018-11-08
Dedham, Massachusetts
St. Mary's of the Assumption R.C. Church
HOOK & HASTINGS CO., Opus 1797, 1898
Andover Organ Co., R-142, 1972 - Mechanical Restoration with Tonal Changes
GREAT COUPLERS (Drawknob)
16 Open Diapason 61 Sw. to Ped. Coupler
8 Open Diapason 61 Gr. to Ped. Coupler
8 Doppel Floete 61
8 Viola da Gamba 61 Sw. to Gr. Coupler
4 Octave 61
4 Flute d'Amour 61
3 Twelfth 61 FOOT LEVERS (Labeled; l-r)
2 Fifteenth 61 Water Motor - hitch-down
1-3/5 Tierce 61
III Mixture [17-19-22] 183 Swell Piano – 8' SD, 4' FH (d-a)
8 Trumpet 61
Swell Forte – 8' OD, 8' SD, 8'
Sal., 4, 4, 2,
SWELL (Expressive) III, 8' Cornopean
16 Bourdon 61
8 Open Diapason 61 Gr. to Ped. - Reversible
8 Stop'd Diapason 61
8 Salicional 61 Great Piano – 8' VdG, 4' Fd'A (d-a)
8 Celeste (tc) 49
4 Principal 61 Great Forte – 8' OD, 8' VdG, 4,
4 Flute Harmonique 61 4, 3, 2, III, 8
2 Fifteenth 61
1-1/3 Larigot 61
III Mixture 220 PEDAL MOVEMENTS (Labeled)
16 Bassoon 61 Pedal for Swell Organ (bal.)
8 Cornopean 61
Tremolo
ACTION: Mech. Key & Stop
PEDAL
16 Open Diapason 30 VOICES: 26 STOPS: 26
16 Bourdon 30
8 Violoncello 30 RANKS: 31 PIPES: 1,762
NOTES
The organ is free-standing & encased in the rear gallery. The keydesk is detached.
The 5-sectional façade contains 41 gold-painted pipes arranged: 9-5-13-5-9. Stops
are arranged in terraced jambs on either side of the manuals.
On the Great, the 1-3/5 Tierce is taken from the old Great III Mixture. The present
Great III Mixture is actually III-IV ranks, and is made from the remaining old Great
III Mixture and the old Swell III Dolce Cornet.
On the Swell, the 4' Principal is the old 4' Violina revoiced. The 2' Fifteenth is
new. The 1-1/3' Larigot was made from the original 2' Flautino. The III Mixture is
entirely new. The 16' Bassoon is the original 8' Oboe with a new bass octave.
No changes were made to the Pedal.
Sources: Hook Opus List; Andover opus list and files; JRS; extant organ
St. Mary of the Assumption R.C. Church
(Upper Church)
420 High Street
Dedham, MA. 02026
(718) 326-0550 Documented: September 30, 1988
