University of the South: St. Luke's Chapel
735 University Avenue
Sewanee, TN
Images

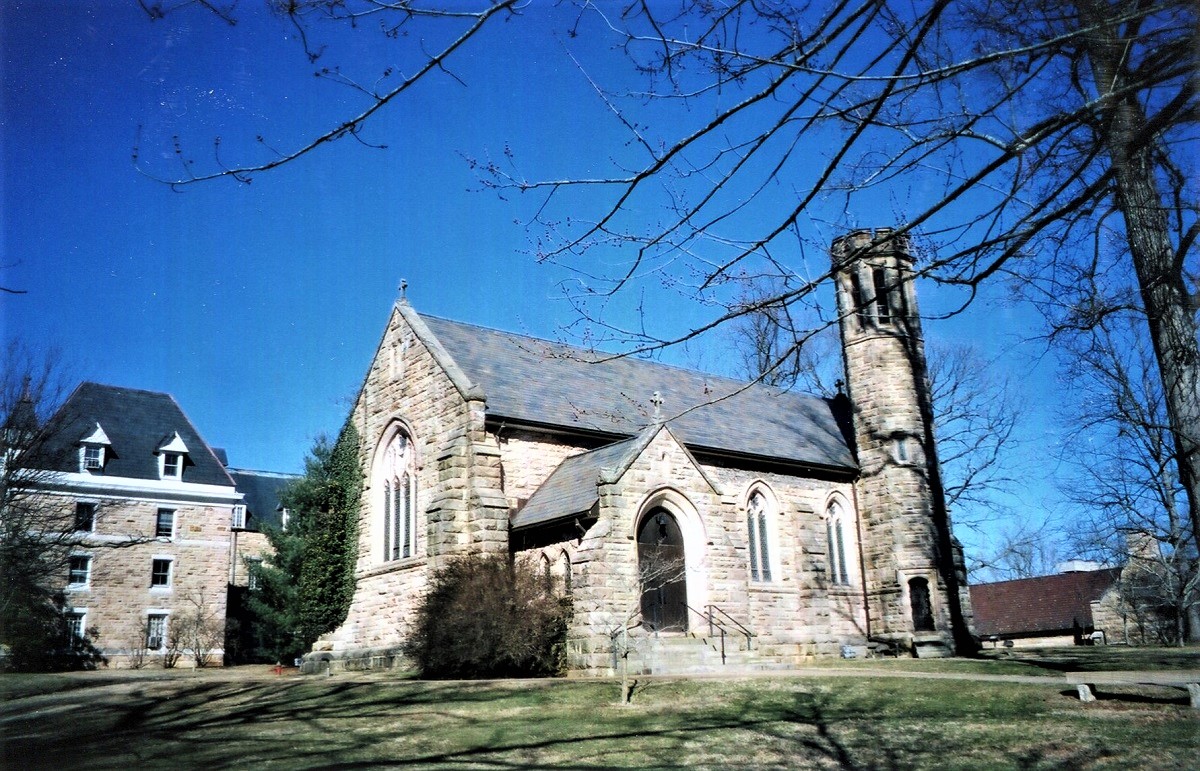

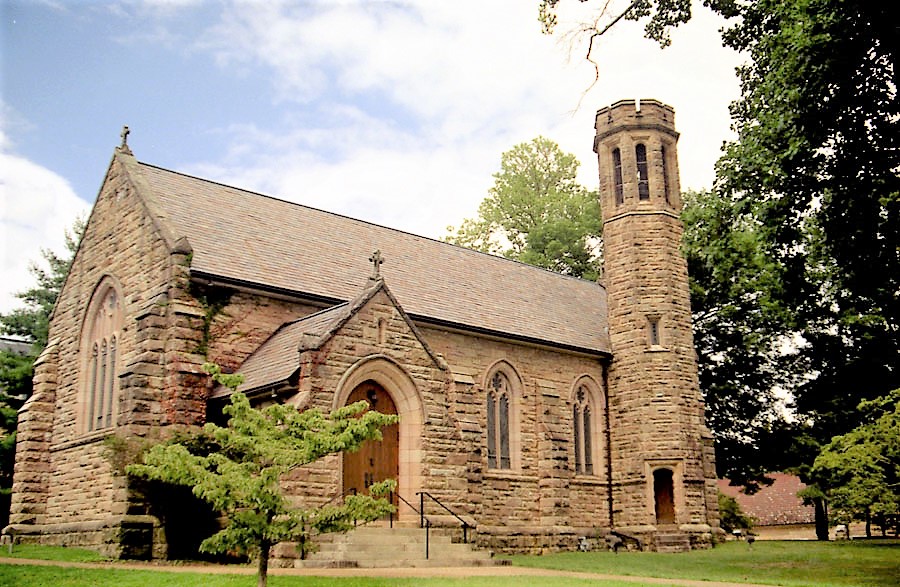

2013-07-22 - Chapel exterior (Photograph by Ken Stein, photographybystein.com, submitted by Jeff Scofield/Jeff Scofield)

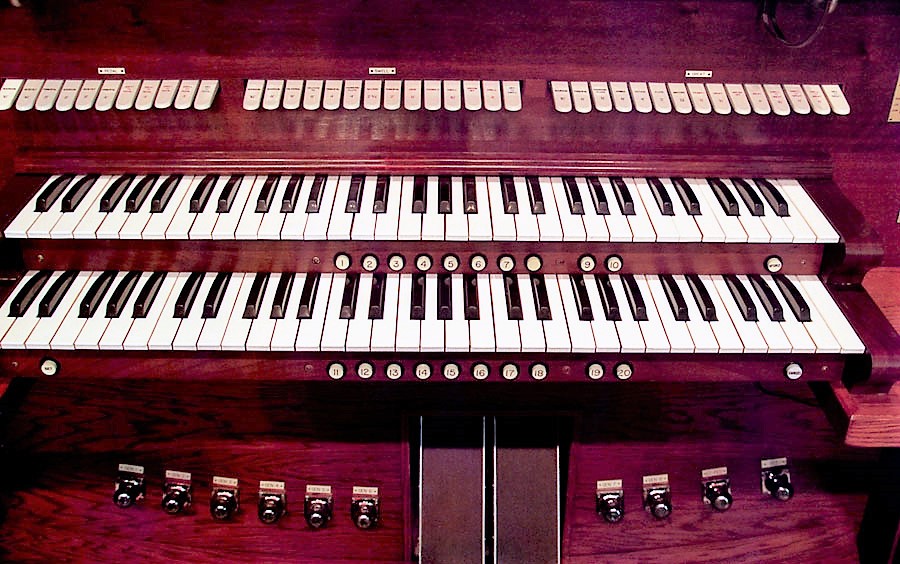

2013-07-22 - Console center (Photograph by Ken Stein, photographybystein.com, submitted by Jeff Scofield/Jeff Scofield)

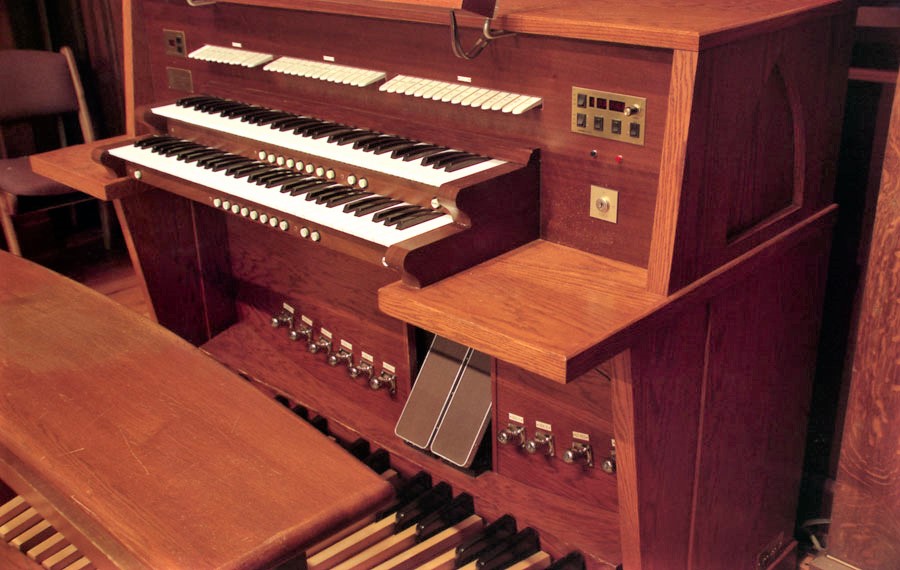

2013-07-22 - Console (Photograph by Ken Stein, photographybystein.com, submitted by Jeff Scofield/Jeff Scofield)

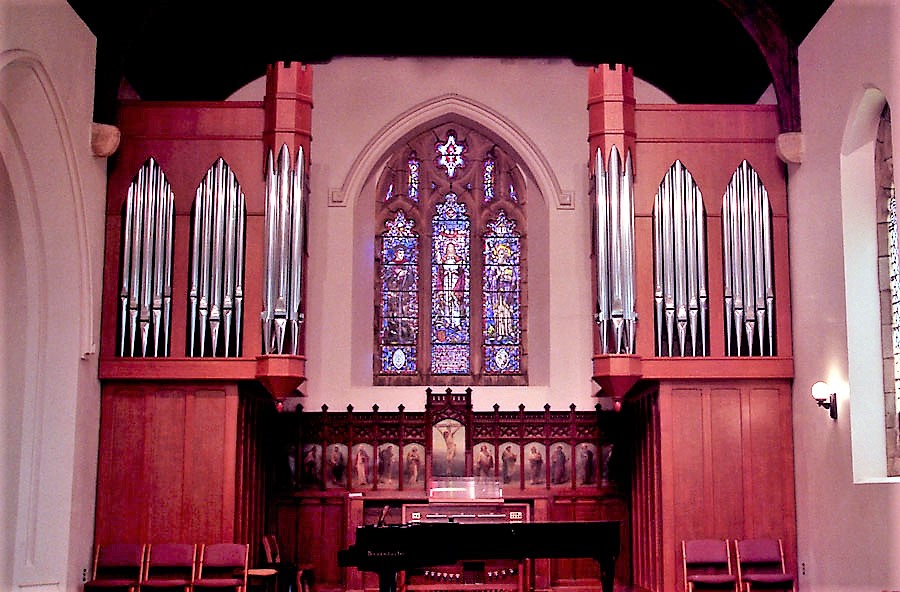

2013-07-22 - Chapel interior and organ case (Photograph by Ken Stein, photographybystein.com, submitted by Jeff Scofield/Jeff Scofield)

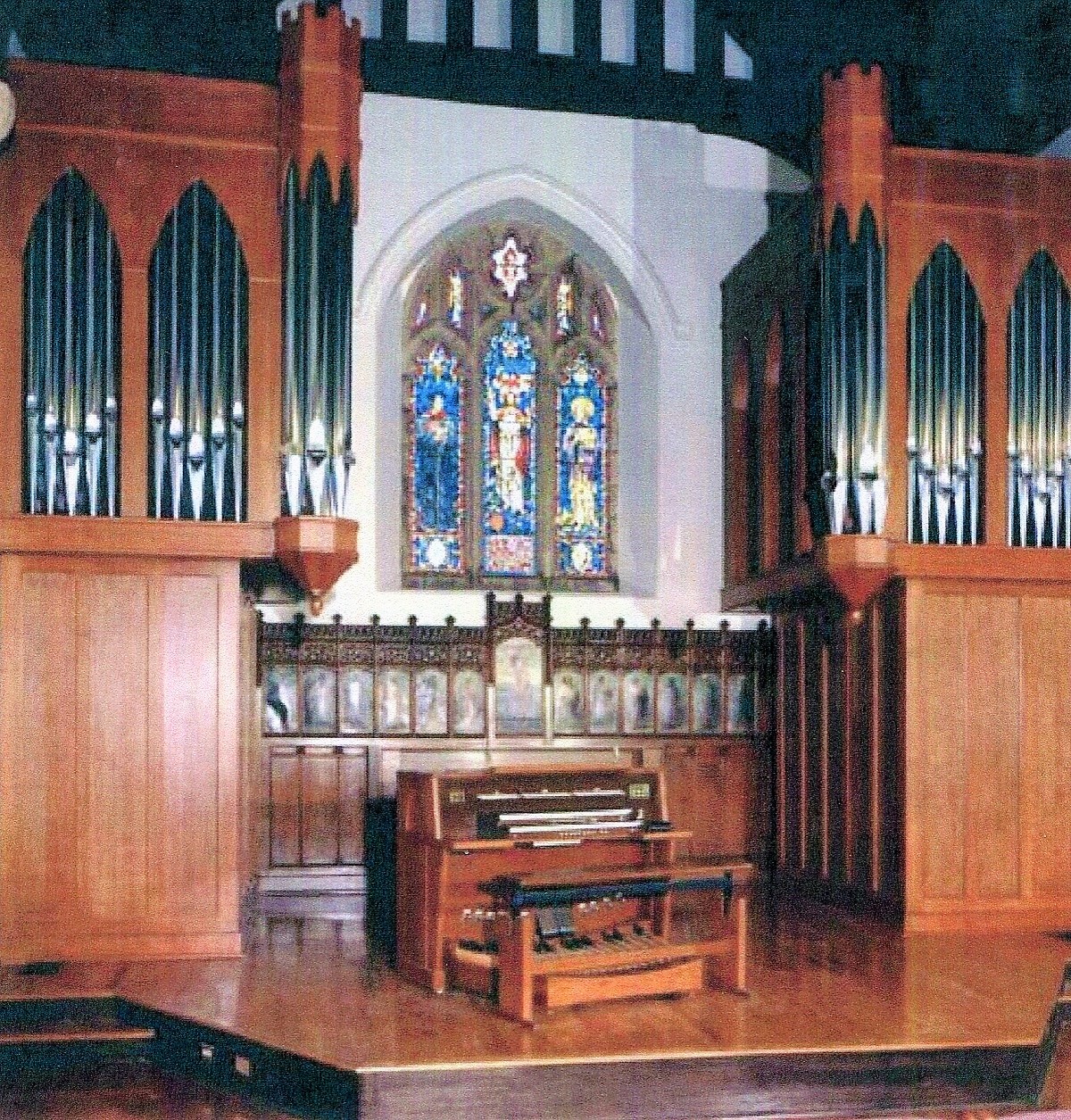

Unknown - Stage, console and facade (Photo courtesy of Milnar Organ Co./Database Manager)

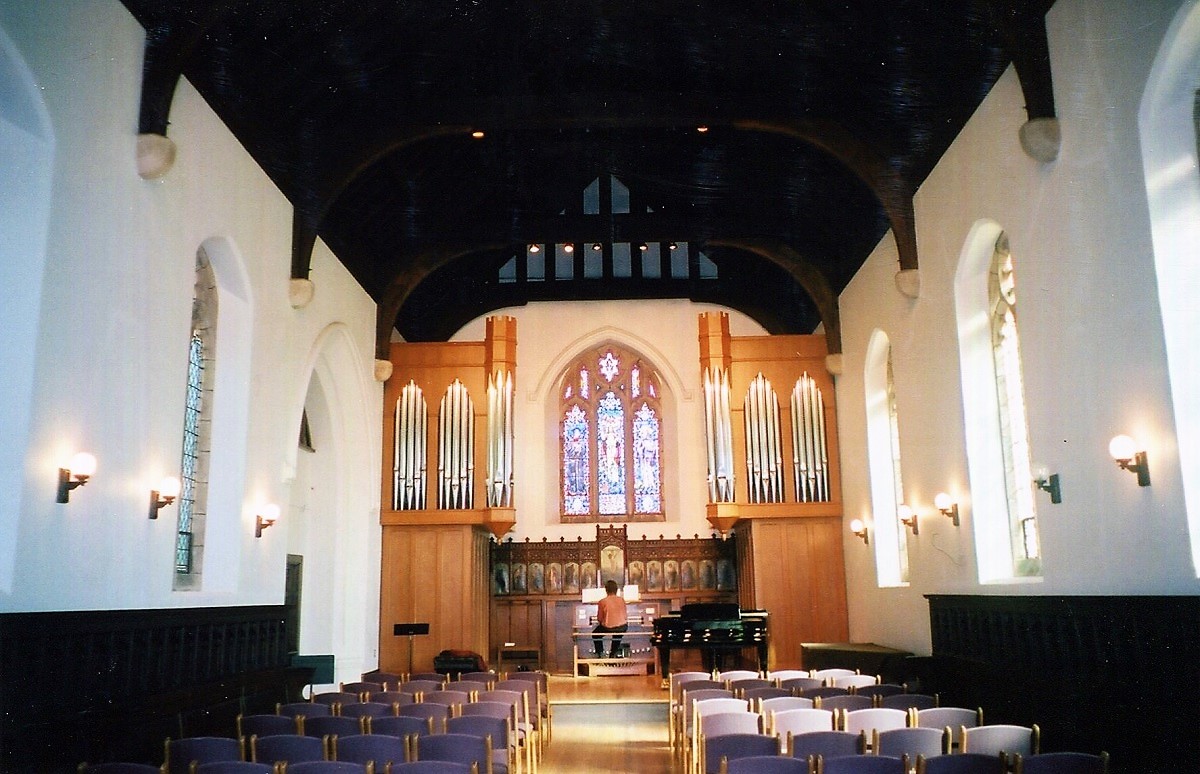

2004-08-04 - Chapel interior (Photograph by Jeff Scofield/Database Manager)
2004-08-04 - Chapel interior (Photograph by Jeff Scofield/Database Manager)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Movable Console
- 2 manuals
- 15 stops
- 24 registers
- 3 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Stop Keys Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Computerized/Digital
Notes
2019-01-16 - Incorporates some pipes from the original Pilcher in All Saints' Chapel and an earlier hand-pumped organ from St. Luke's of an unknown origin. -Database Manager
2024-08-30 - This new Milnar 18-rank organ incorporates some pipes from All Saints Chapel's original Pilcher organ and an earlier hand-pumped organ from Saint Luke's of unknown origin. The organ is enclosed in two 20' tall quarter-sawn oak cases on both sides of the stained-glass window and a hand-carved reredos of quarter-sawn oak framing; canvas paintings of the 12 apostles with Christ in the center. This instrument will serve as a teaching instrument as well as a performance instrument. With this in mind, we built the wind
chests with plexiglass bottom boards to enable the students to see the action in operation, as well as the movement of the bellows, swell machine, tremolo, and winkers.
The console is equipped with state-of-the-art equipment including full MIDI with playback capability. This allows the students to compose and record his or her OPUS on their keyboard and computer in their dorm. The next day insert the disk in the organ's sequencer, sit back in the audience, and see if it sounds as good as it did the night before.
-- Milnar work list -Paul R. Marchesano
Stoplist
Source: Milnar Company project list
Great Bourdon 16, Harmonic Flute 8, Principal 8, Gamba 8, Octave 4, Flute 4, Flute Harm [sic] 2, Mixture 2' IV, Trumpet 8
Swell Bourdon 16, Salicional 8, Bourdon 8, Celeste 8, Principal 4, Harmonic Flute 4, Principal 2, Nazard 2 2/3, Tremolo, Oboe 8
Pedal Bourdon 16, Gedeckt 16, Principal 8, Bourdon 8, Gedeckt 8, Principal 4
Great to Great, Great to Great 16, Great to Great 4, Swell to Great 16, Swell to Great 8, Swell to Swell 16, Swell to Swell, Great to Pedal 8, Great to Pedal 4, Swell to Swell 4, Swell to Pedal 4, Swell to Pedal 8
