Better Pipe Organ Database

Luley Organ Company (2000)

St. Mary's Episcopal Church
104 Louella Ave.
Wayne, PA

Images

2019-10-15 - Sanctuary interior (Photograph by Jeff Scofield/Database Manager)

2019-10-15 - Sanctuary interior from floor (Photograph by Jeff Scofield/Database Manager)

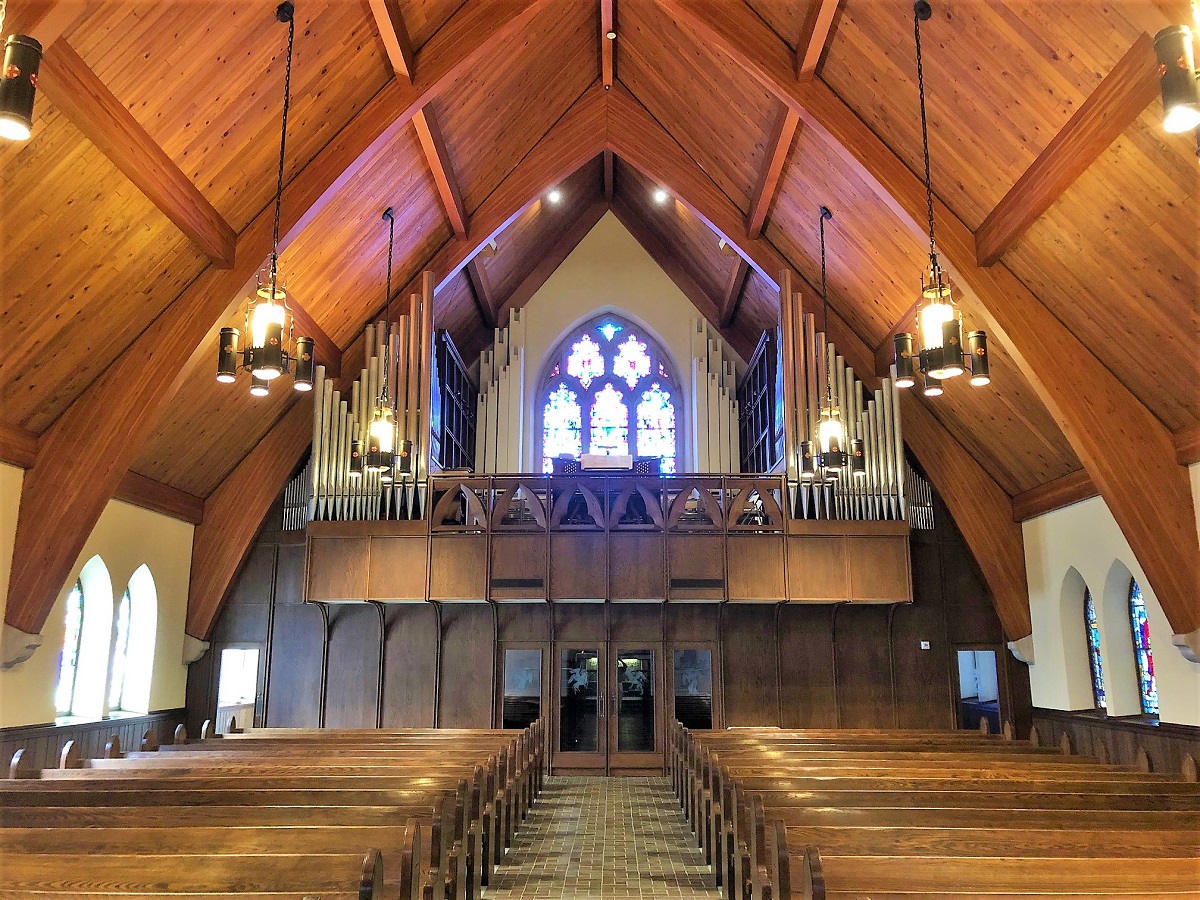

2019-10-15 - Sanctuary interior to rear and organ (Photograph by Jeff Scofield/Database Manager)

2019-10-15 - Antiphonal and Gallery Pipes (Photograph by Jeff Scofield/Database Manager)

2019-10-15 - Antiphonal exposed pipes (Photograph by Jeff Scofield/Database Manager)

2019-10-15 - Console to left (Photograph by Jeff Scofield/Database Manager)

2019-10-15 - Console to right (Photograph by Jeff Scofield/Database Manager)

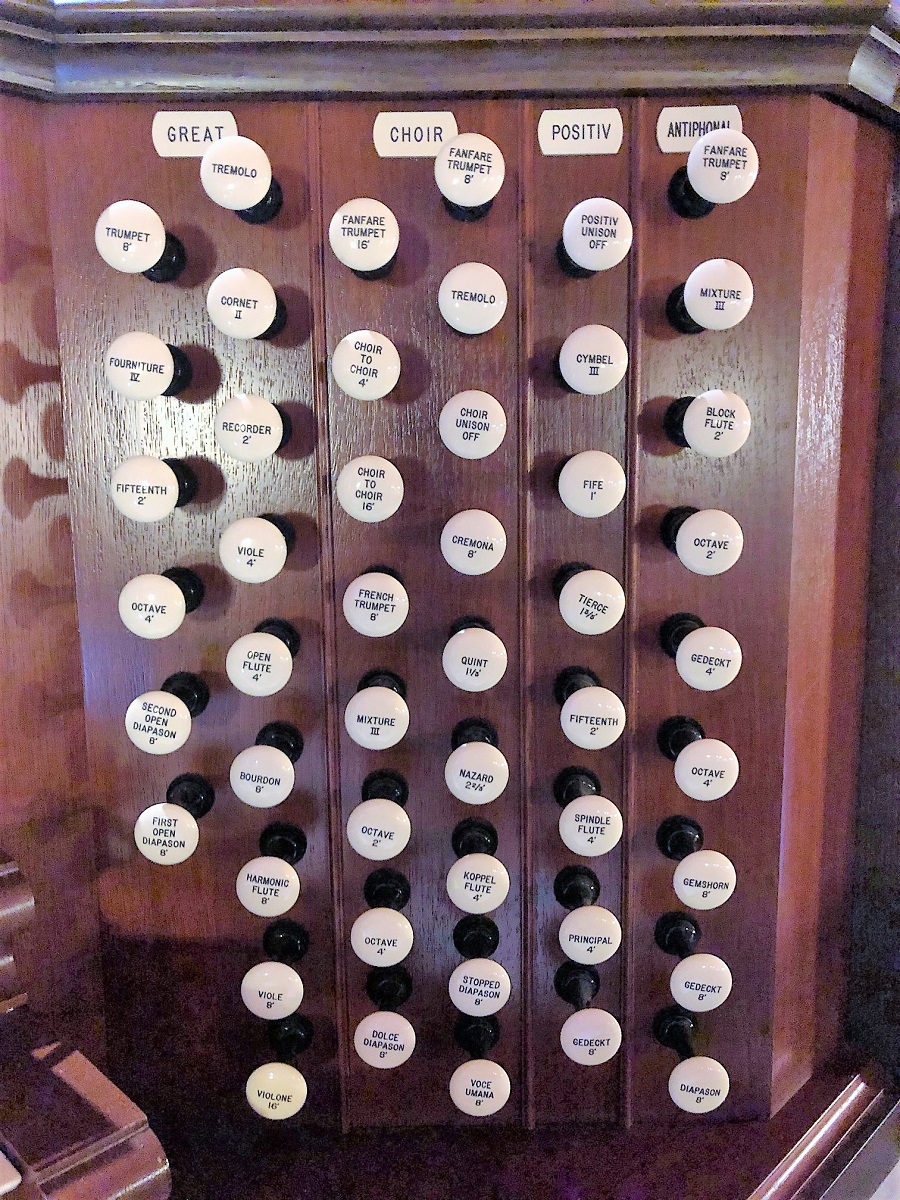

2019-10-15 - Left Stopjamb (Photograph by Jeff Scofield/Database Manager)

2019-10-15 - Right Stopjamb (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Center
3 manuals
71 registers
5 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital

Notes

2019-10-21 - This was a rebuild, tonal changes and new console for a 1969 3/61 Ruffatti. -Database Manager

Stoplist

Source: Stoplist copied from the console October 15, 2019 Date not recorded

       Wayne, Pennsylvania
       St. Mary's Episcopal Church

       Ruffatti   1969   3/61
       Luley      2000
       ___________________________________________

       GREAT                      CHOIR

   16' Violone                 8' Dolce Diapason
    8' 1st Open Diapason       8' Voce Umana
    8' 2nd Open Diapason       8' Stopped Diapason
    8' Harmonic Flute          4' Octave
    8' Bourdon                 4' Koppelflöte
    8' Viole               2 2/3' Nazard
    4' Octave                  2' Octave
    4' Open Flute          1 1/3' Quint
    4' Viole                 III  Mixture
    2' Fifteenth               8' French Trumpet
    2' Recorder                8' Cremona
   II  Cornet                     Tremolo
   IV  Fourniture                 Sub
    8' Trumpet                    Unison Off
       Tremolo                    Super
                              16' Fanfare Trumpet
       SWELL                   8' Fanfare Trumpet

   16' Gedeckt                    ANTIPHONAL
    8' Open Diapason
    8' Spire Flute             8' Diapason
    8' Gamba                   8' Gedeckt
    8' Gamba Celeste           8' Gemshorn
    8' Salicional              4' Octave
    8' Voix Celeste            4' Gedeckt
    4' Octave                  2' Octave
    4' Flute                   2' Block Flute
    2' Piccolo               III  Mixture
   IV  Mixture                 8' Fanfare Trumpet
   16' Fagotto
    8' Trumpet                    PEDAL
    8' Oboe
    8' Vox Humana             32' Contra Bourdon
    4' Clarion                16' Open Wood
       Tremolo                16' Open Metal
       Sub                    16' Bourdon
       Unison Off             16' Violone
       Super                  16' Gedeckt
   16' Fanfare Trumpet         8' Octave
    8' Fanfare Trumpet         8' Bourdon
    4' Fanfare Trumpet         8' Viole
                               4' Fifteenth
       POSITIV (prepared)      4' Flute
                              IV  Mixture
    8' Gedeckt                32' Contra Fagotto
    4' Principal              16' Trombone
    4' Spindle Flute          16' Dulzian
    2' Fifteenth              16' Fagotto
1 3/5' Tierce                  8' Trumpet
    1' Fife                    4' Clarion
  III  Cymbel
       Unison Off

    [Received from Jeff Scofield October 21, 2019]

Related Pipe Organ Database Entries

#53277 - Fratelli Ruffatti (1969)
