St. Matthew's Lutheran Church
30 W. Chestnut Street
Hanover, PA
Images
2014-05-21 - Console in normal position with choir (Photograph by Martin Doering via https://die-orgelseite.de, submitted by Jeff Scofield/Jeff Scofield)
2019-12-28 - Church tower (Photograph by Steven Gautsch, submitted by Jeff Scofield/Jeff Scofield)
2019-12-28 - Chancel, side chambers and facade pipes, ceiling chamber grillework and stained glass window (Photograph by Steven Gautsch, submitted by Jeff Scofield/Jeff Scofield)
2019-12-28 - Stained glass windows (Photograph by Steven Gautsch, submitted by Jeff Scofield/Jeff Scofield)
2019-12-28 - Nave with console in its usual position in the choir (Photograph by Steven Gautsch, submitted by Jeff Scofield/Jeff Scofield)
2019-10-18 - Console, pipe facades and ceiling grille (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Sanctuary interior (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Sanctuary interior from floor (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Sanctuary interior to rear (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Chancel ceiling grillework (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Gallery East Chamber (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Gallery West Chamber (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Console (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Left Stopjamb (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Right Stopjamb (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Console center (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Couplers (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Expression pedals and Crescendo (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Left toe studs (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Right toe studs (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Console side view (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Tiffany Chancel stained glass window (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Church front exterior (Photograph by Jeff Scofield/Database Manager)
2019-10-18 - Church rear exterior (Photograph by Jeff Scofield/Database Manager)
2024 - Mixture - Great Division pipes (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
2024 - Great Division pipes (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
2024 - Swell Tremulant (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
2024 - Swell Division pipes (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
2024 - Swell Division pipes (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
2024 - Swell Division pipes (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
2024 - Swell virtuoso control system (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
2024 - Shade engines (Swell) (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
2024 - Swell trackers (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
2024 - Swell trackers (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
2024 - Pedalboard (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
2024 - Builder's nameplate (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
2024 - Swell Division pipes (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
2024 - Swell Division pipes (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
2024 - Swell Division pipes (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
2024 - Pedal Division pipes in the Swell chamber (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
2024 - Swell Division pipes (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
2024 - Swell Division pipes (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
2024 - Swell/Pedal division facade and chamber (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
2024 - Great division facade and chamber (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
2024 - Console (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
2024 - Rose window (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)

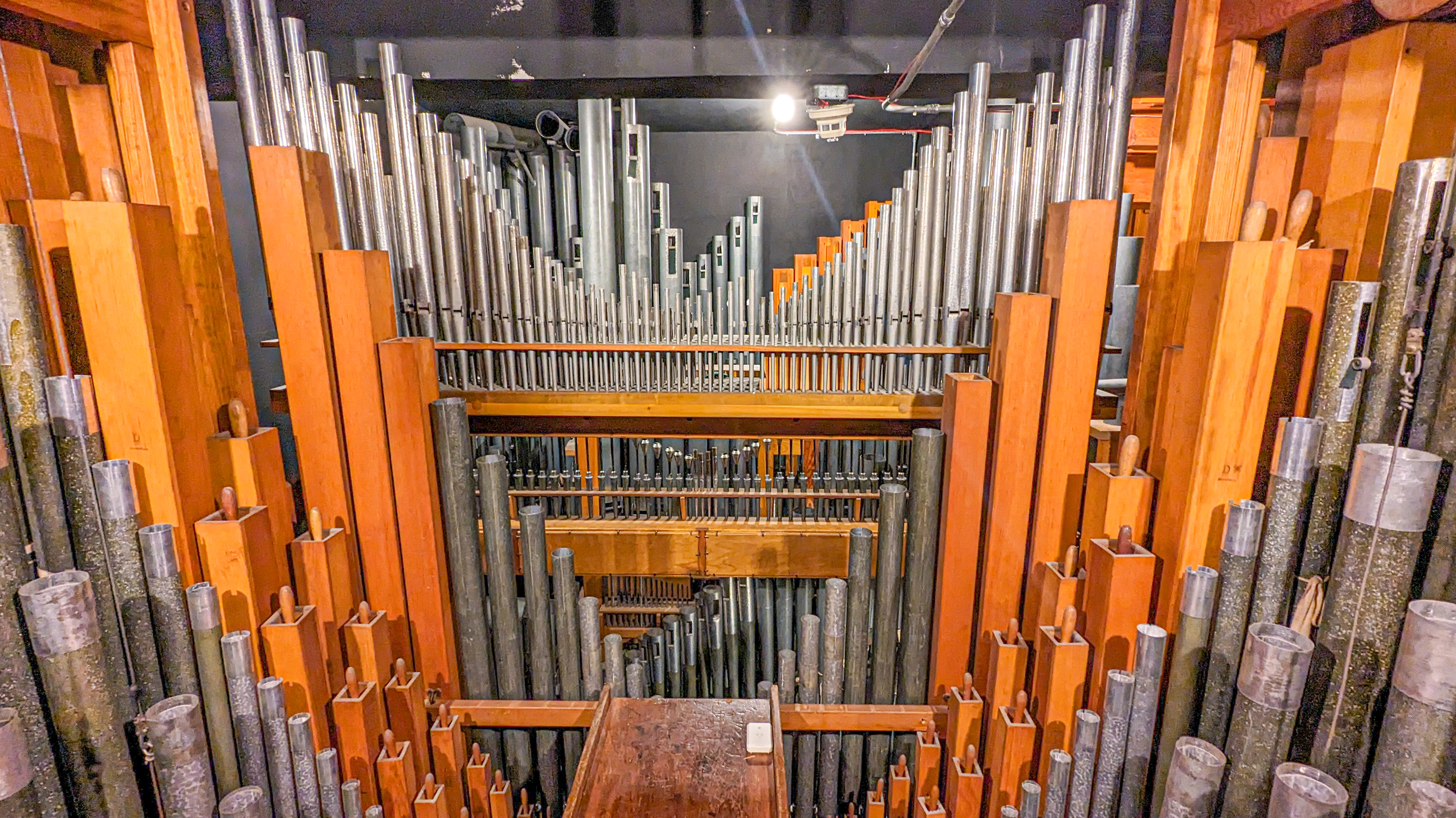

2024-05-07 - Facade pipes and organ chambers (Stephen Regec - For Piping Up From Pedal To Pipe/Stephen Regec)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Movable Console
- 4 manuals
- 10 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Has sequencer
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2019-10-26 - In the late 1990's the condition of the organ began to notably decay. Water damage from roof leaks became evident. Original cotton-wrapped wiring from 1920's was creating issues. Plaster had fallen into pipes causing damage. This was in both the front and back organs. An Organ Committee was formed in 2006 to assess the condition of the organ and make recommendations. In 2009, Austin began a 1.3 million dollar project of staged renovations which included new wiring, repairs to damage pipework, windchest releathering, new chamber walls, new lighting and electrical service to the chambers, Antiphonal and Gallery Pedal enhancements, Walker additions, and solid state conversion. in 2016 Austin determined that additional funds were required to complete the project. An additional $250,000.00 was donated. The project was completed in October 2016 with rededication on October 13, 2016. -Database Manager
2019-10-27 - Divisions located to each side of the chancel, in the ceiling above the chancel, and to each side of the gallery; the moveable console is normally located in the right transept where the choir is seated; the sanctuary seats 750. -Database Manager
Stoplist
Source: Stoplist from church's organ booklet and from the console October 18, 2017 Date not recorded
Hanover, Pennsylvania
St. Matthew Lutheran Church
Austin Op. 1214R 2016 4/245
________________________________________________________________________________________
GREAT 7" wind SOLO 10" wind PEDAL
16' Double Diapason 61 16' Bourdon 73 32' Open Wood dg
16' Bourdon 61 8' Diapason 73 32' Principal dg
8' First Diapason 61 8' Grossflöte 73 32' Sanftbass dg
8' Second Diapason 61 8' Doppelflöte 73 32' Contra Bourdon 12 SO
8' Harmonic Flute 61 8' Orchestral Flute 73 16' Contra Bass 32
8' Clarabella 61 8' Dulzflöte 73 16' Diapason GT
8' Stopped Flute 12 8' Gamba 73 16' Contra Geigen SW
8' Violoncello 61 8' Gamba Celeste 73 16' Violone Bass dg CH
8' Gemshorn 61 8' Violoncello 73 16' Soubasse dg CH
8' Gemshorn Celeste 61 8' Violoncello Celeste 73 16' Bourdon GT
5 1/3' Quint 61 4' Octave 73 16' Stopped Flute dg CH
4' Principal 61 4' Flute Ouverte 73 16' Lieblich Gedeckt SW
4' Octave 61 4' Zauberflöte 73 16' Violone 32
4' Flute Ouverte 61 2 2/3' Harm Stopped 12th 61 16' String Celeste II ST
4' Lieblichflöte 12 2' Piccolo 61 16' Viola CH
3 1/5' Tenth 61 II Terzian i 122 16' Flute Conique CH
2 2/3' Twelfth 61 IV Fourniture j 244 16' Dulciana SW
2' Superoctave 61 16' Bass Trombone 73 10 2/3' Quint 32
2' Waldflöte 61 16' Bass Clarinet 73 8' Principal 32
1 3/5' Seventeenth 61 8' Trompette Militaire 73 8' Octave (GT Dbl Diap) GT
IV-VI Mixture a 330 8' Trompette Royale 20" 73 8' Gedeckt 32 SW
V Fourniture b 305 8' Tuba Sonora 73 8' Violoncello 12
IV Scharf c 244 8' Trombone 12 8' Bass Flute dg CH
16' Double Trumpet 61 8' Orchestral Horn 20" 61 8' Flute Conique SW
8' Trumpet 12 8' French Horn 73 8' Viole Celeste II SW
8' Tromba 61 8' Corno di Bassetto 73 8' Dulciana SW
4' Clarion 12 8' Bassoon 73 5 1/3' Twelfth 32
Sub 8' Orchestral Oboe 61 4' Choral Bass 32
Unison Off 8' Harmonic Trumpet SW 4' Super Octave GT
Super 4' Clarion SW 4' Nachthorn 32
8' Trompette Royale SO Tremulant 4' Flute dg CH
Tromp Royale Melody Sub 2' Kleine Octave 32
8' Orchestral Horn SO Unison Off 2' Blockflöte 32
Piano dg Super V Grand Cornet o 160
Concert Harp dg IV Cymbale p 128
SWELL 7" wind 32' Contra Bombarde dg
STRING 10" wind 16' Bombarde SO
16' Contra Geigen 73 16' Trombone GT
16' Lieblich Gedeckt 73 16' Double Violes II 122 16' Fagotto SW
16' Double Dulciana 73 8' 1st Violes d'Orch II 122 16' Baryton CH
8' Diapason 73 8' 2nd Violes d'Orch II 122 16' Contra Oboe 12 CH
8' Rohrflöte * 73 8' Violins II 122 8' Bombarde 12
8' Zartflöte 73 8' Violas d'Amoure II 122 8' Trombone GT
8' Holzgedeckt 73 8' Violes Sourdine II 122 8' Bassoon SO
8' Harmonic Flute 73 4' Octave Violes II 122 4' Clarion (Harm Trmpt) SW
8' Quintadena 73 4' Viola d'Amore 61 4' Rohrschalmei CH
8' Violin 73 III Cornet des Violes k 183 4' Trompette CH
8' Viole Celeste 73 8' Vox Humana 61 Chimes dg
8' Viole de Gambe 73 Zimbelstern 4
8' Salicional 73 On Great GALLERY PEDAL
8' Flute Celeste II 134 On Swell
8' Voix Seraphique II 134 On Choir 32' Contra Bourdon dg
8' Viole Celeste 73 On Solo 16' Open Diapason dg
8' Dulciana 24 16' Bourdon AN
8' DUlciana Celeste 73 CELESTIAL 7" wind 16' Subbass 32
4' Principal 73 16' Violone dg
4' Flauto Traverso 73 16' Contra Salicional 61 16' Viola da Gamba 12 AN
4' Octave 73 8' Diapason 61 16' Salicional CE
4' Chimney Flute 73 8' Hohlflöte 61 8' Principal 32
4' Dulcet 12 8' 1st Unda Maris II 122 8' Octave Bourdon 12
4' Dulcet Celeste 12 8' 2nd Unda Maris II 122 8' Violone dg
4' Violina 73 8' Voix Celeste II 122 8' Viola da Gamba AN
2 2/3' Rohr Nasat * 61 8' Aeoline 61 4' Choral Bass 12
2' Fifteenth 61 4' Octave 61 4' Fern Flute AN
2' Piccolo 61 4' Harmonic Flute 61 16' Double Trumpet AN
1 3/5' Tierce 61 4' Flauto Mistico II 122 16' Waldhorn AN
1 1/3' Larigot 61 II Rauschquint l 122 8' Trumpet AN
V Sesquialtera d 305 8' Tromba 61 4' Clarion AN
V Plein Jeu e 305 16' 1st Vox Humana 61 Chimes
III-IV Acuta f 220 8' 1st Vox Humana 12
16' Contra Fagotto 73 8' 2nd Vox Humana 61 BELLS/PERCUSSION
16' Heckelphone 73 4' 2nd Vox Humana 12 (All bells are Maas-Rowe)
8' Harmonic Trumpet 73 Tremulant Glockenspiel dg SO
8' Cornopean 73 Chimes (Mayland) 25 Celeste Bells 37 notes
8' Oboe 73 Celestial Harp dg Harp Bells 37 notes
8' English Horn 73 On Great 4' Minor Bells 37 notes
8' Vox Humana 61 On Swell Symphonic Carillon 37 notes
4' Clarion 73 On Choir Flemish Bells
4' Hautbois Octaviante 61 On Solo Great Melody
Tremulant On Great
Sub ANTIPHONAL 7" wind On Swell
Unison Off On Choir
Super 16' Bourdon (1-12 digital) 49 On Solo
8' Trompette Royale SO 8' Principal 61 Celeste Bells 37 notes
8' Melodia 61 Harp Bells 37 notes
CHOIR 7" wind 8' Gemshorn 61 4' Minor Bells 37 notes
8' Gedeckt 61 Major Bells 37 notes
16' Flute Conique 73 8' Flauto Dolcissimo 61 Flemish Bells 37 notes
16' Contra Viola 73 8' Flute Celeste 49 On Great
8' Geigen Principal 73 8' Viola da Gamba 61 On Swell
8' Viola de Gambe 73 8' Viole Aetheria 61 On Choir
8' Quintaten 73 8' Vox Angelica 49 On Solo
8' Chimney Flute 73 4' Octave 61 Pedal Grand Tympani SO
8' Flute Conique 12 4' Fernflöte 61 Pedal Minor Tympani SO
8' Flute Celeste 61 4' Dulcet 61 16' Pedal Bourdon Bells 13 notes
8' Dulciana 73 4' Dulcet Celeste 61 8' Pedal Bourdon Bells 13 notes
8' Unda Maris 49 2' Fifteenth 61 8' Pedal Flemish Bells 13 notes
4' Principal 73 V Mounted Cornet m 150 Bells Outside
4' Viola d'Amoure 61 IV Mixture n 244 Bells Inside
4' Flute d'Amour 73 16' Double Trumpet 12 Back Speakers
4' Waldflöte 73 16' Waldhorn 12 Front Speakers
2 2/3' Nazard 61 8' Trumpet 61
2' Blockflöte 61 8' Corno d'Amore (Waldhn) 61 MIDI/EXPRESSION
1 3/5' Tierce 61 8' Voce Bassetto 61
1 1/3' Larigot 61 Tremulant MIDI on Solo I
1' Sifflöte 61 On Great MIDI on Solo II
IV Plein Jeu g 244 On Swell MIDI on Swell I
III Zimbel h 183 On Choir MIDI on Swell II
16' Baryton 73 On Solo MIDI on Great I
8' Trompette 73 MIDI on Great II
8' Clarinet 73 a 12-15-19-22 MIDI on Choir I
8' Oboe d'Amoure 73 b 15-19-22-26-29 MIDI on Choir II
8' Regal 61 c 22-26-29-33 MIDI on Pedal I
8' Vox Humana 61 d 12-15-17-19-22 MIDI on Pedal II
4' Rohr Schalmei 73 e 15-15-19-22-26 SW Chancel Shades Closed
Tremulant f 24-26-29 SW Nave Shades Closed
Sub g 15-19-22-26 GT/CH Chancel Shades Closed
Unison Off h 36-40-43 GT/CH Nave Shades Closed
Super i 17-19 Celestial Shades on SW shoe
8' Orchestral Horn SO j 12-15-19-22 Celestial Shades on CH shoe
8' Trompette Royale SO k 10-12-15 Antiphonal Shades on SO shoe
Harp (Deagan) 61 l 12-15 Antiphonal Shades on CH shoe
Manual Transfer m 1-8ve-12-15-17 String Shades on SO shoe
n 19-22-26-29 String Shades on SW shoe
o 12-15-17-19-22 String Shades on CH shoe
p 22-26-29-33 All Shades on SW shoe
Solo Speaker Off
