Better Pipe Organ Database

Steere & Turner [John S. Steere] Opus 103 (1876)

Congregational Church: Sanctuary
Derby Line, VT

Note: Not extant. Not playable. (in this location)

Images

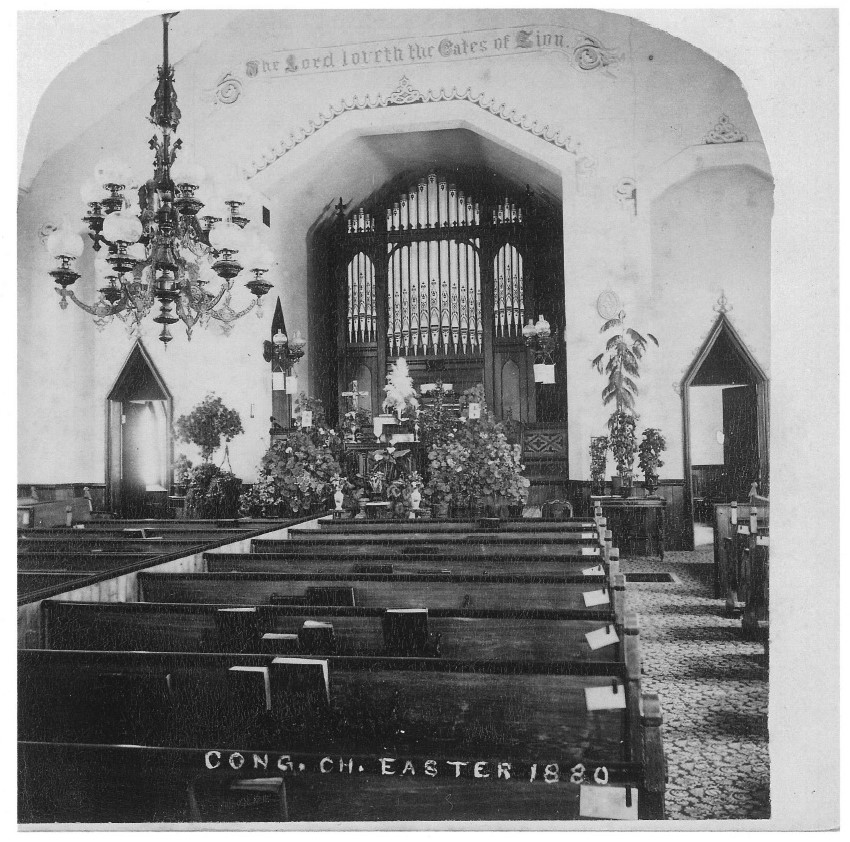

1880-03-28 - Sanctuary interior with organ in front. Easter Sunday, 1880 (Photograph from an archival source: Photo from parish archives, submitted by Jim Stettner/Jim Stettner)

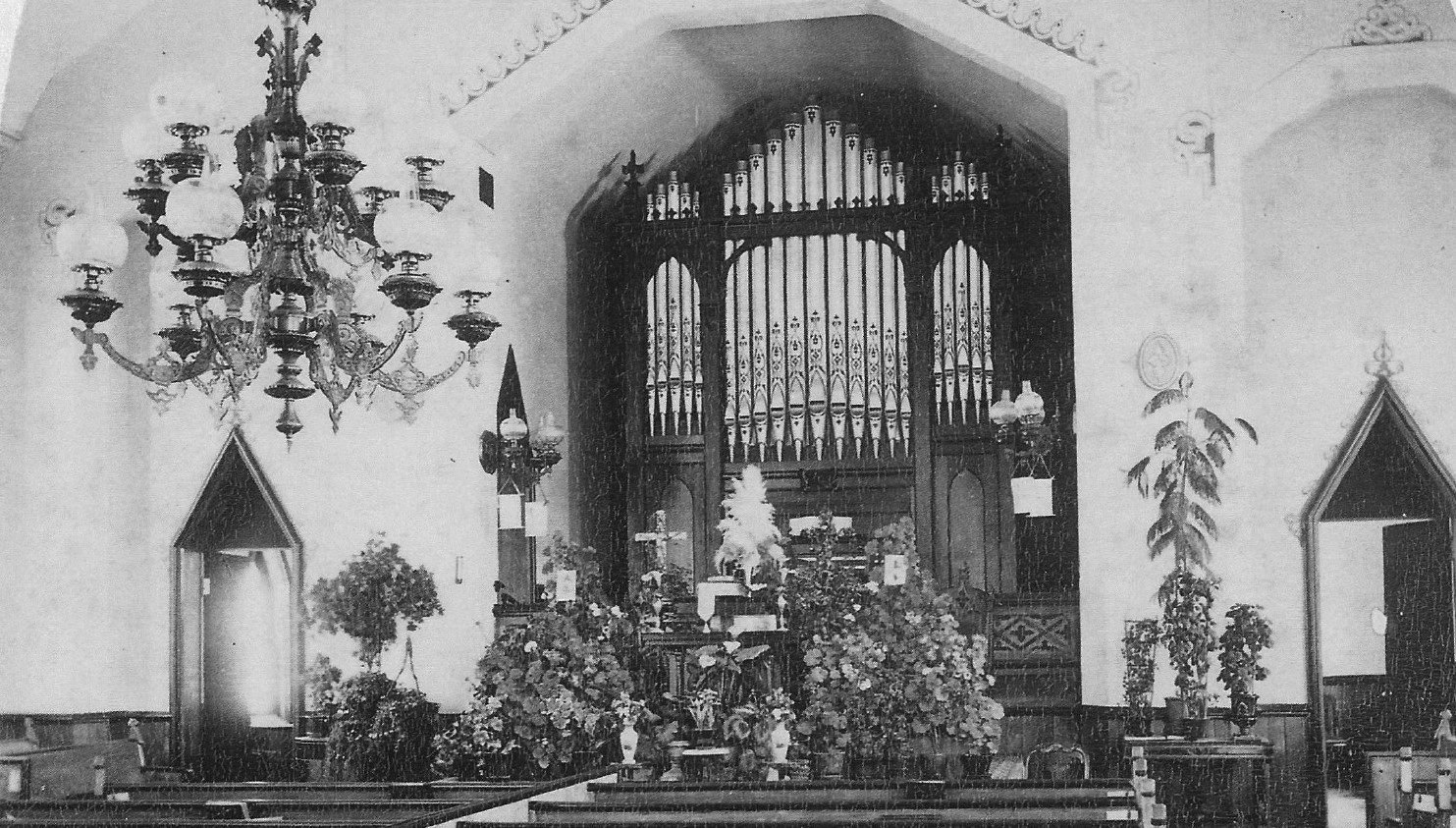

1880-03-28 - Sanctuary interior with organ in front. Easter Sunday, 1880 (Photograph from an archival source: File in Parish Archives, submitted by Jim Stettner/Jim Stettner)

Consoles

Main

Organ type: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
Console position: Keydesk Attached
2 manuals
10 stops
10 registers
3 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Manual compass: 58 notes
Pedal compass: 27 notes
Pedal Type: Flat Straight
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: None

Stoplist

Source: Taken from a related OHS Database account

Derby Line, Vermont
Congregational Church

STEERE & TURNER [John S. Steere], Opus 103, 1876 - Original Specifications


GREAT (58 notes)                             COUPLERS (Drawknob)
8 ft. Open Diapason              58          Swell to Pedal
8 ft. Melodia                    58          Great to Pedal
8 ft. Dulciana                   58
4 ft. Octave                     58          Swell to Great
2 ft. Fifteenth                  58

                                             FOOT TRUNDLES
SWELL (Expressive - 58 notes)                Undocumented
8 ft. Stopped Diapason           58
8 ft. Salicional                 58
4 ft. Flute Harmonique           58          PEDAL MOVEMENTS
8 ft. Oboe            (tenor c)  46          Swell Expression             (bal.)
      Tremolo


PEDAL (27 notes)
16 ft. Bourdon                   27


ACTION: Mech. Key & Stop     VOICES: 10     STOPS: 10     RANKS: 10     PIPES: 537


NOTES
The organ is free-standing and encased at the front of the room. The 3-sectional
facade contains 21 stenciled pipes arranged: 5-11-5. Keydesk is attached and pro-
jecting with drawknobs in terraced jambs.

The organ was later moved to a private residence in Glover, Vermont by an unknown
person or firm. The pedal compass was increased to 30 notes - presumaby at this
time. It later suffered sever water damage from a flood and was removed in 2017
by A. David Moore and Lubbert Gnodde and broken-up for parts. Some stops were
used in the Lubbert Gnodde rebuild of opus 318 in Woodstock, Vermont.
