Source: Stoplist taken from the builder's website December 6, 2020
Shoreline, Washington
St. Dunstan's Episcopal Church
ORTLOFF ORGAN CO. LLC, Opus 2, 2020 - Original Specifications
GREAT COUPLERS
16 Bourdon (Ped/Sw) –- Swell to Pedal
8 Diapason 61 Great to Pedal
8 Harmonic Flute 61
8 Stopped Diapason (Sw) –- Swell to Great 16,8,4
4 Octave 61
2 2/3 Twelfth 61
2 Fifteenth 61 FINGER PISTONS
16 Fagotto (Sw) –- General 1 - 10
8 Trumpet (Sw) –- Swell 1 - 8
Tremolo Sw to Ped (rev)
Up (Sw)
Great 16 Down (Sw)
Great Off Great 1 - 8
Great 4 Gt to Ped (rev)
Up (Gt)
Down (Gt)
SWELL (Expressive) Up (Gen)
16 Bourdon (tc) –- Down (Gen)
8 Stopped Diapason 61 SFZ (rev)
8 Viola 61 Set
8 Celeste (GG) 54 Gen Can
4 Principal 61
4 Spindle Flute 61
2 Flautino 61 TOE STUDS
III Mixture 183 General 1 - 10
8 Trumpet 61 Pedal 1 - 6
8 Oboe 61 Sw to Ped (rev)
Tremolo Gt to Ped (rev)
Up (Gen)
Swell 16 Down (Gen)
Swell Off
Swell 4
PEDAL MOVEMENTS
Swell Expression (bal.)
PEDAL
16 Bourdon 32
8 Diapason 32
8 Bourdon 12 ACTION:
8 Stopped Diapason (Sw) –-
4 Octave 12 VOICES: 16 STOPS: 26
16 Fagotto (Sw) 12
8 Trumpet (Sw) –- RANKS: 18 PIPES:
NOTES

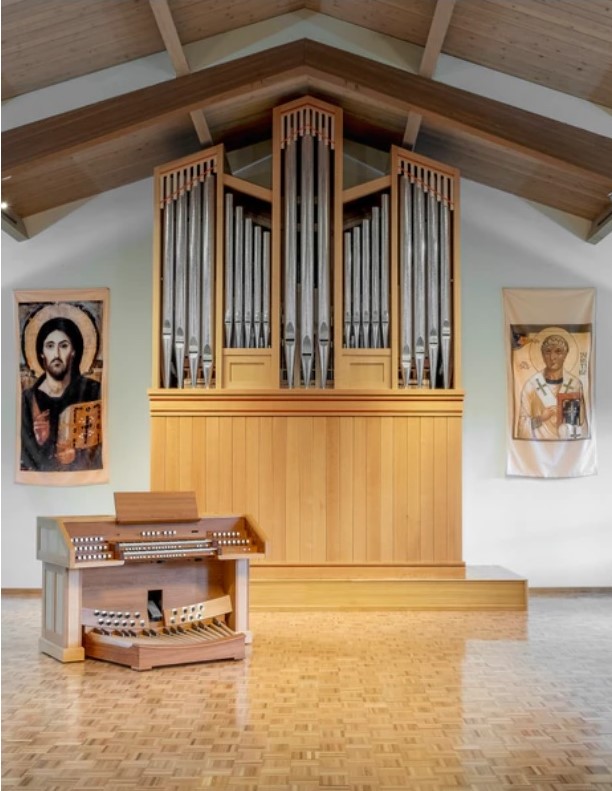

The organ is partially free-standing and encased in the front. This section holds the Great and Pedal pipes. The Swell is in the modified original chambers behind
the case and the front wall. The case of red oak has a 5-sectional façade contain-
ing 21 pipes arranged: 4-5-3-5-4.
From the Ortloff website: “Our Opus 2, of 16 stops and 18 ranks, was commissioned
in late 2018 by St. Dunstan's to replace a failing second-hand pipe organ instal-
led by church members into what was originally intended to be the church hall.
After a thorough process, the church’s organ committee elected to commission a
fine electric action organ to complement the rich collection of mechanical action
instruments in the greater Seattle area.

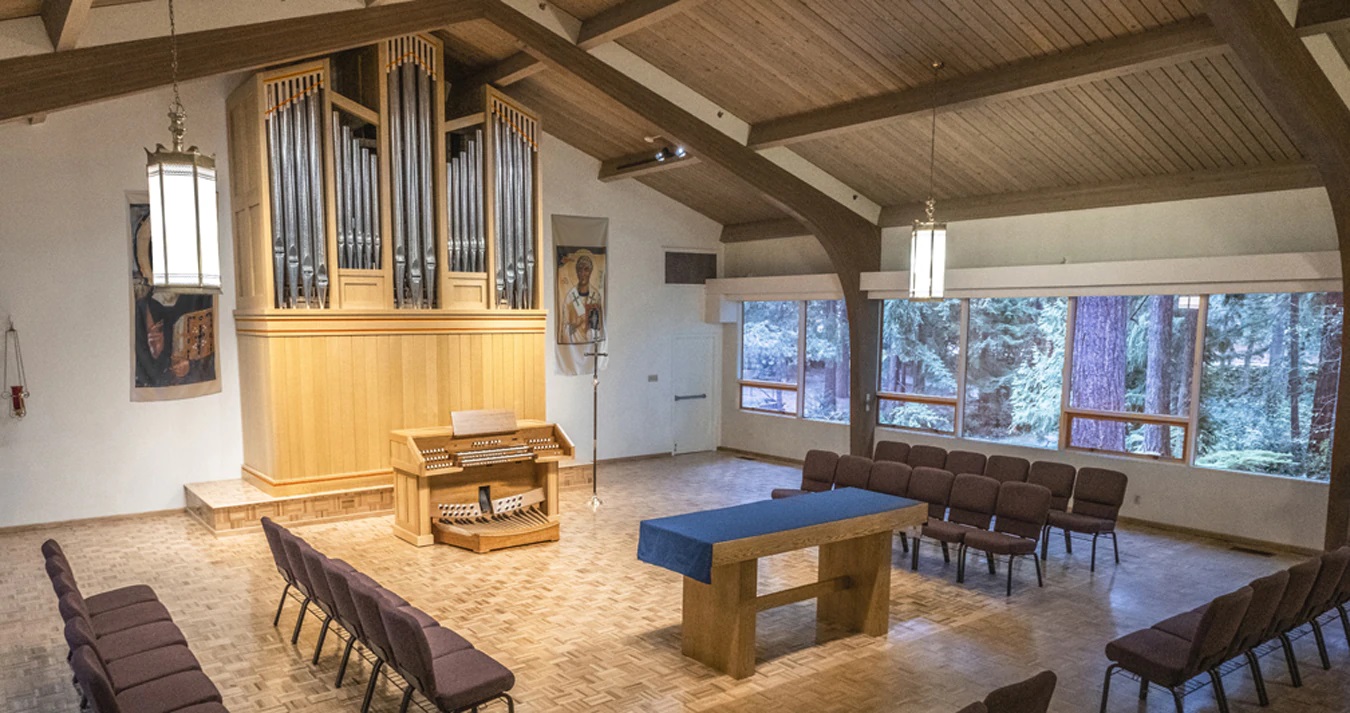

The Great and Pedal divisions are housed in a freestanding case of quarter-sawn
red oak, placed front and center in the church. The Swell division is housed
behind the upper case, in the former attic above the sacristy. Variable pipe
scaling for the two choruses was employed to meet the acoustical demands of the
relatively small room. Each pipe is voiced to produce beautiful, unforced tone,
both in solo and ensemble registrations. All new principals and flutes are of
94% lead, save the Swell Principal of spotted metal. The Stopped Diapason is a
generously-scaled wooden stop. The facade pipes, as well as interior 8' basses
and strings are of 50% polished spotted metal. Pipework was supplied by Russell
& Company, Shires Organ Pipes, and Organ Supply Industries. Jonathan Ortloff
voiced all flue pipes; reeds were voiced by Christopher Broome. The Great and
Pedal speak on 3" wind pressure; the Swell flues speak on 3.5" pressure, and
the reeds 5".
Shop construction began in early 2019, and the organ was delivered and installed
in August, 2020. Tonal finishing was completed in October, with assistance from
voicer Duane Prill.”
Sources: Ortloff website; JRS; extant organ
St. Dunstan's Episcopal Church
722 N. 145th St.
Shoreline, WA 98133 Documented: Regrettably, it is not possible to display the information about the sponsor of this pipeorgandatabase entry or if there is a sponsor. Please see About Sponsors on Pipe Organ Database.
