Grace United Methodist Church
143 E Row St.
Jamestown, MO
Images
1954-04-18 - Facade pipes with original stenciled design (Stanley and Charlotte (Pettigrew) Sapp wedding; Photo courtesty of Charlotte Sapp and family./Database Manager)

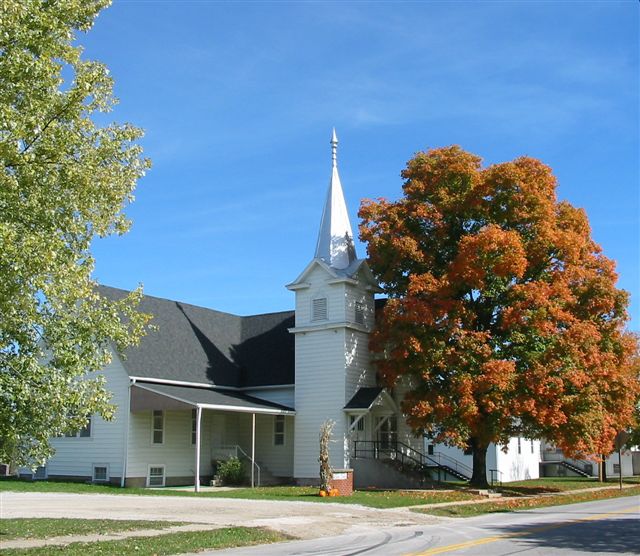

2008-07-30 - Church Exterior (Photographs by Samuel and Sam Lucas/Database Manager)

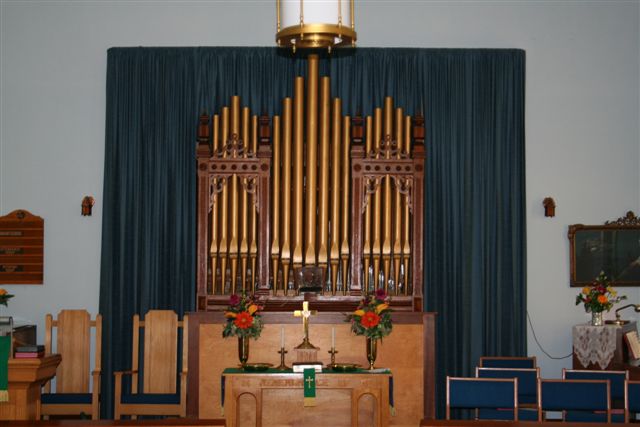

2008-07-30 - Facade (Photographs by Samuel and Sam Lucas/Database Manager)

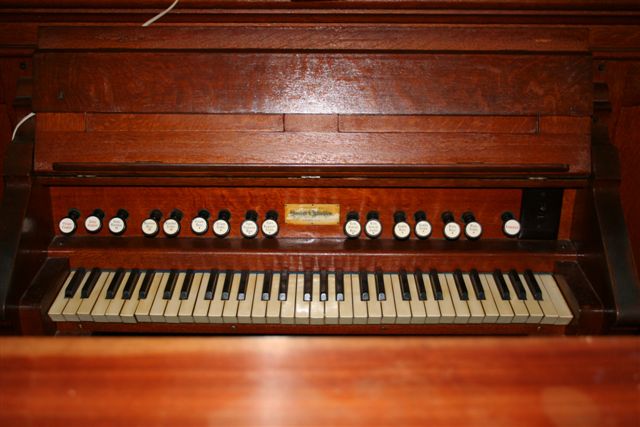

2008-07-30 - Keyboard (Photographs by Samuel and Sam Lucas/Database Manager)

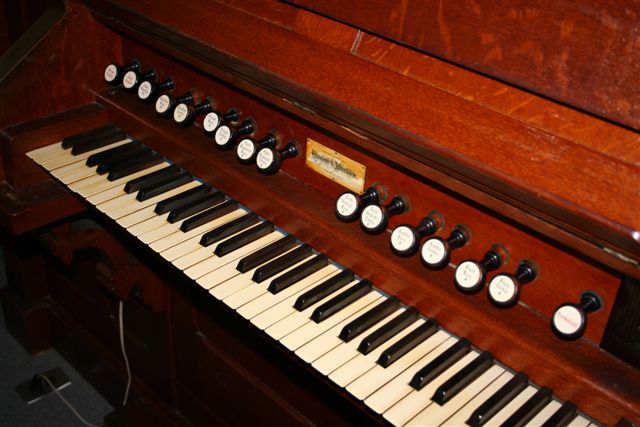

2008-07-30 - Keydesk (Photographs by Samuel and Sam Lucas/Database Manager)

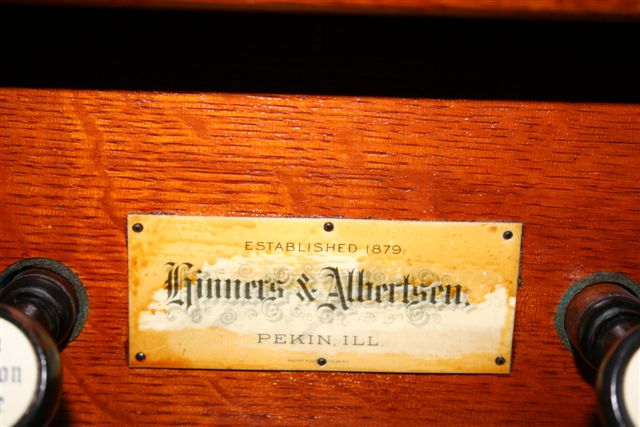

2008-07-30 - Builder's Nameplate (Photographs by Samuel and Sam Lucas/Database Manager)

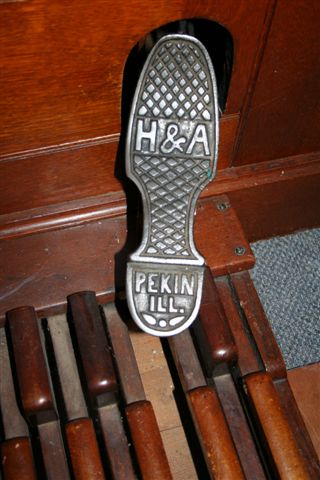

2008-07-30 - Swell Shoe (Photographs by Samuel and Sam Lucas/Database Manager)

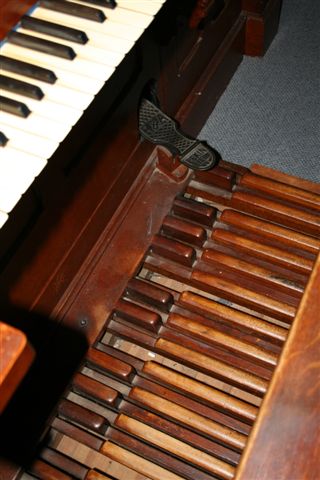

2008-07-30 - Pedalboard (Photographs by Samuel and Sam Lucas/Database Manager)

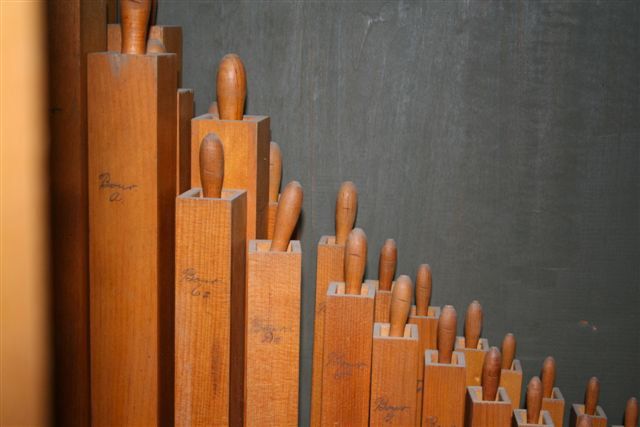

2008-07-30 - Pipework (Photograph by Samuel and Sam Lucas/Database Manager)

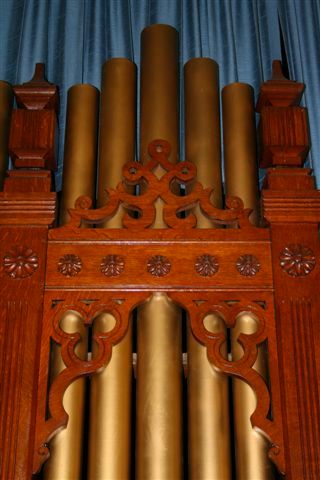

2008-07-30 - Detail of Organ Case and Pipe Facade (Photograph by Samuel and Sam Lucas/Database Manager)

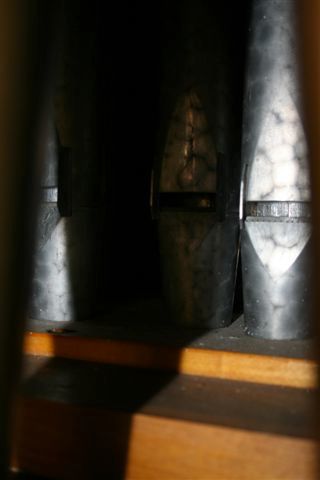

2008-07-30 - Pipework (Photograph by Samuel and Sam Lucas/Database Manager)

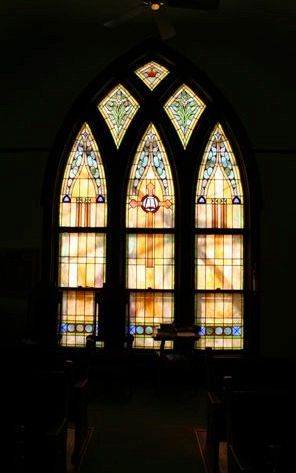

2008-07-30 - Stained Glass Window (Photograph by Samuel and Sam Lucas/Database Manager)
Consoles
Main
- Organ type: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
- Console position: Keydesk Attached
- 1 manuals
- 7 stops
- 13 registers
- 2 divisions
- Key action Type: Mechanical (Details Unknown)
- Stop action Type: Mechanical
- Stop layout Type: Drawknobs in Horizontal Row Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 27 notes
- Pedal Type: Flat Straight
- Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
- Combination action: None
Notes
2004-10-30 - Restored Quimby 1978. Stoplist in Richmond. -Database Manager
2017-06-03 - Updated by James R. Stettner, listing this web site as a source of information: http://database.organsociety.org/OrganDetails.php?OrganID=6578. -Database Manager
Stoplist
Stoplist by Michael Quimby for the October 26, 2008, citation program Source: Source not recorded Date not recorded
Grace United Methodist Church
Jamestown, Missouri
Hinners & Albertsen (opus 454) 1901
Organ Specifications
One Manual and Pedal___7 ranks, 355 pipes
MANUAL Compass CC-c4, 61 notes
unenclosed
Open Diapason Treble 8'
Open Diapason Bass 8' 61 pipes
Octave Treble 4 '
Octave Bass 4' 61 pipes
enclosed
Bourdon Treble 16'
Bourdon Bass TC 16' 49 pipes
Lieblich Gedackt Treble 8'
Lieblich Gedackt Bass 8' 61 pipes
Gamba Treble 8'
Gamba Bass TC 8' 49 pipes
Flute Treble 4'
Flute Bass 4' 61 pipes
Tremulant
PEDAL Compass CCC-TD, 27 notes
Bourdon 16' 13 pipes
COUPLERS
Manual to Pedal
Manual Octave Coupler
ACTION
Mechanical Action
[Received from Sam Lucas 2013-08-07.]
