Better Pipe Organ Database

Juget-Sinclair Opus 52 (2021)

Christ King Catholic Church
2604 N. Swan Blvd.
Wauwatosa, WI

Images

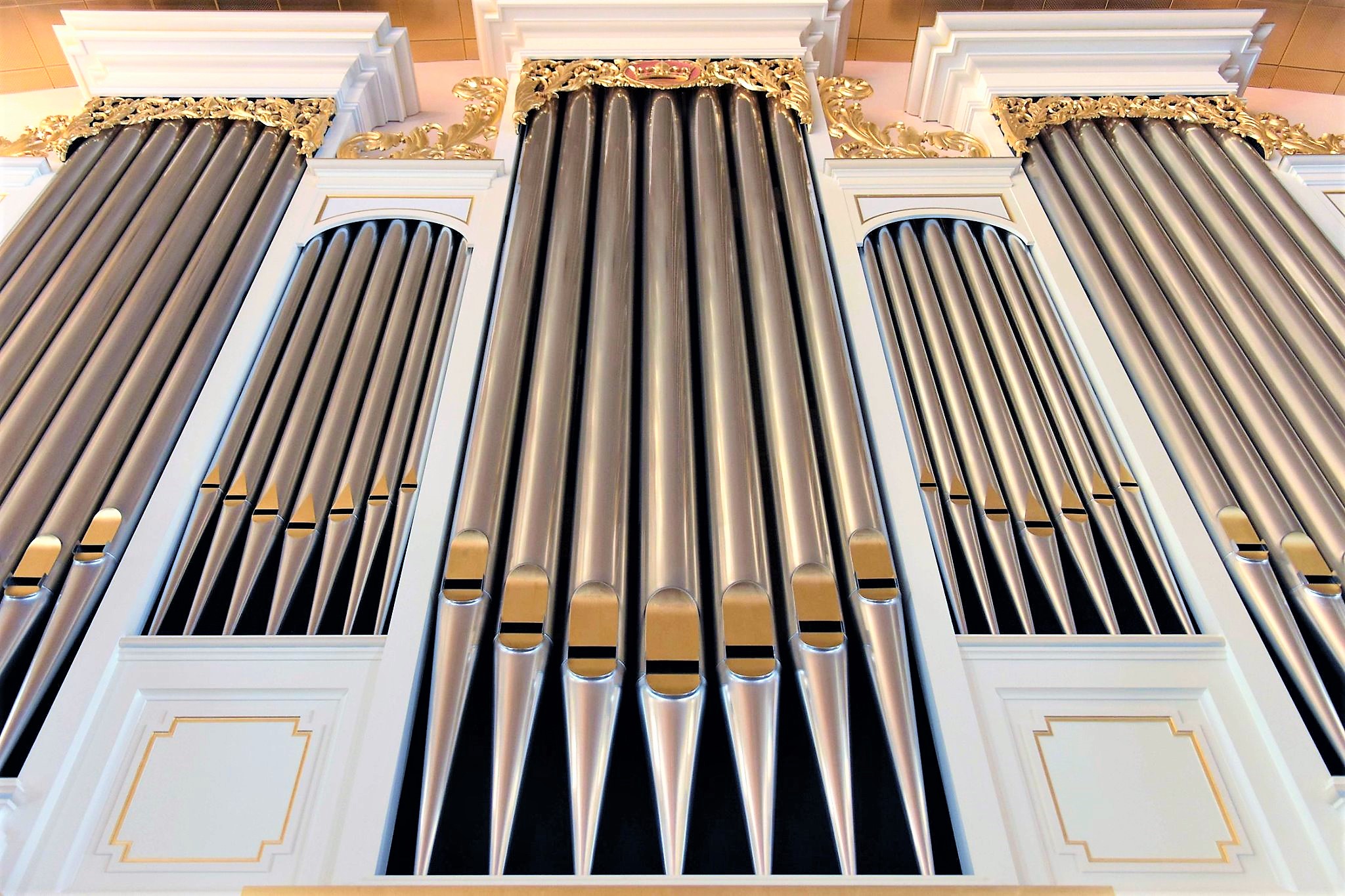

2021-04-30 - Organ Case (Photograph by Juget-Sinclair, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

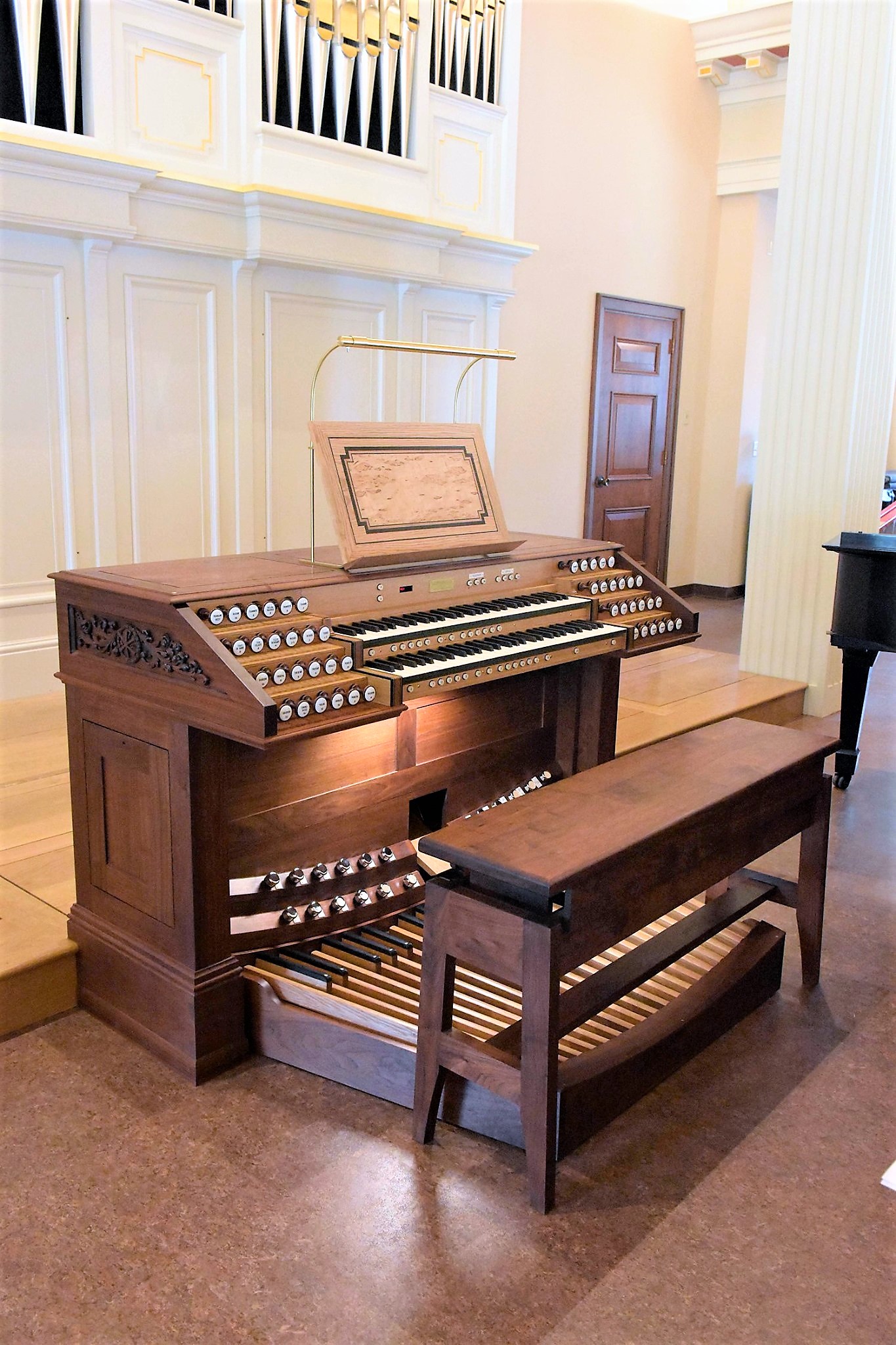

2021-04-30 - Console (Photograph by Juget-Sinclair, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

2021-04-30 - Church interior to gallery and organ case (Photograph by Juget-Sinclair, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

2021-04-30 - Gallery and organ case (Photograph by Juget-Sinclair, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Detached Keydesk (Mechanical Action)
2 manuals
42 stops
3 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Electrical
Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: Computerized/Digital
Has sequencer
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons

Notes

2021-04-27 - -The Zimbelstern from previous Wicks organ was kept by request of the church. It is now called "Clochettes" -The Trompette 8' and Clairon 4' of the pédale are shared mechanically with the use of back-check valves -Alexander Ross

Stoplist

Updated by Alexander Ross from the console, April, 2021. Source: Juget-Sinclair website

       Wauwatosa, Wisconsin
       Christ King Catholic Church

       Juget-Sinclair   Op. 52   2021   2/53
       ______________________________________________________________

       GRAND-ORGUE               RECIT                  PEDALE

   16' Montre                16' Bourdon            32' Bourdon (ext. S16)
    8' Montre                 8' Principal          16' Contre-Basse
    8' Bourdon                8' Cor-de-Nuit        16' Soubasse
    8' Flûte Harmonique       8' Viole de Gambe     16' Violon
    8' Salicional             8' Voix Céleste        8' Principal
    4' Prestant               4' Prestant            8' Bourdon
    4' Flûte Ouverte          4' Flûte Octaviante    4' Prestant
2 2/3' Quinte             2 2/3' Nazard             IV  Mixture
    2' Doublette              2' Doublette          16' Trombone
    V  Cornet (middle C)      2' Octavin             8' Trompette
    V  Fourniture         1 3/5' Tierce              4' Clairon (ext. T8)
    8' Trompette             IV  Plein-jeu
    4' Clairon               16' Basson
       Tremblant              8' Trompette
                              8' Basson-Hautbois
                              8' Clarinette
                              4' Clairon
                                 Tremblant

               [Received from Jeff Scofield January 1, 2021]
