Bergen Evangelical Presbyterian Church: Sanctuary; front
38 South Lake Avenue
Bergen, NY
Images
2021-07-11 - Couplers over Swell keys (Photograph by Alden Snell/Alden Snell)
2021-07-11 - Keydesk: Swell & Pedal stops (Photograph by Alden Snell/Alden Snell)
2021-07-11 - Keydesk: Great stops (Photograph by Alden Snell/Alden Snell)
2021-07-11 - Sanctuary interior with organ in front (Photograph by Alden Snell/Alden Snell)
2021-05-25 - Background: Ped. 16' trebles; Center: treble-side action backfalls and depth adjustment knobs, Sw. rollerboard; Bottom: tops of Schlicker reservoirs (Photograph by Scot Huntington/Scot Huntington)
2021-05-25 - Swell pipework, looking towards C-side (Photograph by Scot Huntington/Scot Huntington)
2021-05-25 - Great pipework, looking towards C-side (Photograph by Scot Huntington/Scot Huntington)
2021-05-25 - Center: Bass backfall tails for Great and Swell bass; Left: Swell stopaction traces from console, showing pins for on and off stops (Photograph by Scot Huntington/Scot Huntington)

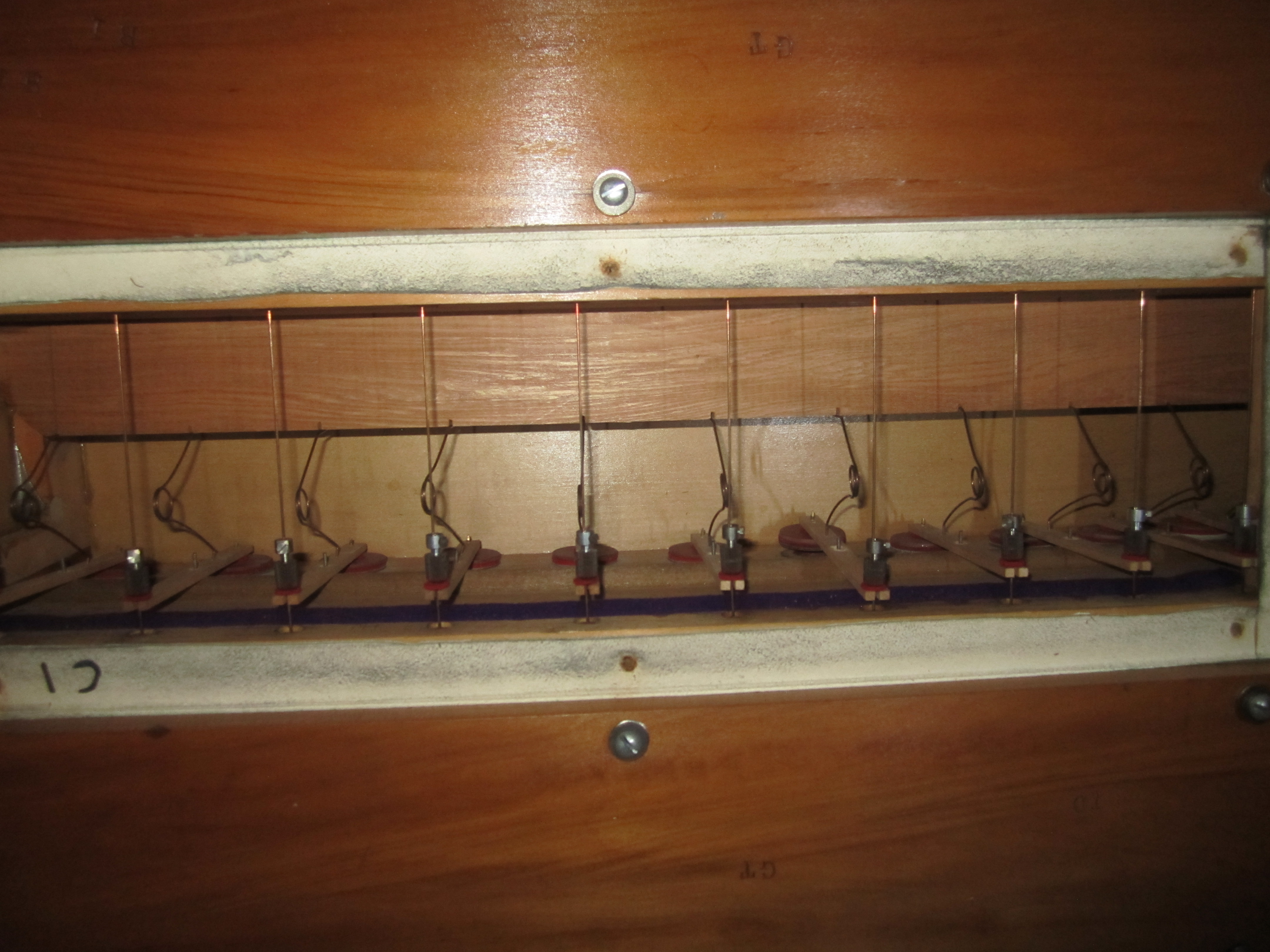

2021-05-25 - Great: one bottom board removed, showing ventil cell for the Octave 4' (bass) with valve, spring, action pull wire, and adjustment nut (Photograph by Scot Huntington/Scot Huntington)
2021-05-25 - Builder's nameplate (Photograph by Scot Huntington/Scot Huntington)
2021-05-25 - Console and combinations: Swell on the left, Great on the right (piano, forte) (Photograph by Scot Huntington/Scot Huntington)
2021-05-25 - Organ case (Photograph by Scot Huntington/Scot Huntington)
2018-09-18 - Church exterior: facade (Photograph from an archival source: Church Facebook page (Karen Millspaugh), submitted by Jim Stettner/Jim Stettner)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Keydesk Attached
- 2 manuals
- 11 stops
- 15 registers
- 3 divisions
- Key action Type: Mechanical (Details Unknown)
- Stop action Type: Mechanical
- Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
- Manual compass: 61 notes
- Pedal compass: 30 notes
- Pedal Type: Concave Straight
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Fixed Mechanical
Notes
2021-02-27 - The Viner & Son organ existed here in original condition until it was rebuilt with neo-baroque tendencies by Schlicker in the mid-70s. While the church was originally Congregational, the building was sold to the Presbyterians at a date yet to be confirmed. Reportedly, the structure was moved down the road, probably at the time of the sale. Schlicker replaced the original wind system, (double-rise reservoir, wooden wind trunks), with two floating top regulators and flexible wind lines. The wind is now unsteady.
The Viner action was quite unusual for its day. While it had mechanical action, it had ventil chests instead of tone channels with sliders. The action was very similar to that made by Hillgreen, Lane & Co. but a little more elegant. The valves are round disks on pivoting arms mounted on side bars. The note wires pass through the chest front to back with adjustment nuts at each valve arm. Access is through removable bottom boards and stop control is by ventils that energize or exhaust the stop channels. The channeling from the valve to the pipe toehole through the side bar and toeboard act like an expansion chamber to cushion the wind entry into the pipe foot. This is the oldest form of this style action currently known to this author.
The casework was originally quartered oak with gilded facade pipes, now the entire affair has been clumsily covered in white paint stem to stern. The Spencer blower was installed by Viner in 1925, the organ being originally powered by a Ross Water Motor connected to the reservoir feeders.
Currently the organ suffers mechanically and is in need of routine maintenance to return it to reliable working order. -Scot Huntington
Stoplist
Recorded from console Source: Examination of instrument May 25, 2021
Bergen, New York
Evangelical Presbyterian Church
Charles Viner & Son, No.161, ca. 1901
Schlicker Organ Co., ca. 1976 - Rebuild and Tonal Revision
Compasses: 61/30
GREAT
8' Principal [1-29 original facade unaltered; new interior trebles]
8' Hohl Flute [Original Melodia denicked, 1-12 stopped]
4' Octave [Original, mildly denicked]
2' Flach Flote [New, wide scale and tapered, on Dulciana toeboard]
IV Mixture [New, II-IV, on Flute d'Amour toeboard]
SWELL (Expressive)
8' Gedeckt [Stopped Diapason, denicked]
8' Viola [Unaltered]
4' Harmonic Flute [Orig. Harmonic flute, harmonic portion cut off]
2' Principal [New, on Violin Diapason toeboard]
8' Oboe [Brightened]
Tremolo
PEDAL
16' Bourdon [Original, unaltered]
COUPLERS (Drawknobs over Sw. Keys)
Swell to Pedal
Great to Pedal
Swell to Great
COMBINATION PEDALS
Swell Piano - 8' Viola
Swell Forte - 8' Ged., 4' H.F., 2' Princ.
Great Piano - 8' Hohl Flute
Great Forte - 8' Princ., 4' Oct., III Mix.
PEDAL MOVEMENTS
Swell Expression Balanced
