Emory Warren Lane Opus 49 (1901)

Second Parish Unitarian / Unitarian-Universalist of Saco-Biddeford: Sanctuary; front
60 School Street
Saco, ME

OHS convention: 1992

Images

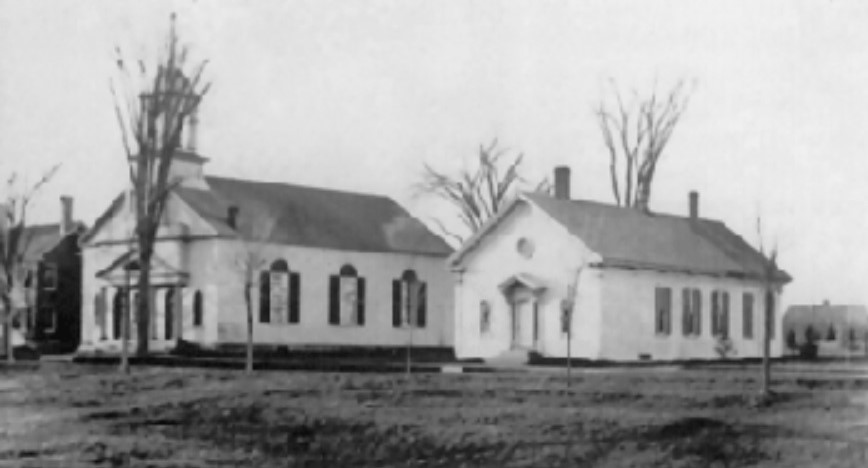

ca. 1905 - Church exterior (Photograph from an archival source: Parish archives via parish website, submitted by James R. Stettner/James R. Stettner)

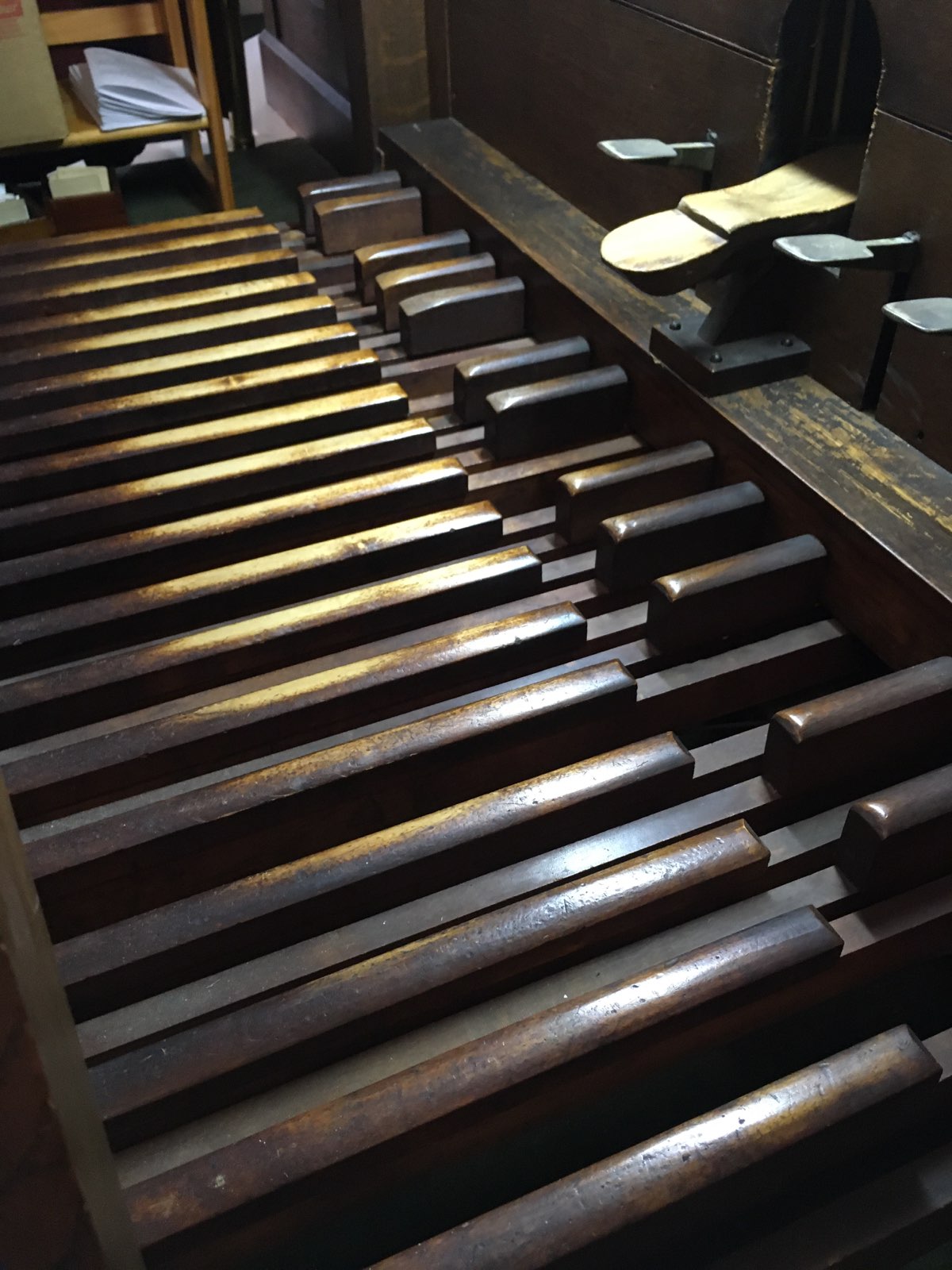

2022-03-07 - Pedalboard from the side (Photograph by Paul G. Benya/Paul G. Benya)

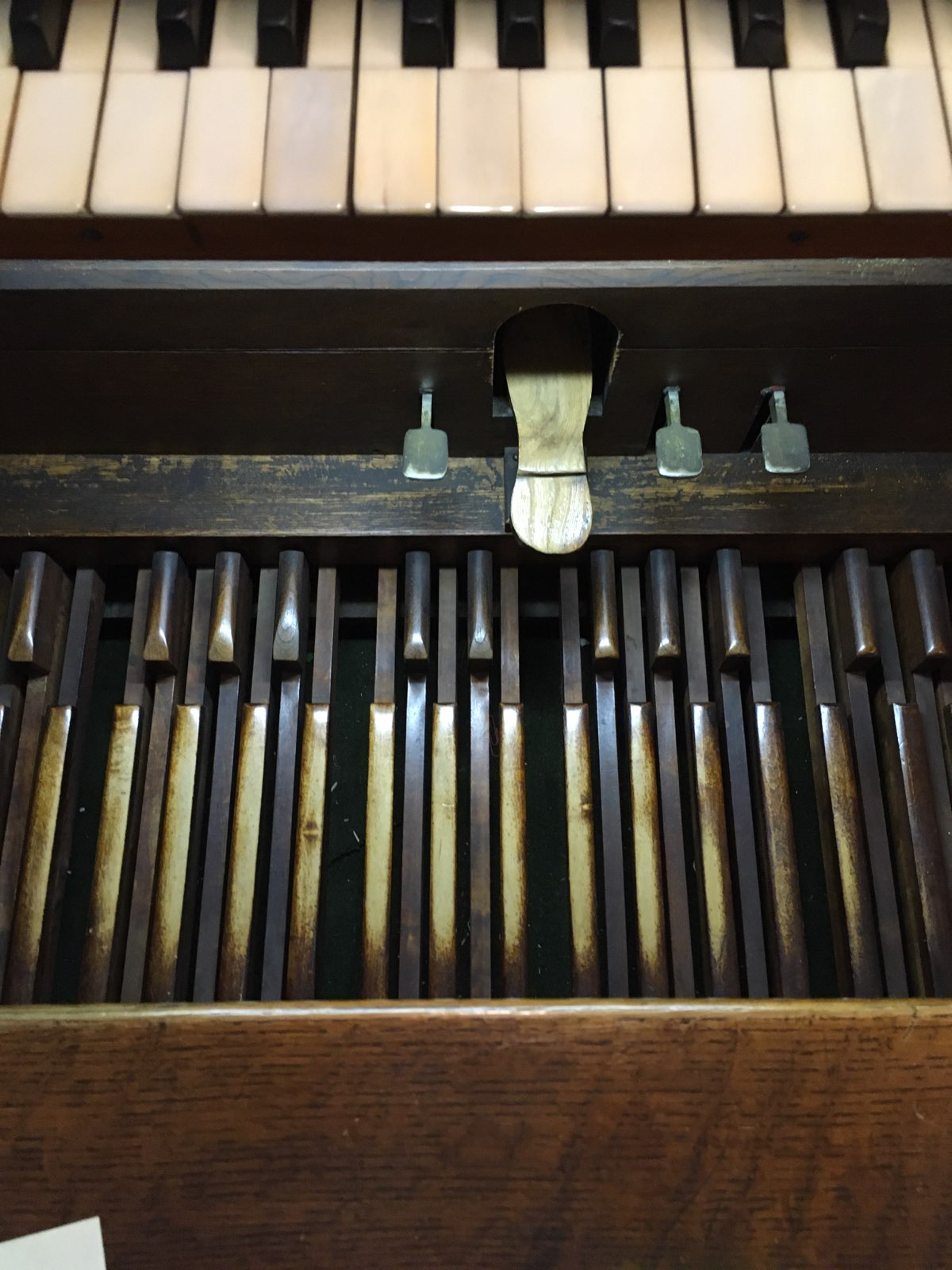

2022-03-07 - Pedalboard, composition trundles, Gr. to Ped. Reversible, and expression shoe (Photograph by Paul G. Benya/Paul G. Benya)

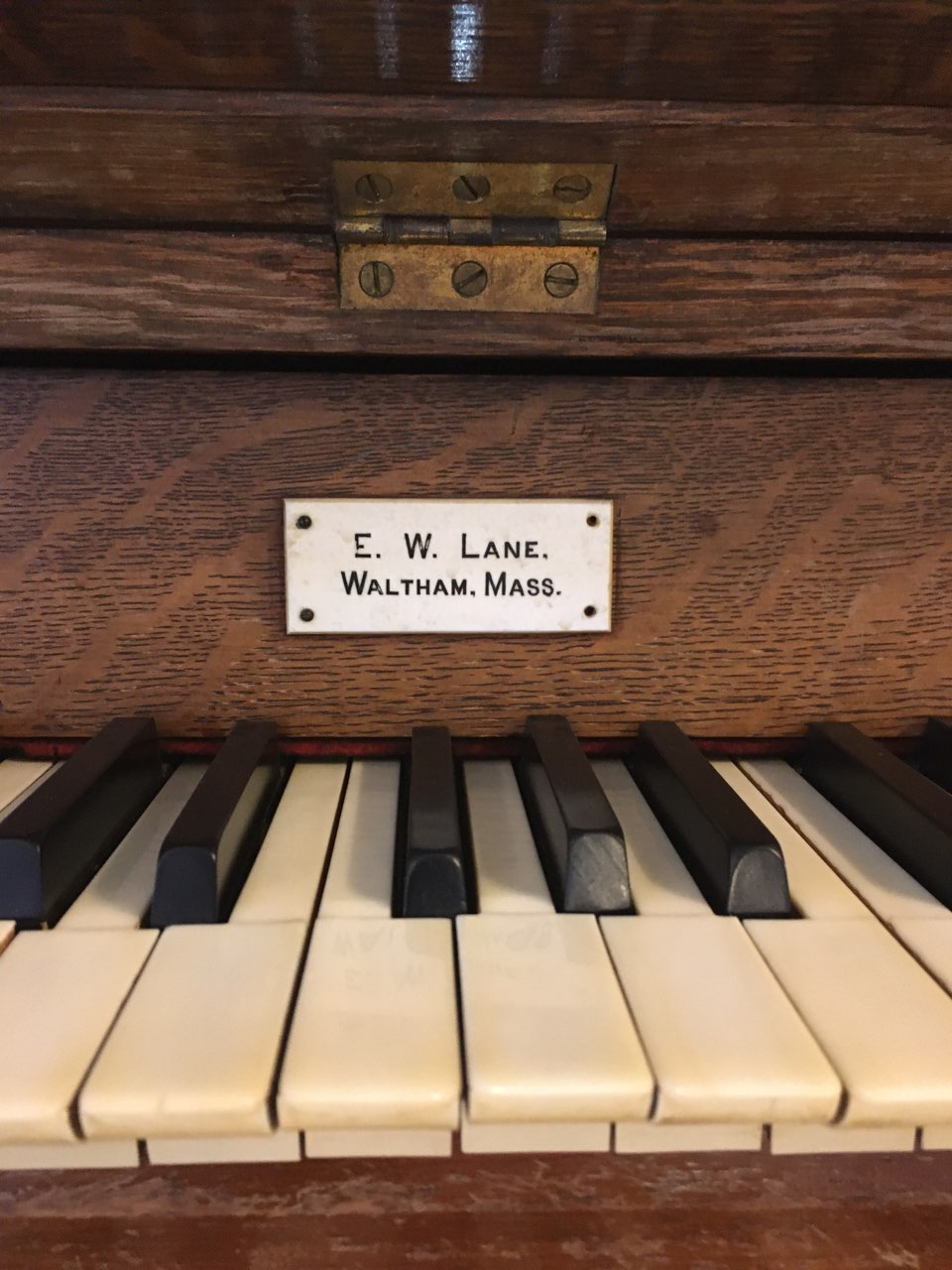

2022-03-07 - Builder's nameplate (Photograph by Paul G. Benya/Paul G. Benya)

2022-03-07 - Keydesk: left stopjamb (Photograph by Paul G. Benya/Paul G. Benya)

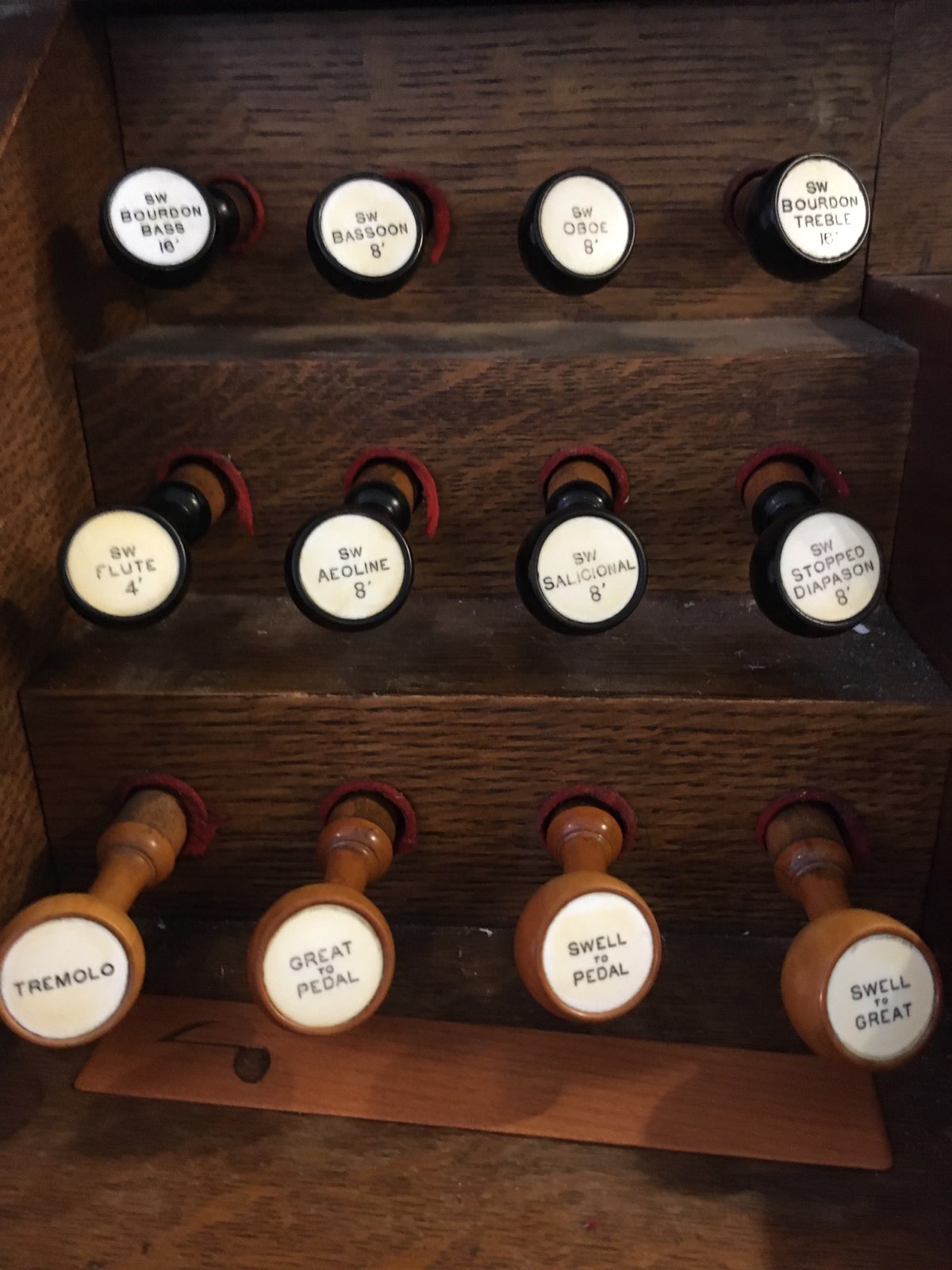

2022-03-07 - Keydesk: right stopjamb (Photograph by Paul G. Benya/Paul G. Benya)

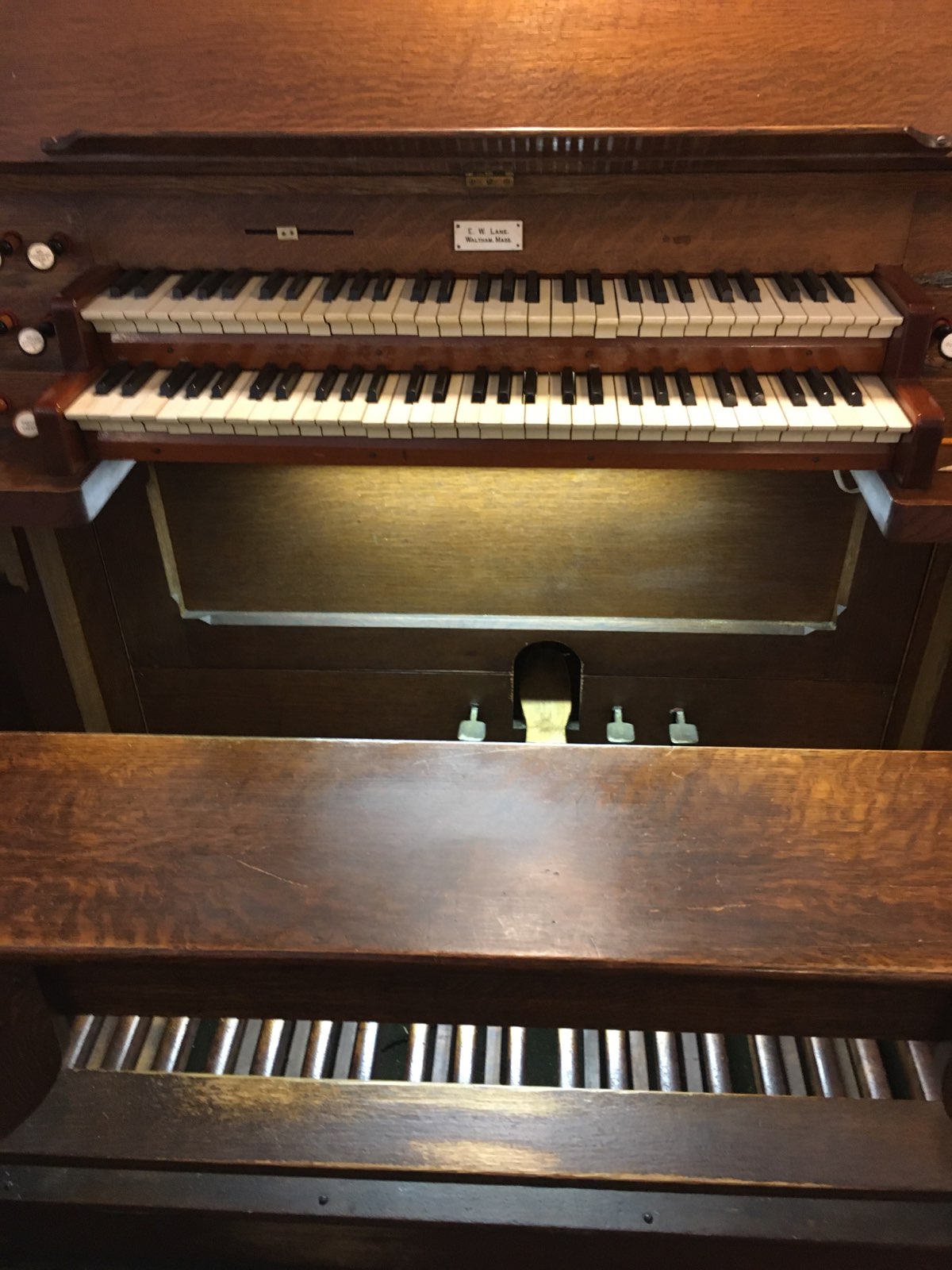

2022-03-07 - Keydesk (Photograph by Paul G. Benya/Paul G. Benya)

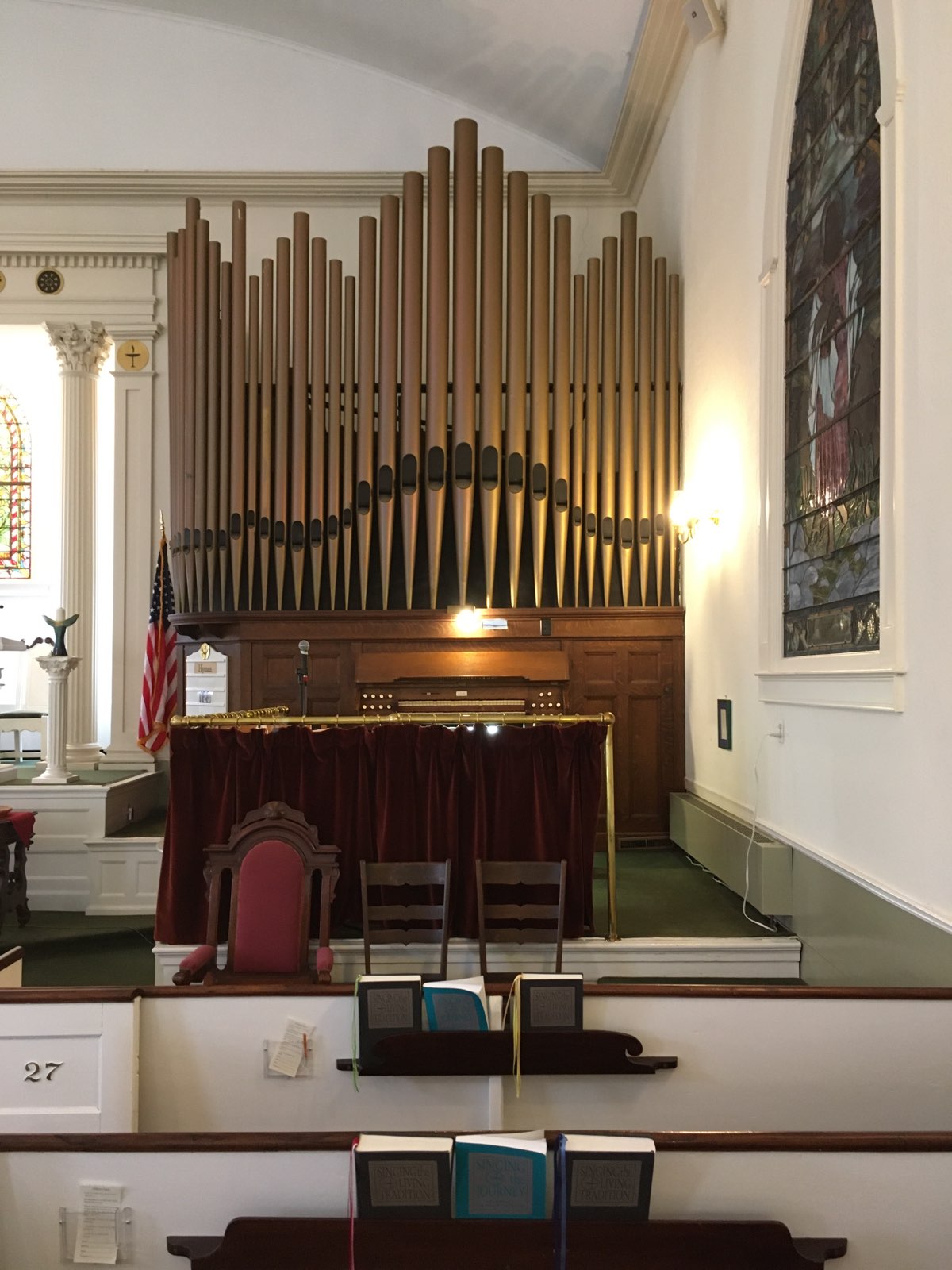

2022-03-07 - Organ facade and keydesk (Photograph by Paul G. Benya/Paul G. Benya)

2022-03-07 - Organ case (Photograph by Paul G. Benya/Paul G. Benya)

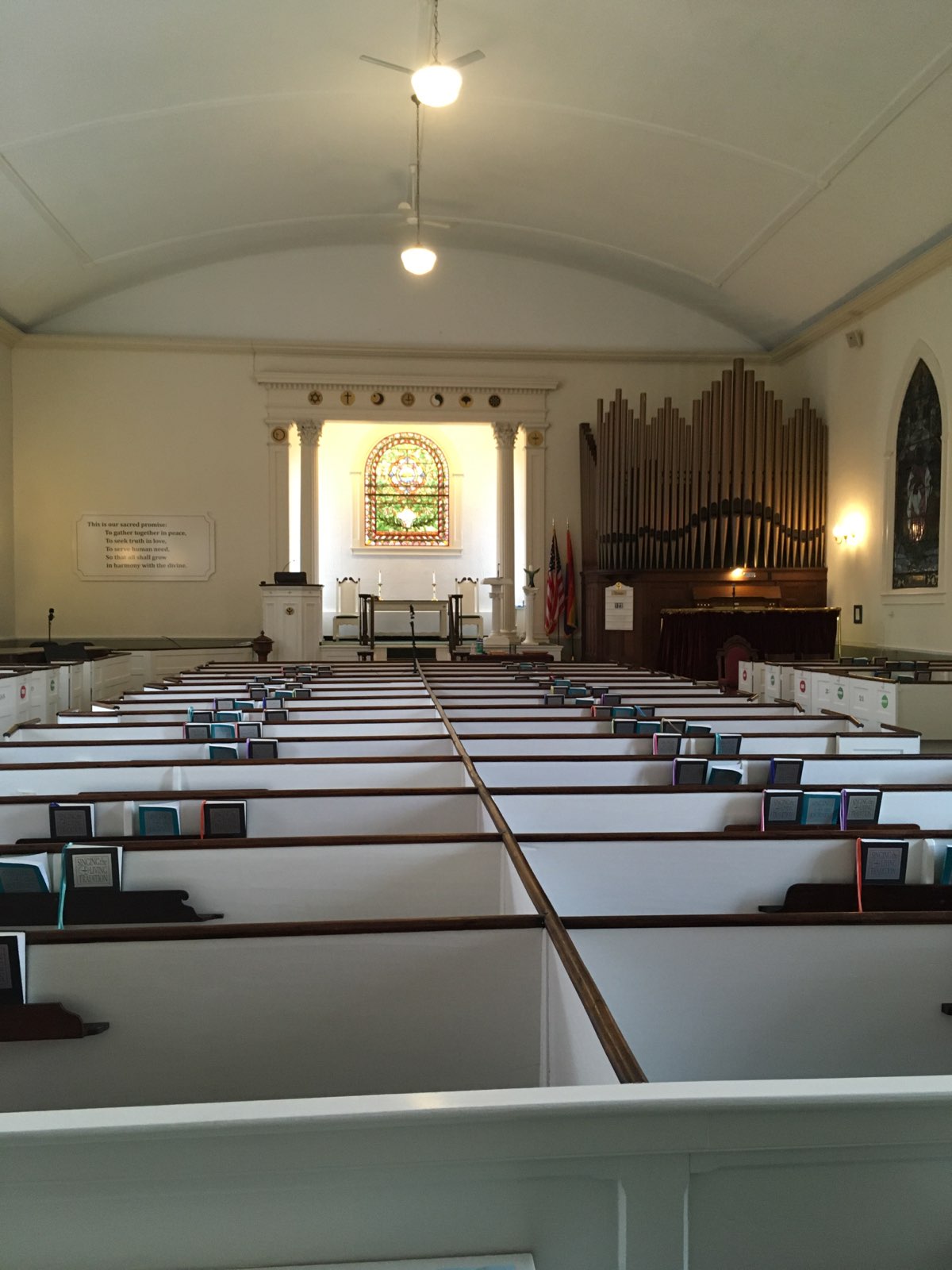

2022-03-07 - Sanctuary interior with organ at front/right. (Photograph by Paul G. Benya/Paul G. Benya)

Consoles

Main

2 manuals
16 stops
Key action Type: Mechanical (Details Unknown)

Notes

2004-10-30 - Status Note: There 1992. -Database Manager

2013-10-08 - Updated through online information from Catherine Glynn. -Database Manager

2022-03-14 - From the parish website, "This wonderful custom built instrument was commissioned on May 20th, 1901, and built by E.W. Lane of the Waltham Organ Company. It was finished on August 23rd, 1901. Although the purchase of an electric motor to run the air pump had been discussed, a young man was payed $30.00 to hand pump the bellows in 1902. This task appears to have been attended to by the church youth until some time in the 1920s." -James R. Stettner

Stoplist

Source: From IOF website Date not recorded

Unitarian-Universalist Church, Saco, ME
1901 E.W. Lane Opus 49

    GREAT:
Gr  8'  Open Diapason
Gr  8'  Melodia
Gr  8'  Dulciana
Gr  4'  Octave
Gr  3'  Twelfth
Gr  2'  Fifteenth


    SWELL (Expressive):
Sw  16' Bourdon Treble
Sw  16' Bourdon Bass
Sw  8'  Stopped Diapason
Sw  8'  Salicional
Sw  8'  Aeoline
Sw  4'  Flute
Sw  8'  Oboe
Sw  8'  Bassoon
        Tremolo


    PEDAL:
Ped 16' Bourdon
Ped 8'  Open Diapason


COUPLERS (Drawknob)
Swell to Pedal
Great to Pedal

Swell to Great


FOOT TRUNDLES (Unlabeled; Order Unk.)
Great Piano -

Gr. to Ped. - Reversible

Great Forte -


PEDAL MOVEMENTS
Swell Expression     (bal.)


[Received from Connor Annable 2011-10-29.]
[Verified & Updated by James R. Stettner 2022-03-14.]
