Better Pipe Organ Database

Barger and Nix (2014)

Lee University: Pangle Hall
340 Church St NE
Cleveland, TN

Images

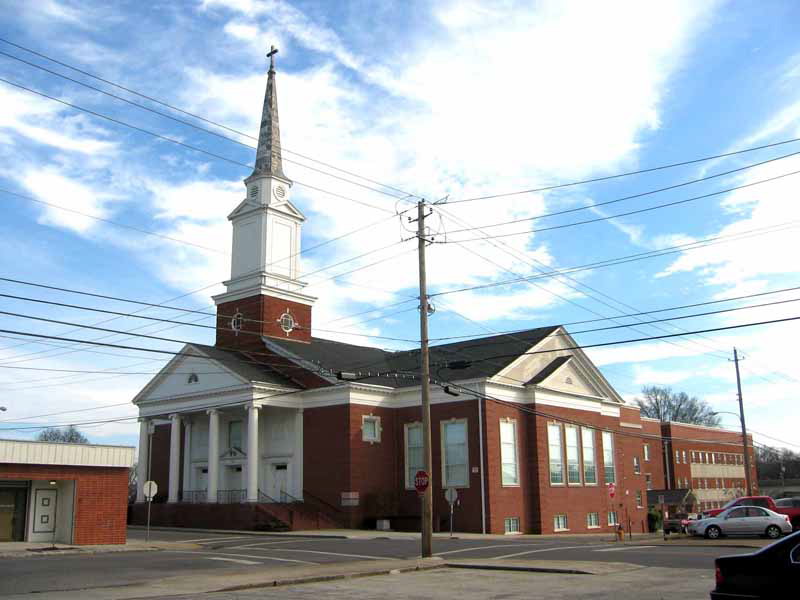

2001-10-15 - Hall exterior (Photograph by Jeff Scofield/Jeff Scofield)

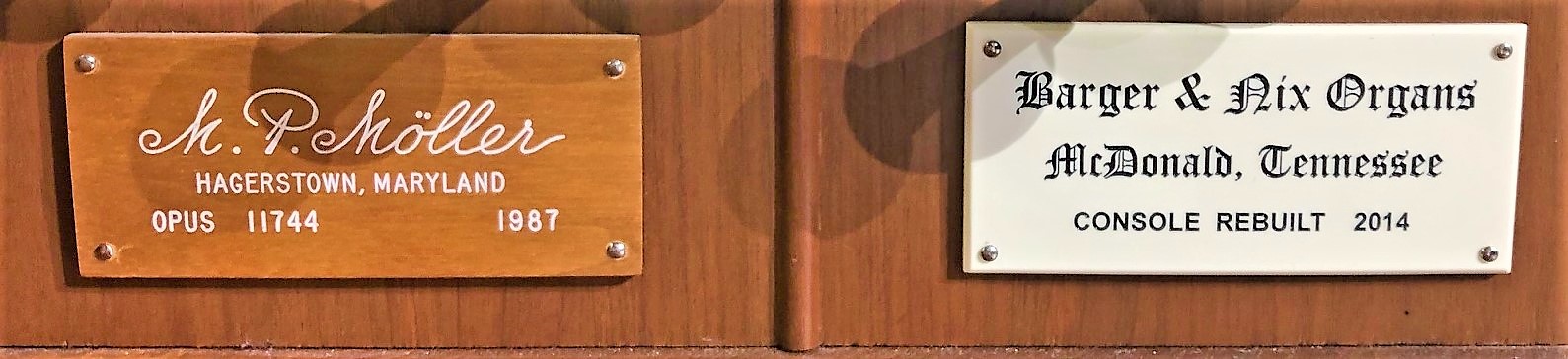

2021-07-06 - Builder name plates (Photograph by Jeff Scofield/Jeff Scofield)

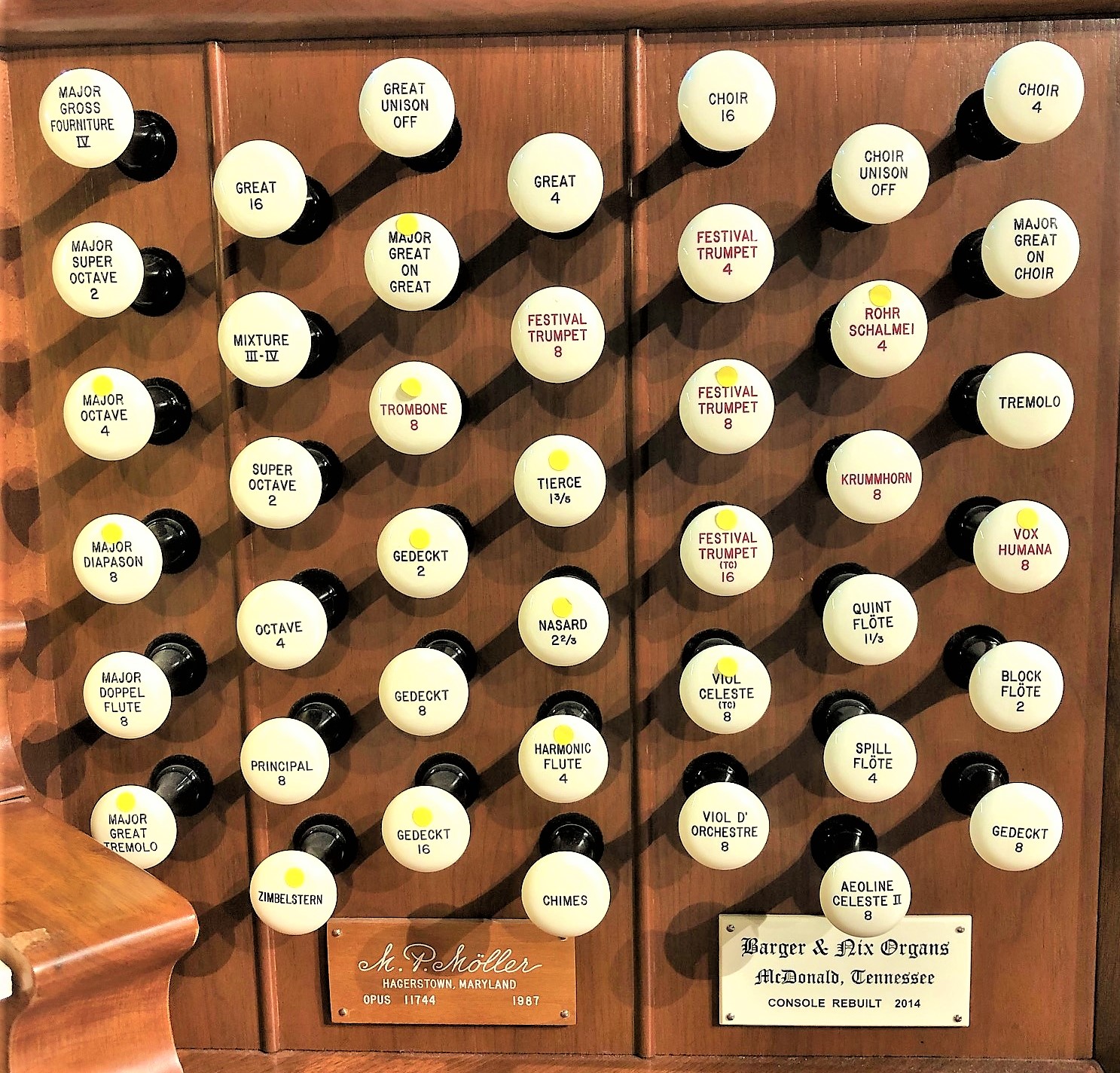

2021-07-06 - Right stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

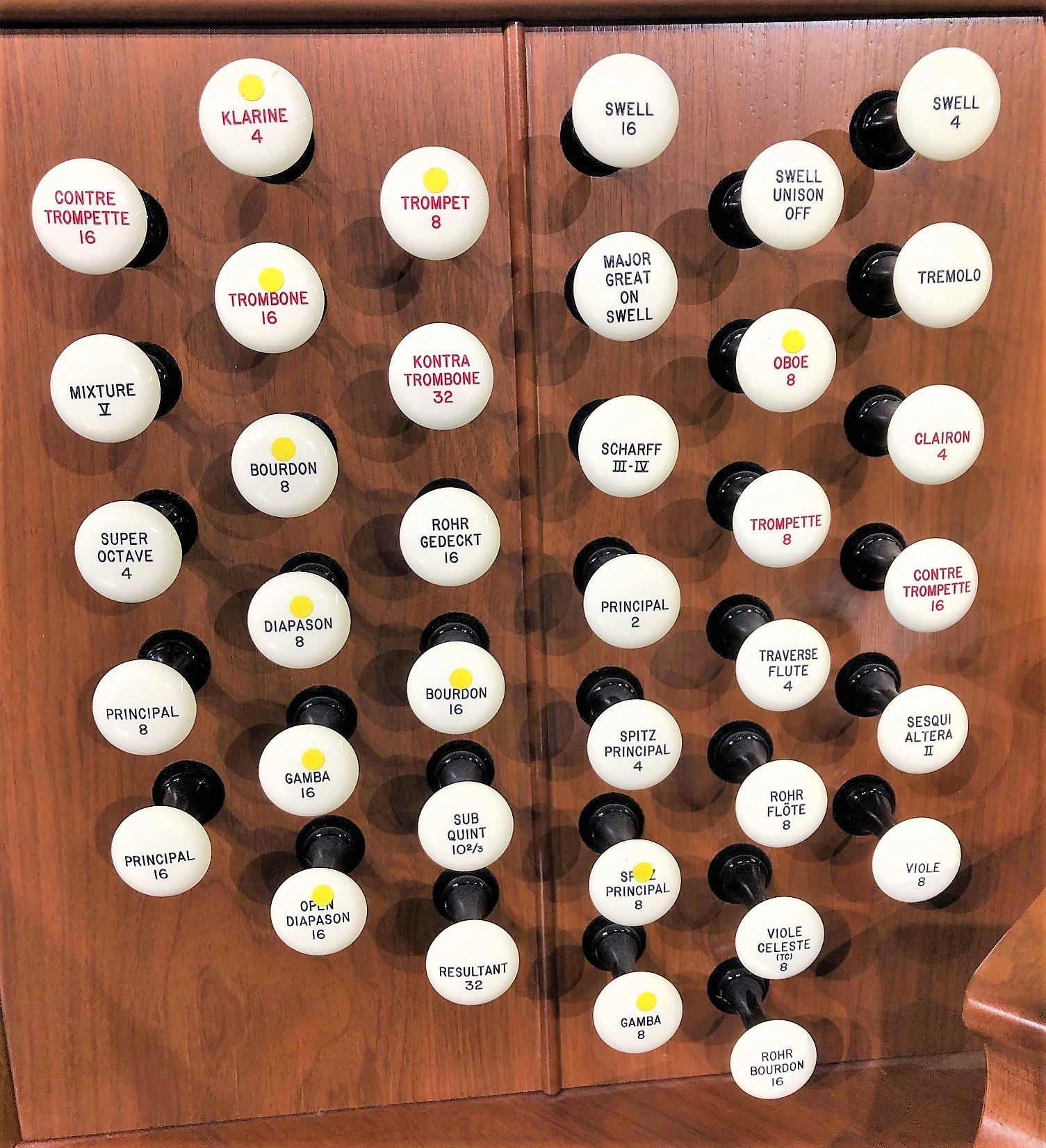

2021-07-06 - Left stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

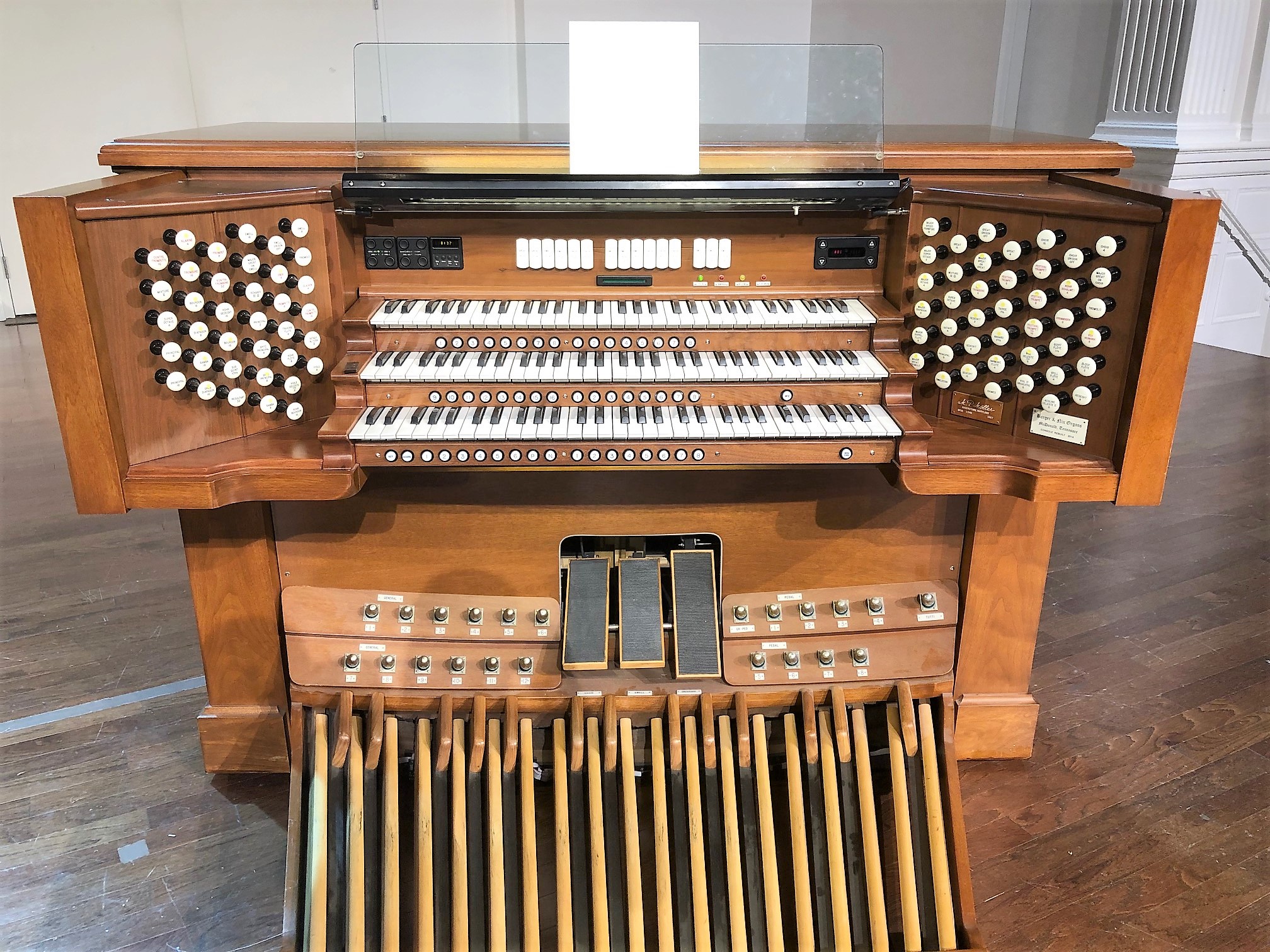

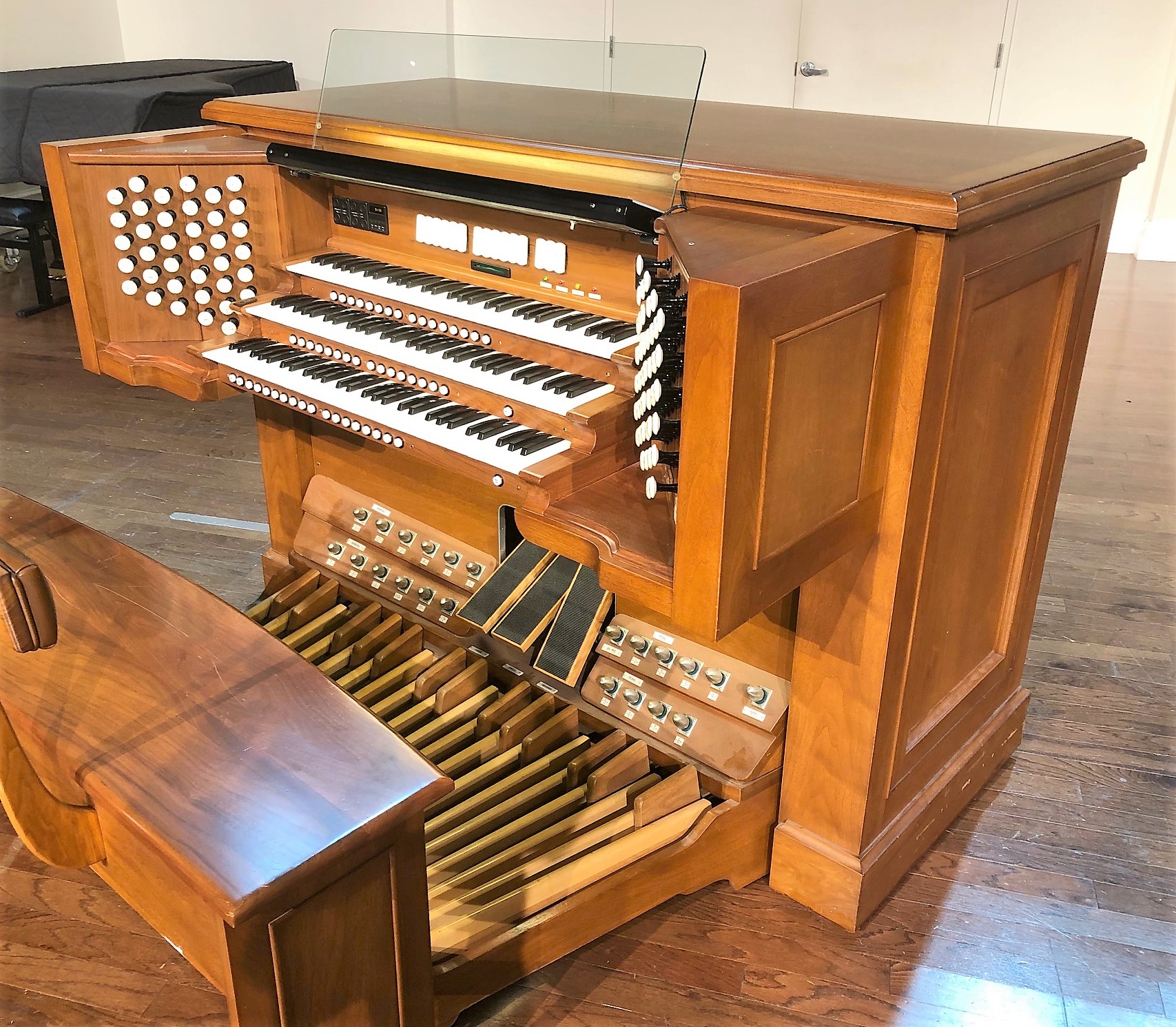

2021-07-06 - Console (Photograph by Jeff Scofield/Jeff Scofield)

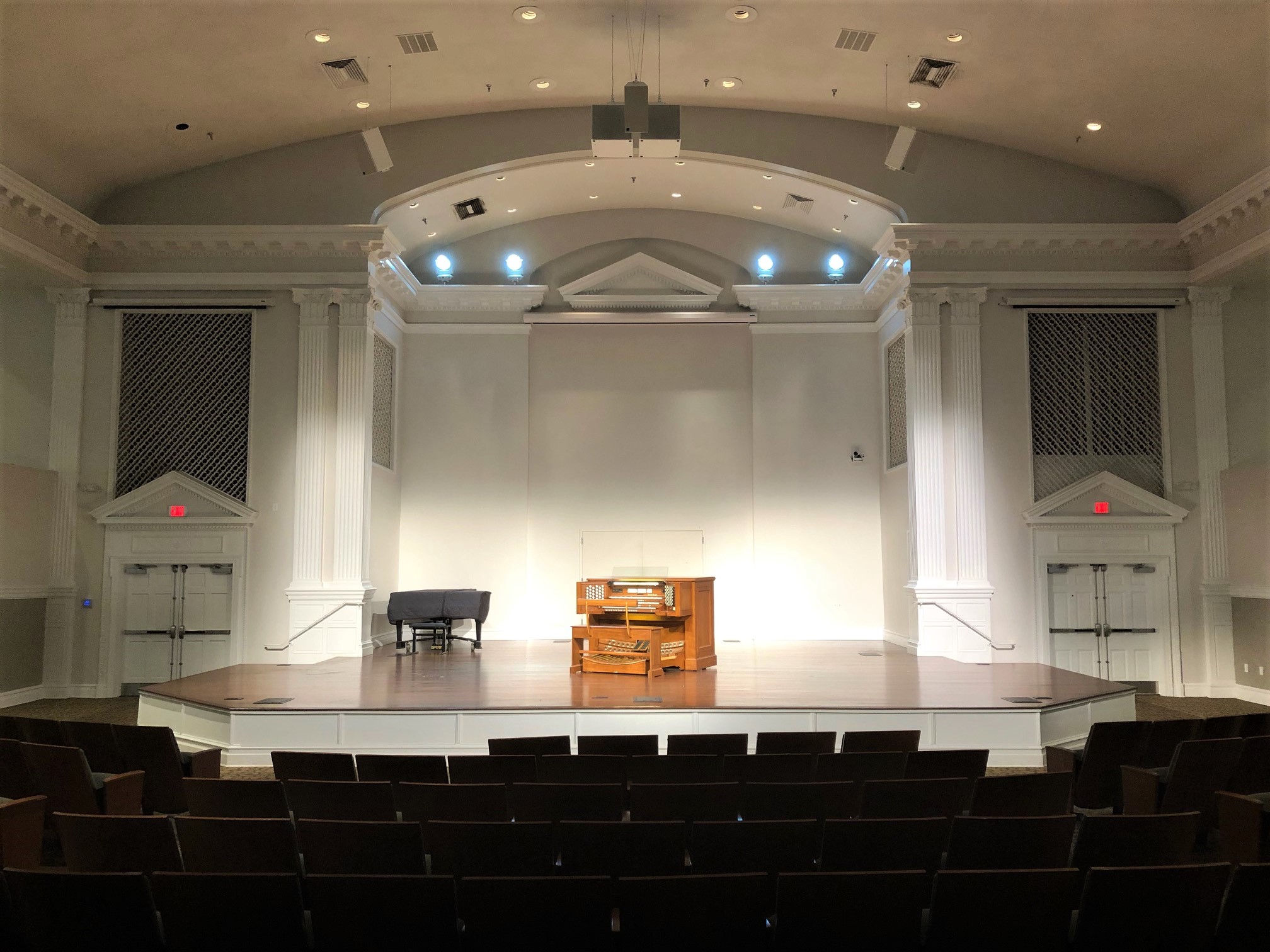

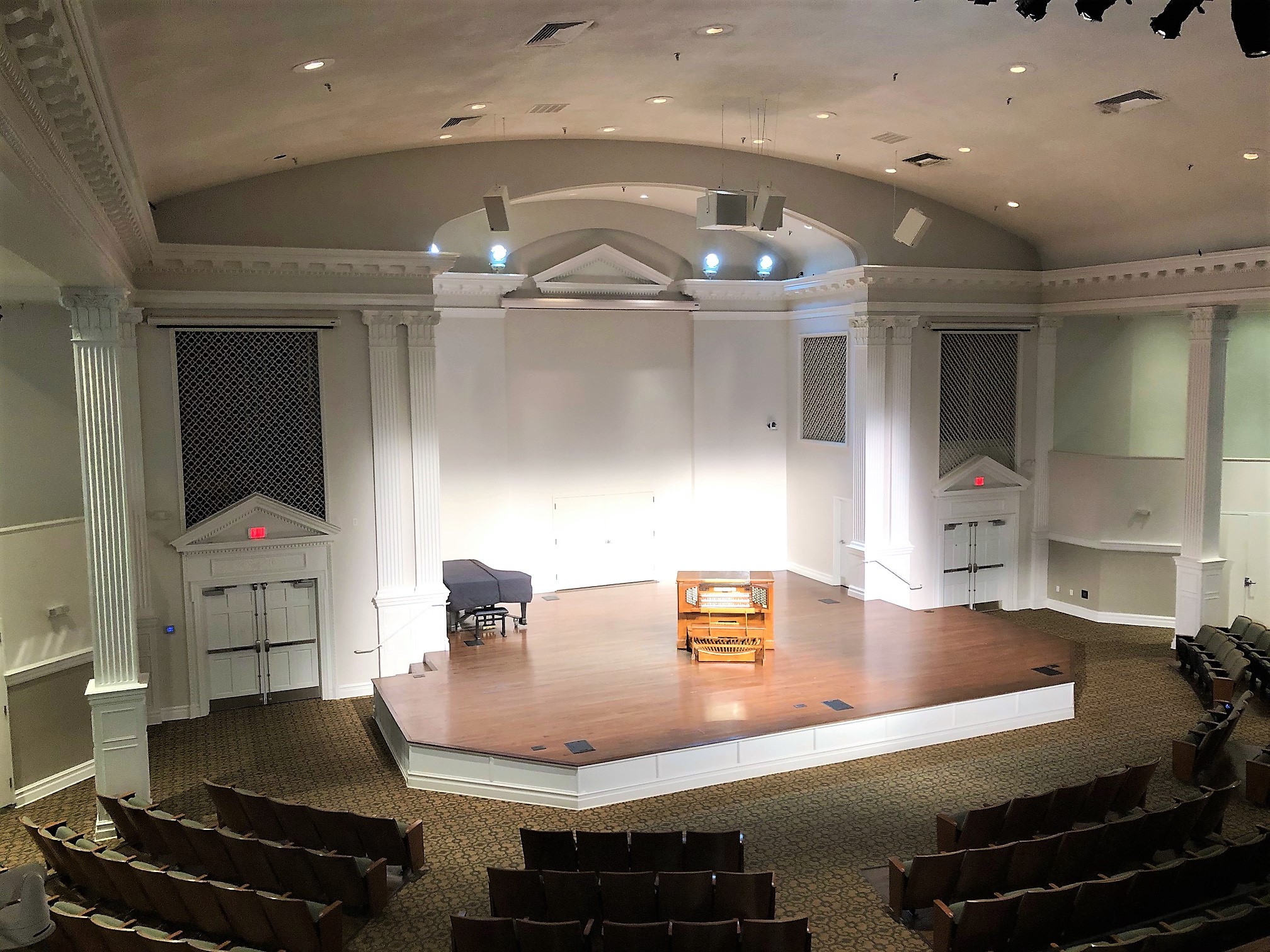

2021-07-06 - Hall interior (Photograph by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Movable Console
3 manuals
20 stops
32 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Stoplist

Source: Taken from the console and the Moller factory specifications

        Lee University
        Pangle Hall
        Cleveland, Tennessee

        Möller   Op. 11744   1987   3/28
        Barger & Nix         2014
        _________________________________________________

            Stops without pipecounts are prepared-for

        GREAT                         SWELL
    16' Gedeckt                   16' Rohr Bourdon     12
     8' Principal        61        8' Spitz Principal
     8' Gedeckt          61        8' Rohrflöte        61
     4' Octave           61        8' Gamba
     4' Harmonic Flute             8' Viole            61
 2 2/3' Nasard                     8' Viole Celeste    49
     2' Super Octave     61        4' Spitz Principal  61
     2' Gedeckt                    4' Traverse Flute   12
 1 3/5' Tierce                     2' Principal        61
III-IV  Mixture         208       II  Sesquialtera     98
     8' Trombone              III-IV  Scharff         208
        Sub                       16' Contre Trompette 61
        Unison Off                 8' Trompette        12
        Super                      8' Oboe
     8' Festival Trumpet           4' Clairon          12
        Chimes                        Tremolo
        Zimbelstern                   Sub
        Major GT on GT                Unison Off
                                      Super
        MAJOR GREAT                   Major GT on SW
     8' Diapason
     8' Doppel Flute                  CHOIR
     4' Octave                     8' Gedeckt          61
     2' Super Octave               8' Viol d'Orchestre
III-IV  Gross Fourniture           8' Viol Celeste
        Tremolo                    8' Aeoline Cel II  110
                                   4' Spillflöte       61
        PEDAL                      2' Blockflöte       61
    32' Resultant              1 1/3' Quintflöte       61
    16' Open Diapason              8' Krummhorn        61
    16' Principal        32        8' Vox Humana
    16' Bourdon                    4' Rohrschalmei
    16' Gamba                         Tremolo
    16' Rohrgedeckt      SW           Sub
10 2/3' Sub Quint        SW           Unison Off
     8' Diapason                      Super
     8' Principal        12       16' Festival Trumpet
     8' Bourdon                    8' Festival Trumpet
     4' Super Octave     12        4' Festival Trumpet
     V  Mixture          --           Major GT on CH
    32' Kontra Trombone
    16' Trombone
    16' Contre Trompette SW
     8' Trompet
     4' Klarine          SW

          [Received from Jeff Scofield July 6, 2021]

Related Pipe Organ Database Entries

#27625 - M. P. Möller Opus 11744 (1987)
