St. John the Baptist Catholic Church: Sanctuary; rear gallery
4200 Delor St.
St. Louis, MO
Images

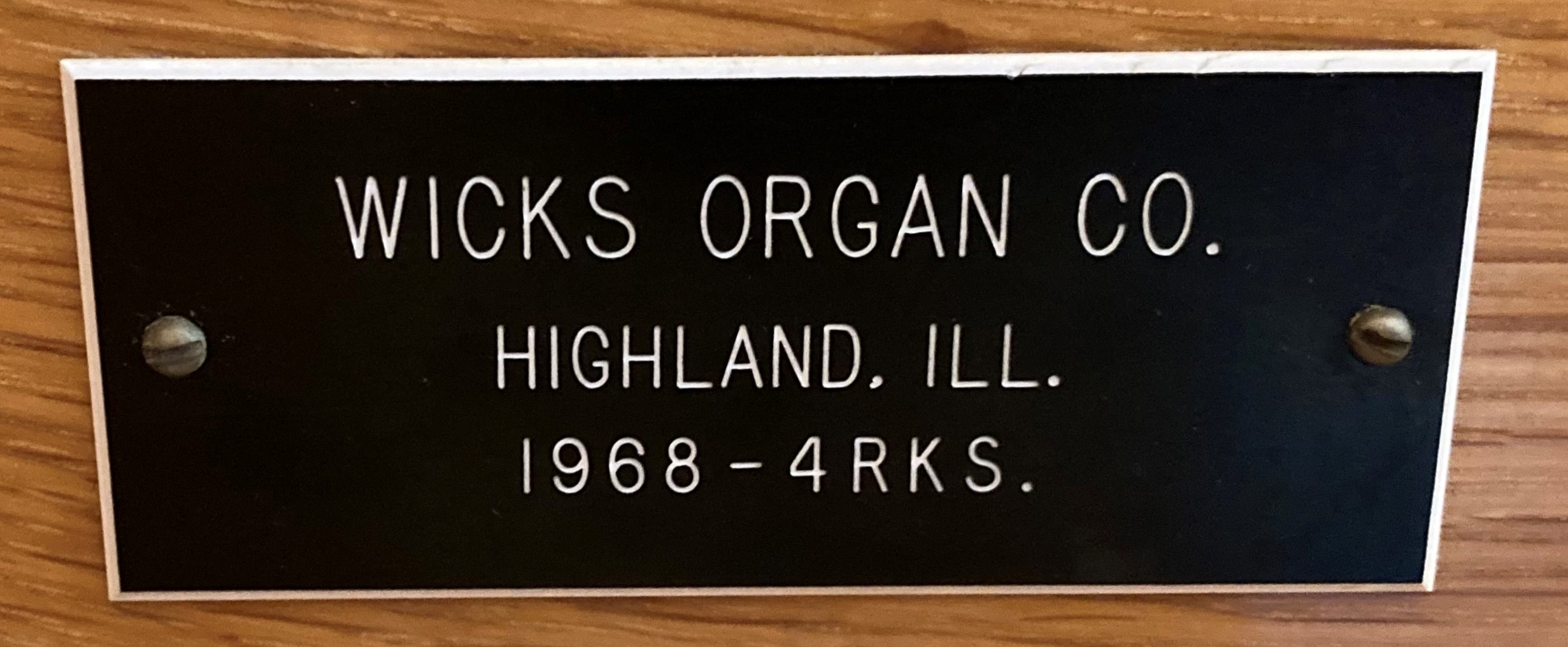

2021-09-26 - Builder's nameplate (Photograph by Suzane Chisum/Suzane Chisum)

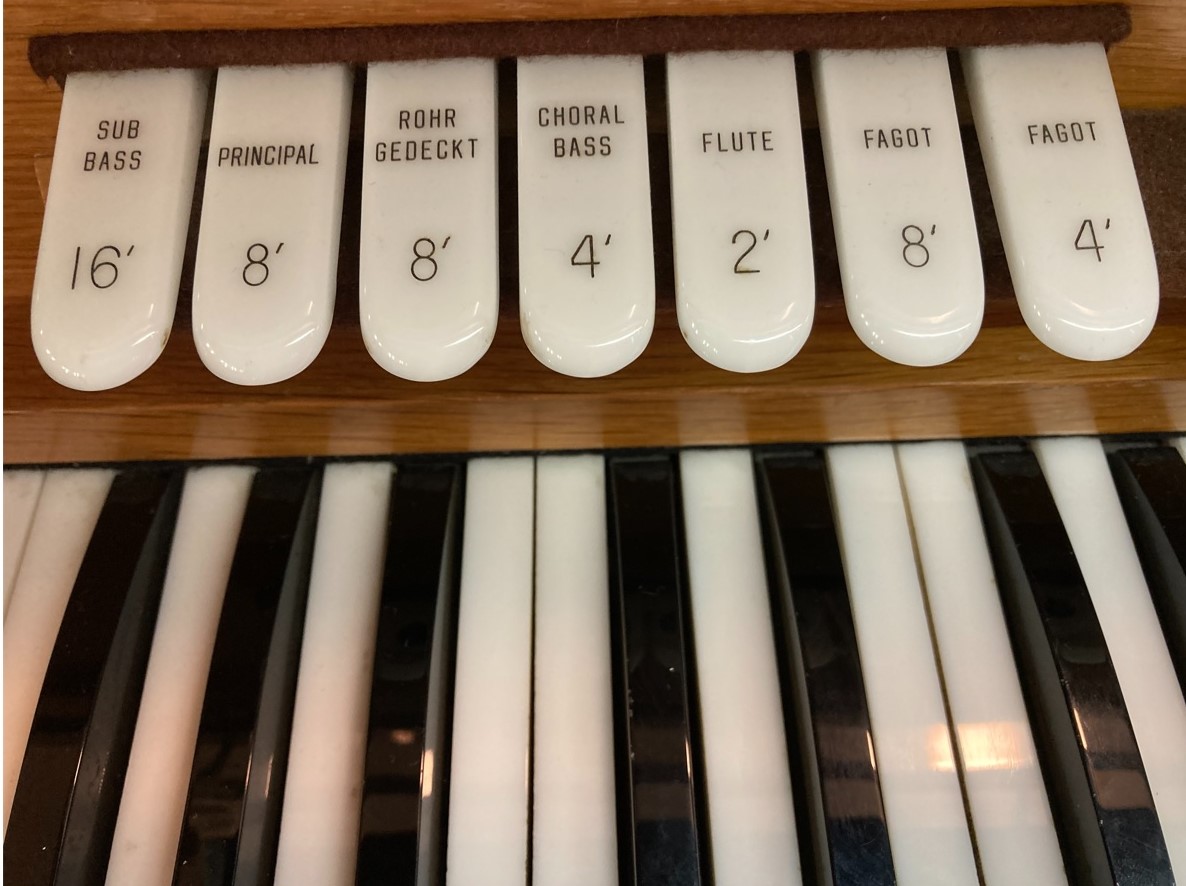

2021-09-26 - Console: Pedal stops (Photograph by Suzane Chisum/Suzane Chisum)

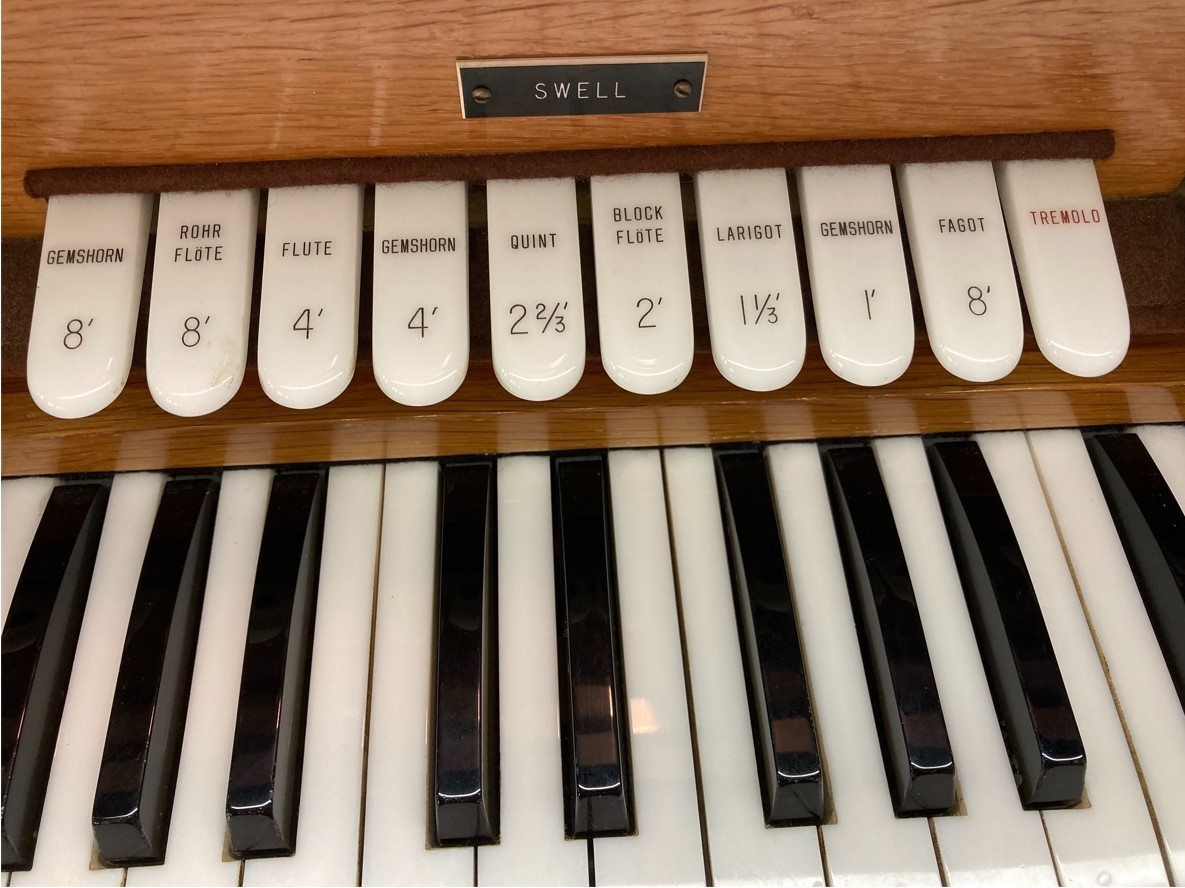

2021-09-26 - Console: Swell stops (Photograph by Suzane Chisum/Suzane Chisum)

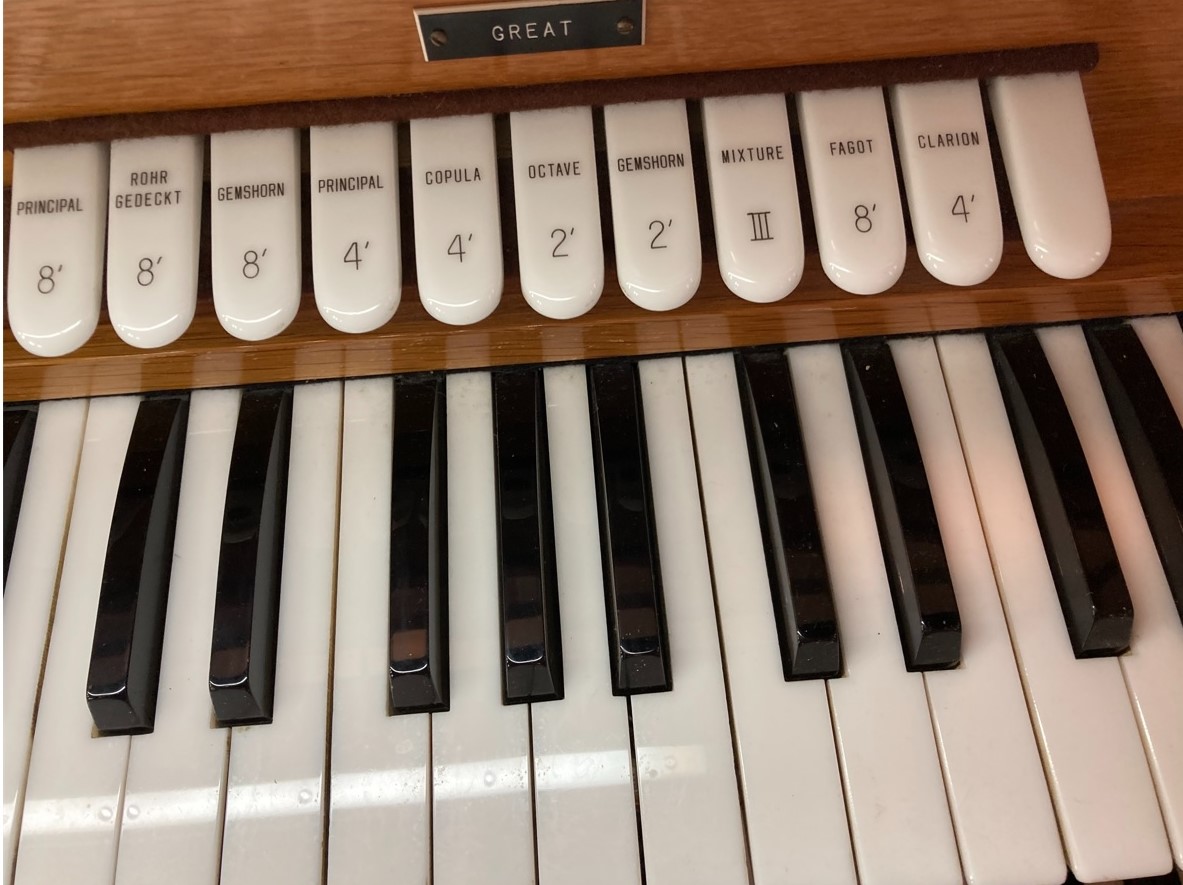

2021-09-26 - Console: Great stops (Photograph by Suzane Chisum/Suzane Chisum)

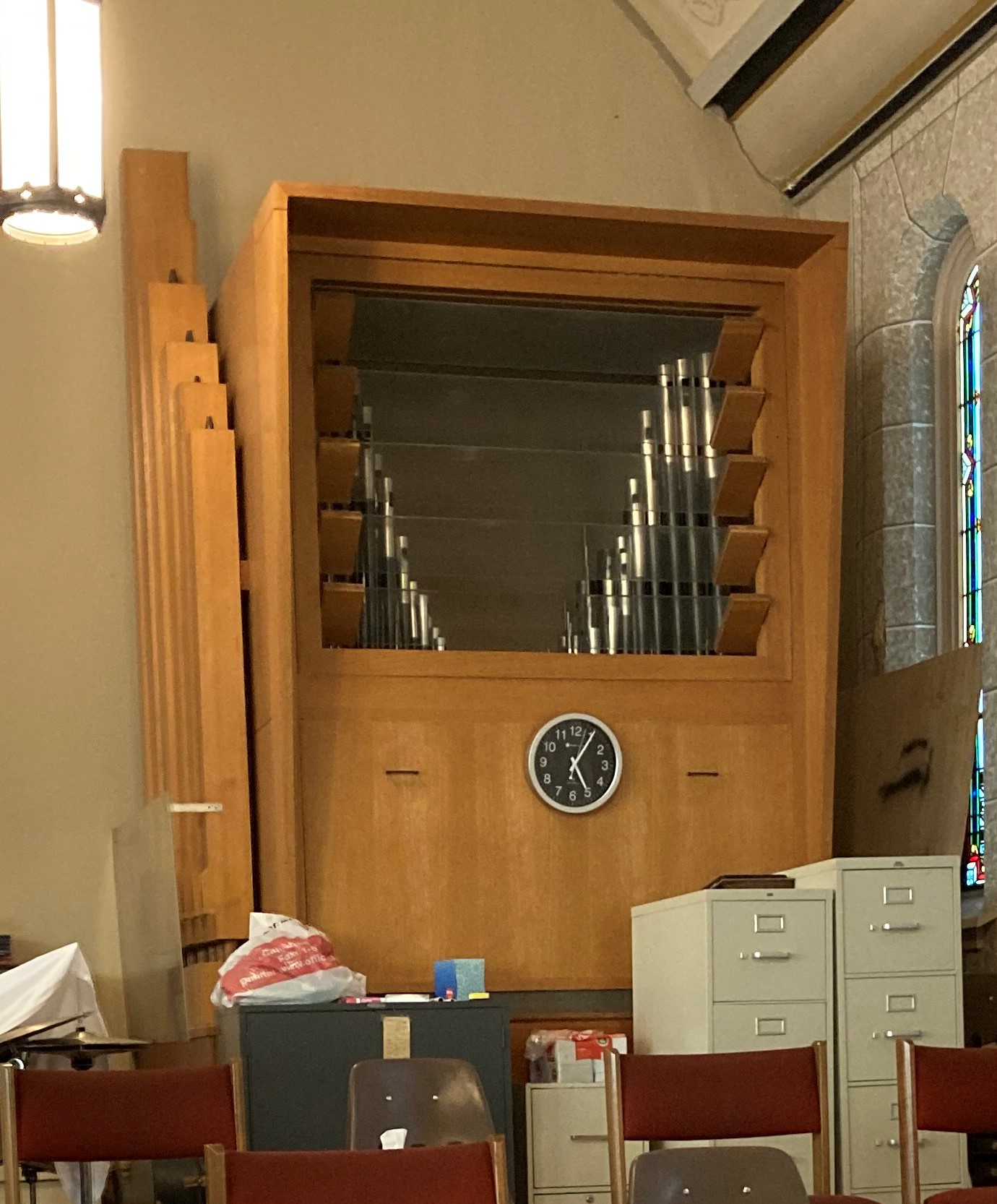

2021-09-26 - Organ case (Photograph by Suzane Chisum/Suzane Chisum)

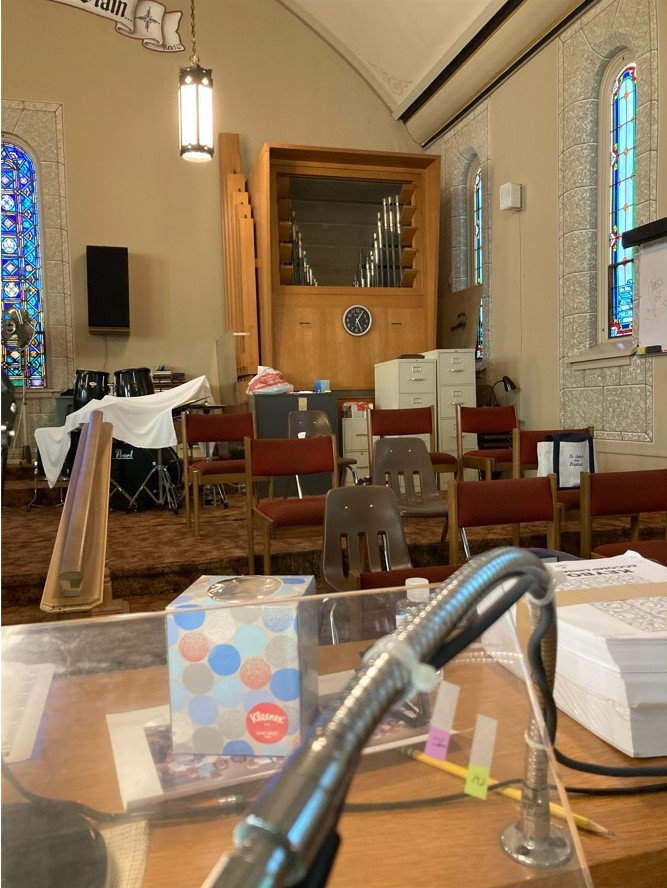

2021-09-26 - Organ in rear gallery (Photograph by Suzane Chisum/Suzane Chisum)
2012-11-03 - Church exterior (Photograph from an archival source: Parish Facebook page, submitted by Jim Stettner/Jim Stettner)
Consoles
Gallery
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Right
- 2 manuals
- 4 stops
- 1 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Stop Keys Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Has crescendo
Notes
2021-09-25 - Identified from an online inquiry from Suzane Chisum. From an online photo, it appears to be one of their "Forward Four" stock model organs with clear expression shutters. -Jim Stettner
Stoplist
Source: Stoplist copied from console photos September 26, 2021
GREAT (Expressive) Principal 8, Rohr Gedeckt 8, Gemshorn 8, Octave 4, Copula 4, Octave 2, Gemshorn 2, Mixture III (Synthetic; from Rohr Gedeckt & Gemshorn), Fagot 8, Clarion 4, blank
SWELL (Expressive) Gemshorn 8, Rohr Flöte 8, Flute 4, Gemshorn 4, Quint 2 2/3, Block Flöte 2, Larigot 1 1/3, Gemshorn 1, Fagot 8, Tremolo
PEDAL (Expressive) Sub Bass 16, Principal 8, Rohr Gedeckt 8, Choral Bass 4, Flute 2, Fagot 8, Fagot 4
COUPLERS None
PIPE SUMMARY Principal (85 pipes), Sub Bass / Rohr Gedeckt (97 pipes), Gemshorn (73 pipes), Fagot (73 pipes)
FINGER PISTONS None
PEDAL MOVEMENTS Expression (balanced) (bal.), Crescendo (balanced) (bal.)
TOE STUDS None
