Better Pipe Organ Database

Muller Pipe Organ Company (2021)

St. Joan of Arc Catholic Church
5856 Heatherdowns Boulevard
Toledo, OH

Images

2021-01-12 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Unknown - Console (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

2020-04-11 - Church interior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

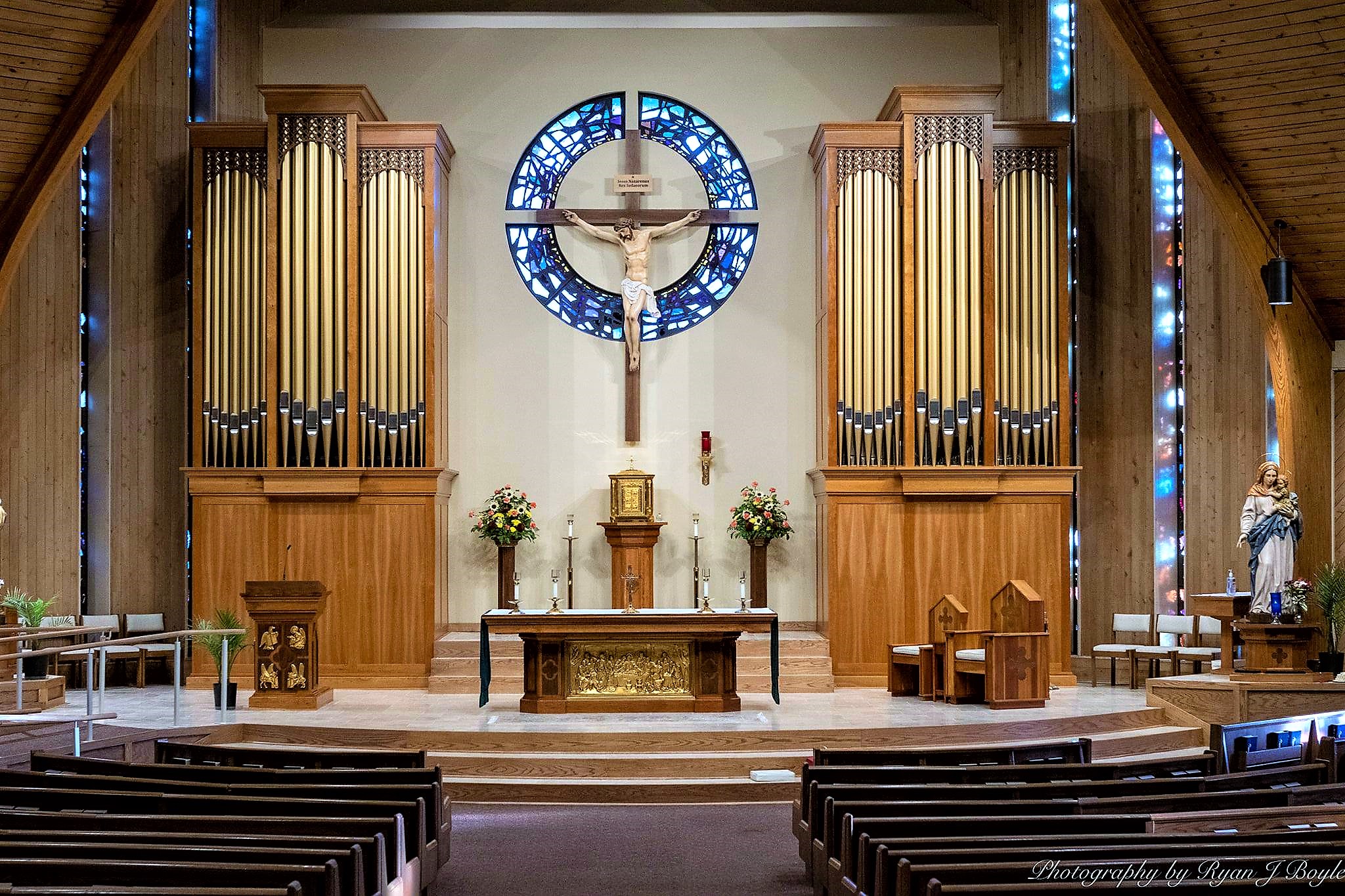

2021 - Organ cases and chancel (Photograph by Ryan J. Boyle via Muller Pipe Organ Co. Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
2 manuals
14 stops
31 registers
3 divisions
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Stoplist

Source: Muller Pipe Organ Co., via Facebook February 2022

       Toledo, Ohio
       St. Joan of Arc Parish

       Muller   2021   2/16
       _________________________________________________

       GREAT                        SWELL
    8' Principal        61      16' Gedeckt           12
    8' Rohrflöte        61       8' Gedeckt           61
    8' Salicional       SW       8' Salicional        61
    4' Octave           61       8' Voix Celeste      49
    4' Rohrflöte        12       4' Spitz Principal   61
2 2/3' Quint            61       4' Gedeckt           12
    2' Doublette        12   2 2/3' Nazard           (from 8' Gedeckt)
1 3/5' Tierce           49       2' Flute             12
    8' Trompette        SW       2' Mixture III      183
    8' Oboe             SW      16' Contre Trompette  12
       Sub                       8' Trompette         61
       Unison Off                8' Oboe              61
       Super                        Tremolo
       Chimes           21          Sub
                                    Unison Off
       PEDAL                        Super
   32' Resultant        --
   16' Subbass          32
   16' Gedeckt          SW
    8' Principal        32
    8' Gedeckt          SW
    4' Octave           12
    4' Gedeckt          SW
   16' Contre Trompette SW
    8' Trompette        SW
    4' Oboe             SW

      [Received from Jeff Scofield September 30, 2021]
      [minor adjustments per Diapason, Feb 2022, Paul R Marchesano]
