St. James Episcopal Church: Sanctuary; front
205 N. 4th Street
Baton Rouge, LA
Images
2022 - Console, console and stenciled pipes (Photograph by Goulding & Wood, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
2022 - Console (Photograph by Goulding & Wood, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

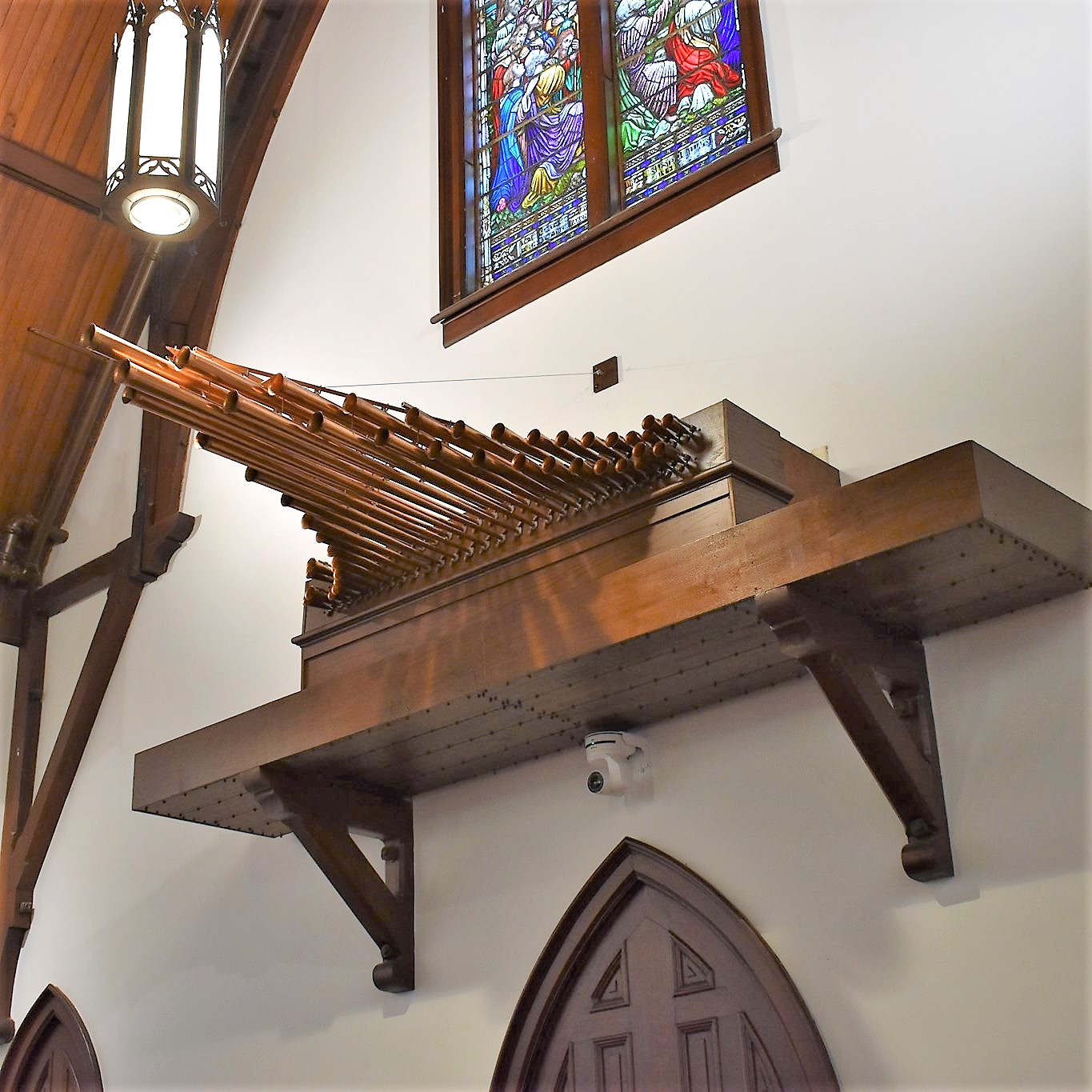

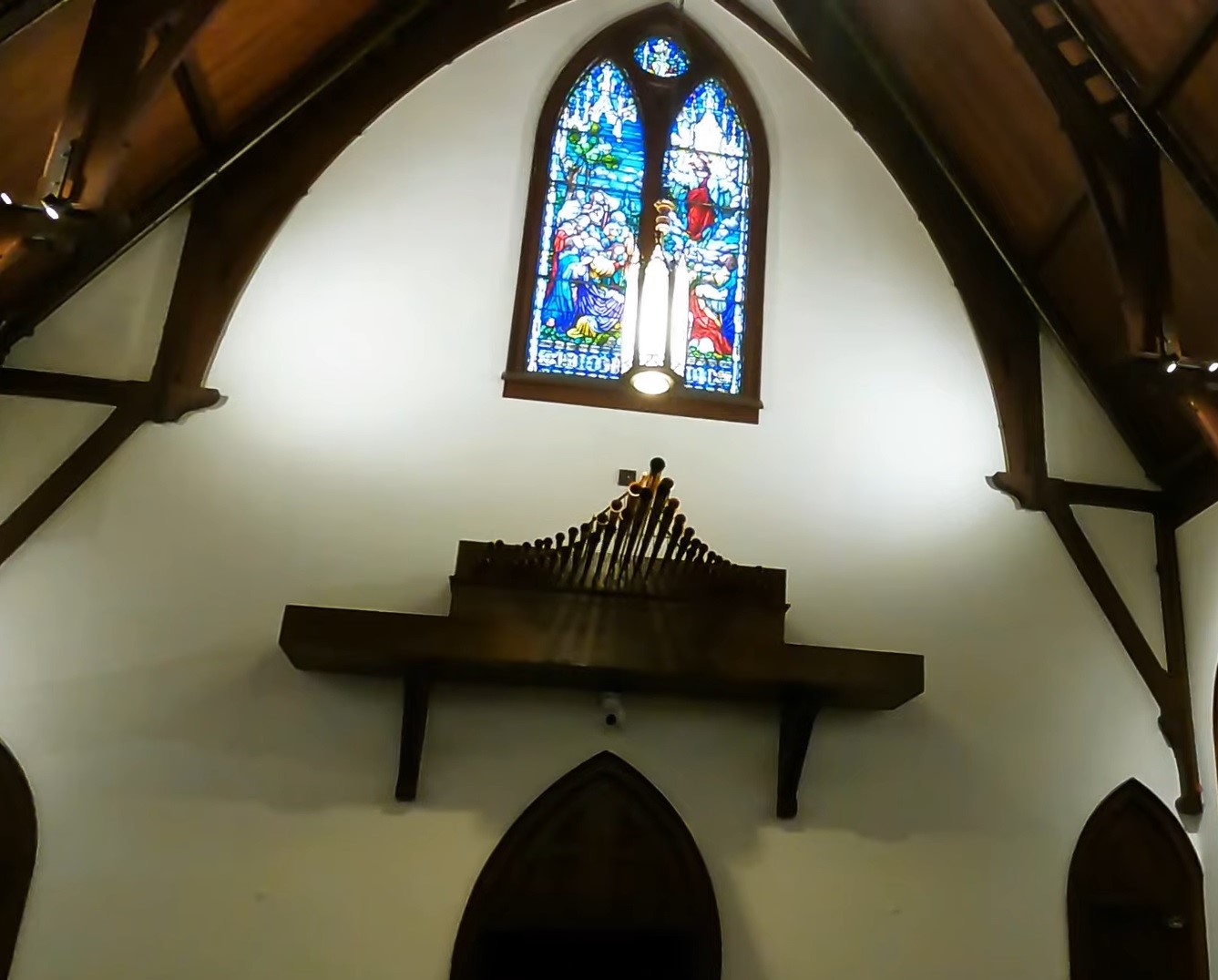

2021-06-27 - Festival Trumpet (Photograph from an archival source: Parish Facebook page, submitted by Jim Stettner/Jim Stettner)

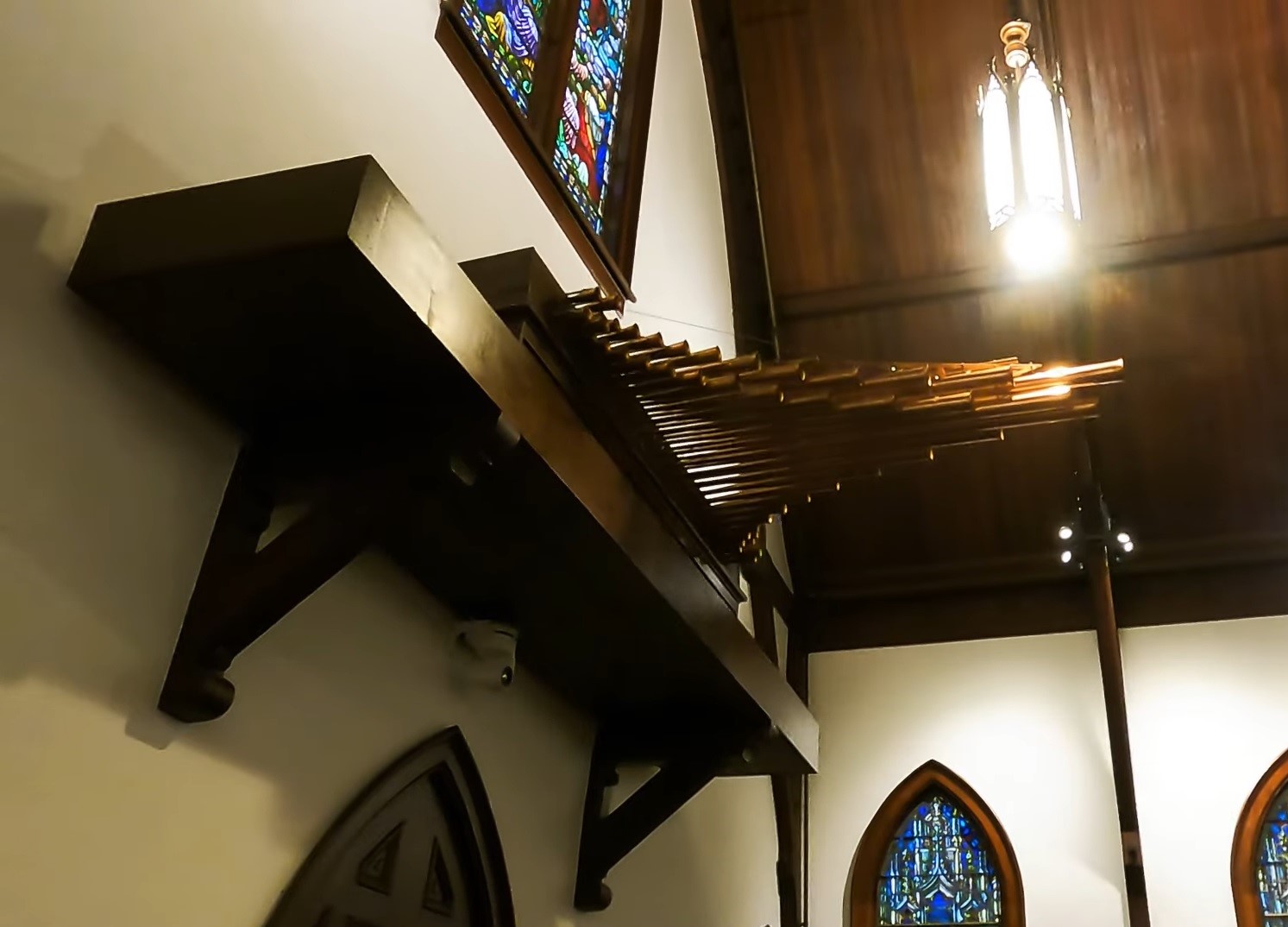

2021-09-27 - Festival Trumpet (Photograph from an archival source: Still capture from Organ Media Foundation video (Brent Johnson)., submitted by Jim Stettner/Jim Stettner)
2021-09-27 - Festival Trumpet (Photograph from an archival source: Still capture from Organ Media Foundation video (Brent Johnson)., submitted by Jim Stettner/Jim Stettner)

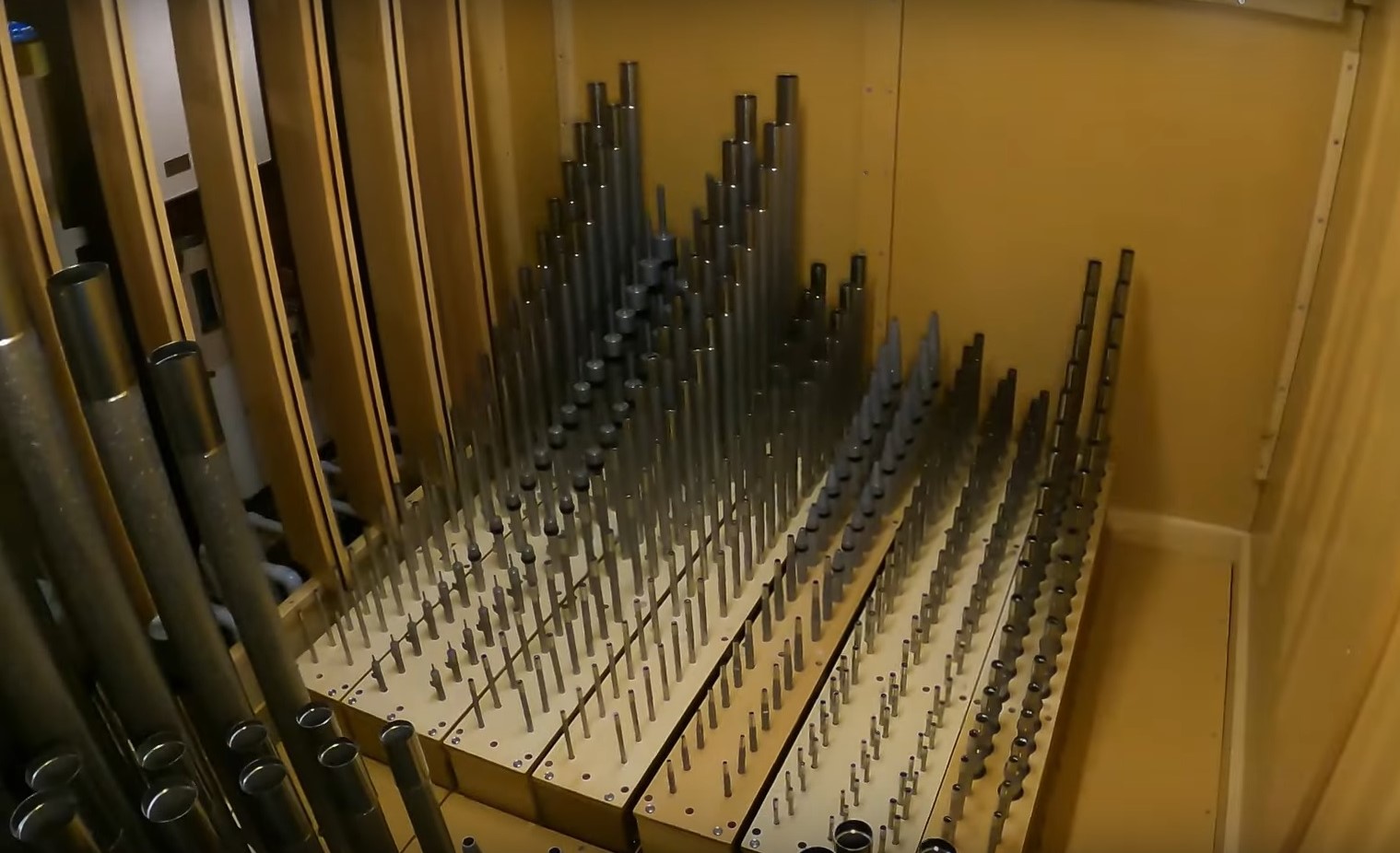

2021-09-27 - Choir division pipework (Photograph from an archival source: Still capture from Organ Media Foundation video (Brent Johnson)., submitted by Jim Stettner/Jim Stettner)

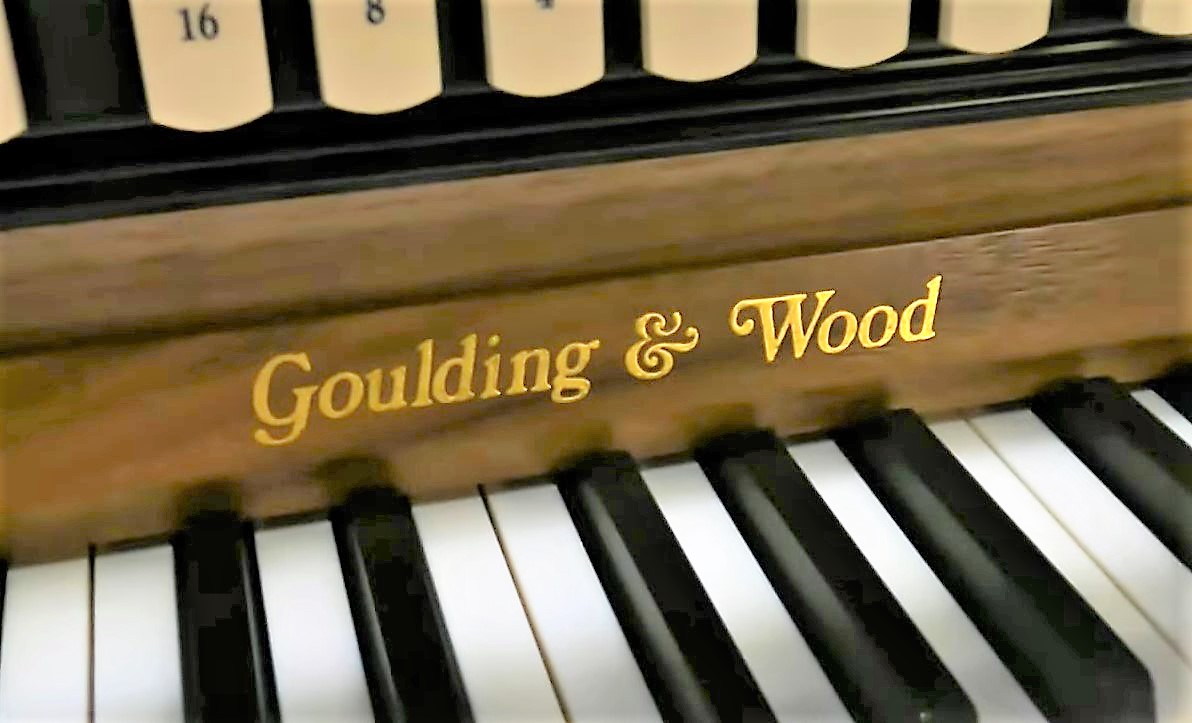

2021-09-27 - Builder's stencil above Swell manual (Photograph from an archival source: Still capture from Organ Media Foundation video (Brent Johnson)., submitted by Jim Stettner/Jim Stettner)

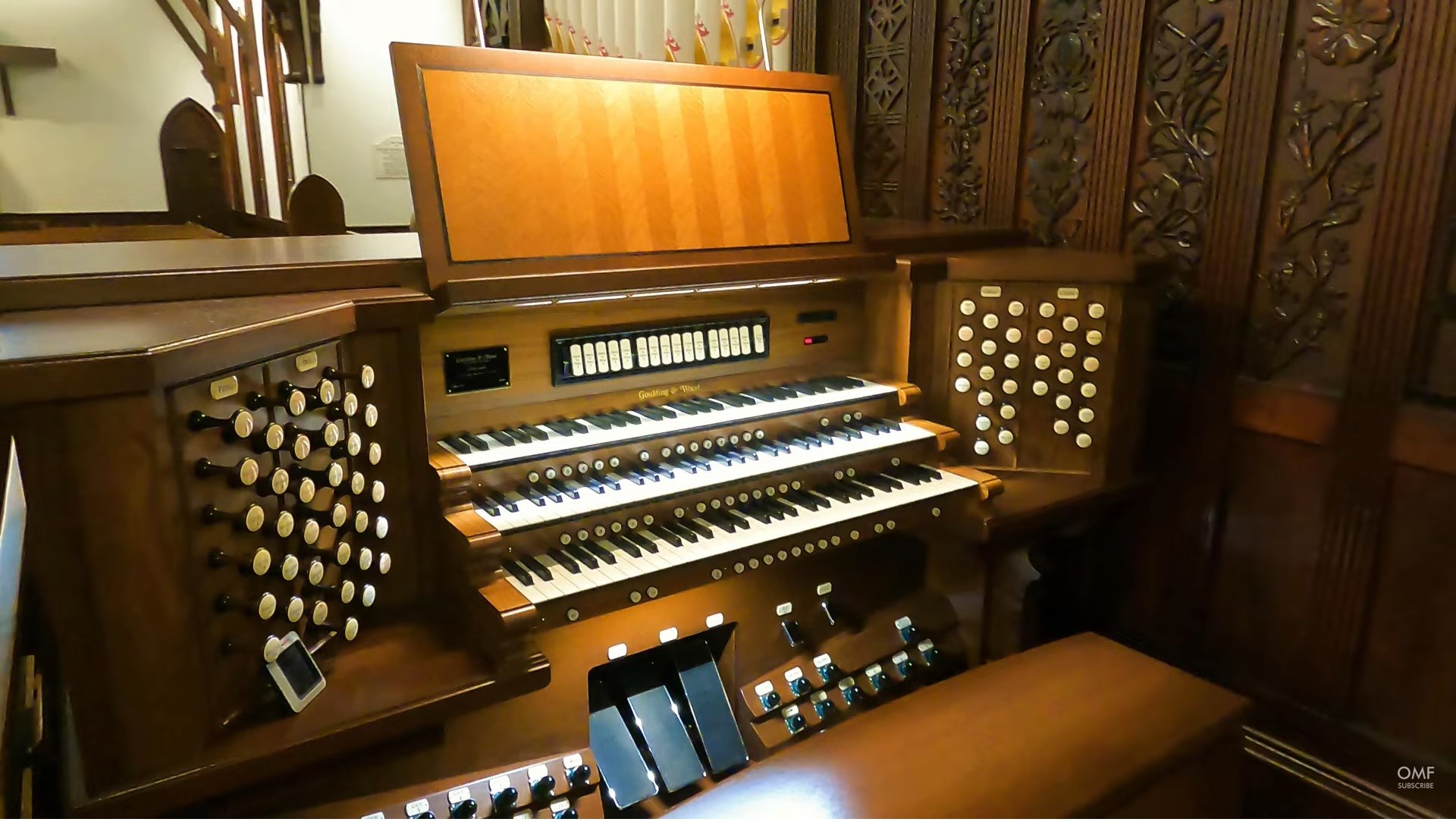

2021-09-27 - Console (Photograph from an archival source: Still capture from Organ Media Foundation video (Brent Johnson)., submitted by Jim Stettner/Jim Stettner)

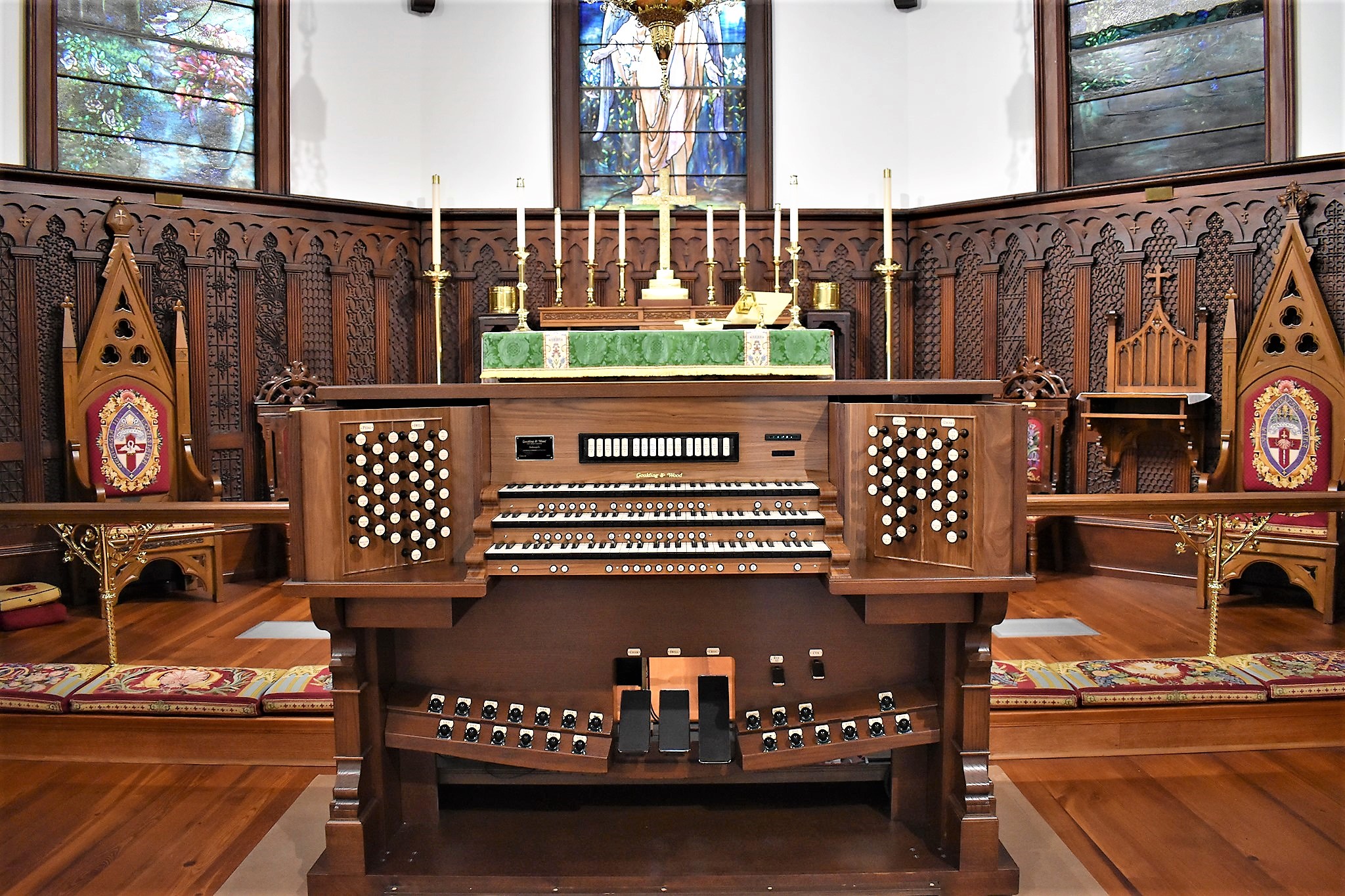

2021-06-17 - Console on display (Photograph from an archival source: Parish Facebook page, submitted by Jim Stettner/Jim Stettner)

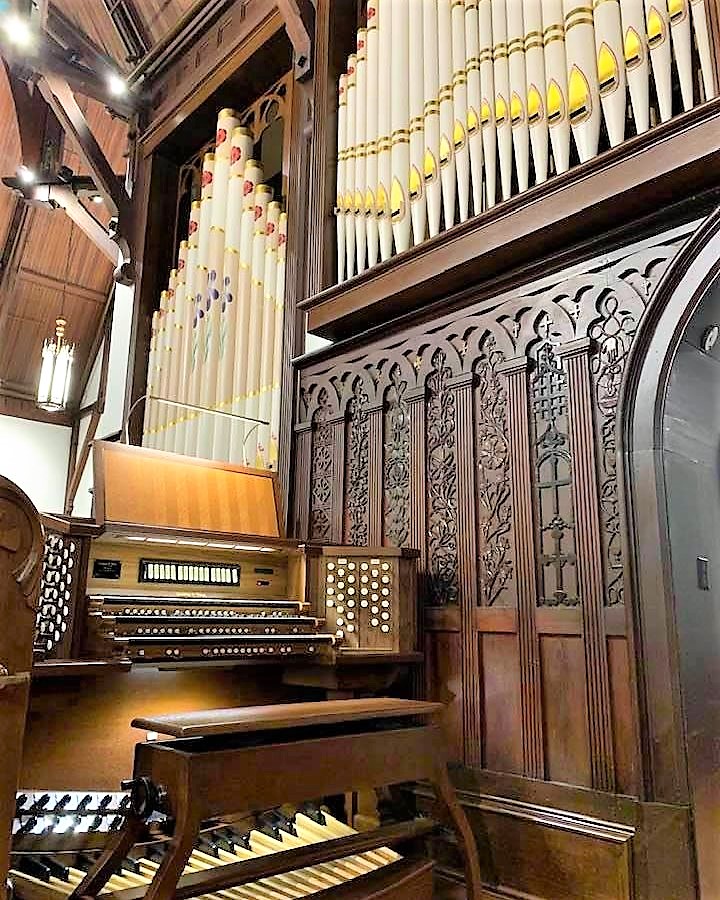

2021-10-22 - Console with Great and Choir facades (Photograph from an archival source: Parish Facebook page, submitted by Jim Stettner/Jim Stettner)

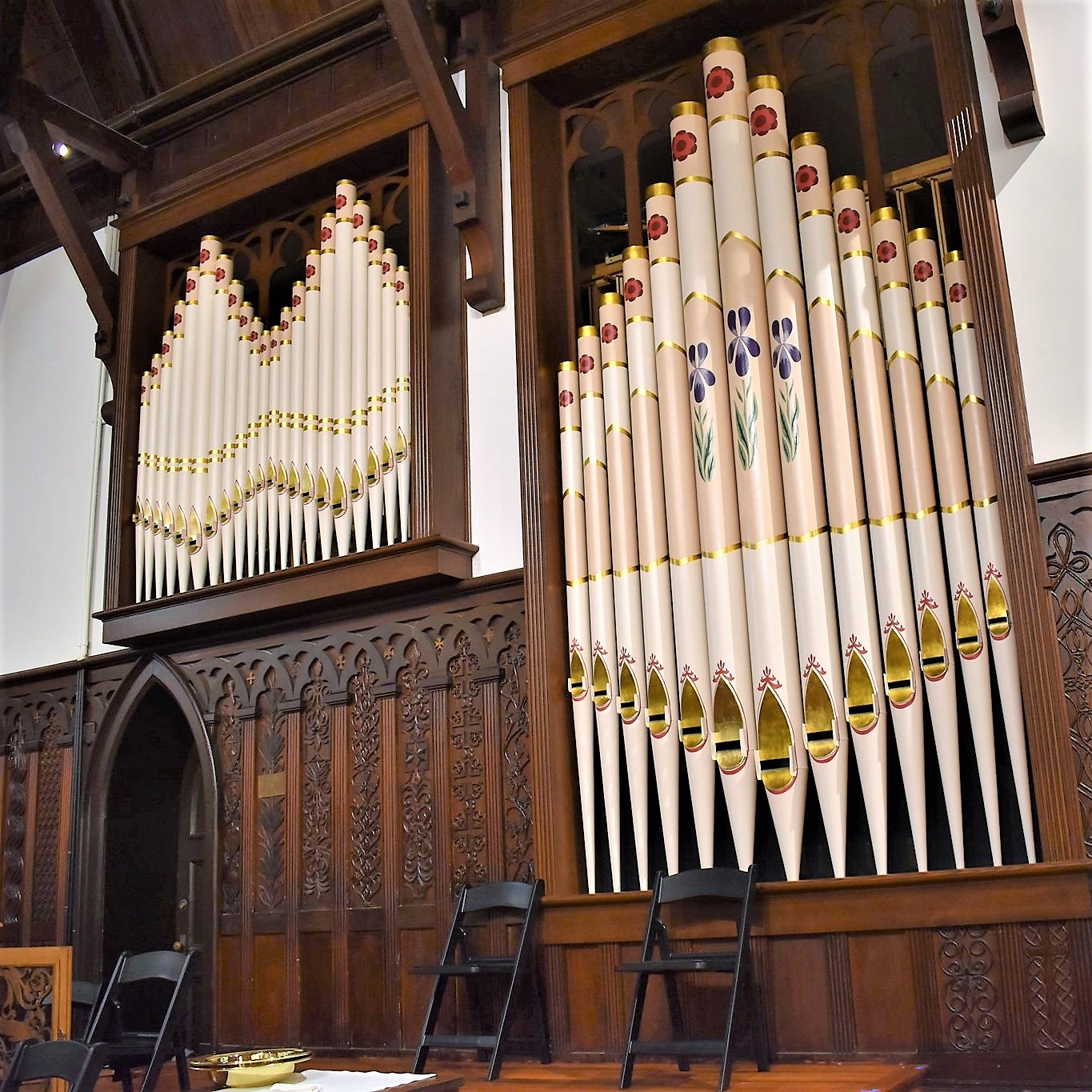

2021-07-06 - Swell and Pedal facades (Photograph from an archival source: Parish Facebook page, submitted by Jim Stettner/Jim Stettner)

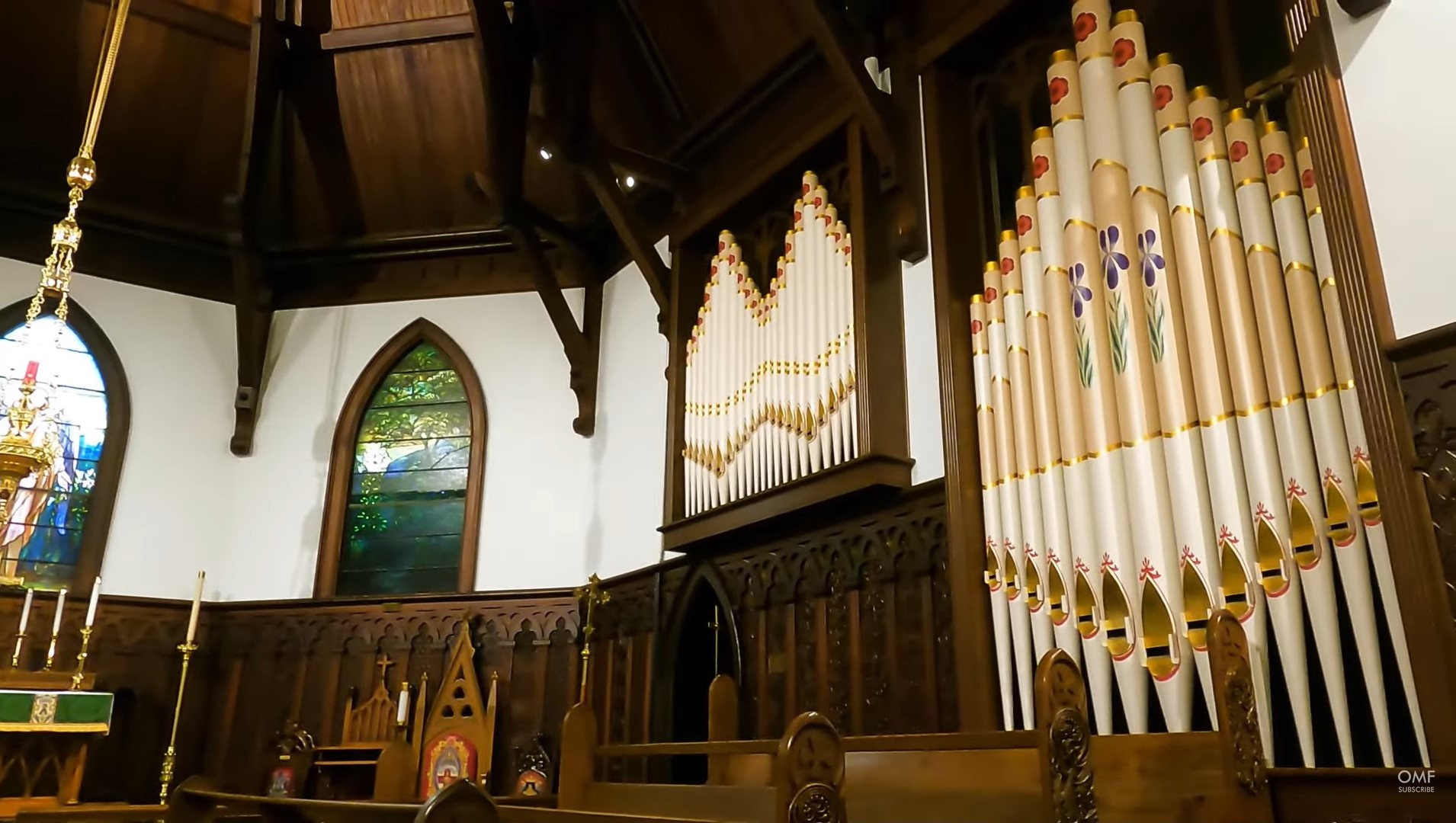

2021-09-27 - Swell & Pedal facades on the right side (Photograph by Still capture from Organ Media Foundation video (Brent Johnson)./Jim Stettner)

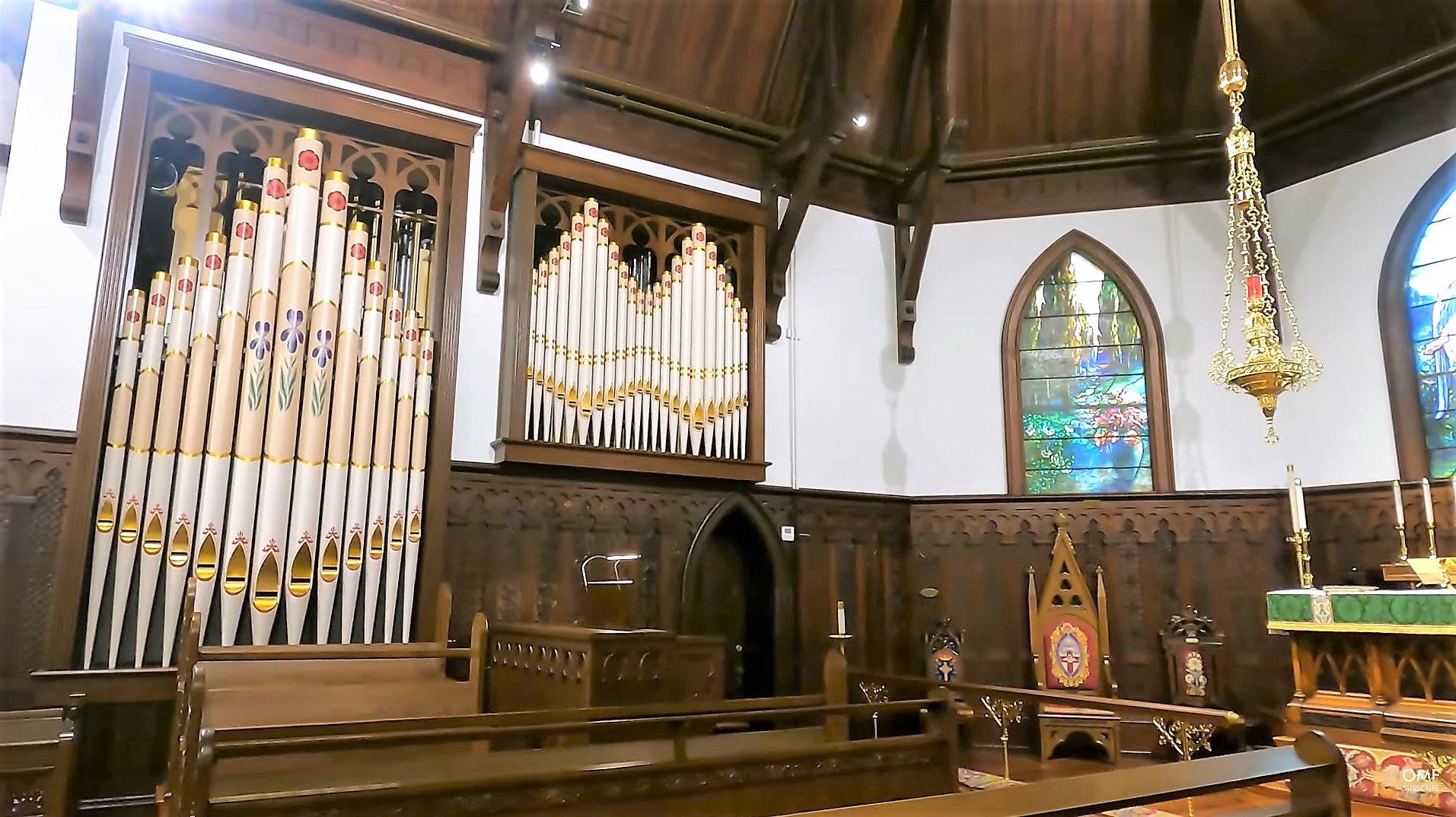

2021-09-27 - Great and Choir facades on the left by the console (Photograph from an archival source: Still capture from Organ Media Foundation video (Brent Johnson)., submitted by Jim Stettner/Jim Stettner)

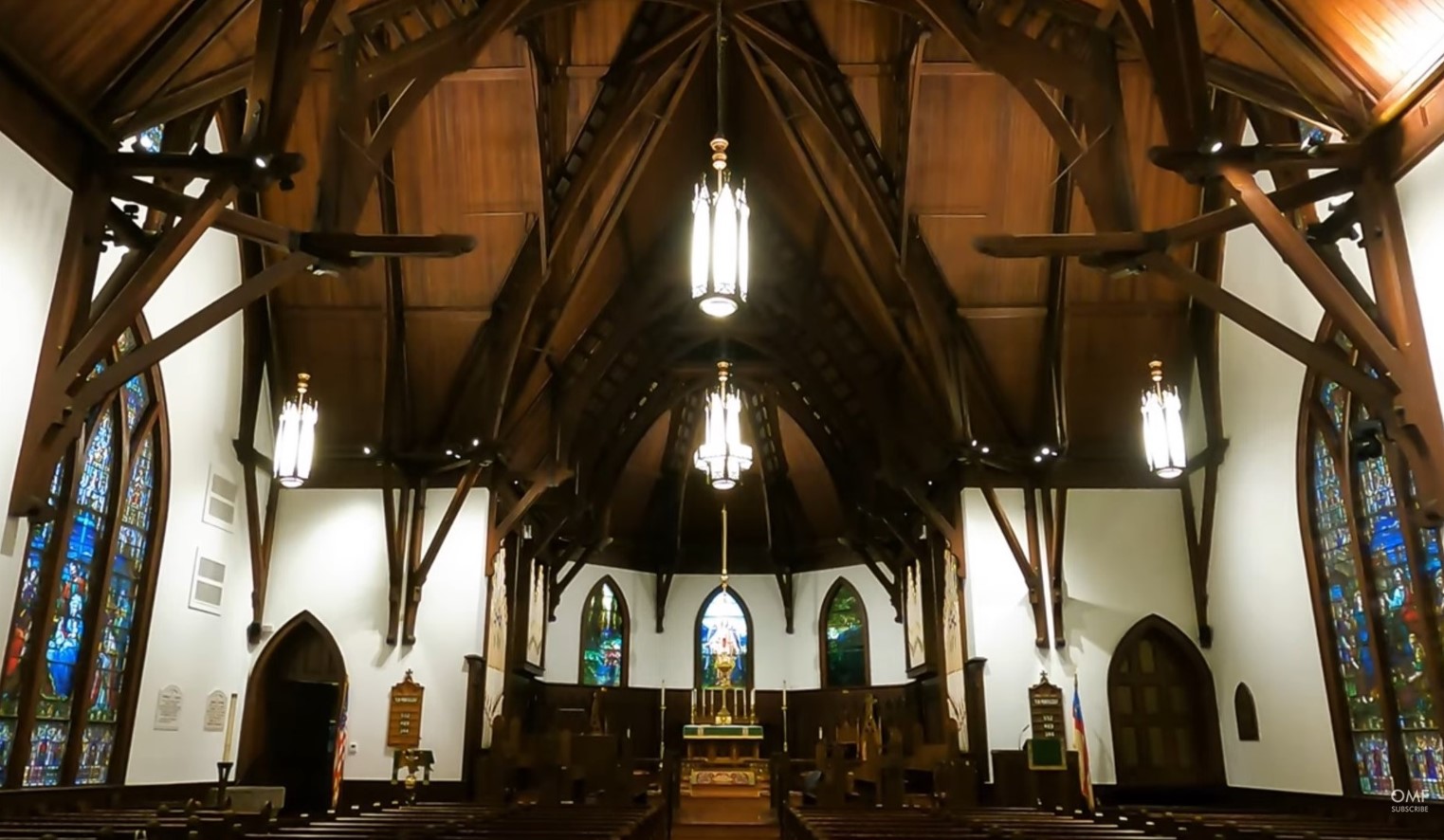

2021-09-27 - Sanctuary interior with twin facades in the chancel (Photograph from an archival source: Still capture from Organ Media Foundation video (Brent Johnson)., submitted by Jim Stettner/Jim Stettner)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Movable Console
- 3 manuals
- 54 registers
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 1 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2021-11-09 - This entry represents the installation of a new organ. Identified by James R. Stettner based on a posted Organ Media Foundation video on Facebook; and the builder's website.
Some of the pipework from the previous 1975 Schlicker was retained and revoiced. Other Schlicker components have gone to St. Luke's Episcopal in Baton Rouge. -Jim Stettner
Stoplist
Source: Builder's website
GREAT Bourdon 16, Principal 8, Harmonic Flute 8, Bourdon 8 (ext. of 16' Bourdon), Octave 4, Open Flute 4, Twelfth 2⅔, Fifteenth 2, Seventeenth 1⅗, Fourniture IV 1⅓, Trumpet 8, Festival Trumpet 8, Tremulant, Great / Choir Transfer
SWELL Gedeckt 16, Geigen Diapason 8, Gedeckt 8 (ext. of 16’ Gedeckt), Viole de Gambe 8, Voix celeste (GG) 8, Principal 4, Traverse Flute 4, Octave 2, Piccolo 2, Plein Jeu III-IV 2, Bassoon-Oboe 16, Trumpet 8, Oboe 8 (ext. of 16’ Bassoon), Clarion 4, Festival Trumpet 8 (Great), Tremulant
CHOIR Chimney Flute 8, Dulciana 8, Dulciana Celeste 8, Fugara 4, Spindle Flute 4, Nasard 2⅔, Block Flute 2, Tierce 1⅗, Clarinet 8, Festival Trumpet 8 (Great), Cymbelstern, Tremulant
PEDAL Resultant 32, Principal 16, Subbass 16 (Great), Bourdon 16, Gedeckt 16 (Swell), Octave 8, Bourdon 8 (Great), Gedeckt 8 (Swell), Octave 4 (ext. Pedal 8' Octave), Bourdon 4 (Great), Trombone 16, Bassoon 16 (Swell), Tromba 8, Bassoon 8 (Swell), Clarion 4, Festival Trumpet 8 (Great)
Couplers Great to Great 16'—Unison Off—4', Swell to Great 16-8-4, Choir to Great 16-8-4, Swell to Swell 16'—Unison Off—4', Choir to Choir 16'—Unison Off—4', Swell to Choir 16-8-4, Great to Choir 8, Great to Pedal 8, Swell to Pedal 8-4, Choir to Pedal 8-4
