Anaheim Hills Stake Center
420 S. Fairmont Blvd.
Anaheim Hills, CA
Images

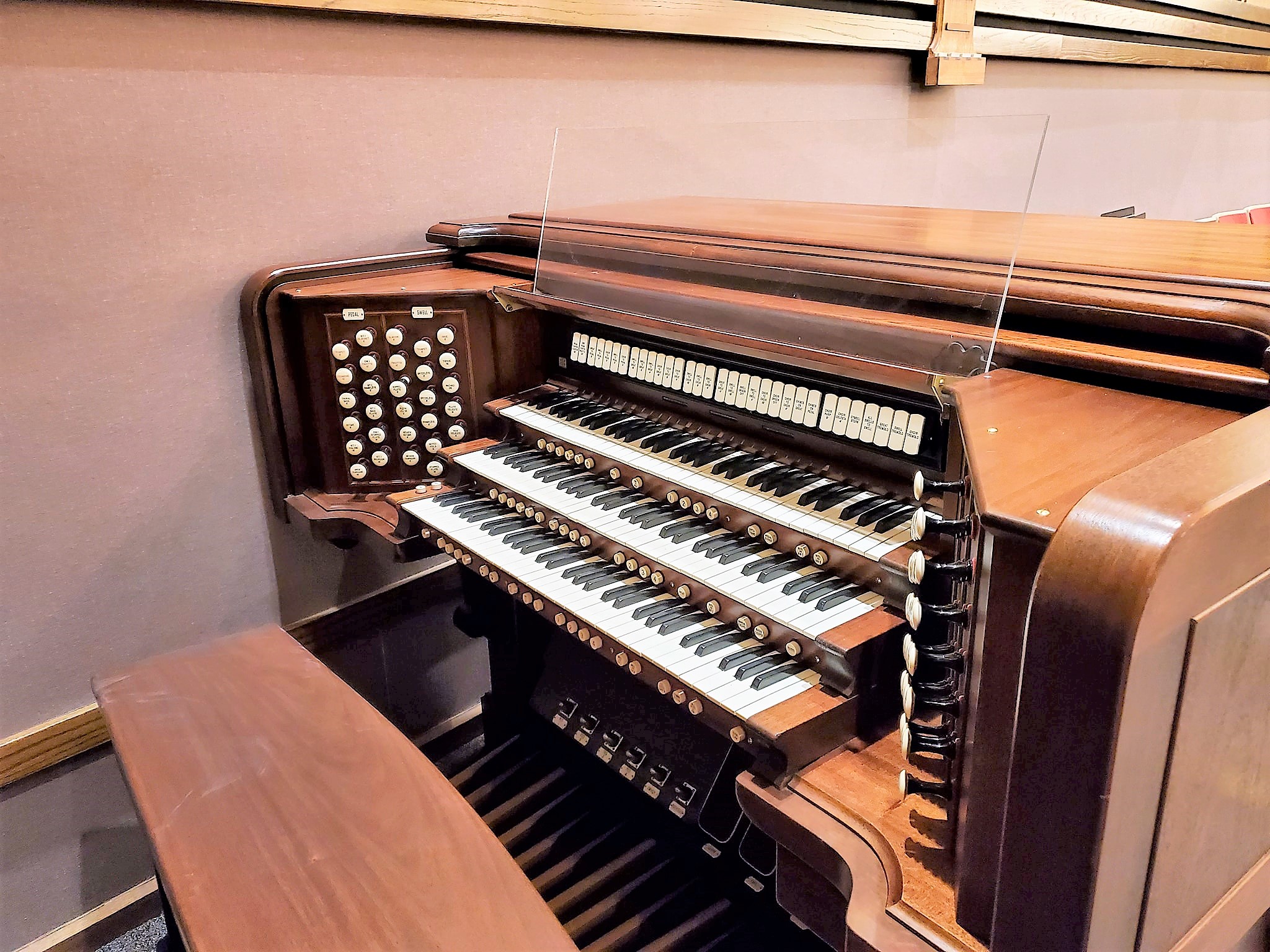

2021-12-22 - Console interior (Photograph by Ryan Ballantyne, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
2021-12-22 - Coupler rail (Photograph by Ryan J. Ballantyne, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
2021-12-22 - Right stopjamb (Photograph by Ryan Ballantyne, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
2021-12-22 - Left stopjamb (Photograph by Ryan Ballantyne, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

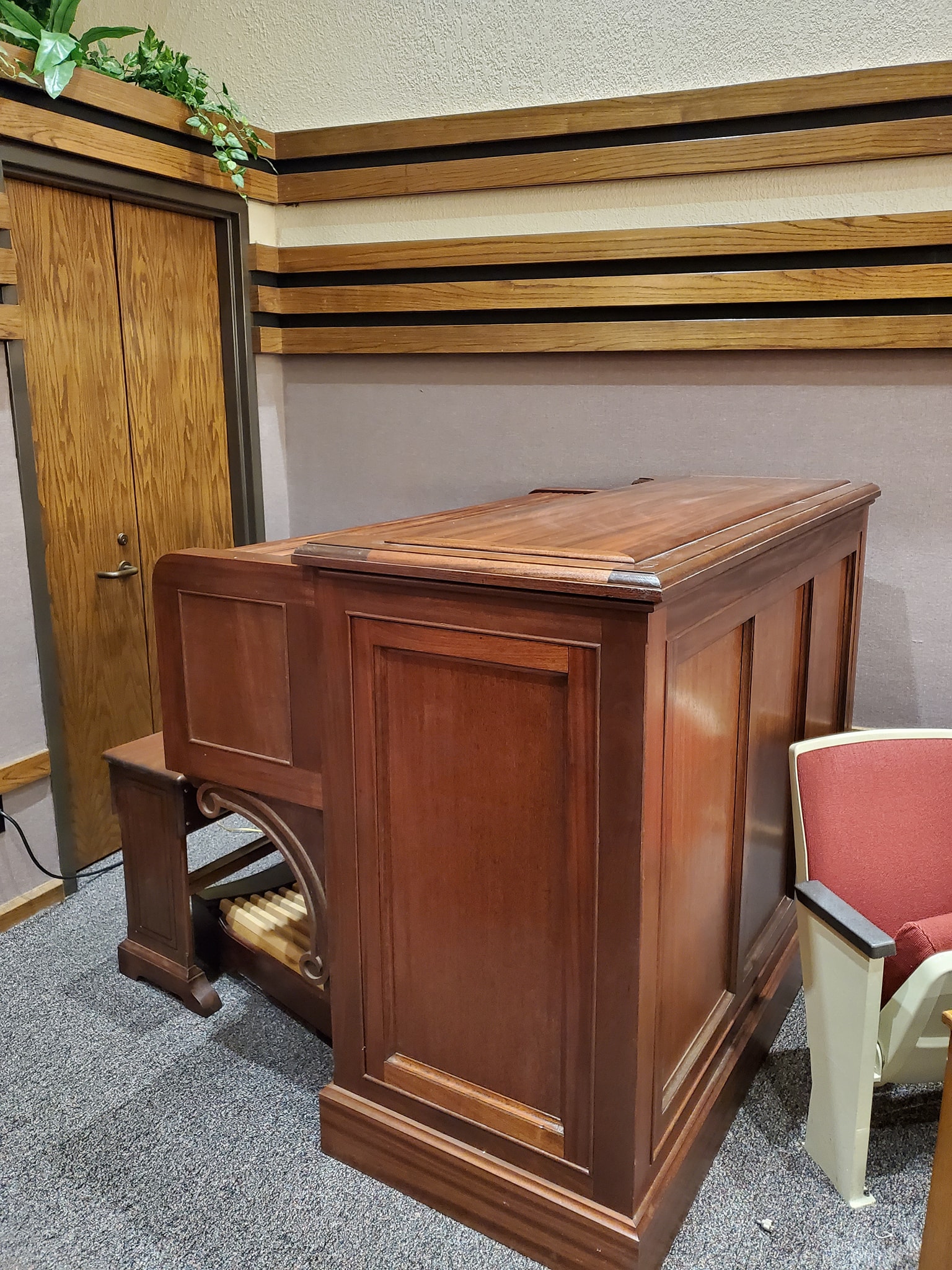

2021-12-22 - Console (Photograph by Ryan Ballantyne, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
2021-12-22 - Console (Photograph by Ryan Ballantyne, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
2021-12-22 - Pipe Display (Photograph by Ryan Ballantyne, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Left
- 3 manuals
- 56 registers
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Adjustable Combination Pistons
- Has sequencer
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Stoplist
Source: Stopjamb Photos by Ryan Ballantyne
Anaheim Hills California
Anaheim Hills Stake LDS
R M Ballantyne 2021
_____________________________________________
GREAT CHOIR
16' Violone 8' Flauto Mirabilis
8' Open Diapason 8' Viola Pomposa
8' Principal 8' Viola Celeste
8' Harmonic Flute 8' Concert Flute
8' Bourdon 8' Orchestral Strings II
8' Violone 4' Prestant
4' Octave 4' Stopped Flute
4' Bourdon 2' Harmonic Piccolo
2' Fifteenth V Cornet SW
IV Mixture 1 1/3' 8' Tromba
8' Tromba CH 8' French Horn
8' Clarinet 8' English Horn
Tremolo Tremolo
Super Sub
Chimes Unison Off
MIDI Super
8' Harp
SWELL 4' Celesta
16' Stopped Flute Cymbelstern
8' Geigen Diapason MIDI
8' Rohrflöte
8' Spitzflöte PEDAL
8' Viol d'Gamba 32' Contra Bourdon
8' Voix Celeste 16' Open Diapason
8' Muted Viols II 16' Bourdon GT
8' Flute Celeste II 16' Violone GT
4' Geigen Octave 16' Stopped Flute SW
4' Koppel Flute 8' Octave
2 2/3' Nazard 8' Bass Flute GT
2' Spitzflöte 8' Rohrflöte GT
1 3/5' Tierce 4' Choral Bass
III Plein Jeu 2' 32' Contra Fagotto SW
16' Fagotto 16' Trombone
8' Trumpet 16' Fagotto SW
8' Oboe 8' Trumpet
4' Clarion 4' Clarinet GT
Tremolo Chimes
Sub Pedal Divide
Unison Off MIDI
Super
MIDI
[Received from Jeff Scofield December 24, 2021]
