First Church of Christ, Scientist
355 Kings Highway East
Haddonfield, NJ
Images

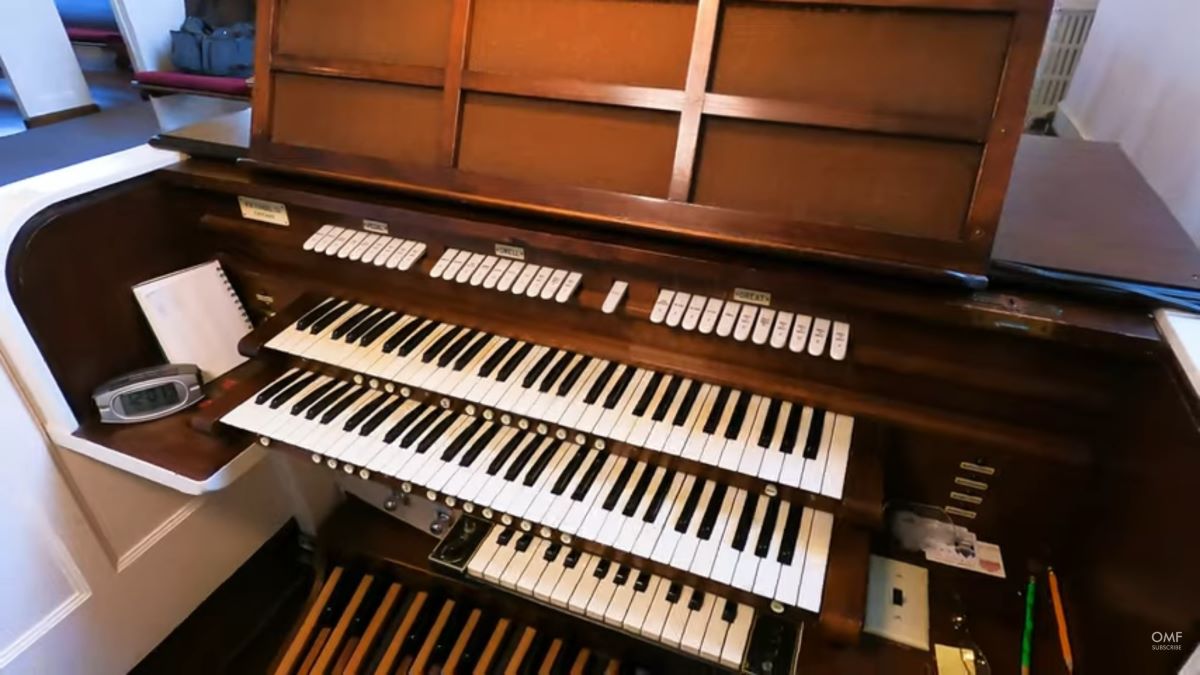

2022-04-03 - Kimball console (after solid state conversion). (Photograph from an archival source: Still capture from Organ Media Foundation video (Brent Johnson)., submitted by Jim Stettner/Jim Stettner)

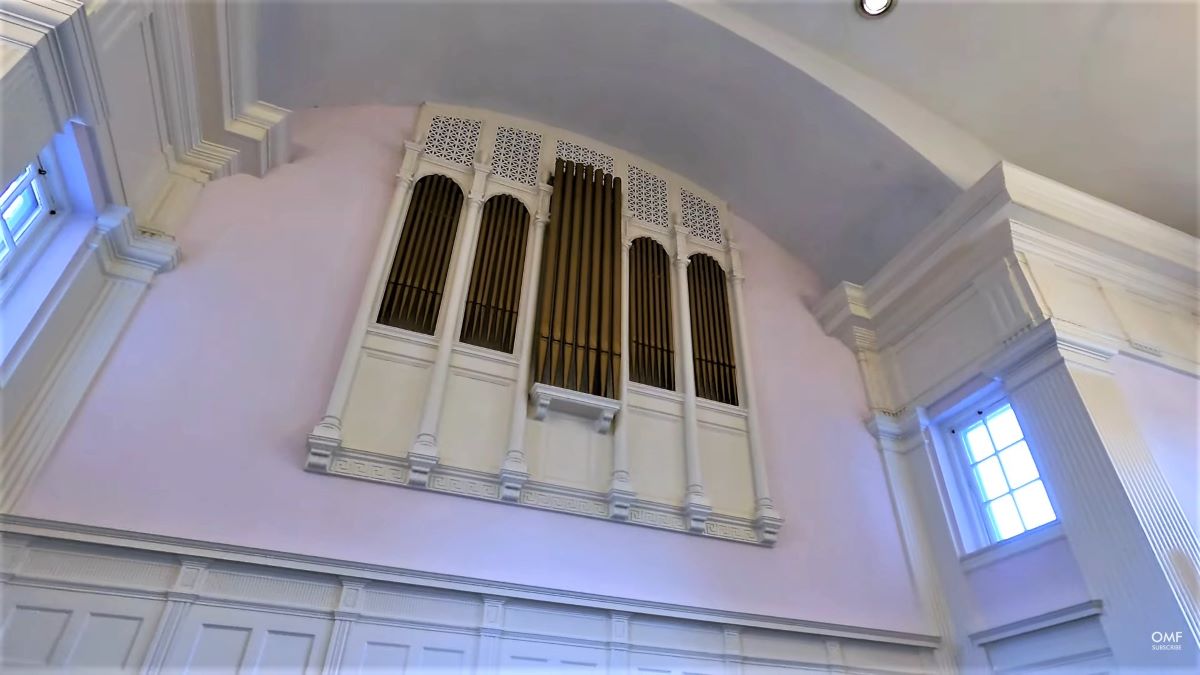

2022-04-03 - Organ chamber facade (Photograph from an archival source: Still capture from Organ Media Foundation video (Brent Johnson)., submitted by Jim Stettner/Jim Stettner)

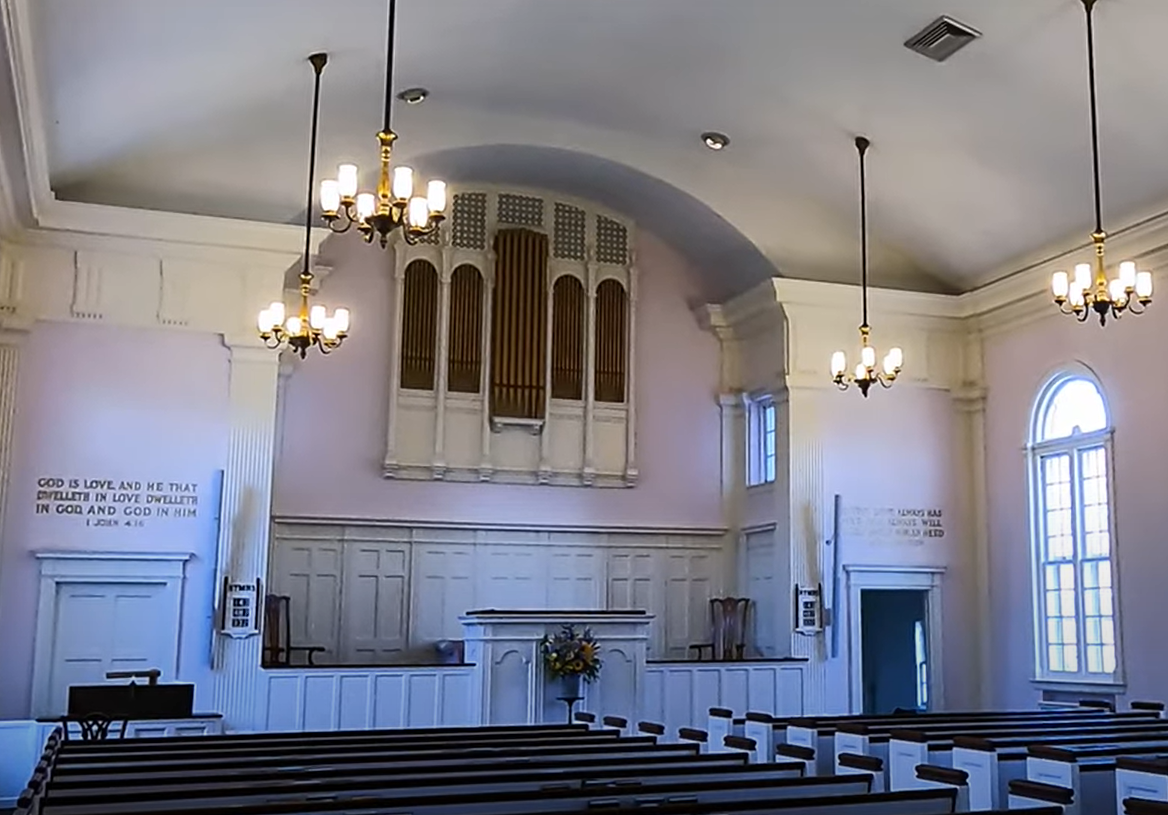

2022-04-03 - Facade and nave with console visible at bottom left (Photograph from an archival source: OrganMediaFoundation YouTube video, submitted by Paul R. Marchesano/Paul R. Marchesano)
Consoles
Chancel
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Left
- 2 manuals
- 15 stops
- 27 registers
- 3 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: 'Hold and Set' Pneumatic/Mechanical
- Has combination thumb pistons
- Has tutti toe pistons
Notes
2022-04-03 - This well-designed unit organ seems to reflect the times of trouble in the Great Depression. The organ contract, August 9, 1934, was for $3,250, payble in 3 payments of $325 and a payment of $2250 when the organ was complete. It also came with a contract dated August 14, 1934, in which Kimball was to provide free maintenance and tuning for 12 months from date of completion, which was promised as December 25, 1934. -Paul R. Marchesano
Stoplist
Source: Original contract, dated August 9, 1934
Great (61 notes, enclosed, 73 pipes all ranks) Open Diapason 8 (61 diapason metal, 12 zinc), Melodia 8 (61 open wood, 12 stopped), Dulciana 8 (61 spotted metal, 12 zinc), Octave 4 (73 spotted metal), Chimes (Prepared for)
Swell (61 notes, enclosed) Rohrflöte 8 (61 spotted metal with chimneys, 12 stopped wood), Salicional 8 (62 spotted metal, 11 zinc), Voix Celeste 8 (62 spotted metal, 11 zinc), Harmonic Flute 4 (73 spotted metal), Nazard 2⅔ (Extension of Rohrflöte), Piccolo 2 (12, Extension of Rohrflöte), Tuba 8 (reeds, spotted metal and zinc bells)
Pedal (32 notes) Bourdon 16 (32 stopped wood, large scale), Lieblich Gedeckt 16 (12 stopped wood, extension of Swell Flute), Bass Flute 8 (12, Extension of Bourdon), Stillgedeckt 8 (from Swell Flute)
Couplers Swell to Great 16', 8', 4', Great to Great 16', 8' off, 4', Swell to Swell 16', 8' off, 4', Great to Pedal 8', Swell to Pedal 8', Swell to Pedal 4'
Combinations Four adjustable pistons (affecting Great and Pedal s tops and couplers), Four adjustable pistons (affecting Swell and Pedal s tops and couplers)
Accessories Balanced Expression pedal (affecting entire organ), Balanced Crescendo pedal (affecting all stops with selected couplers), Sforzando, reversible pedal (affecting stops and couplers of entire organ), Crescendo Indicator, Sforzando Indicator, Action Current Indicator, Organ bench, Tremolo (affecting all pipes except Pedal Basses)
