Schantz (1961)

Images

2022-04-28 - Builder's nameplate (Photograph by Jerry Mead/Jerry Mead)

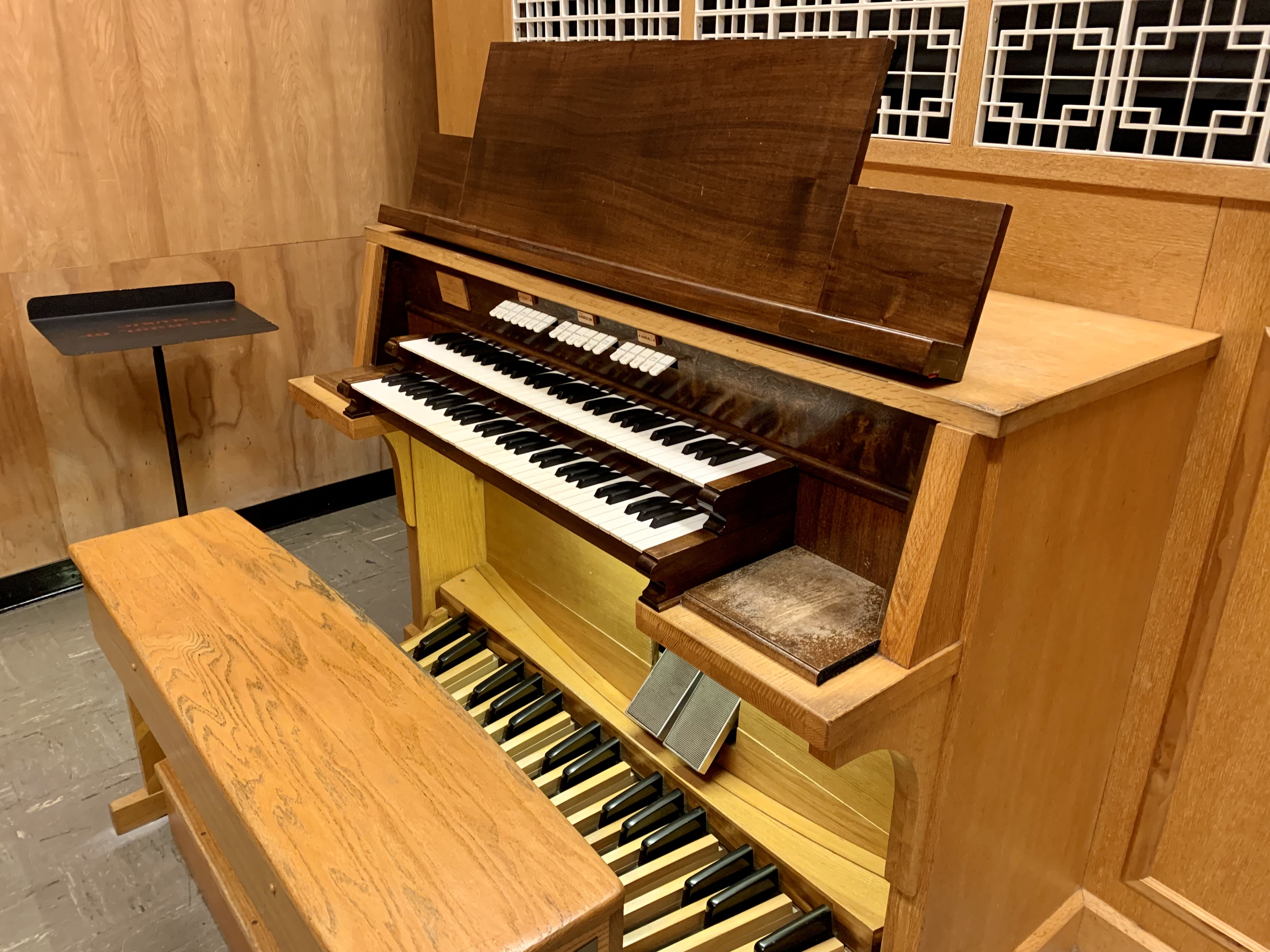

2022-04-28 - Console (Photograph by Jerry Mead/Jerry Mead)

2022-04-28 - Main case and console (Photograph by Jerry Mead/Jerry Mead)

Consoles

Main

• Organ type: Traditional Without Cover
• Console position: Keydesk Attached
• 2 manuals
• 5 stops
• 18 registers
• 1 divisions
• Key action Type: Electrical
• Stop action Type: Electrical
• Stop layout Type: Tilting/Rocking Tablets Above Top Manual
• Manual compass: 61 notes
• Pedal compass: 32 notes
• Pedal Type: Concave Radiating (Meeting AGO Standards)
• Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
• Combination action: None

Notes

2022-04-29 - Swell box is mechanically connected -Jerry Mead

Stoplist

Source: taken from console

Schantz (1961)
Indiana University
Bloomington, IN

Manual I:

8' Princiapl
8' Gedeckt
4' Octave
4' Spire Flute
2' Fifteenth

Manual II:

8' Spire Flute
8' Gedeckt
4' Principal
4' Gedeckt
2⅔' Nazard
2' Spire Flute

Pedal:
16' Subbass
8' Principal
8' Flute
8' Spire Flute
4' Octave
4' Gedeckt
2' Fifteenth
