Noack Organ Co. Opus 165 (2022)

Chapel of the Cross
674 Mannsdale Rd.
Madison, MS

Images

2022 - Console (Photograph by Noack Organ Co. website, submitted by Jeff Scofield/Jeff Scofield)

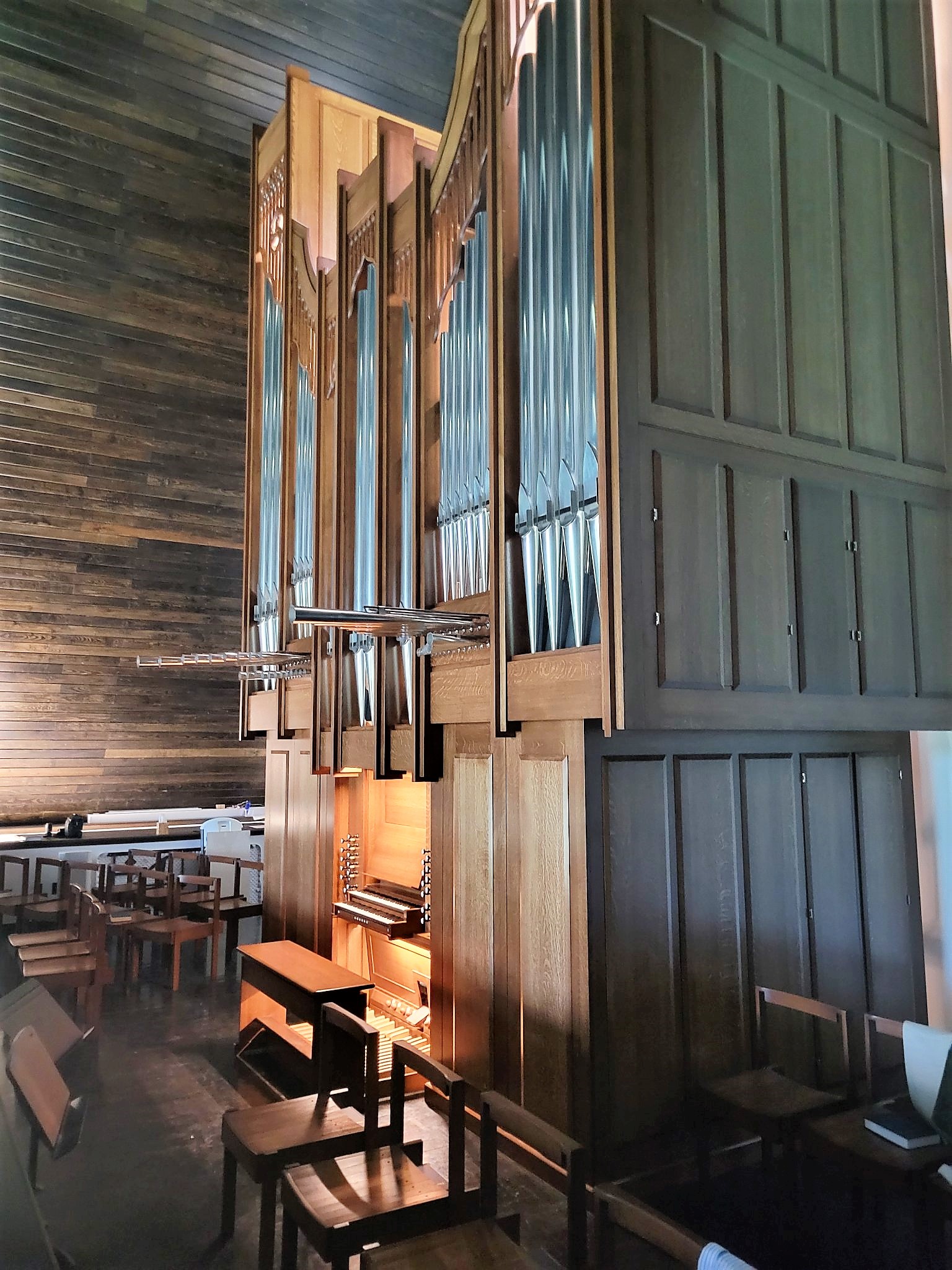

2022 - Organ case, chamade and console (Photograph by Noack Organ Co. website, submitted by Jeff Scofield/Jeff Scofield)

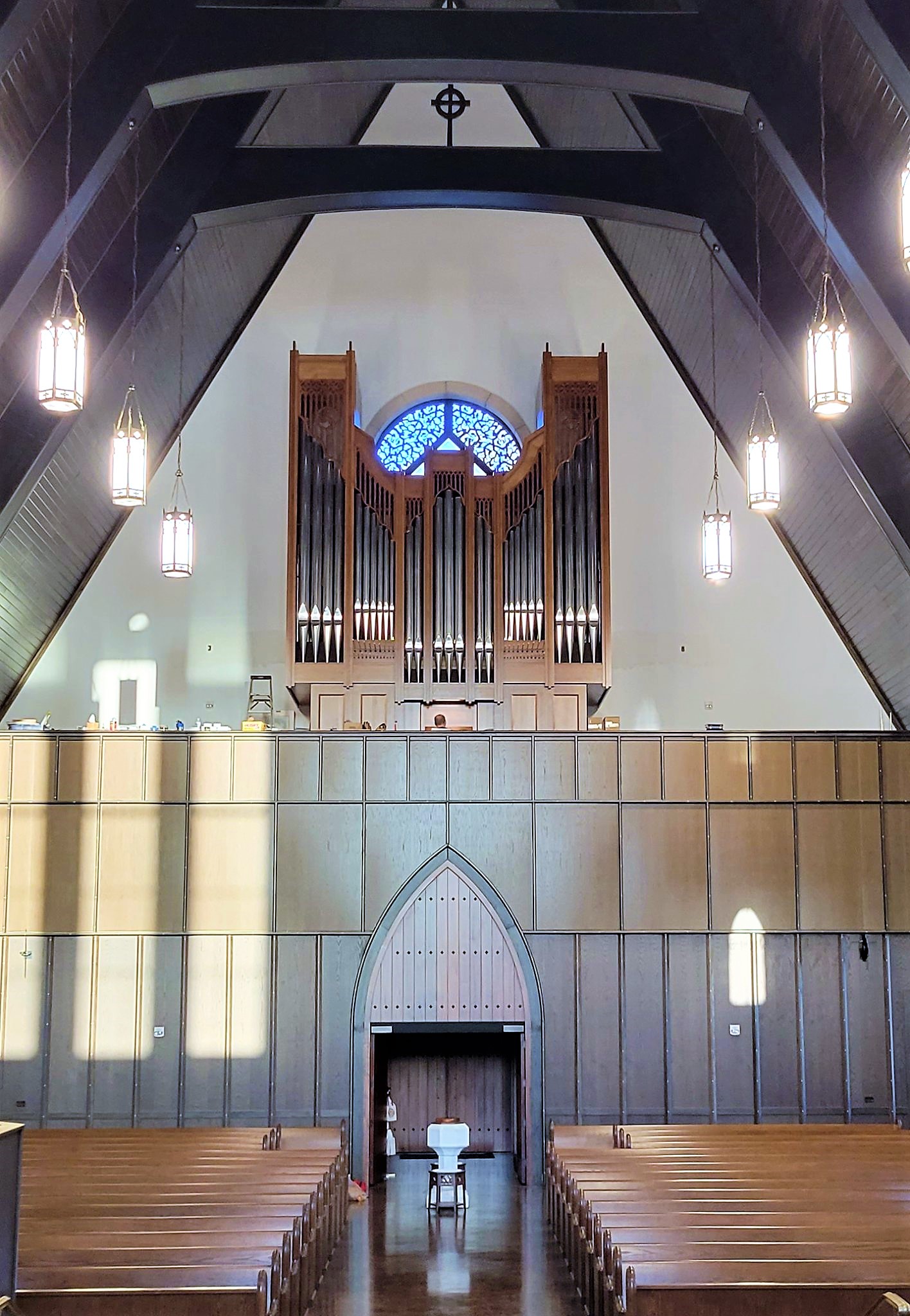

2022 - Church interior to rear, organ and organ case (Photograph by Noack Organ Co. website, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached, Manuals Set Into Case
2 manuals
17 stops
22 registers
3 divisions
Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs

Stoplist

Source: Noack Organ Co. website

     Madison, Mississippi
     Chapel of the Cross, Episcopal

     Noack    Op. 125   2022   2/19
     ___________________________________

     MANUAL I              MANUAL II
 16' Bourdon          * 8' Viola
  8' Diapason         * 8' Chimney Flute
  8' Chimney Flute    * 4' Octave
  8' Viola            * 4' Recorder
  4' Octave         2 2/3' Quint
  4' Recorder         * 2' Flute
  2' Fifteenth      1 3/5' Tierce
  2' Flute              8' Chamade  tc
III  Mixture 1 1/3'
  8' Trumpet               PEDAL
                       16' Violone
  *  Common with       16' Sub Bass
     Manual I           8' Open Bass
                       16' Posaune

     Manual C-a'”/ Pedal C-f’

     All manual stops except the
     Diapason 8 and the Chamade 8
     are enclosed.

[Received from Jeff Scofield May 16, 2022]
