Better Pipe Organ Database

Ortloff Organ Company, LLC Opus 3 (2022)

St. Alban's Episcopal Church: Sanctuary; front
885 Shore Rd.
Cape Elizabeth, ME

Images

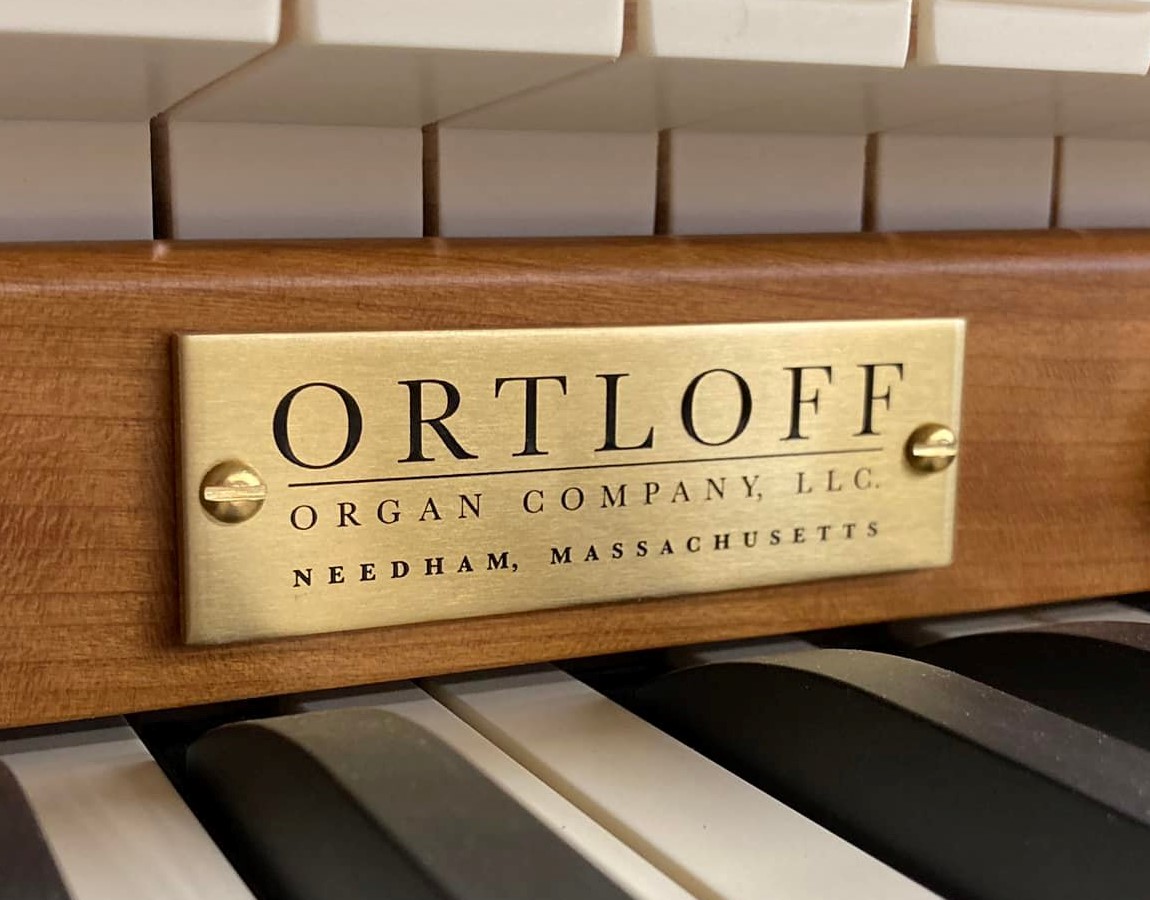

2022-03-10 - Builder's nameplate (Photograph from an archival source: Builder's Facebook page, submitted by Jim Stettner/Jim Stettner)

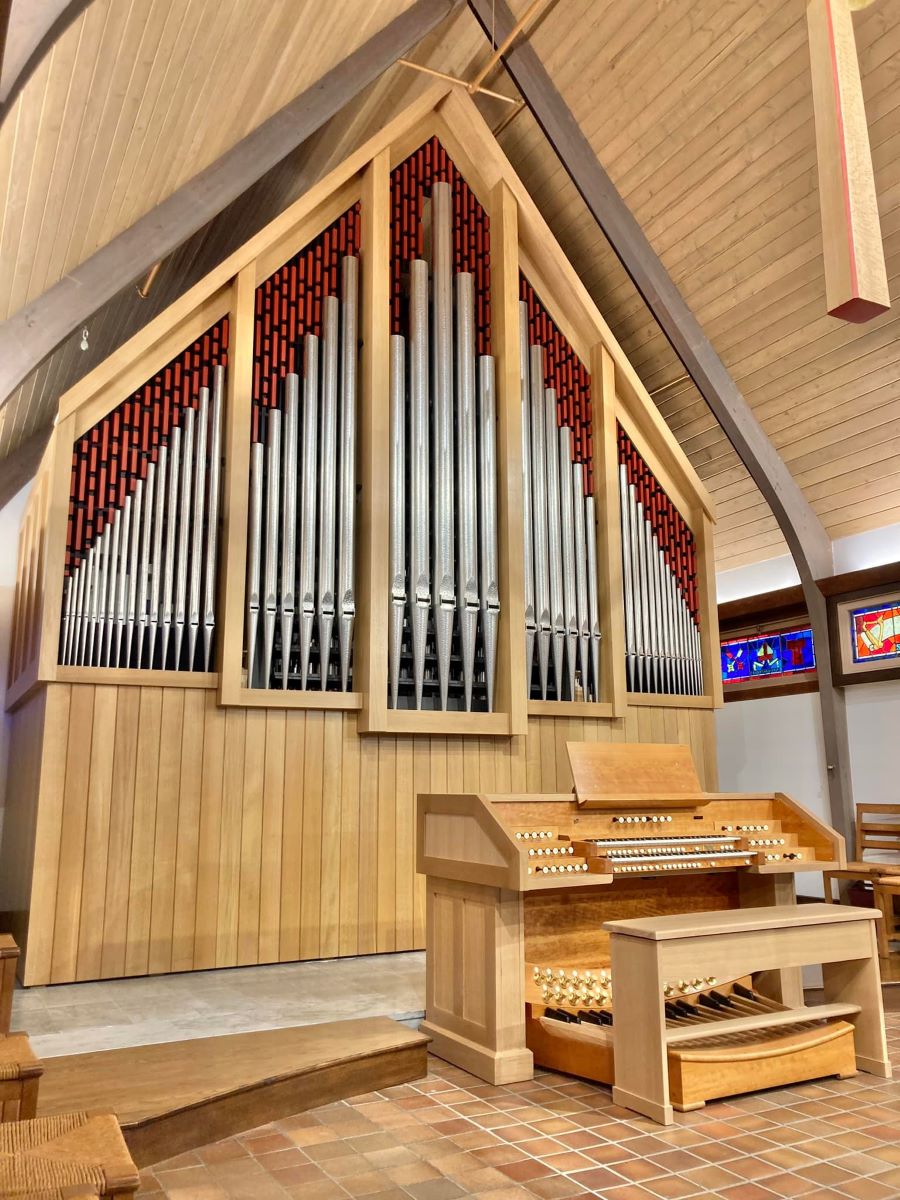

2022-03-26 - Organ case and console (Photograph from an archival source: Builder's Facebook page, submitted by Jim Stettner/Jim Stettner)

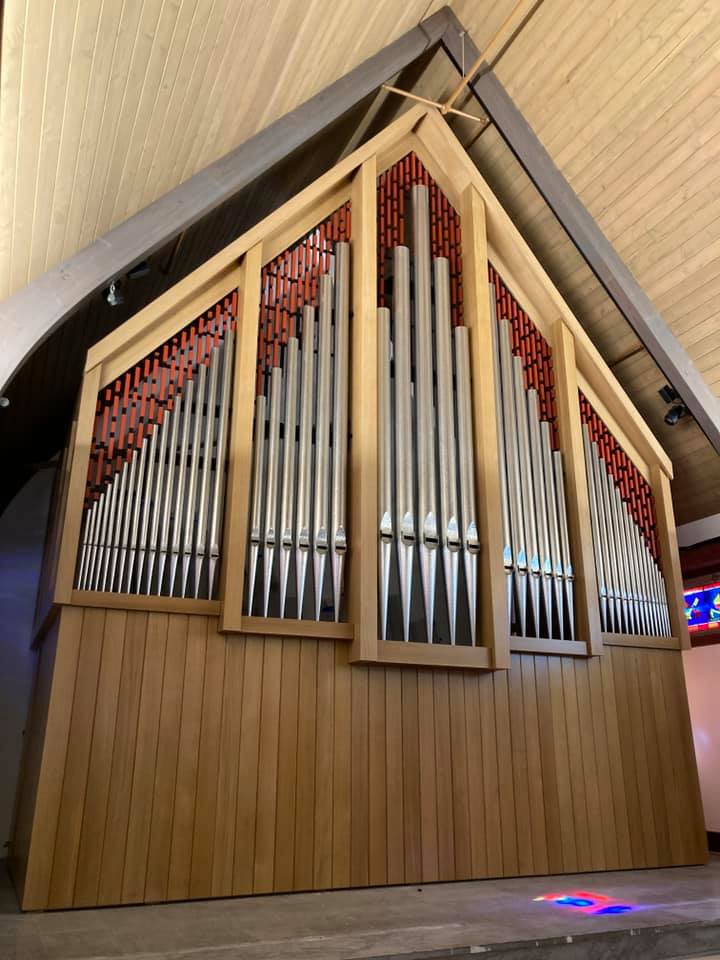

2021-10-01 - Organ casework (Photograph from an archival source: Builder's Facebook page, submitted by Jim Stettner/Jim Stettner)

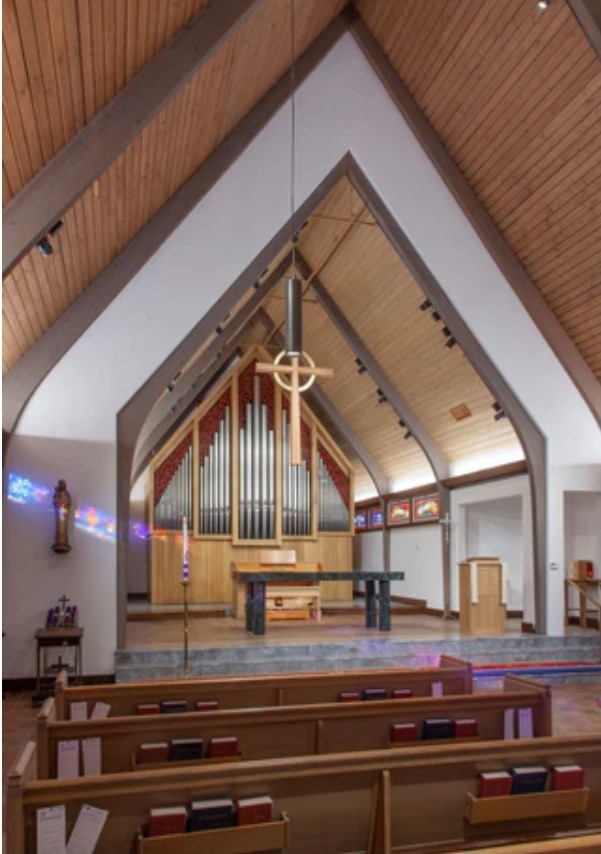

2020-07-08 - Sanctuary interior with organ (Composite (concept) Photograph from an archival source: Builder's Facebook page, submitted by Jim Stettner/Jim Stettner)

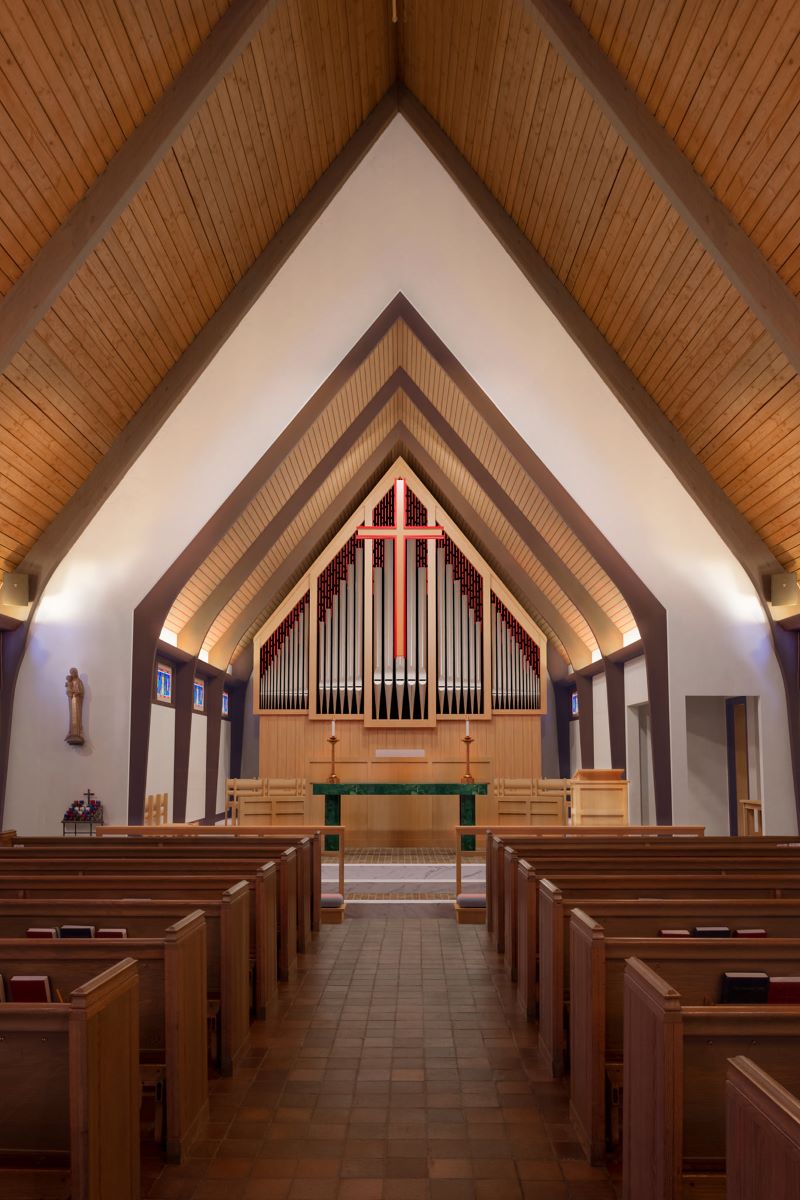

2022 - Sanctuary interior with organ from the left (Photograph from an archival source: Builder's website, submitted by Jim Stettner/Jim Stettner)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Movable Console
2 manuals
19 stops
32 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2022-05-21 - This entry represents the first installation of a new organ. Identified from the builder's website and faceboo pages. -Jim Stettner

Stoplist

Source: Stoplist taken from the builder's website May 20, 2022

Cape Elizabeth, Maine
St. Alban's Episcopal Church

Ortloff Organ Company, LLC (Opus 3, 2022)


   GREAT
16 Bourdon                (Ped)  17
8  Diapason
8  Harmonic Flute
8  Stopped Diapason        (Sw)  --
8  Salicional              (Sw)  --
8  Salicional Celeste      (Sw)  --
4  Octave
4  Flute
2  Fifteenth
IV Mixture  1 1/3
8  Trumpet
   Tremolo

   SWELL (Expressive)
16 Bourdon
8  Geigen
8  Stopped Diapason
8  Salicional
8  Salicional Celeste
4  Octave Geigen
4  Spire Flute
2  Fifteenth
2  Flute
IV Mixture 2 - draws 15th
8  Trumpet
8  Oboe
   Tremolo

Swell 16
Swell Unison Off
Swell 4

   PEDAL
16 Diapason                      32
16 Bourdon                       32
8  Octave                 (Ext)  12
8  Bourdon                (Ext)  12
8  Stopped Diapason        (Sw)  --
4  Octave                 (Ext)  12
16 Trombone            (Ext Gt)  12
8  Trumpet                 (Gt)  --
4  Oboe                    (Sw)  --

   INTER-DIVISIONAL COUPLERS
Swell to Pedal                  8,4
Great to Pedal                  8,4

Swell to Great               16,8,4

   FINGER PISTONS
Undocumented

   TOE STUDS
Undocumented

PEDAL MOVEMENTS
Swell Expression             (bal.)

Documents

Concert Poster Advertising poster with image and information -Jim Stettner
Pre-Dedication Recital Organ Blurb Description of organ, builder, and recitalists -Jim Stettner
