Jaeckel Organs Opus 51 (2021)

Images

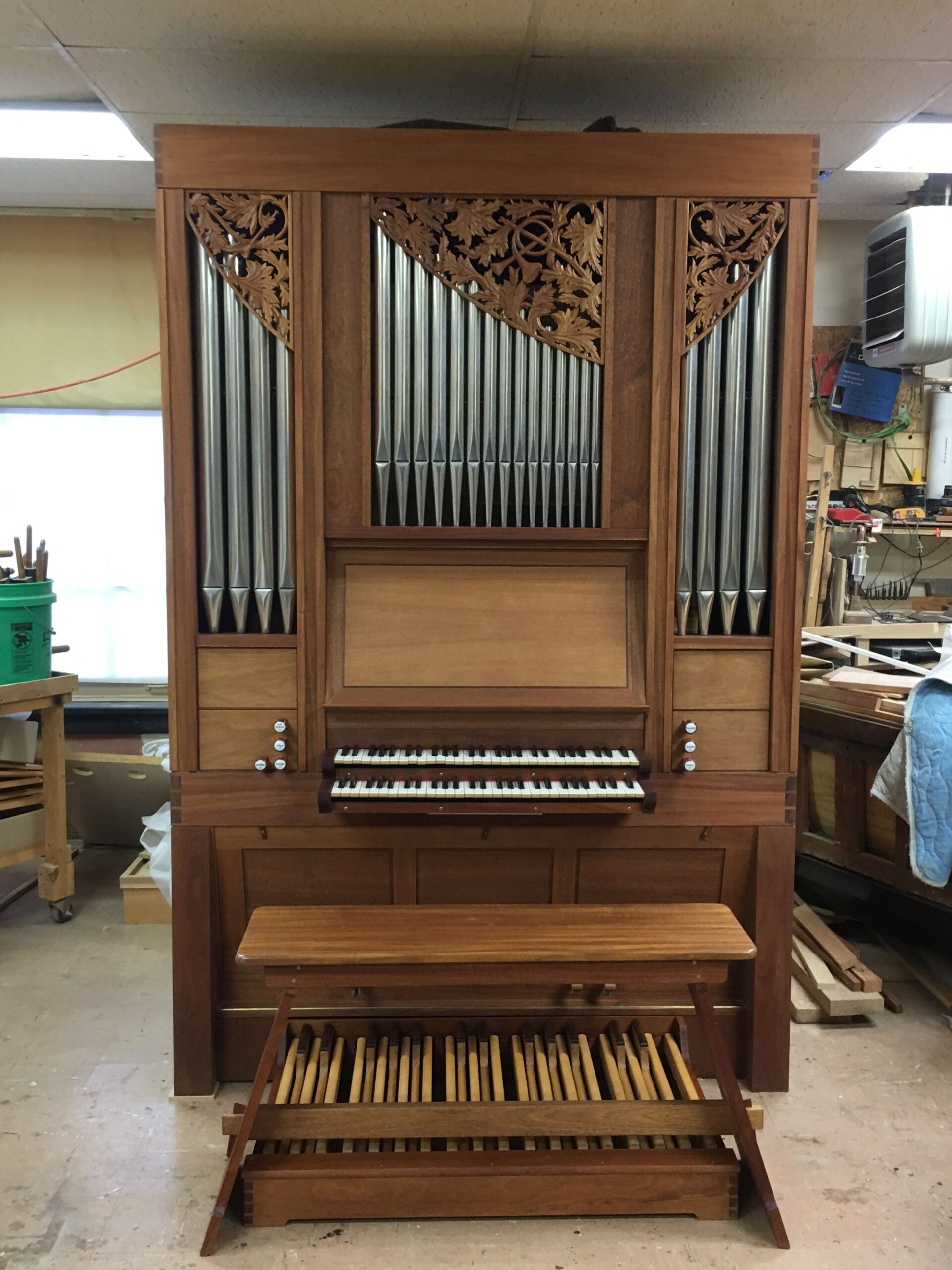

c. 2018-2021 - Organ with pipe shades scaled, in builder's shop (Photograph from an archival source: Builder website, submitted by Paul R. Marchesano/Paul R. Marchesano)

Consoles

Keydesk

• Organ type: Traditional Without Cover
• Console position: Keydesk Attached
• 2 manuals
• 7 stops
• 7 registers
• 3 divisions
• Key action Type: Mechanical (Details Unknown)
• Stop action Type: Mechanical
• Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
• Manual compass: 56 notes
• Pedal compass: 30 notes
• Pedal Type: Flat Straight
• Expression Type: No Enclosed Divisions
• Has coupler trundles

Notes

2022-06-04 - Organ apparently built earlier, sold to unidentified private buyer in 2021. -Paul R. Marchesano

Stoplist

Source: Builder website

Manual I (56 keys) Rohrflöte 8, Prinzipal 4, Octave 2 (from II-III Mixture), Mixture 2’ II-III

Manual II (56 keys) Gedackt 8 (19 pipes from Manual I Rohrflöte), Spitzflöte 4

Pedal (30 keys) Bourdon 16 (30 re-built pipes of wood)

Couplers I to Pedal, II to Pedal
