Orgues Létourneau Ltée Opus 136 (2022)

Market Square Presbyterian Church
20 S. Second Street
Harrisburg, PA

Images

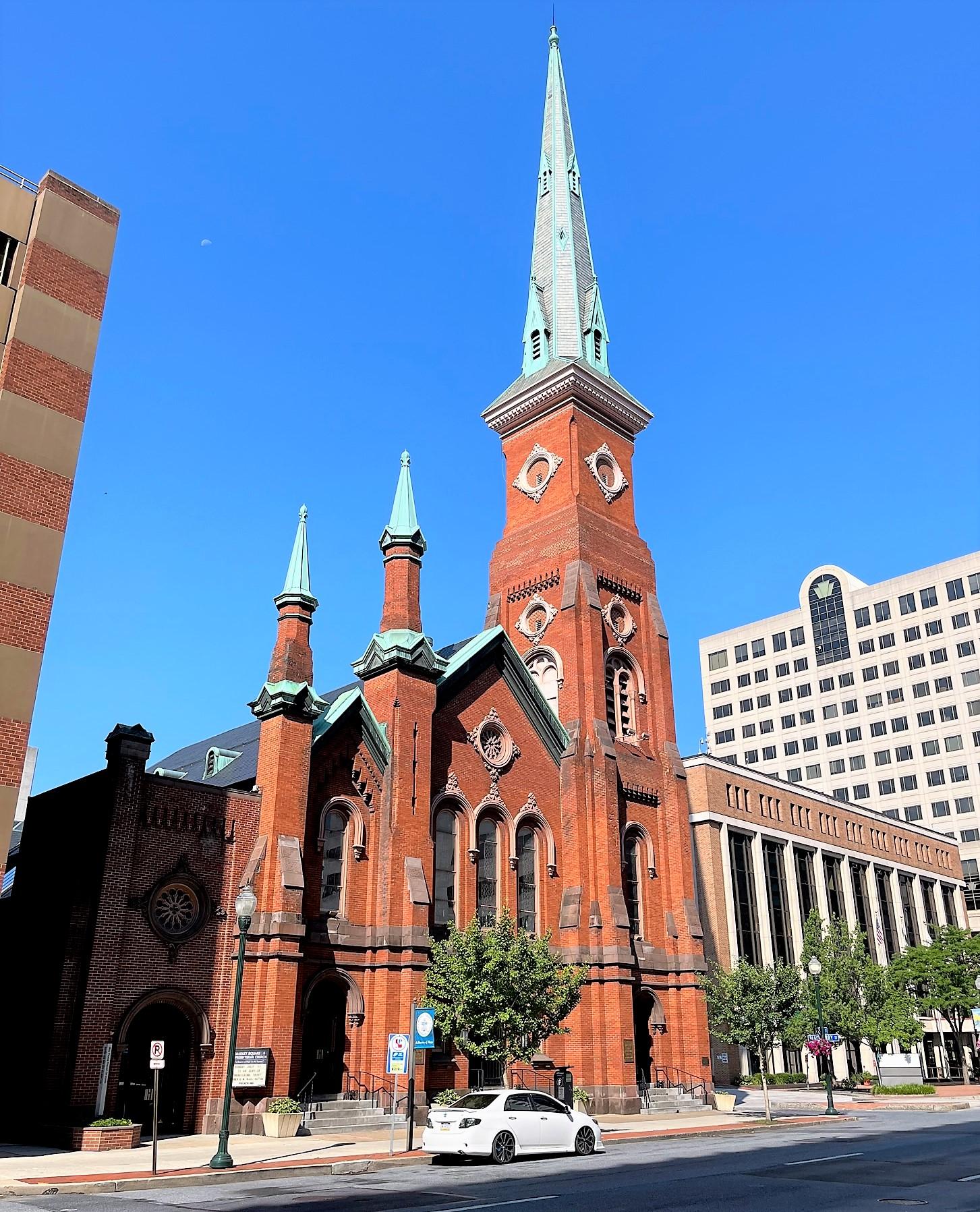

2022-07-20 - Church exterior (Photograph by Jeff Scofield/Jeff Scofield)

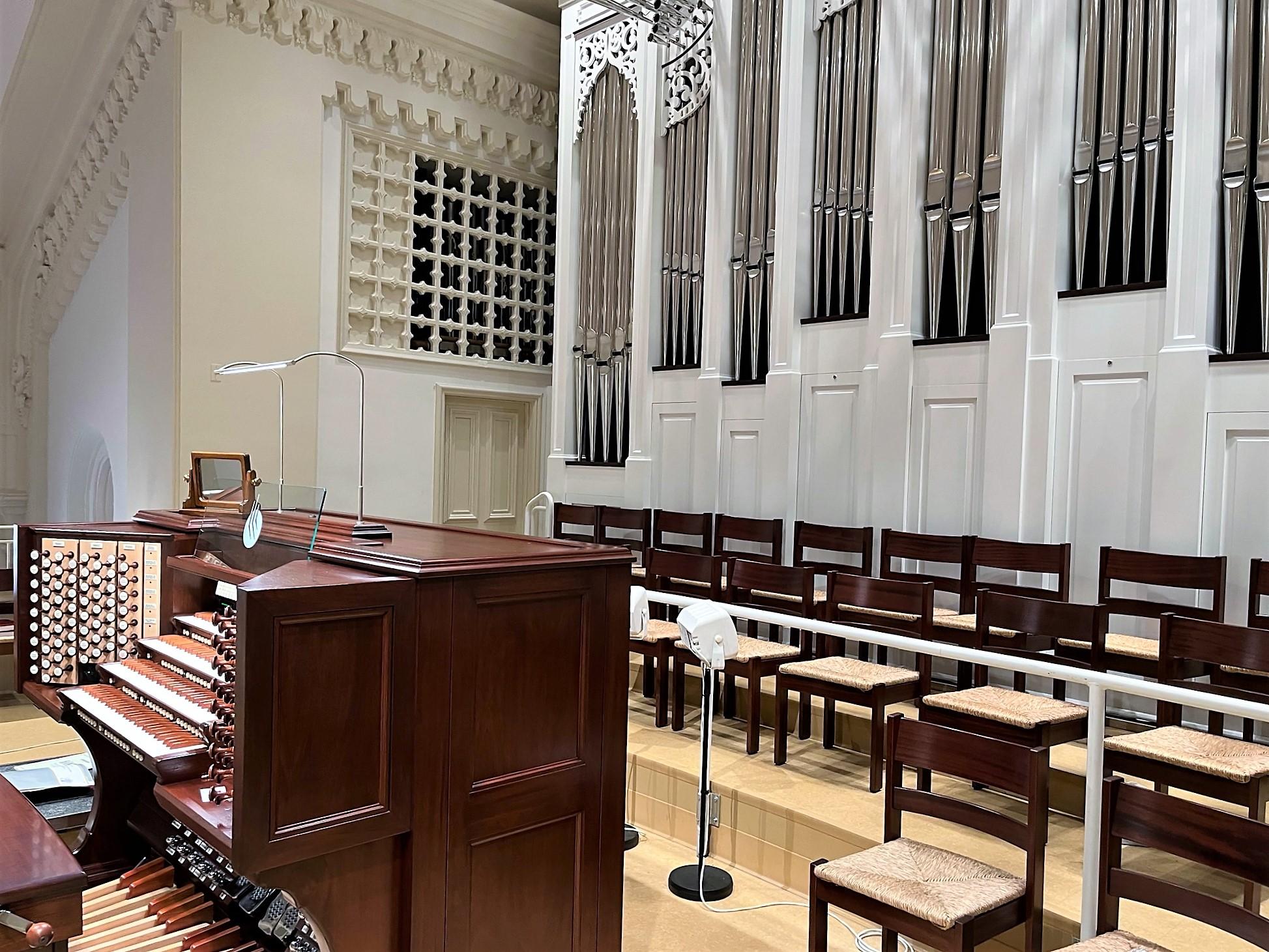

2022-07-20 - Choirloft and console (Photograph by Jeff Scofield/Jeff Scofield)

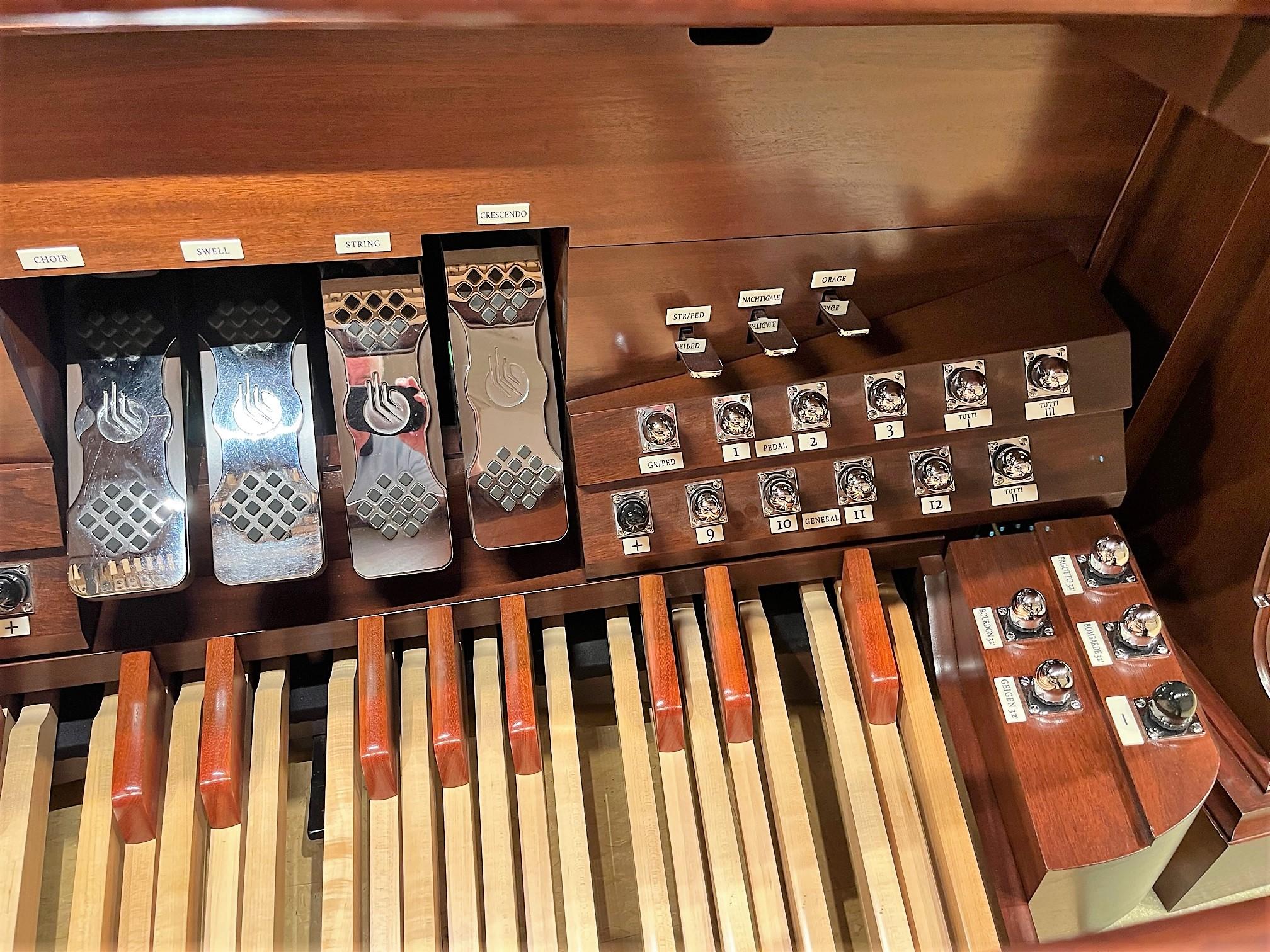

2022-07-20 - Right toe stud (Photograph by Jeff Scofield/Jeff Scofield)

2022-07-20 - Left toe stud terrace (Photograph by Jeff Scofield/Jeff Scofield)

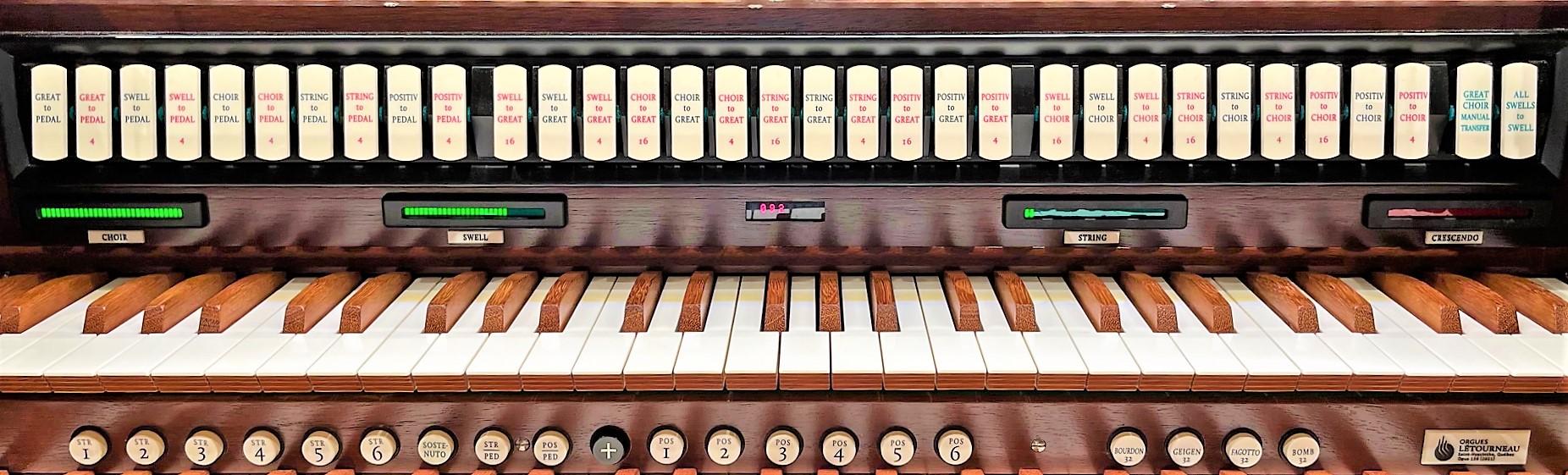

2022-07-20 - Couplers (Photograph by Jeff Scofield/Jeff Scofield)

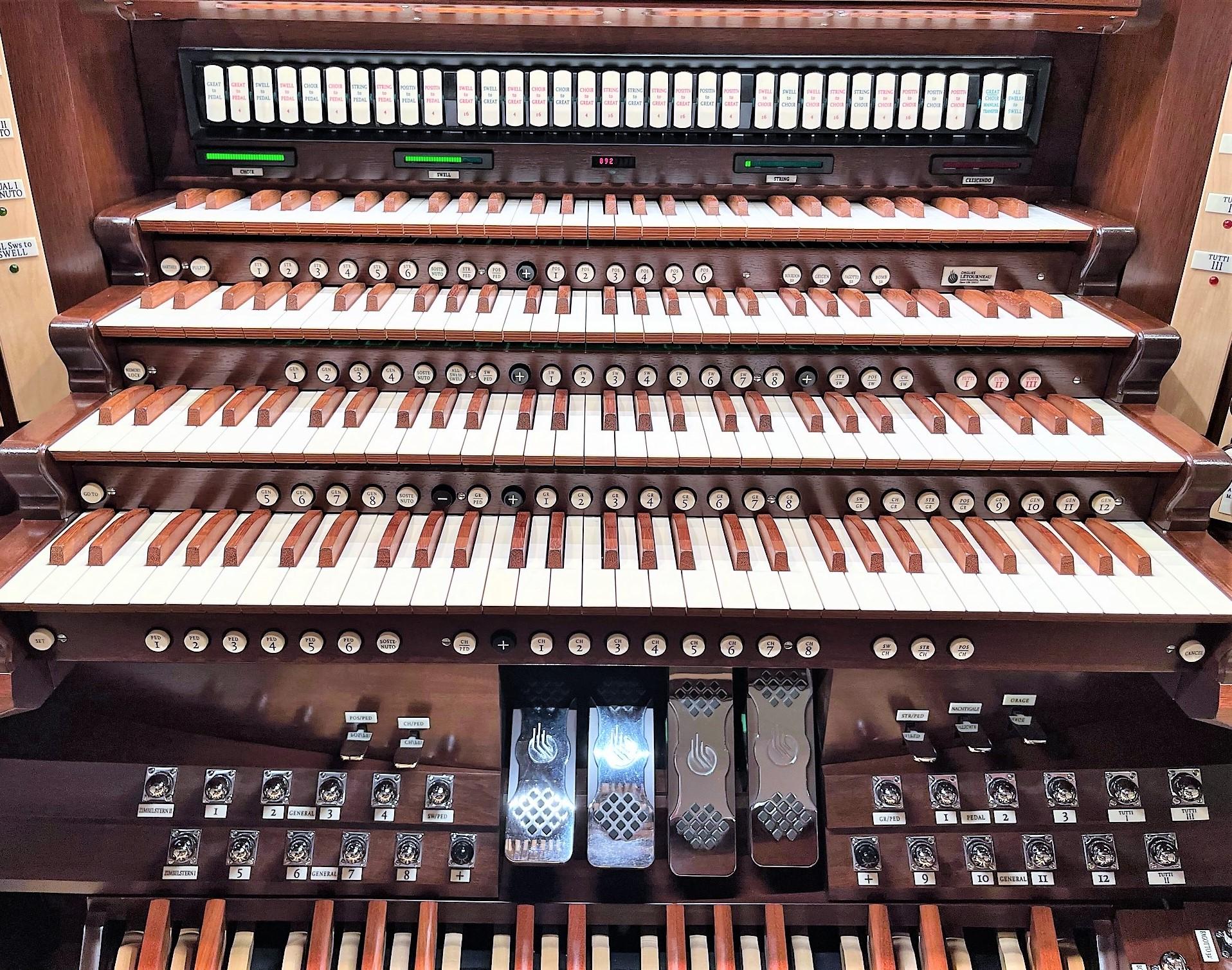

2022-07-20 - Console center (Photograph by Jeff Scofield/Jeff Scofield)

2022-07-20 - Right stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

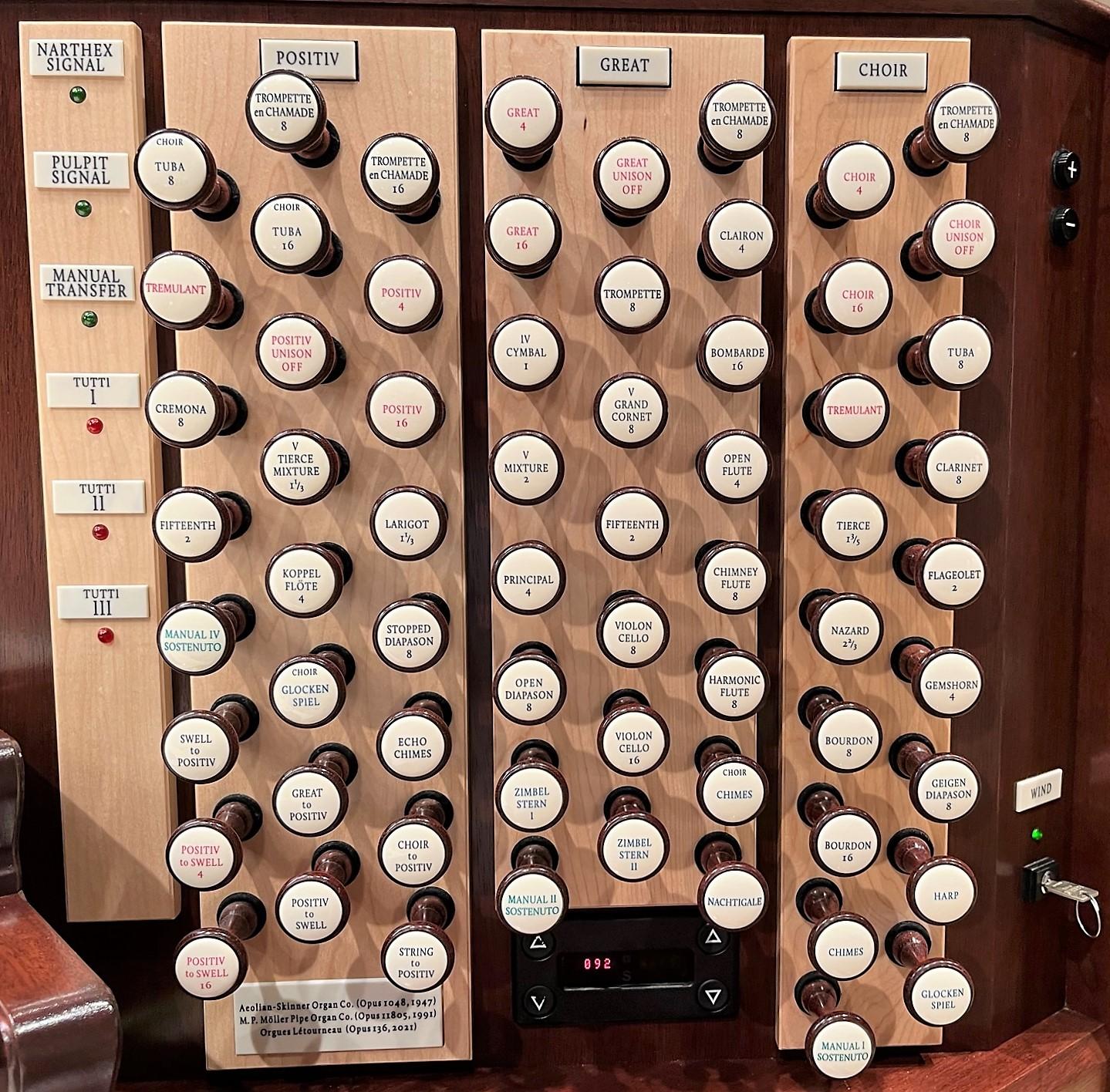

2022-07-20 - Left stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

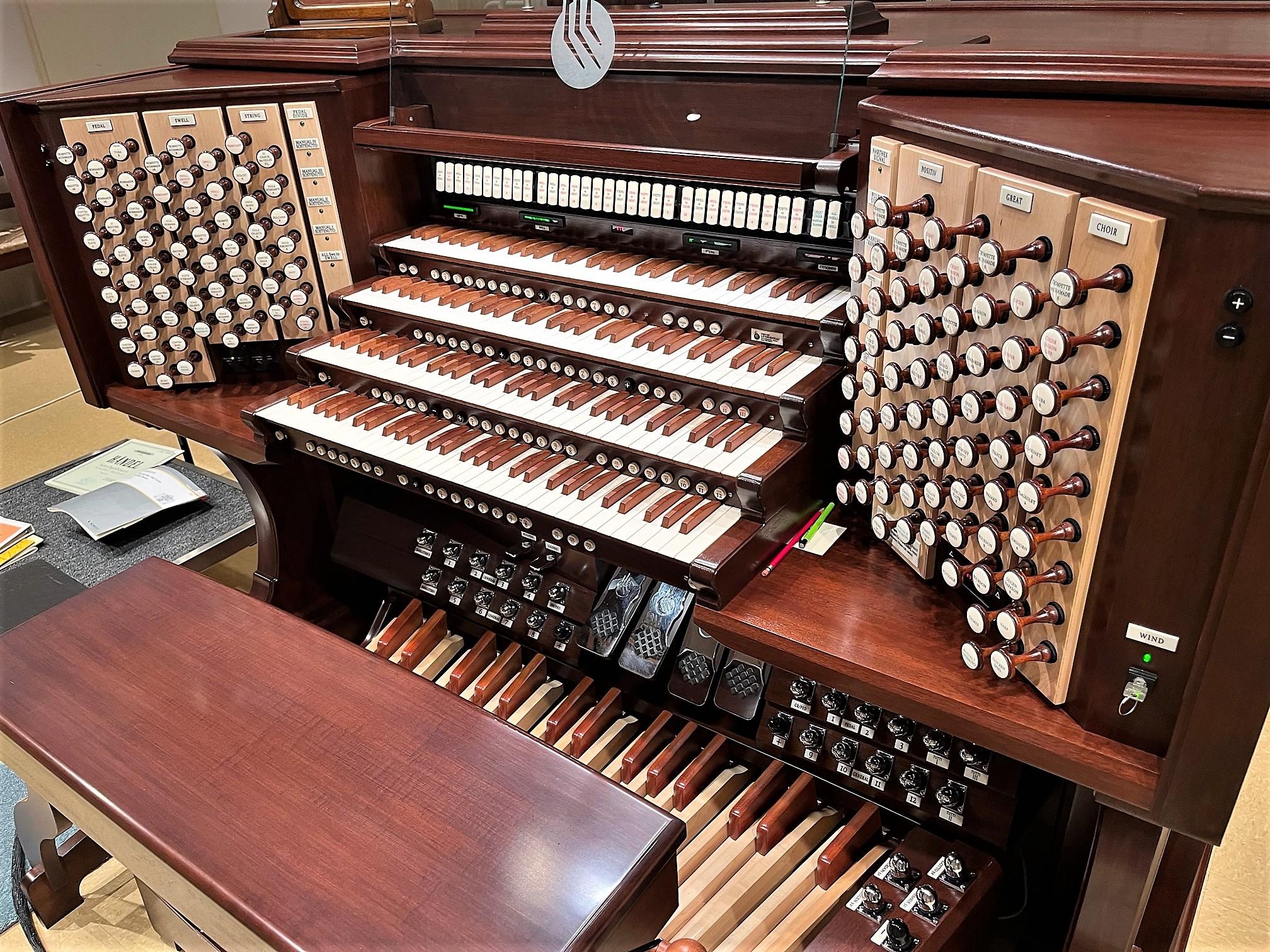

2022-07-20 - Console (Photograph by Jeff Scofield/Jeff Scofield)

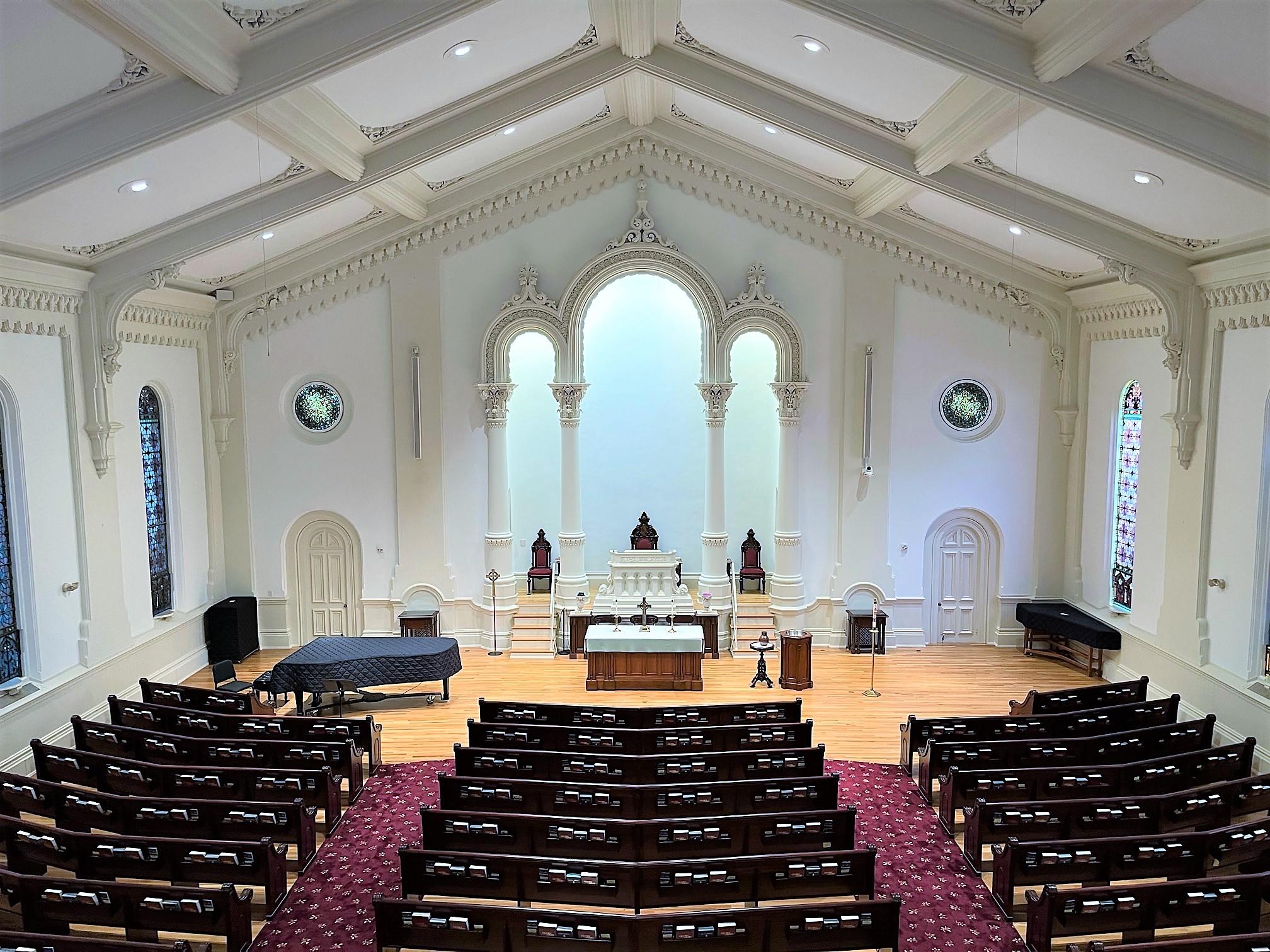

2022-07-20 - Church interior to the front (Photograph by Jeff Scofield/Jeff Scofield)

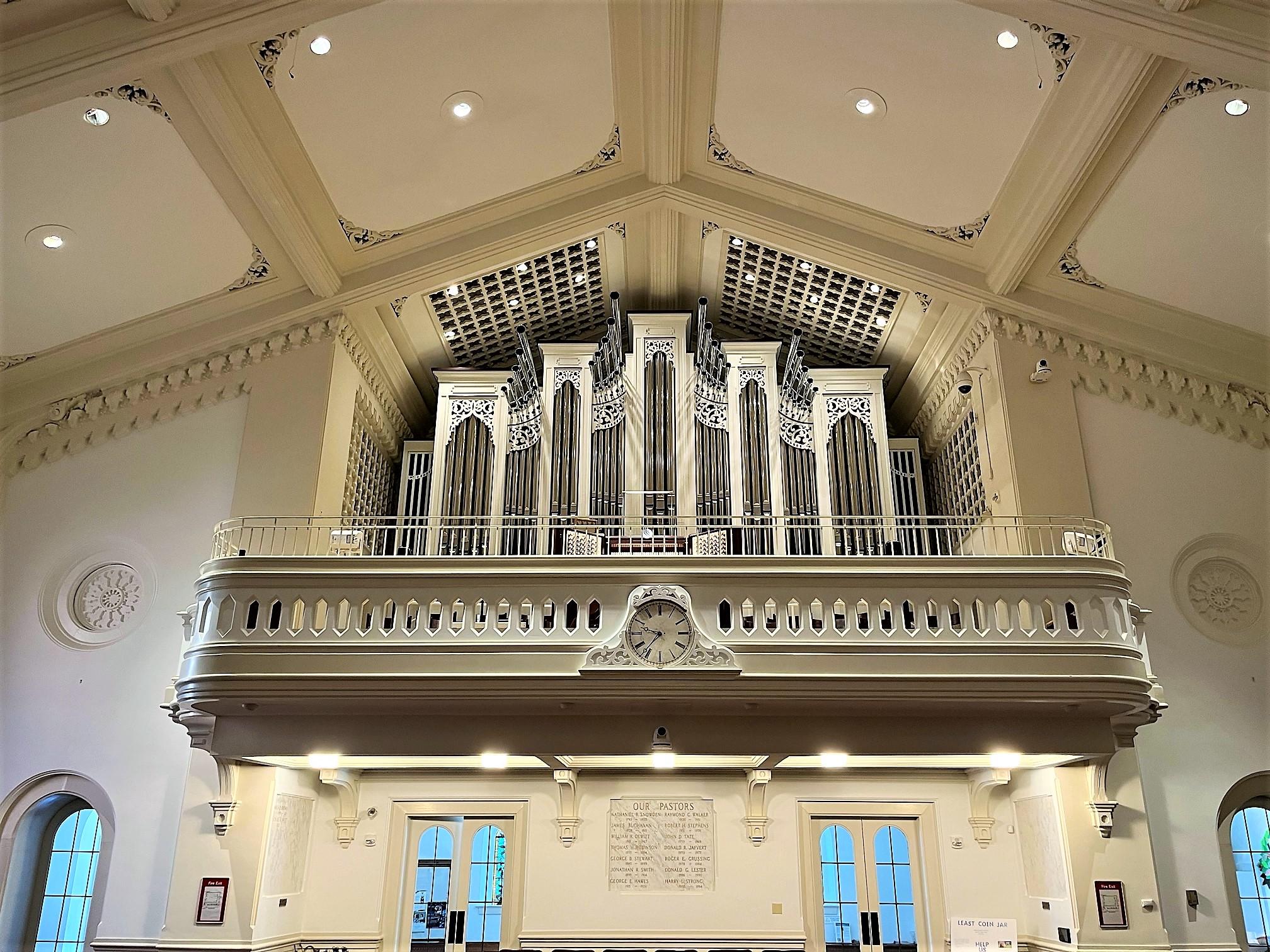

2022-07-20 - Gallery and rgan case (Photograph by Jeff Scofield/Jeff Scofield)

2022-07-20 - Church interior to rear and organ case (Photograph by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Center
4 manuals
60 stops
83 registers
6 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has sequencer
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2022-07-31 - Approximately 20% of the pipework is from the previous Aeolian-Skinner and Möller organs. -Jeff Scofield

Stoplist

Source: Taken from the dedication brochure

       Harrisburg, Pennsylvania
       Market Square Presbyterian Church

       Orgues Létourneau   Op. 136   2022   4/83
       ________________________________________________________

       GREAT  (II)                      SWELL  (III)
   16' Violoncello                   8' Open Diapason
    8' Open Diapason                 8' Flûte traversière
    8' Harmonic Flute                8' Viole de gambe
    8' Violoncello          12       8' Voix celeste
    8' Chimney Flute                 8' Lieblich Gedackt
    4' Principal                     4' Principal
    4' Open Flute                    4' Flûte octaviante
    2' Fifteenth                     2' Octavin
    V  Grand Cornet              III-V  Mixture   2'
    V  Mixture      2'              16' Fagotto
   IV  Cymbal       1'               8' Trumpet
   16' Double Trumpet                8' Hautboy
    8' Trumpet                       8' Vox Humana
    4' Clarion                       4' Clarion
       Sub                              Tremulant
       Unison Off                       Sub
       Super                            Unison Off
    8' Trompette-en-Chamade             Super
       Chimes               CH      16' Trompette-en-Chamade GT
       Zimbelstern I                 8' Trompette-en-Chamade GT
       Zimbelstern II                   Manual III Sostenuto
       Nachtigale                       Choir to Swell
       Manual II Sostenuto
                                        POSITIVE  (IV)
       STRING (floating)             8' Stopped Diapason
   16' Contre Viole                  4' Koppelflöte
    8' Viole d'orchestre             2' Fifteenth
    8' Viole celeste             1 1/3' Larigot
    8' Dulciana                      V  Tierce Mixture  1 1/3'
    8' Unda maris                    8' Cromona
    4' Viole octaviante                 Tremulant
    4' Dulet                            Sub
  III  Choeur des violes                Unison Off
       Tremulant                        Super
       Harp                 CH      16' Trompette-en-Chamade GT
       Echo Chimes          PO       8' Trompette-en-Chamade GT
   16' String to Swell              16' Tuba                 CH
    8' String to Swell               8' Tuba                 CH
    4' String to Swell                  Echo Chimes          dg
                                        Glockenspiel         CH
       PEDAL                            Manual IV Sostenuto
   32' Contra Geigen        dg          Great to Positiv
   32' Contra Bourdon       dg          Swell to Positiv
   16' Contrabass                       Choir to Positiv
   16' Subbass                          String to Positiv
   16' Violoncello          GT      16' Positiv to Swell
   16' Bourdon              SW       8' Positiv to Swell
   16' Viole d'orchestre    ST       4' Positiv to Swell
    8' Principal
    8' Spitzflöte                       CHOIR  (I)
    8' Violoncello          GT      16' Bourdon
    8' Bourdon              CH       8' Geigen Diapason
5 1/3' Quint                         8' Bourdon              12
    4' Choral Bass                   4' Gemshorn
    4' Spitzflöte           12   2 2/3' Nazard
    2' Open Flute                    2' Flageolet
   IV  Mixture   2 2/3'          1 3/5' Tierce
   32' Contra Bombarde      dg       8' Clarinet
   32' Contra Fagotto    SW 12          Tremulant
   16' Bombarde                      8' Tuba
   16' Fagotto              SW          Sub
    8' Bombarde             12          Unison Off
    4' Bombarde             12          Super
    8' Tuba                 CH       8' Trompette-en-Chamade GT
    8' Trompette-en-Chamade GT          Chimes               dg
       Chimes               CH          Harp                 dg
       Echo Chimes          PO          Glockenspiel         dg
       Pedal Divide                     Manual I Sostenuto

       Great - center case
       Swell - enclosed in south chamber
       Choir - enclosed in upper north chamber
       Positive - above north chamber
       String - floating, enclosed in lower north chamber
       Pedal - in case and north chamber

             [Received from Jeff Scofield July 31, 2022]
