First United Methodist Church
15 East 1st Avenue
Mesa, AZ
Images

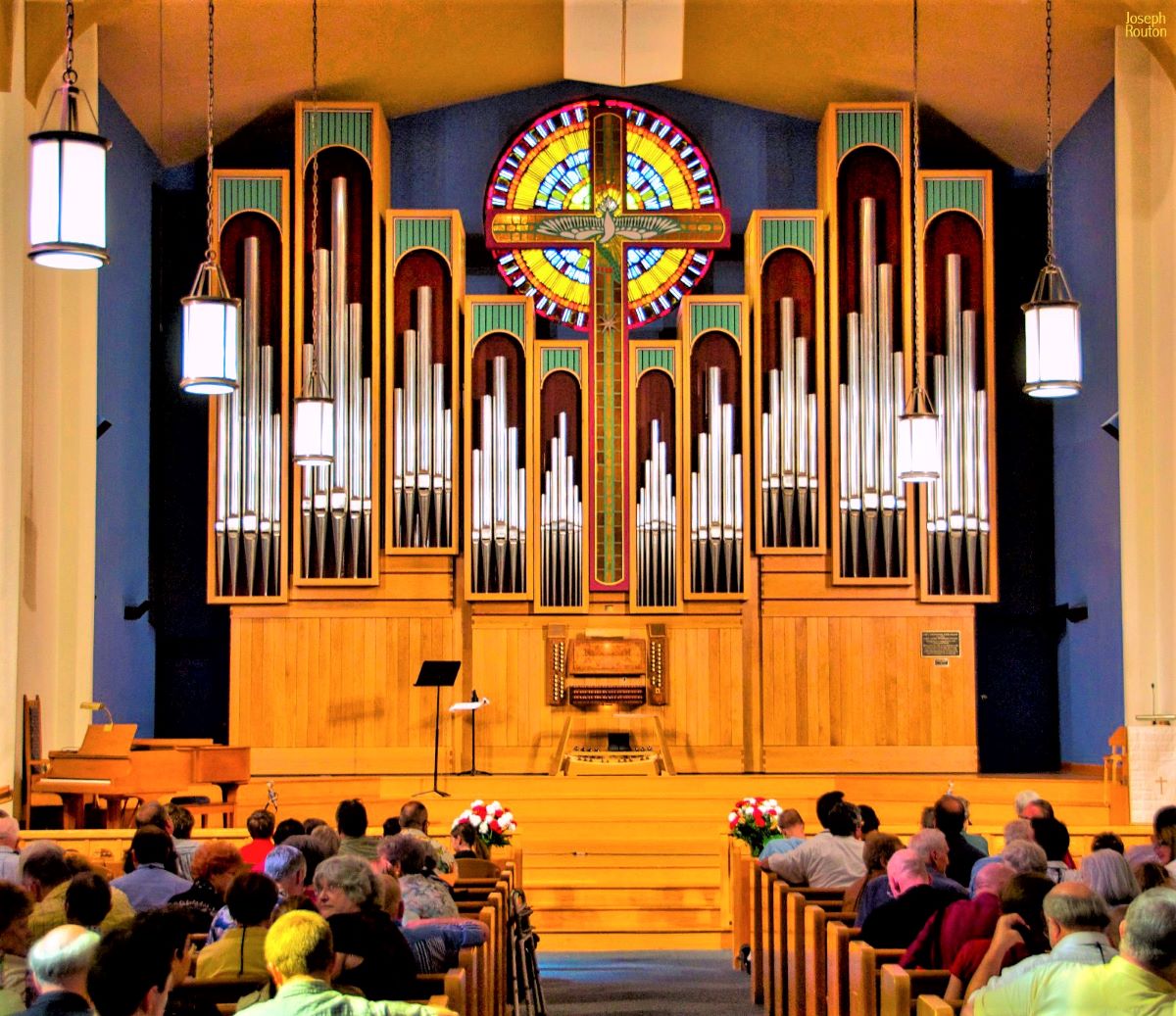

2009-07-02 - Organ case (Photograph by Joseph Routon, submitted by Jeff Scofield/Jeff Scofield)

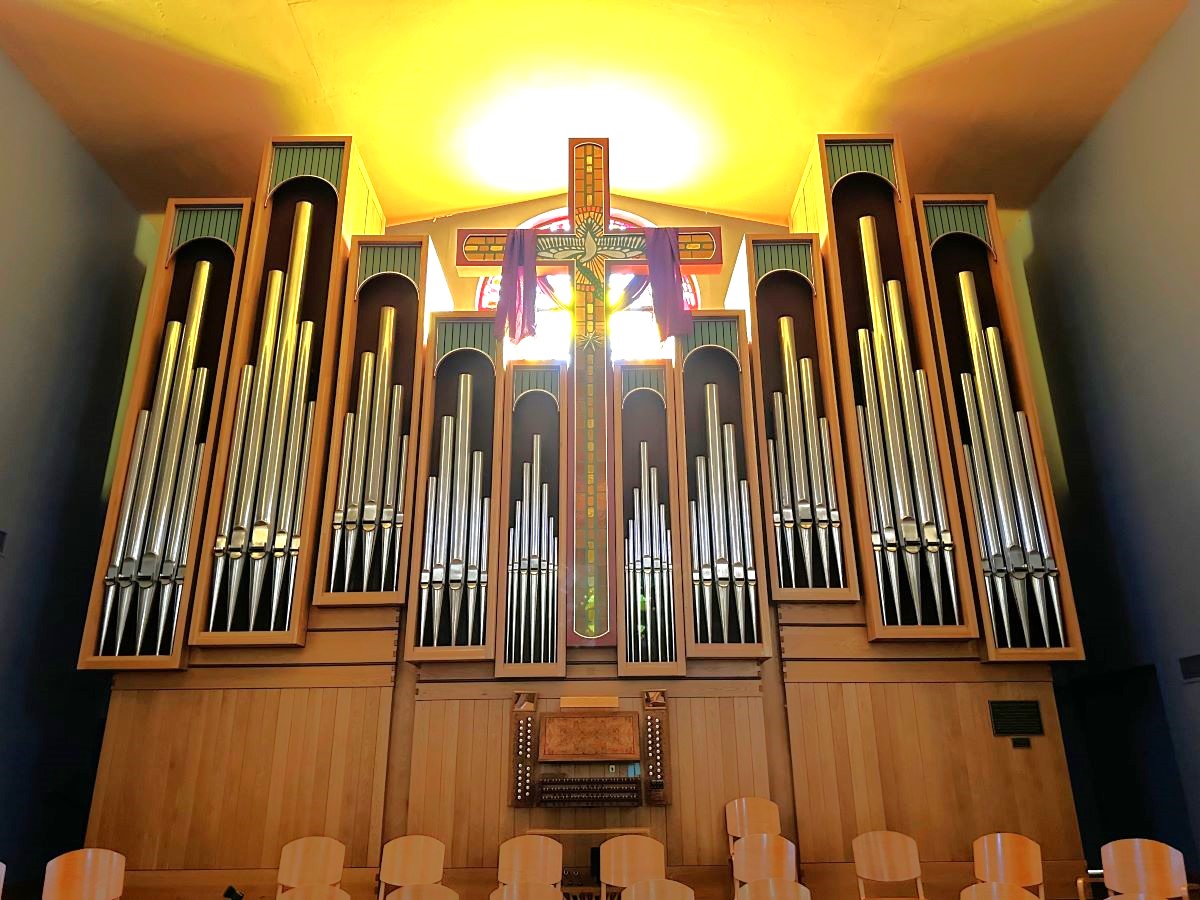

2025-03-11 - Facade (Kenneth Ray/Kenneth Ray)

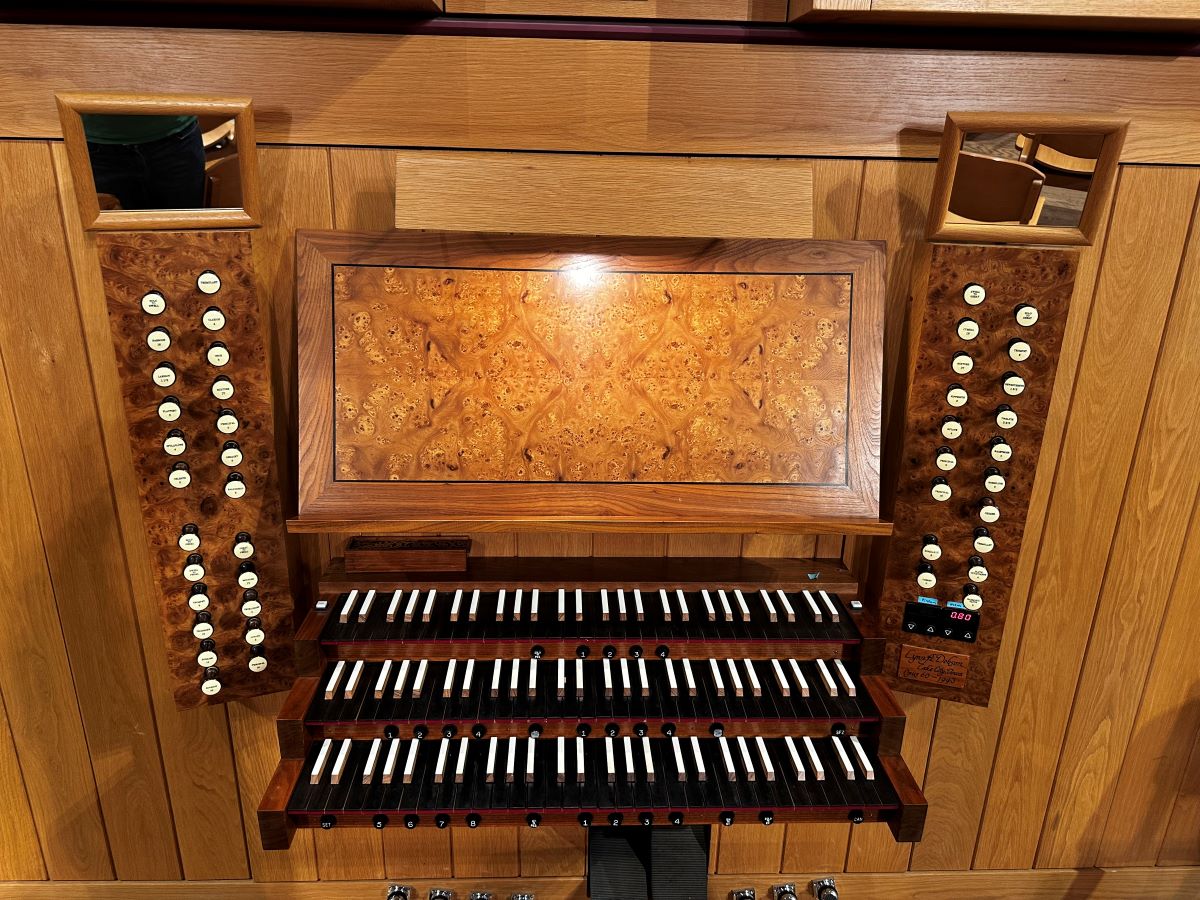

2025-03-11 - Keydesk (Kenneth Ray/Kenneth Ray)

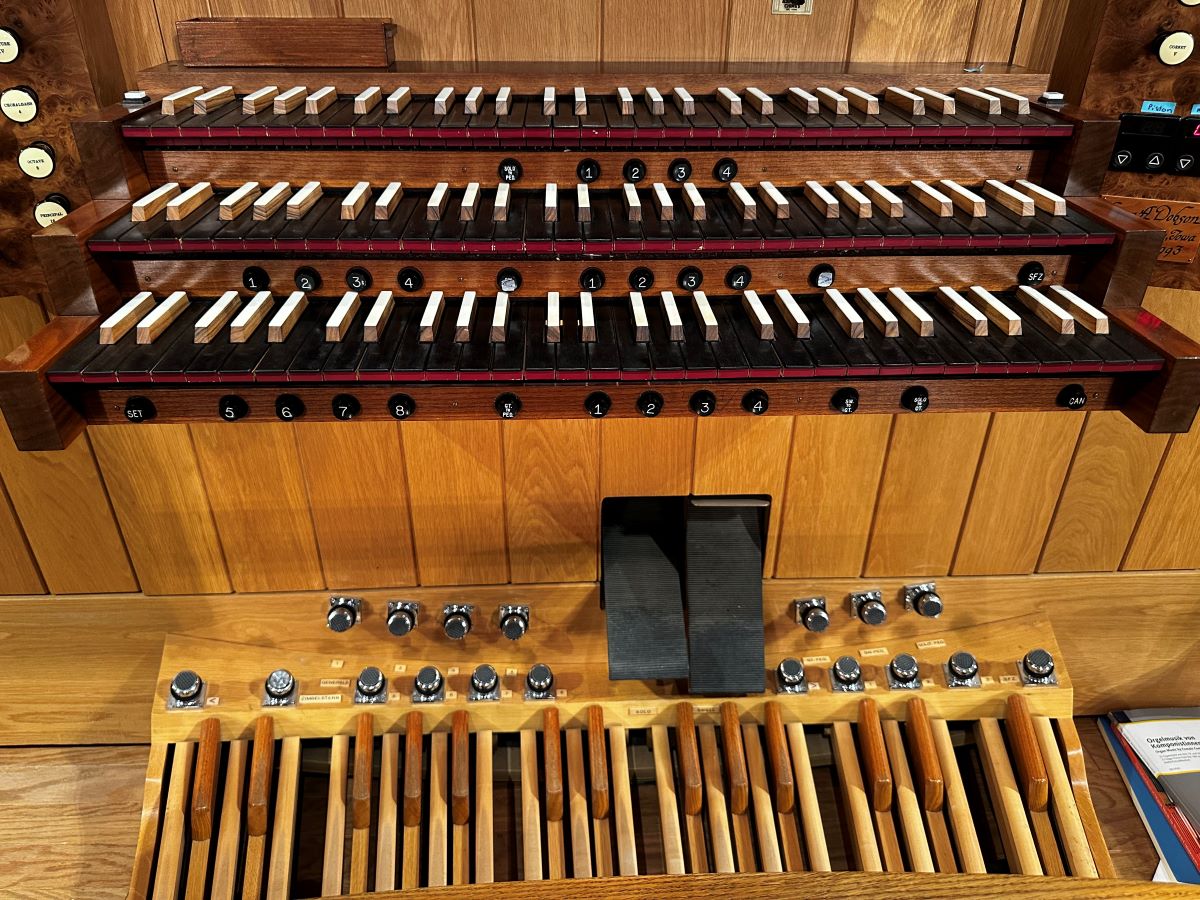

2025-03-11 - Manuals and Pedals (Kenneth Ray/Kenneth Ray)
2025-03-11 - Right stopjamb (Great and Solo) (Kenneth Ray/Kenneth Ray)
2025-03-11 - Left stopjamb (Swell and Pedal) (Kenneth Ray/Kenneth Ray)
2025-03-11 - Reservoir and pedal trackers (Kenneth Ray/Kenneth Ray)
2025-03-11 - Combination action (Kenneth Ray/Kenneth Ray)

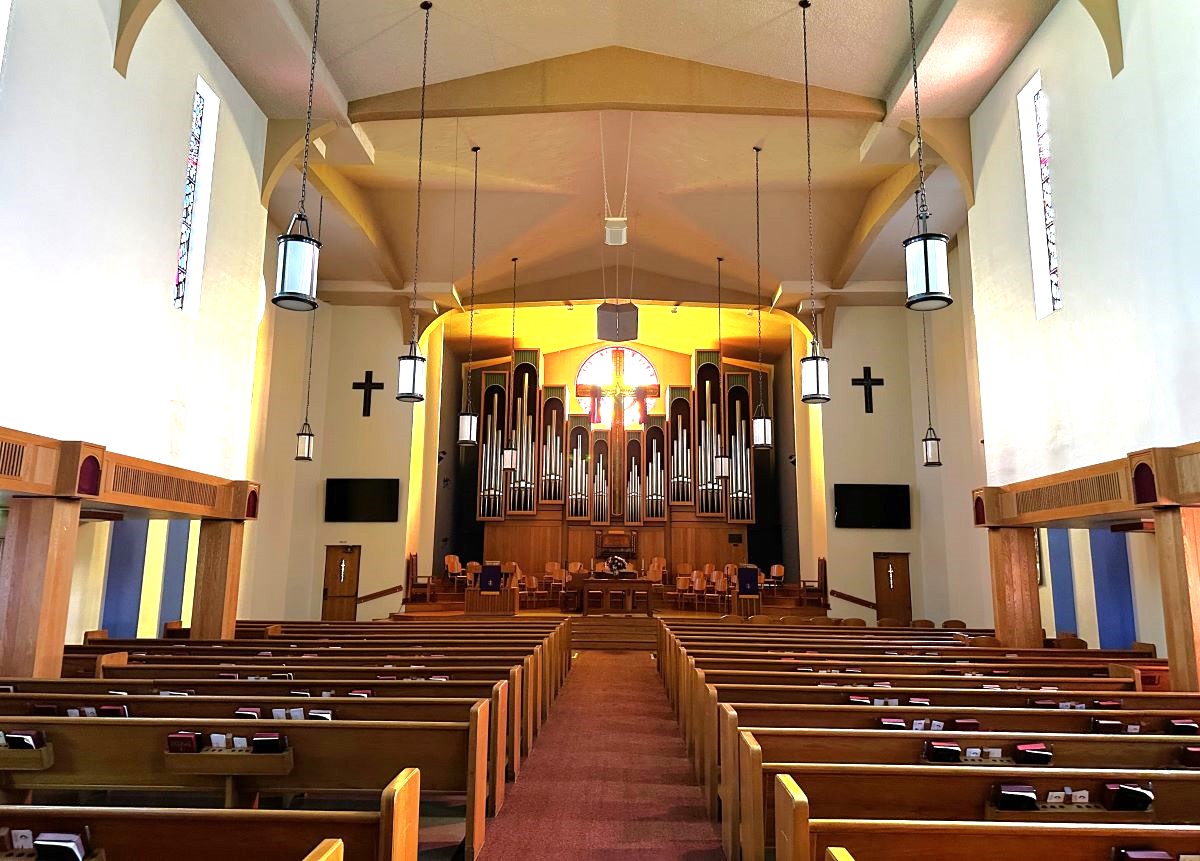

2025-03-11 - Organ at front of sanctuary (Kenneth Ray/Kenneth Ray)
2025-03-11 - Church exterior (Kenneth Ray/Kenneth Ray)

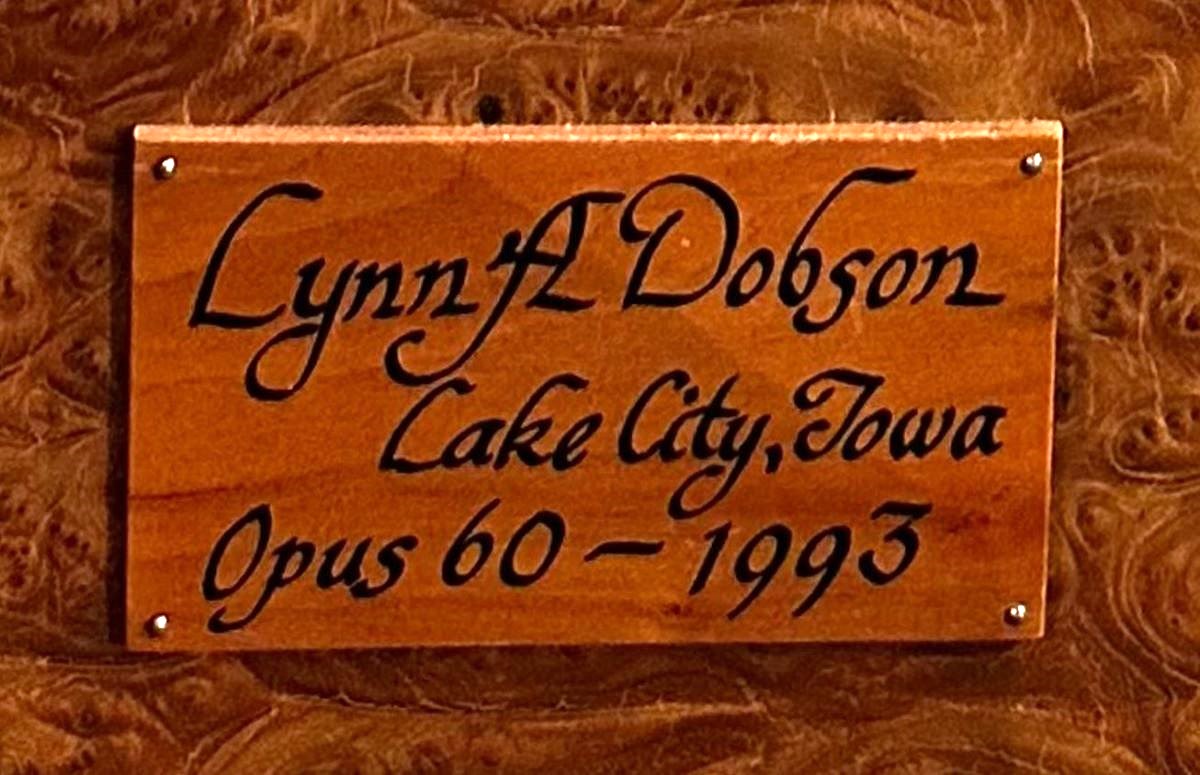

2025-03-11 - Builder's nameplate (Kenneth Ray/Jim Stettner)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Keydesk Attached
- 3 manuals
- 33 stops
- 35 registers
- 4 divisions
- Key action Type: Mechanical (Details Unknown)
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 58 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
- Combination action: Computerized/Digital
- Has sequencer
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2005-03-03 - Incorporates some stops from the previous organ. -Database Manager
2005-04-19 - Updated through information from John Panning, Dobson Pipe Organ Builders. -Database Manager
2005-04-19 - Some eletric action offset chests. Updated through information from John Panning, Dobson Pipe Organ Builders. -Database Manager
2011-02-06 - Updated through online information from Connor Annable. -Database Manager
Stoplist
Has finger pistons, has toe studs, Solo Expression (bal.), Swell Expression (bal.) Stops marked with an asterisk (8) indicate pipework retained from the church's previous instrument. See 'Documents' for full stoplist and registrational aids. Source: Receved from Steven E. Lawson 2017-05-02
Solo Harmonic Flute 8, Flute Octaviante (*) 4, Cornet [8] (tc) (*) V, Bombarde 8
Pedal Bourdon 32 (1-12 @ 10⅔ pitch), Principal 16, Subbass (*) 16, Octave 8, Choralbass 4, Mixture [2⅔] IV, Trombone 16, Trumpet 8
Great Principal 16, Principal 8, Octave 4, Twelfth 2⅔, Nachthorn 4, Rohrflöte 8, Fifteenth 2, Seventeenth 1 3/5, Mixture [1⅓] IV, Cymbal [⅔] IV, Trumpet (*) 8
Swell Principal 4, Salicional 8, Gedackt (*) 8, Celeste (tc) 8, Spillflöte (*) 4, Flautino 2, Larigot 1 1/3, Mixture [2] IV, Bassoon 16, Oboe 8, Clarion 4, Tremulant (Affects Swell & Great)
Solo to Pedal 8 (Solo to Pedal), Swell to Pedal 8 (Swell to Pedal), Great to Pedal 8 (Great to Pedal), Solo to Great 8 (Solo to Great), Swell to Great 8 (Swell to Great), Solo to Swell 8 (Solo to Swell)
