Canadian Reformed Church of Smithville
330 Station Street
Smithville, ON, CA
Images

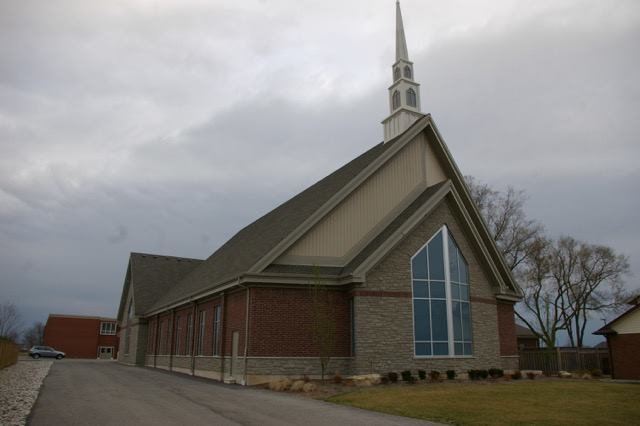

2018 - Church exterior (Photograph by Smithville CRC Facebook Page, submitted by Andrew Henderson/Andrew Henderson)

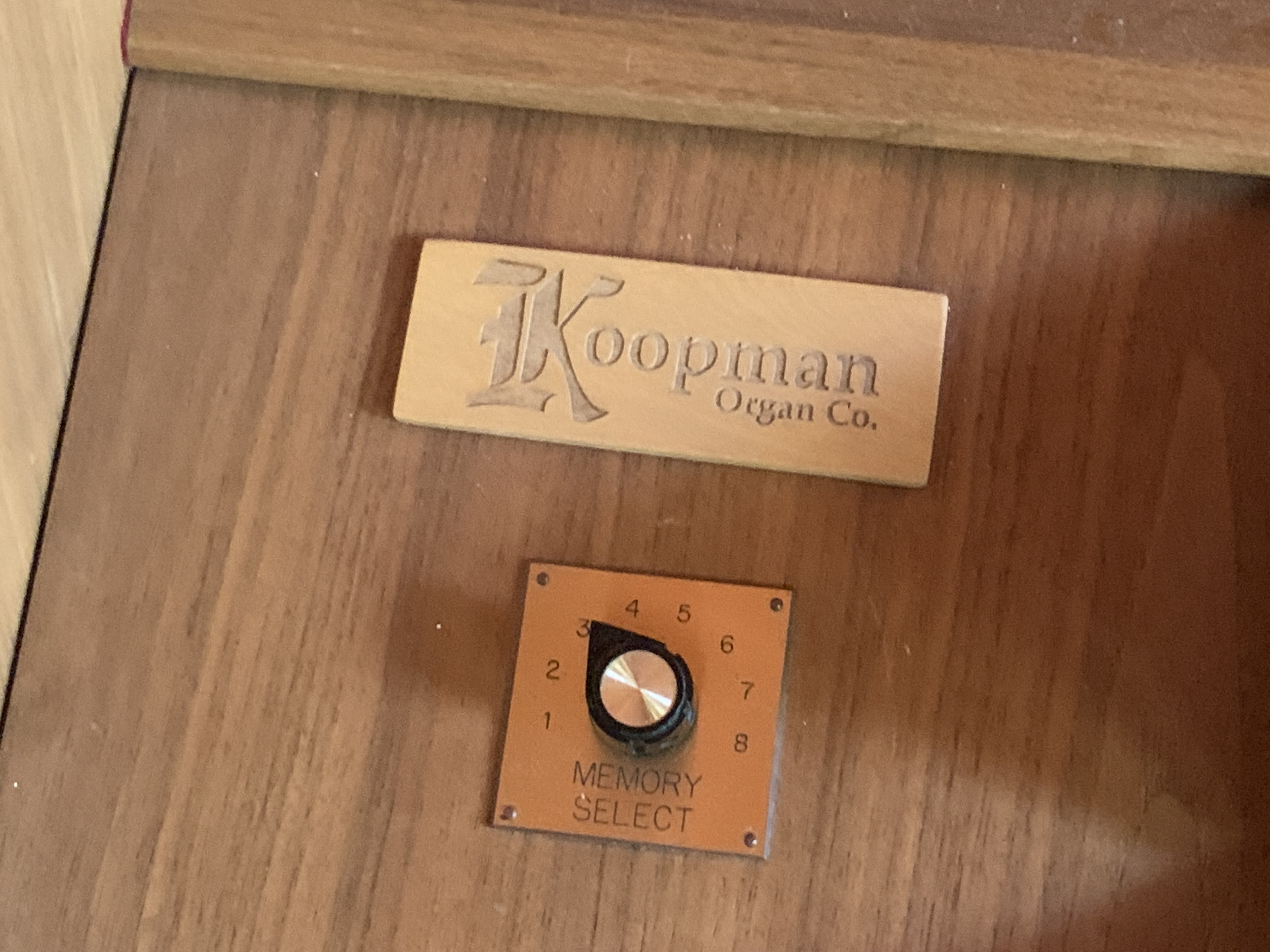

2022-09-01 - Builder's nameplate (Photograph by Andrew Henderson/Andrew Henderson)
2022-09-01 - Organ case and chancel (Photograph by Andrew Henderson/Andrew Henderson)

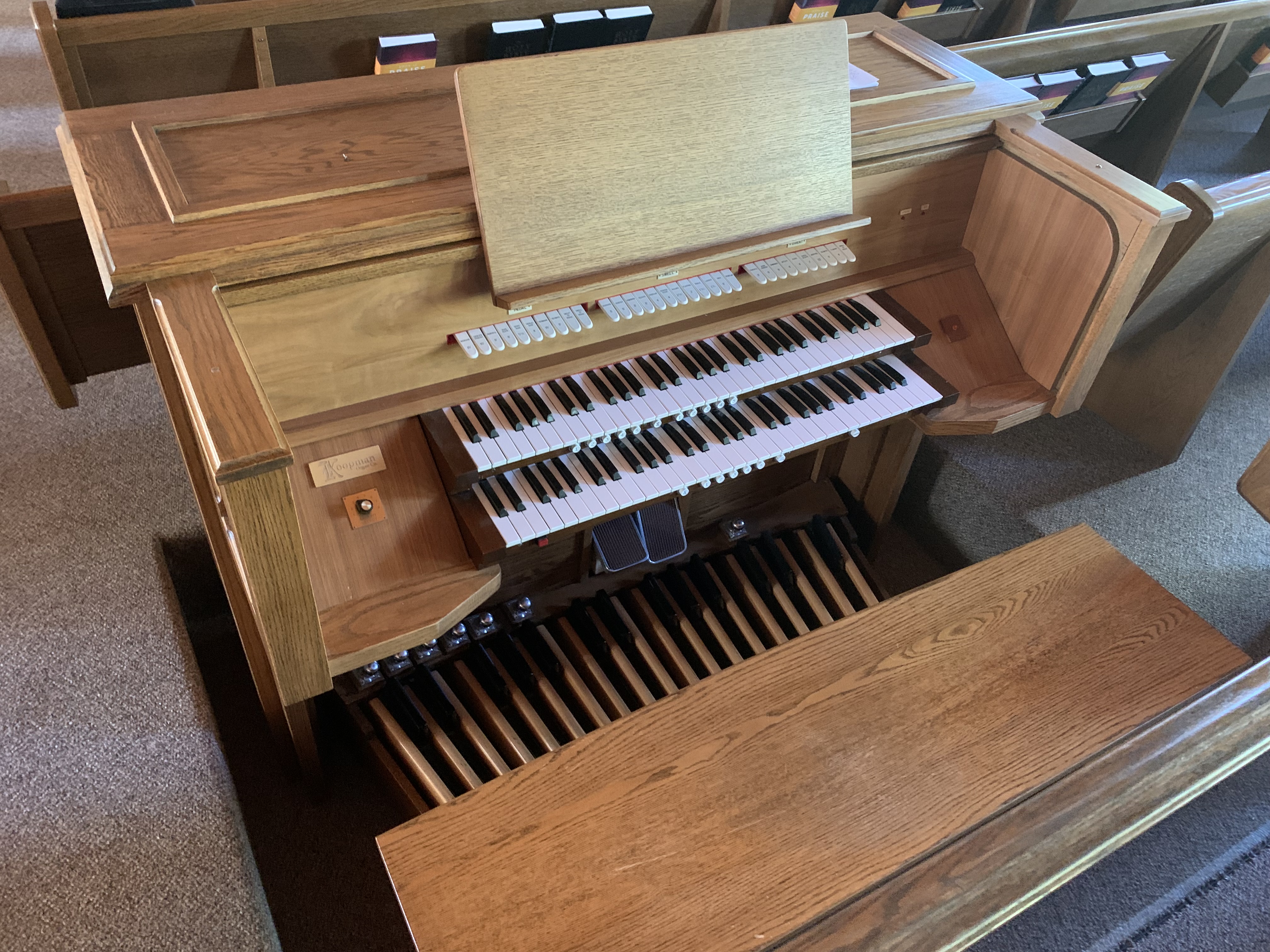

2022-09-01 - Console (Photograph by Andrew Henderson/Andrew Henderson)

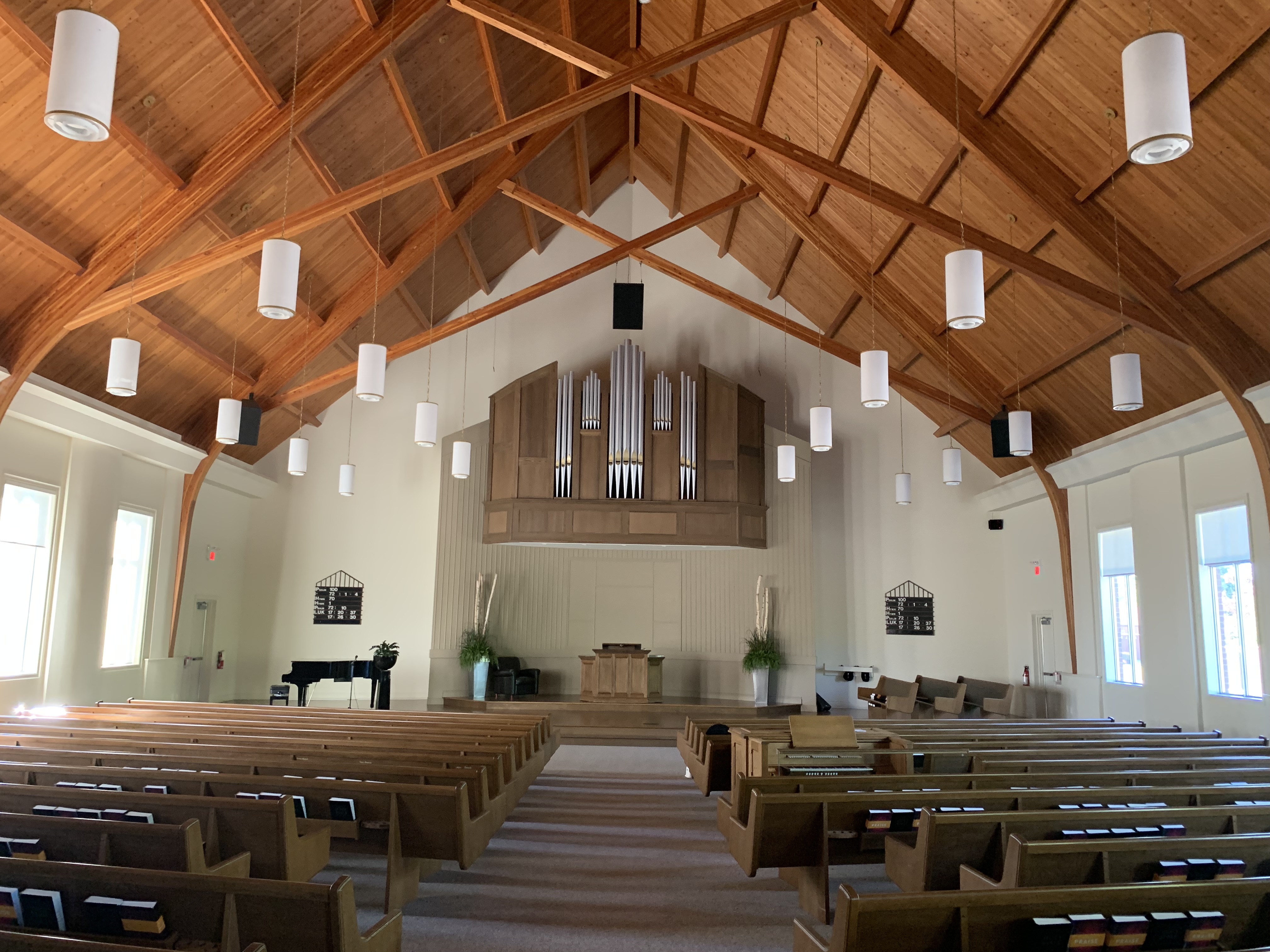

2022-09-01 - Nave, chancel and organ case (Photograph by Andrew Henderson/Andrew Henderson)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Center
- 2 manuals
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Tilting/Rocking Tablets Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Stoplist
Source: Taken from the console
Great Principal 8, Rohr Gedeckt 8, Gemshorn 8 (Swell), Octave 4, Flute 4 (ext), Super Octave 2 (ext), Mixture IV (1 1/3), Trumpet 8, Clarion 4 (ext), Swell to Great
Swell (Enclosed) Diapason 8, Gedeckt 8, Gemshorn 8, Celeste 8 (TC), Prestant 4 (ext), Stopped Flute 4 (ext), Nazard 2 2/3, Flautino 2 (ext Gemshorn), Tierce 1 3/5, Larigot 1 1/3 (ext Nazard), Oboe 8, Tremulant
Pedal Bourdon 16 (ext Gt Rohr Gedeckt), Lieblich Gedeckt 16 (1-12 Bourdon lwp, 13-32 Swell), Principal 8 (Great), Bass Flute 8 (Great), Choral Bass 4 (Great), Trombone 16 (ext Great), Trumpet 8 (Great), Great to Pedal, Swell to Pedal
