St. Hyacinth Catholic Church / SS. Mary and Hyacinth Catholic Church: Sanctuary
819 3rd Avenue
Antigo, WI
Images
2022-09-22 - Great/Pedal chamber pipework (Photograph by Bryan Higgins-Moe/Bryan Higgins-Moe)
2022-09-22 - Great/Pedal chamber pipework (Photograph by Bryan Higgins-Moe/Bryan Higgins-Moe)
2022-09-22 - Great/Pedal chamber pipework (Photograph by Bryan Higgins-Moe/Bryan Higgins-Moe)

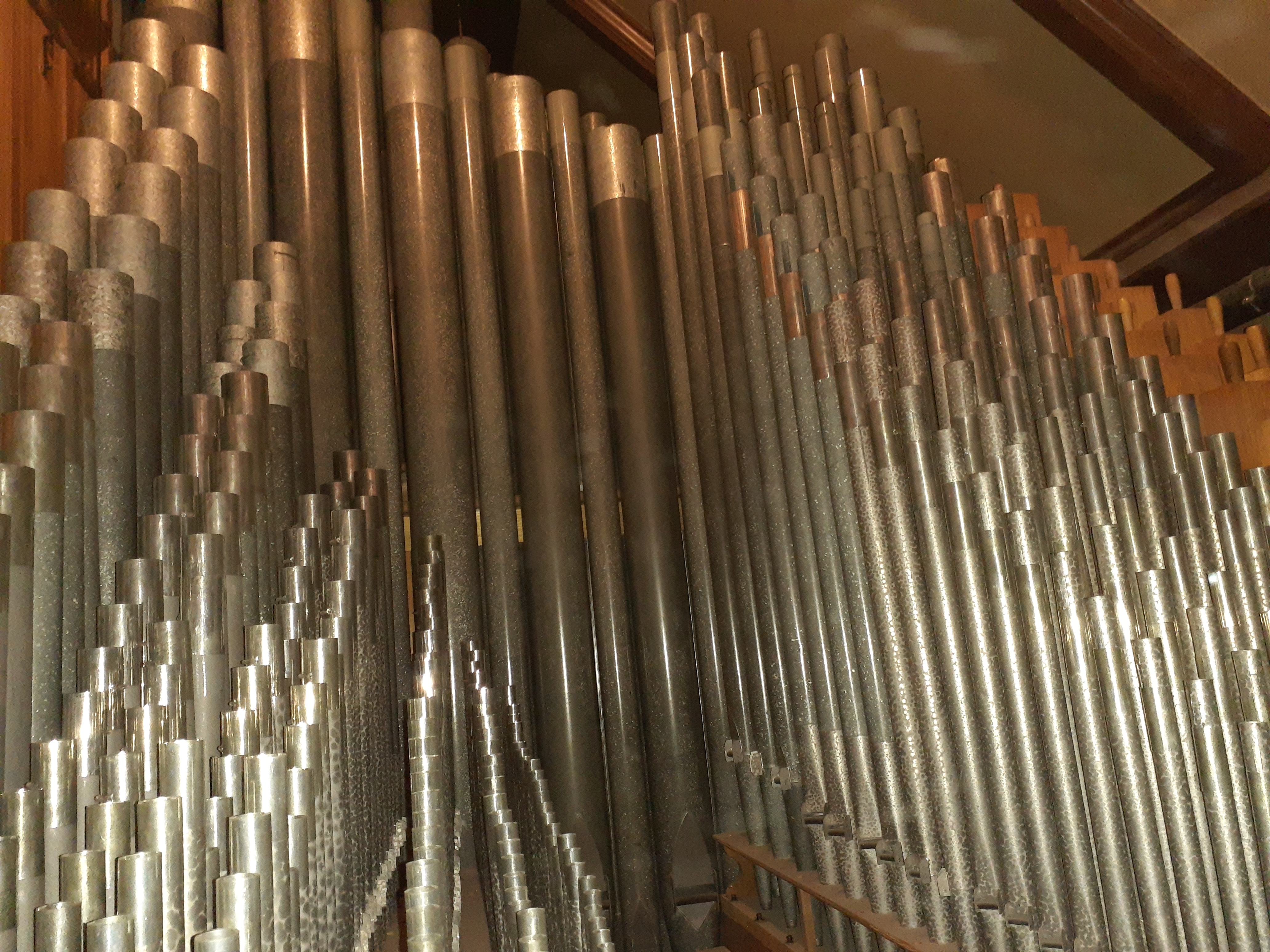

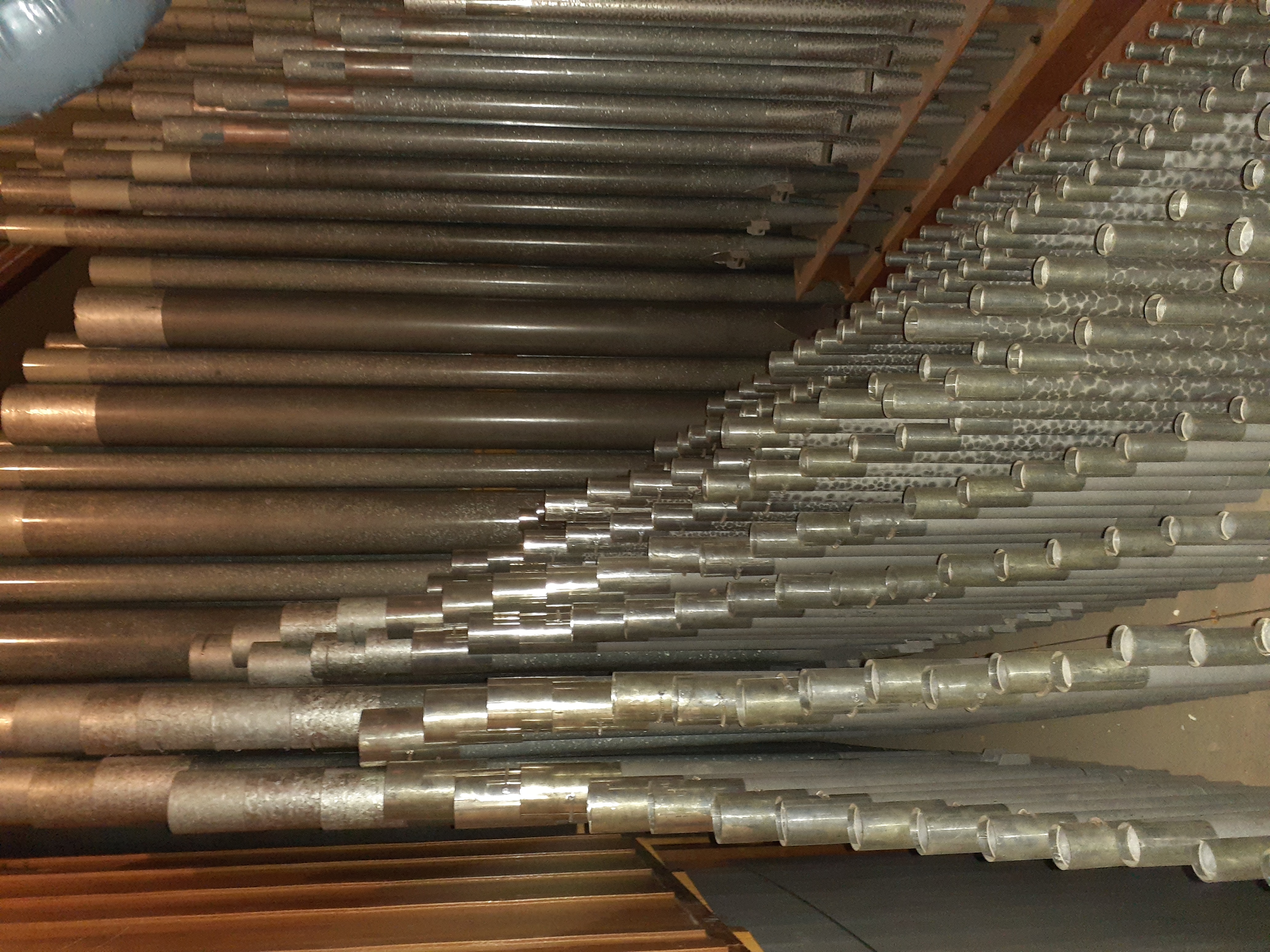

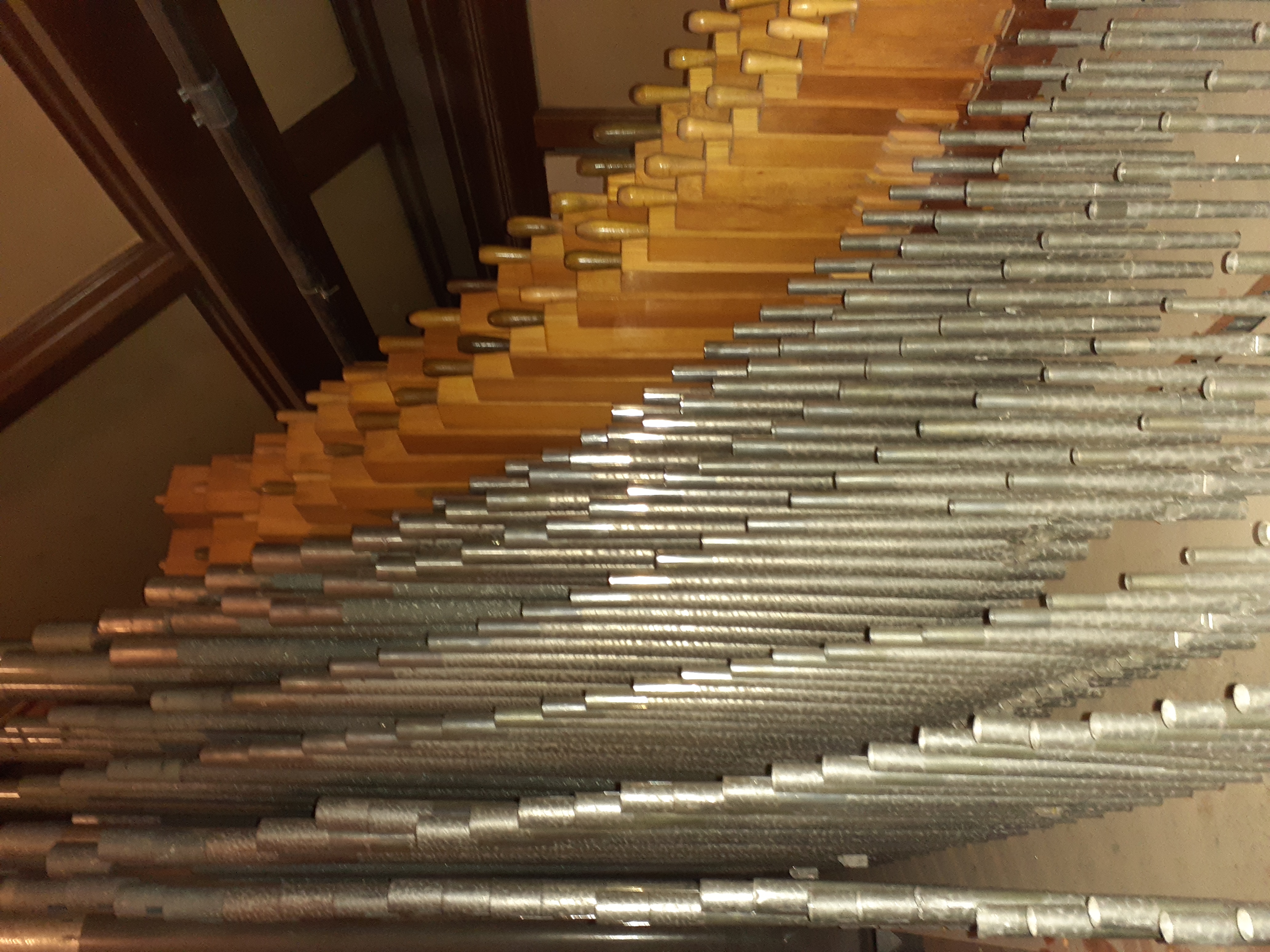

2022-09-22 - Swell/Pedal chamber pipework (Photograph by Bryan Higgins-Moe/Bryan Higgins-Moe)
2022-09-22 - Swell/Pedal chamber pipework (Photograph by Bryan Higgins-Moe/Bryan Higgins-Moe)
2022-09-22 - Swell/Pedal chamber pipework (Photograph by Bryan Higgins-Moe/Bryan Higgins-Moe)

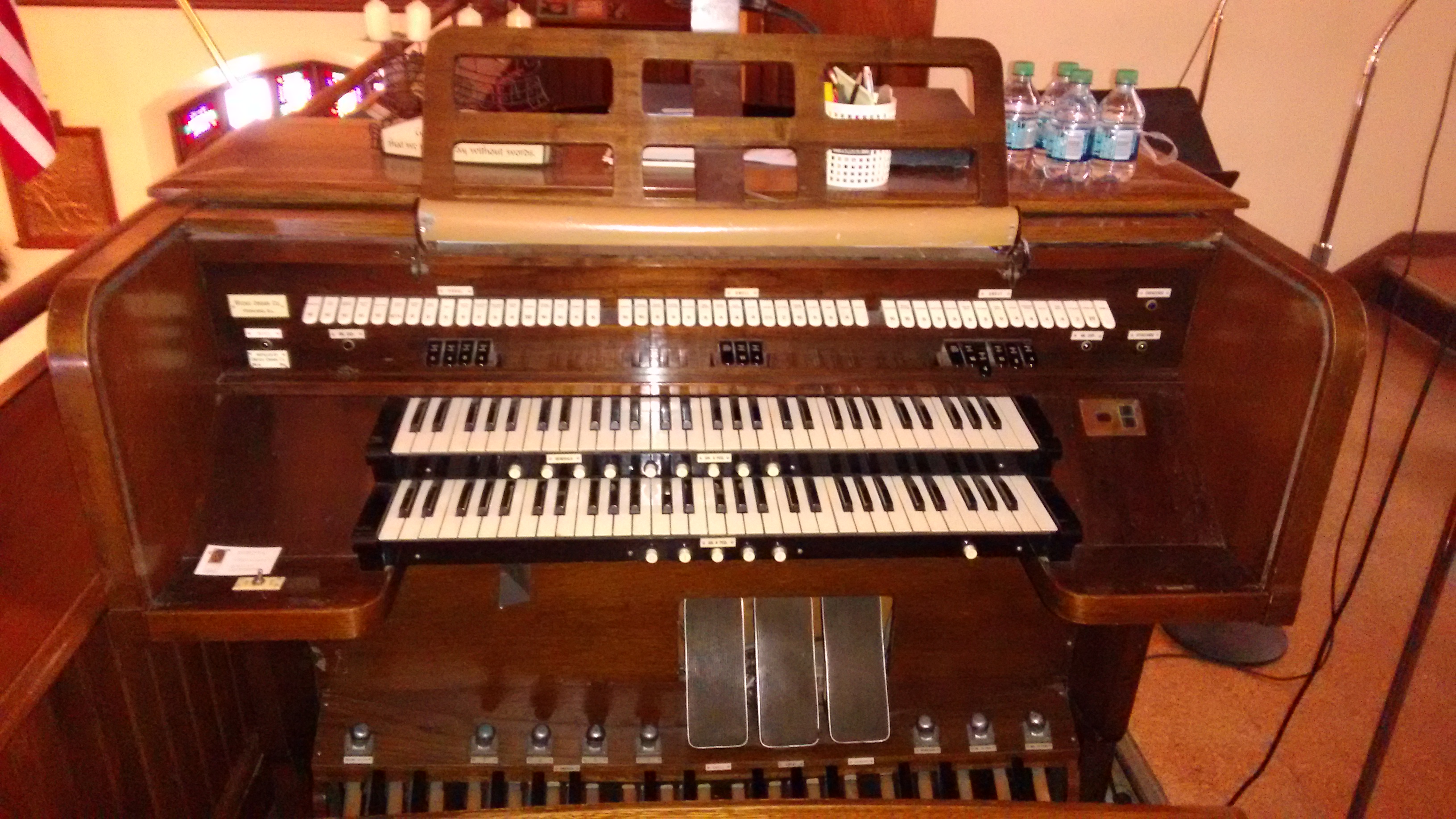

2022-09-22 - Console (Photograph by Bryan Higgins-Moe/Bryan Higgins-Moe)

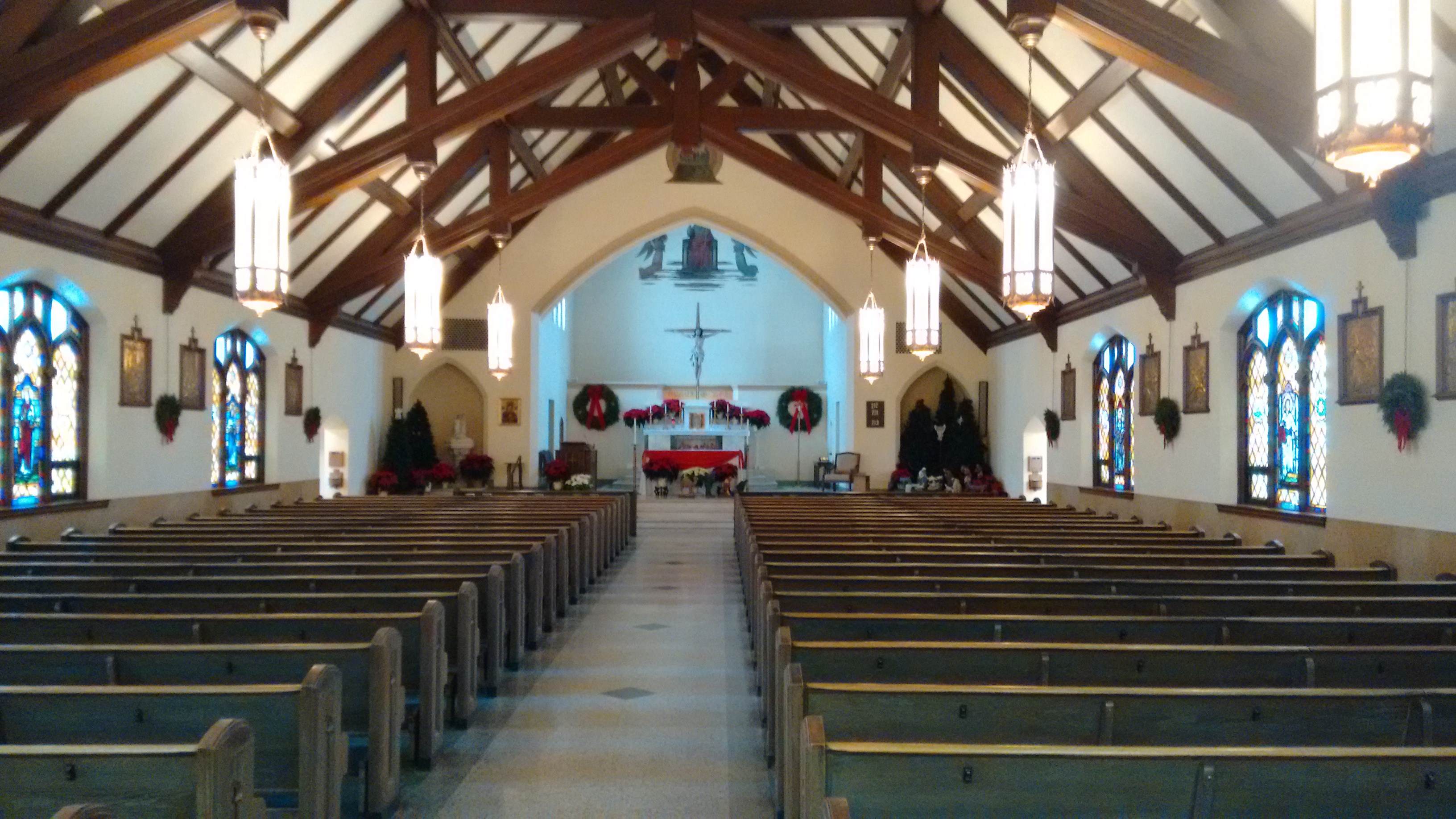

2022-09-22 - Nave (Photograph by Bryan Higgins-Moe/Bryan Higgins-Moe)

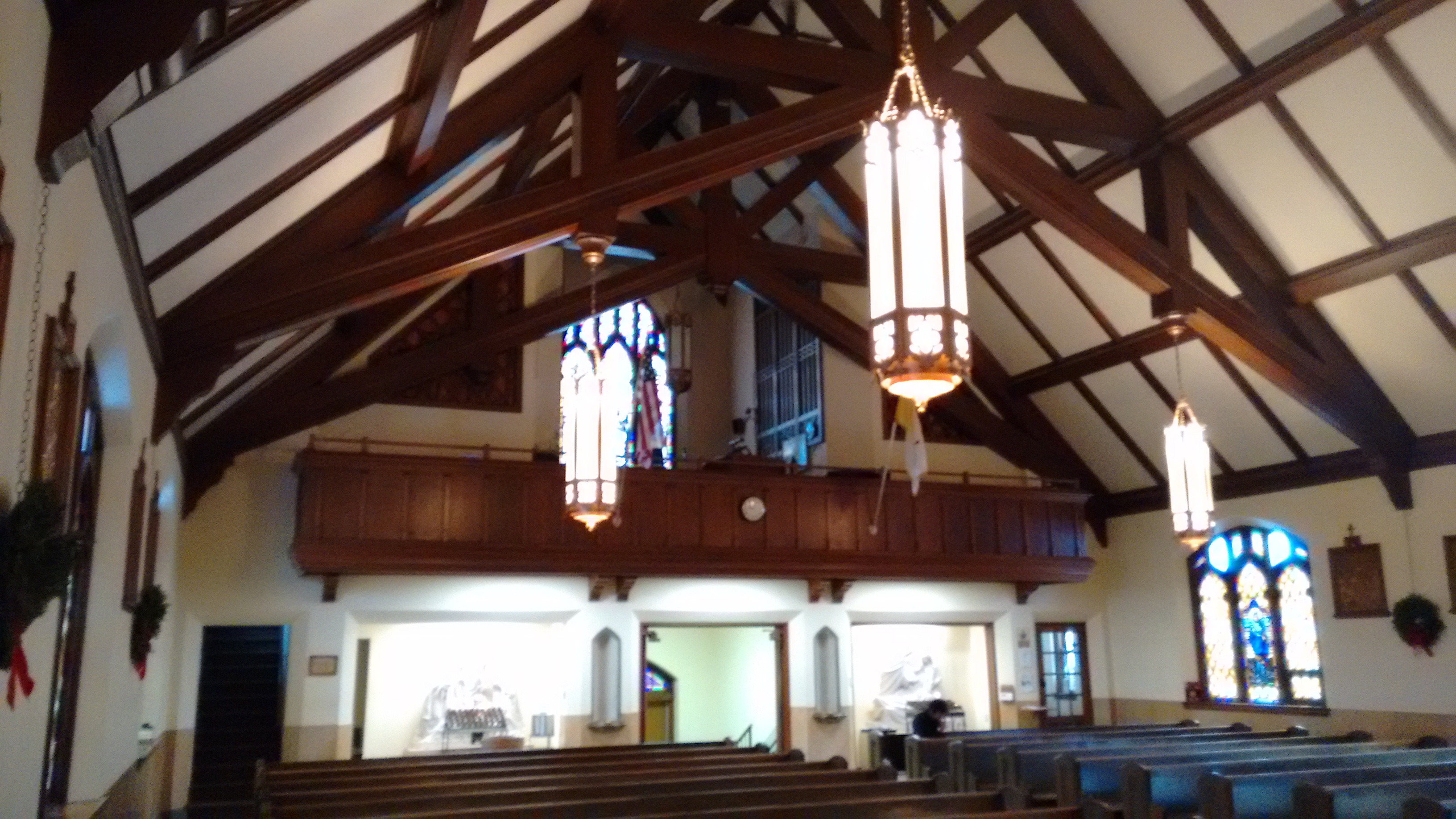

2022-09-22 - Organ in rear gallery (Photograph by Bryan Higgins-Moe/Bryan Higgins-Moe)
Consoles
Gallery
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Right
- 2 manuals
- 16 stops
- 47 registers
- 3 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Stop Keys Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Has transposer
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler toe pistons
- Has tutti toe pistons
Notes
2022-09-22 - * Console was originally centered with organist facing the choir.
* At some point (c. 1997) a transposer was added to the console.
* No other updates have been made.
* Combination setter is a toe stud and not a piston. -Bryan Higgins-Moe
2023-03-05 - * The Great division no longer functions.
* Combination action no longer works.
* Stop tabs on the Swell are beginning to fail. -Bryan Higgins-Moe
2024-02-10 - The condition of the organ makes it no longer useable for any public use and it is barely suitable even for practice as it has been allowed to further deteriorate and has not been tuned in 2+ years. -Bryan Higgins-Moe
Stoplist
Source: Taken from console 09/21/2022
Wicks Organ Co. (1952)
SS. Mary and Hyacinth Catholic Church (Orig. St. Hyacinth Catholic Church)
Antigo, WI
Pedal
16' Principal
16' Sub Bass
16' Lieblich-Gedeckt
16' Salicet Bass
16' Dulciana
10⅔' Gross Quint
8' Octave Bass
8' Bass Flute
8' Cello
8' Flauto Dolce
8' Gemshorn Octave
8' Dulciana Octave
4' Choral Bass
Mixture III
16' Double Trumpet
16' Fagot Bass
8' Trumpet
8' Fagotto
Swell to Pedal 8’
Swell to Pedal 4
Great to Pedal 8
Great to Pedal 4
Swell
16' Gedeckt
16' Contra Salicional
8' Geigen Principal
8' Stopped Diapason
8' Salicional
8' Voix Celeste
4' Geigen Octave
4' Flute D’Amour
4' Salicet
2⅔' Nazard
2' Flautino
16' Contra Fagotto
8' Trumpet
8' Oboe
4' Clarion
Tremolo
Swell Unison Silent
Swell to Swell 16
Swell to Swell 4
Great
16' Quintaton
16' Double Dulciana
8' Diapason
8' Quintaton
8' Gemshorn
8' Violon-Cello
8' Dulciana
8' Unda Maris
4' Octave
4' Gemshorn Octave
4' Dulcet
4' Unda Maris
2' Fifteenth
Fourniture IV
Tremolo
Great Unison Silent
Great to Great 16
Great to Great 4
Swell to Great 16
Swell to Great 8
Swell to Great 4
RESOURCE RANKS
Great
8' Diapason
8' Quintaten
8' Gemshorn
8' Violon-Cello
8' Dulciana
4' Octave
4' Gemshorn Octave
4' Dulcet
2' Fifteenth
Fourniture IV (Mixture uses the 2' Fifteenth as the 4th rank)
Swell
16' Gedeckt
8' Geigen Principal
8' Salicional
8' Voix Celeste
8' Trumpet
8' Oboe
