First Church of Christ / Residence: Chapel
349 Monroe Street
Lapeer, MI
Note: Not playable. (in this location)
Images
2008-05-15 - Organ Case (Photograph by Shawn P. Keith/Database Manager)
2008-05-15 - Swell Pedal (Photograph by Shawn P. Keith/Database Manager)
2008-05-15 - Left Drawknobs (Photograph by Shawn P. Keith/Database Manager)
2008-05-15 - Right Drawknobs (Photograph by Shawn P. Keith/Database Manager)
2008-05-15 - Console (Photograph by Shawn P. Keith/Database Manager)
2008-05-15 - Keydesk and Pedalboard (Photograph by Shawn P. Keith/Database Manager)

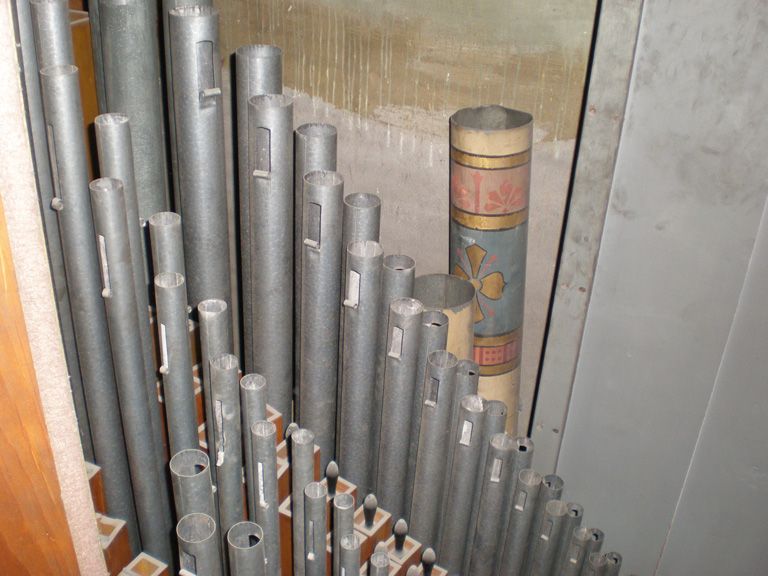

2008-05-15 - Swell Pipework (Photograph by Shawn P. Keith/Database Manager)
2008-05-15 - Swell Pipework (Photograph by Shawn P. Keith/Database Manager)
2008-05-15 - Swell Pipework (Photograph by Shawn P. Keith/Database Manager)
2008-05-15 - Pedal Pipework (16' Bourdon) (Photograph by Shawn P. Keith/Database Manager)
2008-05-15 - Back of Facade Pipes (Photograph by Shawn P. Keith/Database Manager)
2008-05-15 - Great Pipework (8' Dulciana bass octave) (Photograph by Shawn P. Keith/Database Manager)
2008-05-15 - Great Pipework (Photograph by Shawn P. Keith/Database Manager)
2008-05-15 - Back of Facade Pipes (Photograph by Shawn P. Keith/Database Manager)
2008-05-15 - Electro-pneumatic Coupler Relay (Photograph by Shawn P. Keith/Database Manager)
2008-05-15 - Great stop action linkages (Photograph by Shawn P. Keith/Database Manager)
Consoles
Main
- Organ type: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
- Console position: Keydesk Attached, Manuals Set Into Case
- 2 manuals
- 14 stops
- 13 registers
- 3 divisions
- Key action Type: Electrical
- Stop action Type: Mechanical
- Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
- Manual compass: 61 notes
- Pedal compass: 30 notes
- Pedal Type: Concave Radiating (Not Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
- Combination action: None
- Has coupler toe pistons
Notes
2004-10-30 - Formerly First Methodist. Electrified and unplayable. -Database Manager
2010-03-26 - Updated through on-line information from Sharon Makulski. -Database Manager
2015-01-10 - Updated through online information from Shawn P. Keith. -- Original Felgemaker tracker organ converted to electro-pneumatic key action, possibly by Wurlitzer (all chest magnets are Wurlitzer black cap). Electro-pneumatic coupler relay added with rocker tablets above Swell keyboard. A bass octave for the Swell 8' Open Diapason was added, with pipes external to the expression box. As of 2008 the Swell 8' Oboe pipes were missing. The Pedal 16' Gedeckt appears to be an added knob and may not have any pipes controlled by it. The original Pedal keyboard was replaced. It is possible the bass octave for the Great 8' Dulciana was a later addition. -Database Manager
Stoplist
Stoplist taken from the console May 2008 Source: Source not recorded Date not recorded
Lapeer, Michigan
Private residence (former First Methodist Episcopal Church)
Unknown builder
Renovation of A.B. Felgemaker Opus 613, vintage 1893
GREAT - unenclosed behind facade
16' Bourdon (from TC)
8' Open Diapason (1-17 en facade)
8' Melodia
8' Dulciana (1-12 added to original Felgemaker rank)
4' Octave
2-2/3' Twelfth
2' Fifteenth
4' Gt to Ped
Bellows Signal (inoperative)
SWELL - enclosed behind Great
8' Open Diapason (1-12 added to original Felgemaker rank)
8' Stop'd Diapason
8' Aeoline (from TC)
4' Flute Harmonique
8' Oboe (from TC)
4' Sw to Ped
PEDAL
16' Bourdon
16' Gedeckt (prepared for?)
COUPLERS (electric action rocker tablets above Swell manual)
Tremolo
Great to Pedal
Swell to Pedal
4' Swell to Swell
16' Swell to Great
8' Swell to Great
4' Swell to Great
4' Great to Great
[Received from Shawn P. Keith 2015-01-02.]
