Casavant Frères Opus 3569 (2015)

First Presbyterian Church
1324 Marion Street
Columbia, SC

Images

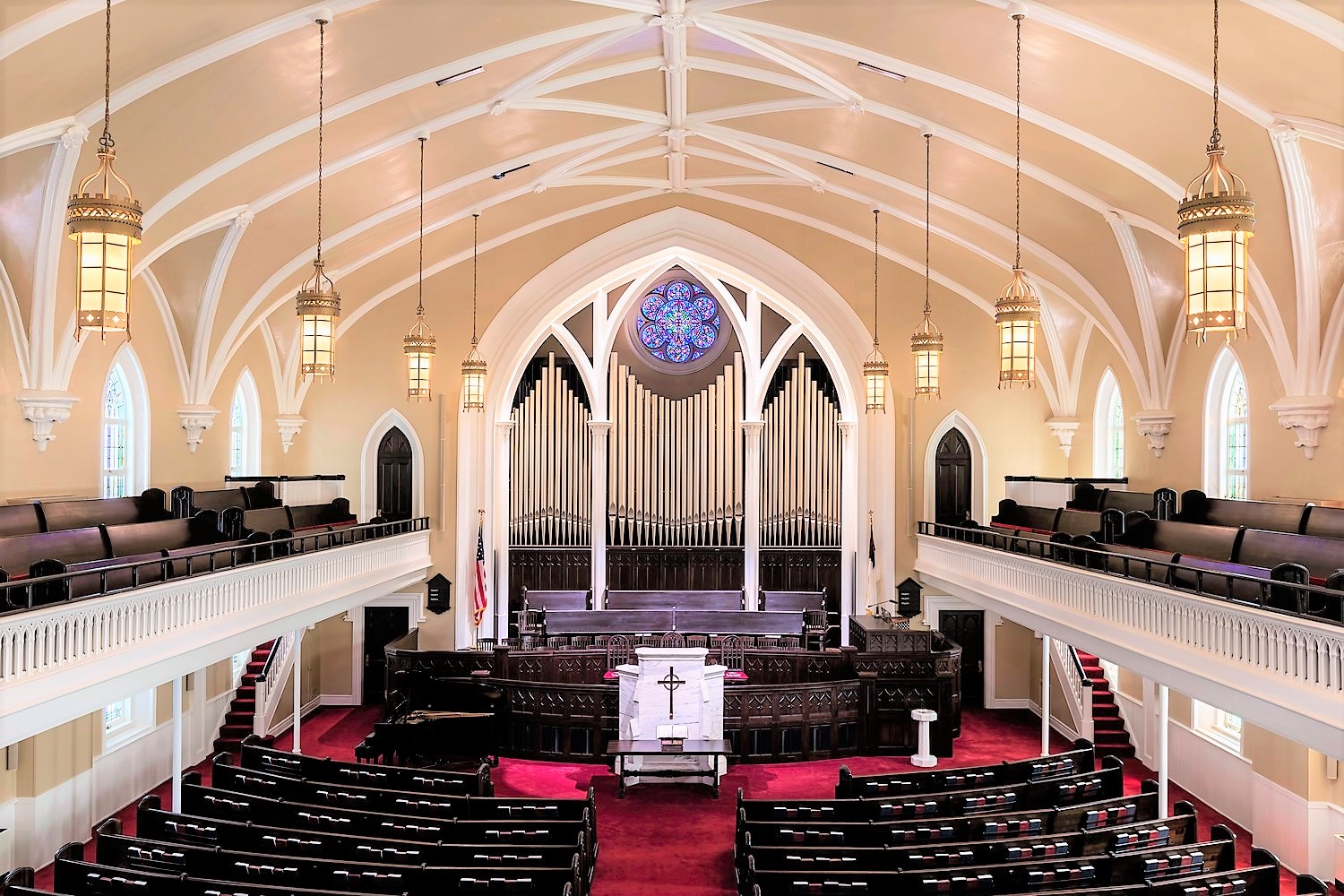

2018-10-04 - Church interior to rear and en-chamade (Photograph by ls3p.com, submitted by Jeff Scofield/Jeff Scofield)

2018-10-04 - Chancel, console and façade pipes (Photograph by ls3p.com, submitted by Jeff Scofield/Jeff Scofield)

2018-10-04 - Interior to front and façade pipes, floor level (Photograph by ls3p.com, submitted by Jeff Scofield/Jeff Scofield)

2018-10-04 - Church interior to front and façade pipes (Photograph by LS3P.com, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Movable Console
4 manuals
44 stops
58 registers
5 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has sequencer
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2022-10-31 - The contract was for a new console for the existing organ, with no tonal changes. -Jeff Scofield

Stoplist

Source: Courtesy of the Casavant Frères Archives

       Columbia, South Carolina
       First Presbyterian Church

       Casavant   Op. 3569   1983   3/63
       Casavant   Op. 3569   2015   4/
       ________________________________________________________

       GRAND ORGUE (II)                 RÉCIT (III)
   16' Bourdon              PO       8' Flûte ouverte        61
    8' Montre               61       8' Viole de gambe       61
    8' Flute à cheminée     61       8' Voix céleste      GG 54
    4' Prestant             61       4' Principal            61
2 2/3' Quinte               61       4' Flûte conique        61
    2' Doublette            61       2' Octavin              61
    V  Cornet           MC 185       V  Plein Jeu           305
    V  Fourniture          305      16' Basson               61
    8' Trompette            61       8' Trompette            61
       Grand Orgue Muet              8' Hautbois             61
    8' Trompette royale     CH          Tremblant
       Cloches              25          Récit 16'
                                        Récit Muet
       POSITIF (I)                      Récit 4'
   16' Bourdon              61       8' Trompette royale     CH
    8' Bourdon              61
    4' Prestant             61          CHOEUR (I)
    4' Flûte à fuseau       61       8' Bourdon              61
2 2/3' Nazard               61       8' Flûte douce          61
    2' Quarte de nazard     61       8' Flûte céleste        49
1 3/5' Tierce               61       4' Flûte à cheminée     61
   IV  Cymbale             244       2' Doublette            61
    8' Cromorne             61   1 1/3' Quinte               61
       Tremblant                    II  Sesquialtera        122
       Positif Muet                     Tremblant
    8' Trompette royale     CH          Choeur 16'
       Clochettes            5          Choeur Muet
                                        Choeur 4'
       PÉDALE                        8' Trompette royale     61
   32' Bourdon             res
   16' Montre               32          CHAMADE (IV)
   16' Soubasse             32      16' Bombarde en chamade  tc
   16' Bourdon              PO       8' Trompette en chamade 61
    8' Octavebasse          32       4' Clairon en chamade   --
    8' Petit Bourdon        PO
    4' Octave               32          SOLO (IV)
    4' Bourdon              PO          Prepared for
   IV  Fourniture          128
   32' Contre Bombarde      12
   16' Bombarde             32
   16' Basson               RE
    8' Trompette            32
    4' Chalumeau            32
    8' Trompette royale     CH
    8' Trompette en chamade CM

           [Received from Jeff Scofield October 30, 2022]

Related Pipe Organ Database Entries

#44041 - Casavant Frères Ltée. Opus 3569 (1983)
