Better Pipe Organ Database

Unknown Builder

St. Basil's Catholic Church: Sanctuary; rear gallery
513 Monroe Blvd.
South Haven, MI

Images

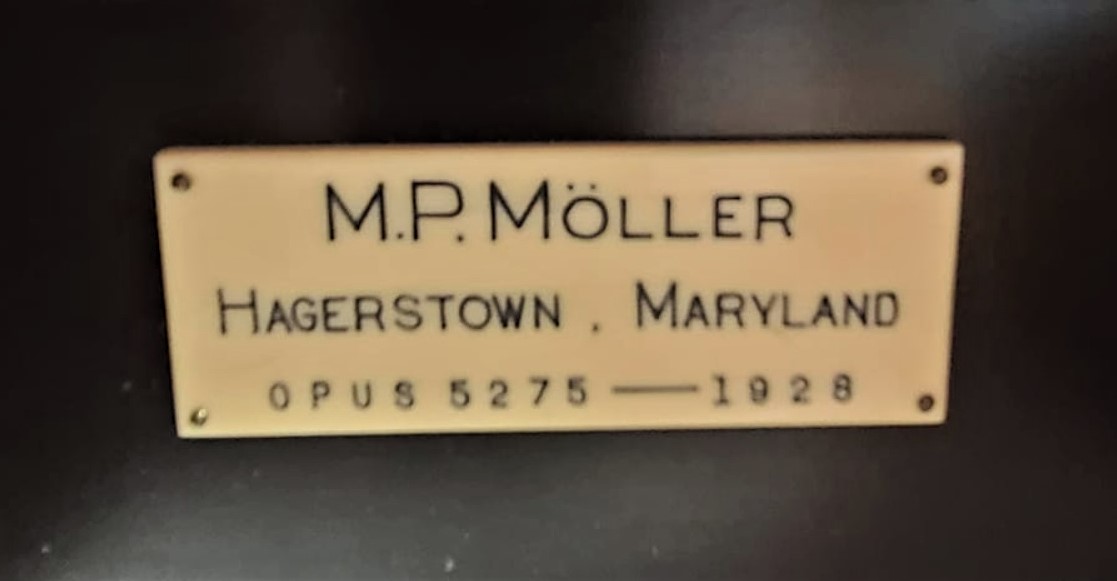

2022-11-26 - Builder's nameplate (Photograph by Tom Fielding, submitted by Jim Stettner/Jim Stettner)

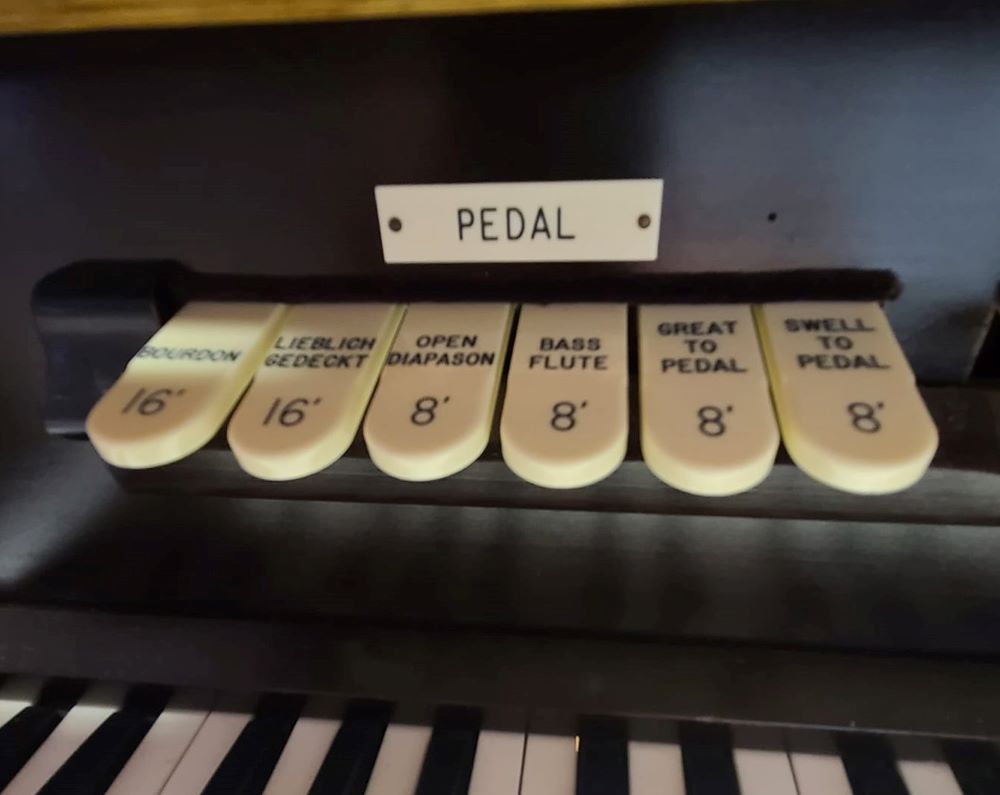

2022-11-26 - Console: Pedal stops (Photograph by Tom Fielding, submitted by Jim Stettner/Jim Stettner)

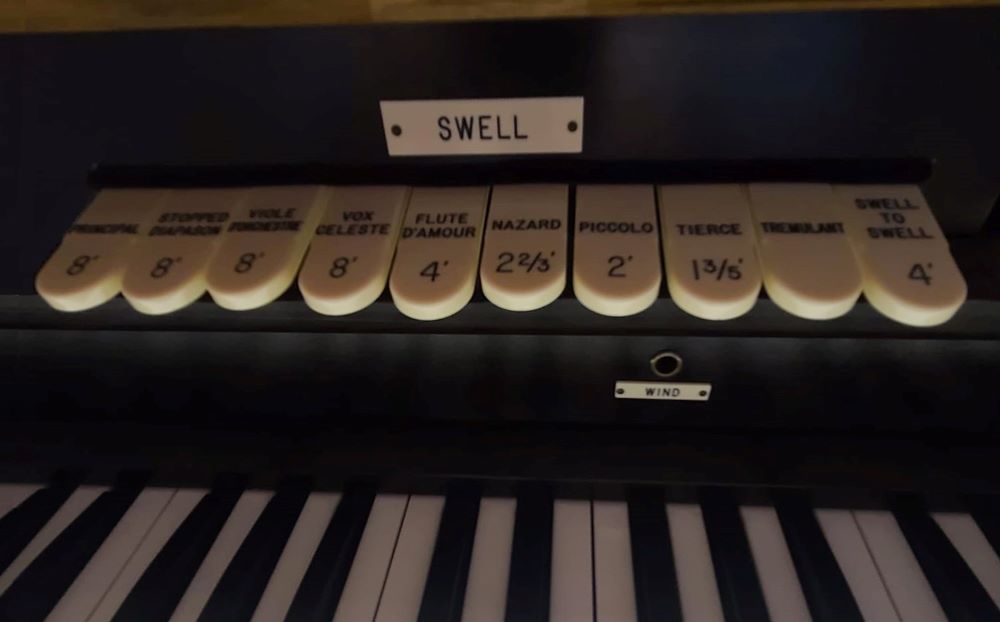

2022-11-26 - Console: Swell stops (Photograph by Tom Fielding, submitted by Jim Stettner/Jim Stettner)

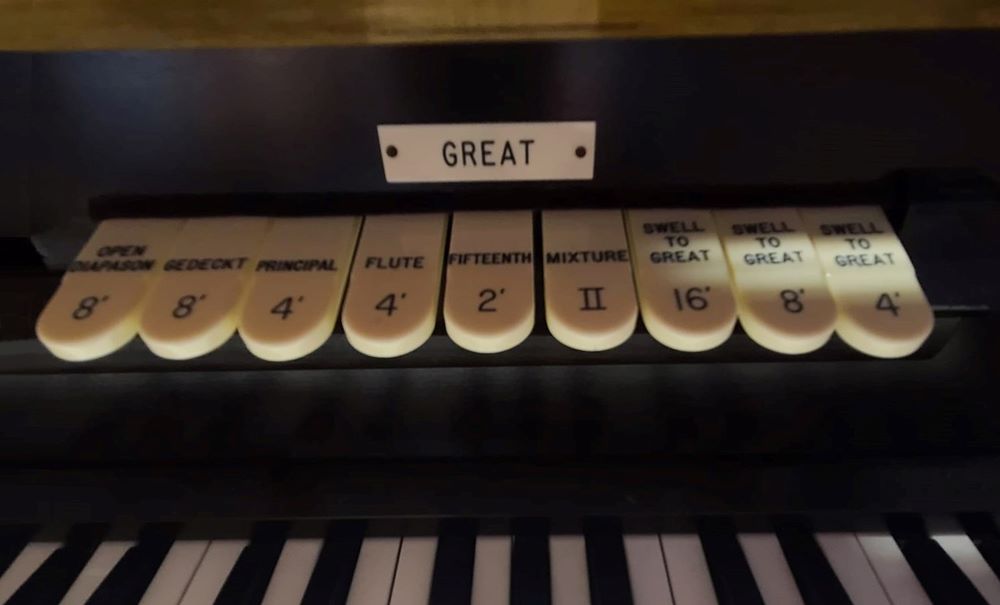

2022-11-26 - Console: Great stops (Photograph by Tom Fielding, submitted by Jim Stettner/Jim Stettner)

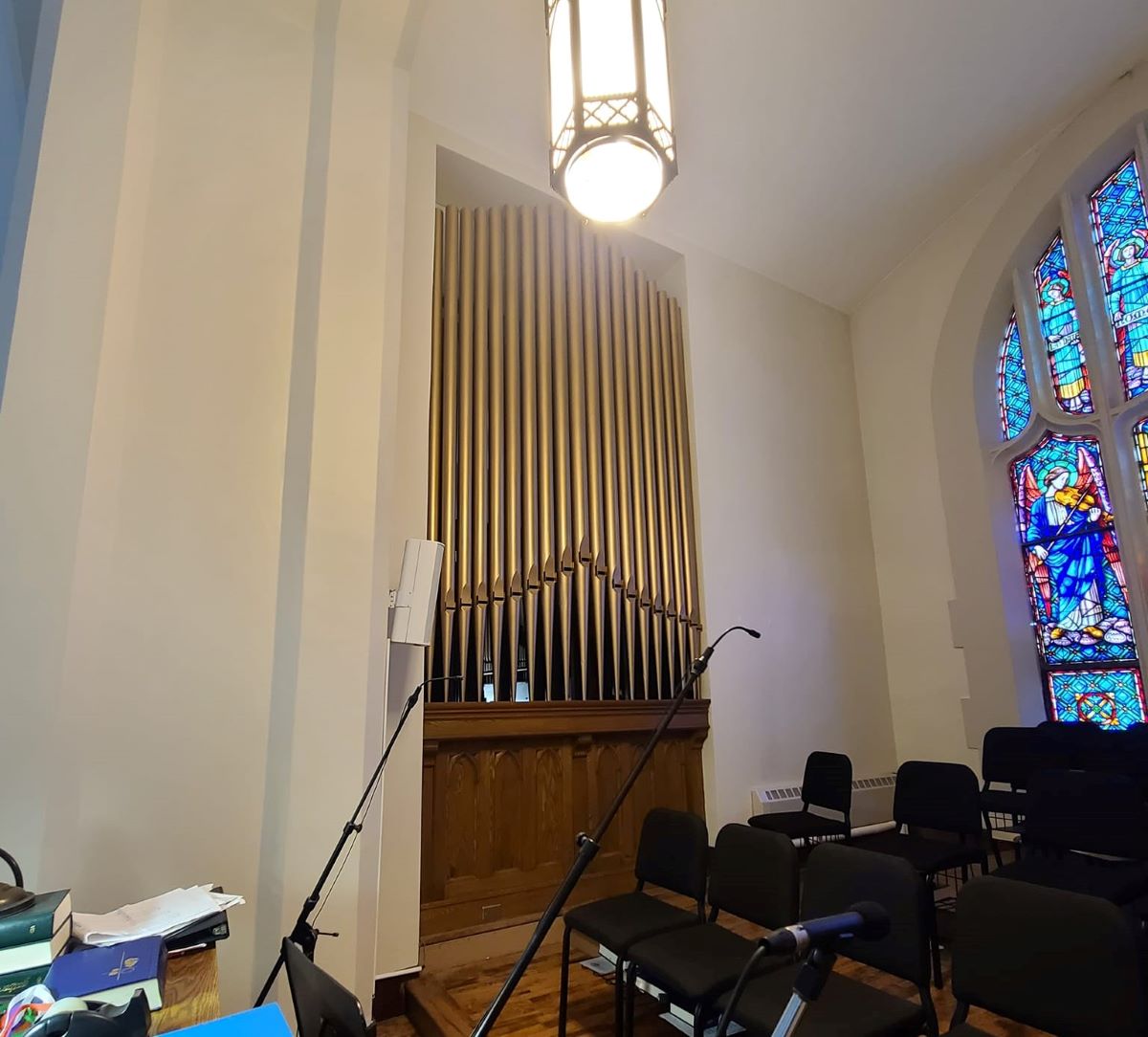

2022-11-26 - Rear gallery chamber facade (Photograph by Tom Fielding, submitted by Jim Stettner/Jim Stettner)

2022-11-26 - Church exterior and Rectory (Photograph by Tom Fielding, submitted by Jim Stettner/Jim Stettner)

Consoles

Gallery

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
2 manuals
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons

Notes

2022-11-28 - This entry represents tonal changes/additions to an existing organ. Who did the work and when is not yet known. Identified from photos by Tom Fielding posted on his Facebook page Nov. 26, 2022. -Jim Stettner

Stoplist

Source: Stoplist taken from current console photos November 27, 2022

South Haven, Michigan
St. Basil's Catholic Church

M.P. Moller, Opus 5275, 1928
Unknown Builder, Opus ___, 19__ - Tonal revision


       GREAT:                           COUPLERS
8'     Open Diapason        61          Swell to Pedal        8'
8'     Gedeckt        (Sw)  --          Great to Pedal        8'
4'     Principal            61
4'     Flute          (Sw)  --          Swell to Great       16'
2'     Fifteenth                        Swell to Great        8'
II     Mixture                          Swell to Great        4'


       SWELL (Expressive):
8'     Principal
8'     Stopped Diapason     61
8'     Viole D'Orchestre
8'     Vox Celeste
4'     Flute D'Amour        12
2 2/3' Nazard                7
2'     Piccolo               5
1 3/5' Tierce
       Tremulant

Swell to Swell 4'


       PEDAL:
16'    Bourdon              32
16'    Lieblich Gedeckt
8'     Open Diapason  (Gt)  --
8'     Bass Flute           12

Related Pipe Organ Database Entries

#31511 - M. P. Möller Opus 5275 (1928)
