Better Pipe Organ Database

Patrick J. Murphy & Associates Inc Organbuilders Opus 69 (2022)

Emanuel Lutheran Church
1200 John Fitch Hwy
Fitchburg, MA

Images

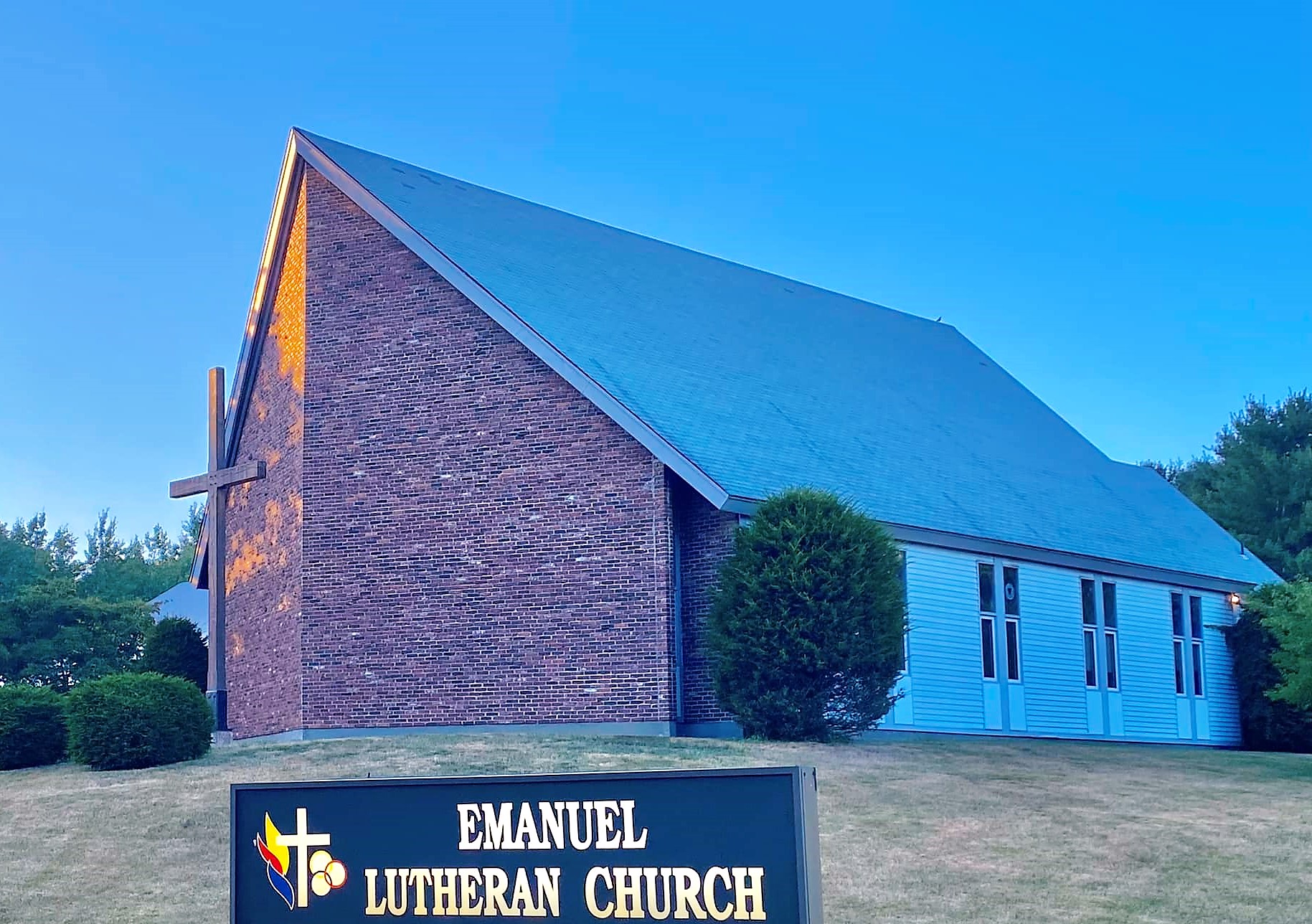

2022-07-26 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

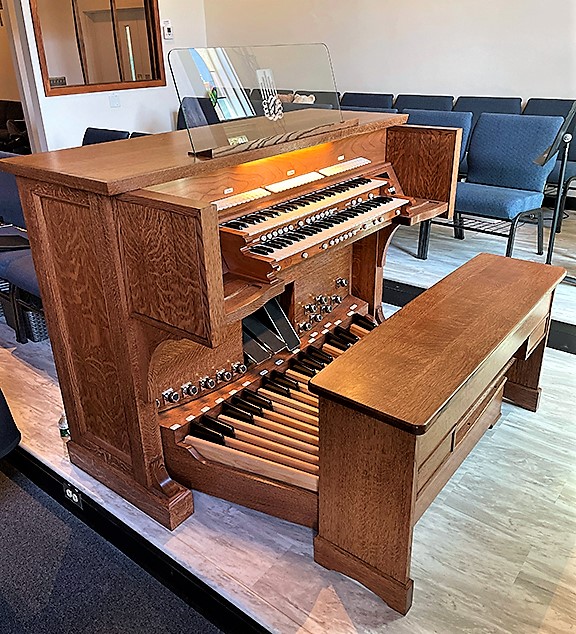

2022 - Console (Photograph by Patrick J Murphy & Associates, submitted by Jeff Scofield/Jeff Scofield)

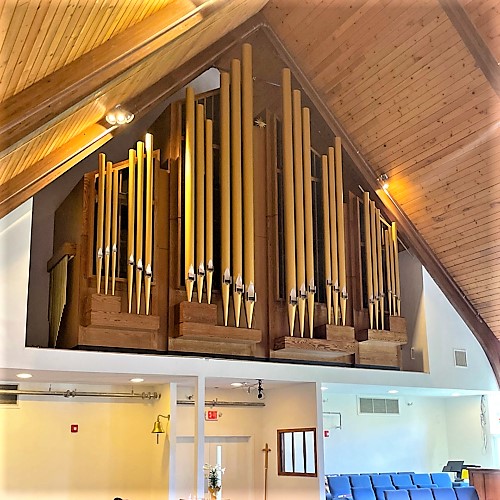

2022 - Organ case (Photograph by Patrick J Murphy & Associates, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
2 manuals
17 stops
30 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2022-12-18 - From the builder's website: This new pipe organ for Emanuel Lutheran Church in Fitchburg Massachusetts contains 2 manuals and 20 ranks with electric slider windchests. All mechanicals including winding, 2 inch thick expression enclosures for the Swell AND Great was constructed by our staff and is located behind a Frank Friemel designed case that fits this small post-modernist 1970’s building. Aside from the new façade Pedal Violone and reeds, all fluework will be from the church’s existing Hook and Hastings (1896 Opus 1127 originally built for the Calvinistic Congregational in Fitchburg) and is augmented with pipework from E.& G.G. Hook (1872 Opus 616- Kinsley voiced). -Jeff Scofield

Stoplist

Source: From the Winter 2023 company newsletter

    Fitchburg, Massachusetts
    Emanuel Lutheran Church

    Patrick J Murphy   Op. 69   2022   2/20
    _______________________________________

    GREAT                  SWELL
16' Gedackt     12      8' Stopped Diapason
 8' Open Diapason       8' Viola da Gamba
 8' Melodia             8' Viola Celeste
 8' Dulciana            4' Principal
 4' Octave              4' Harmonic Flute
 4' Flute       12      2' Flautino
 2' Fifteenth       1 1/3' Larigot
IV  Mixture            16' Bassoon     12
 8' Trumpet     SW      8' Trumpet
    Chimes              8' Oboe
                           Tremulant
    PEDAL                  Sub
32' Resultant              Unison Off
16' Violoncello  *         Super
16' Bourdon      e
16' Gedackt     GT      *  in façade
 8' Violoncello 12      e  enclosed in SW
 8' Flute       12
 4' Choralbass  12
16' Posaune F/L 12 SW
16' Bassoon     SW
 8' Trumpet     SW
 4' Oboe        SW

[Received from Jeff Scofield December 18, 2022]
