Southern Methodist University: Meadow School of the Arts - Choral Hall
Dallas, TX
Images
2017-08-23 - Builder's nameplate (Photograph from an archival source: Southern Methodist University Organ Dept. facebook page, submitted by Jim Stettner/Jim Stettner)

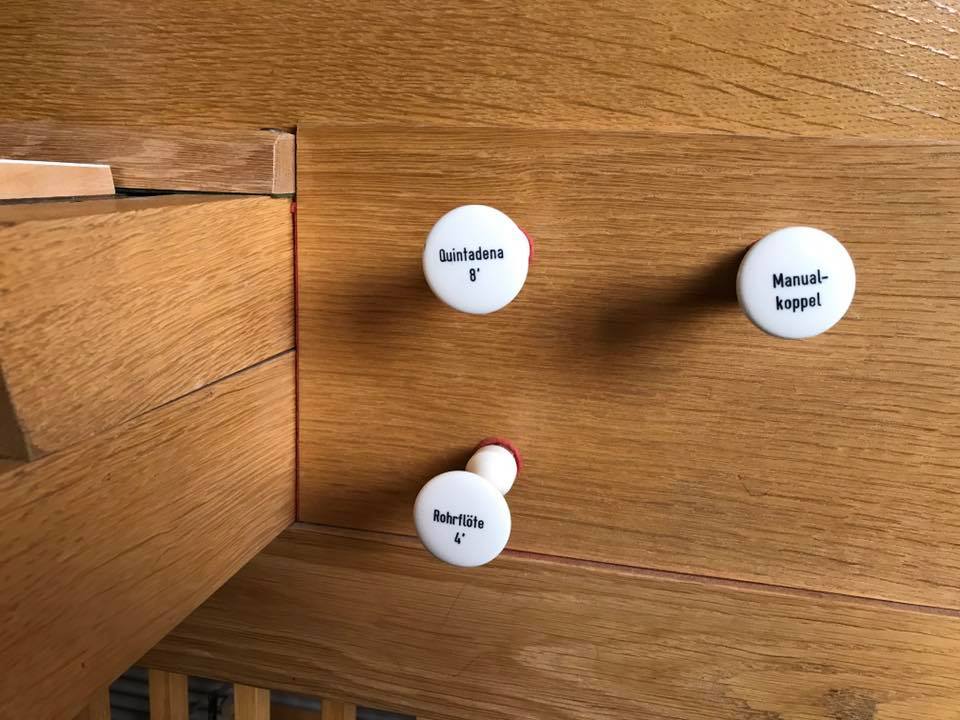

2017-08-23 - Keydesk: left-side stops (Photograph from an archival source: Southern Methodist University Organ Dept. facebook page, submitted by Jim Stettner/Jim Stettner)

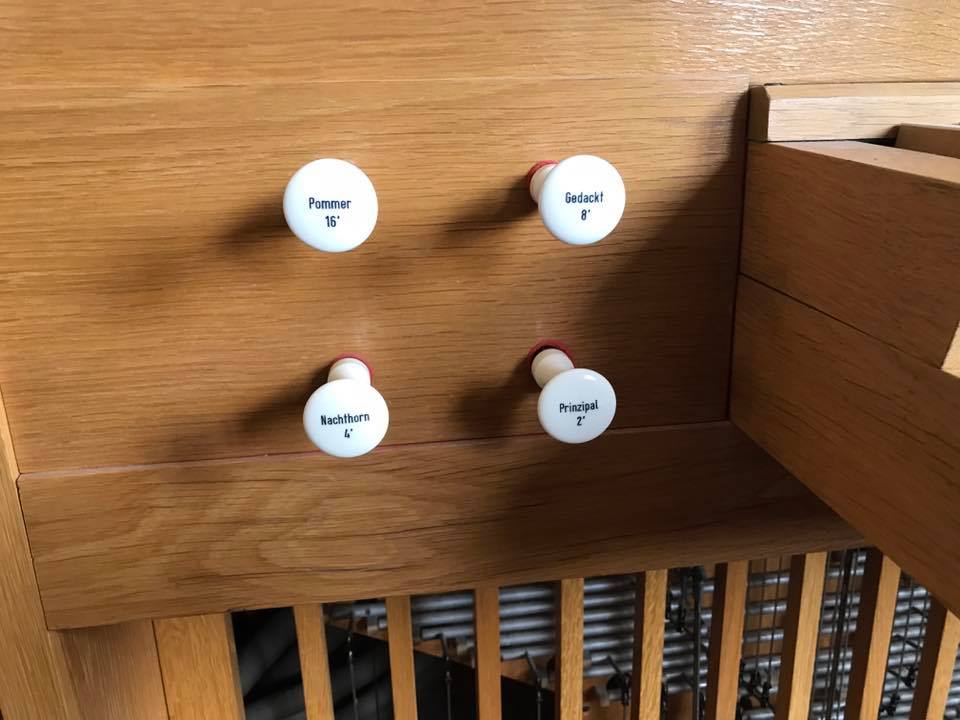

2017-08-23 - Keydesk: right-side stops (Photograph from an archival source: Southern Methodist University Organ Dept. facebook page, submitted by Jim Stettner/Jim Stettner)

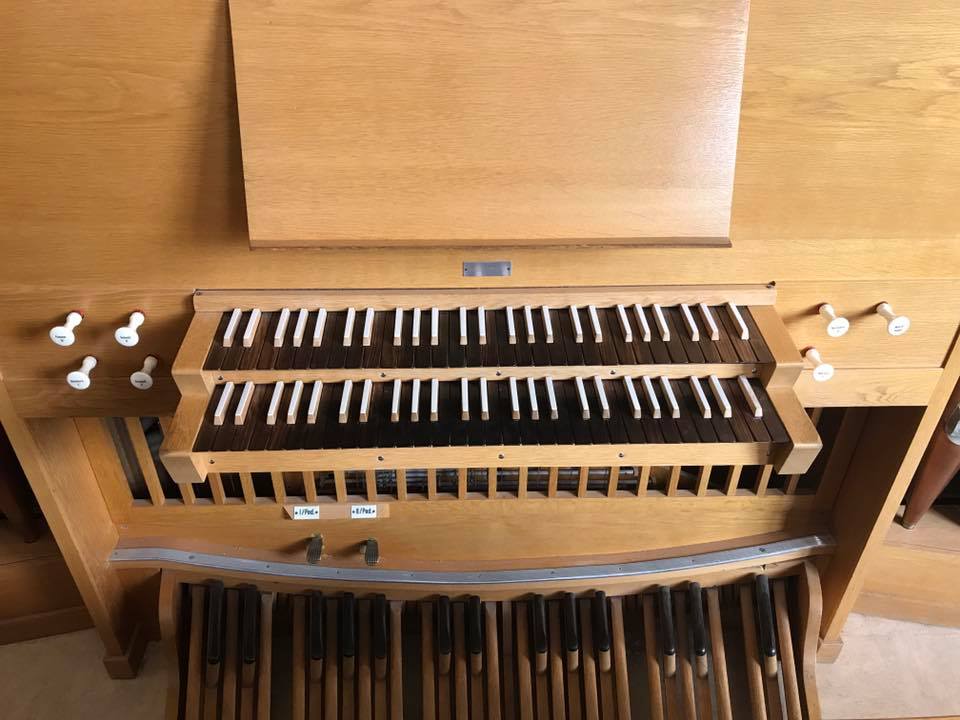

2017-08-23 - Keydesk and stops (Photograph from an archival source: Southern Methodist University Organ Dept. facebook page, submitted by Jim Stettner/Jim Stettner)

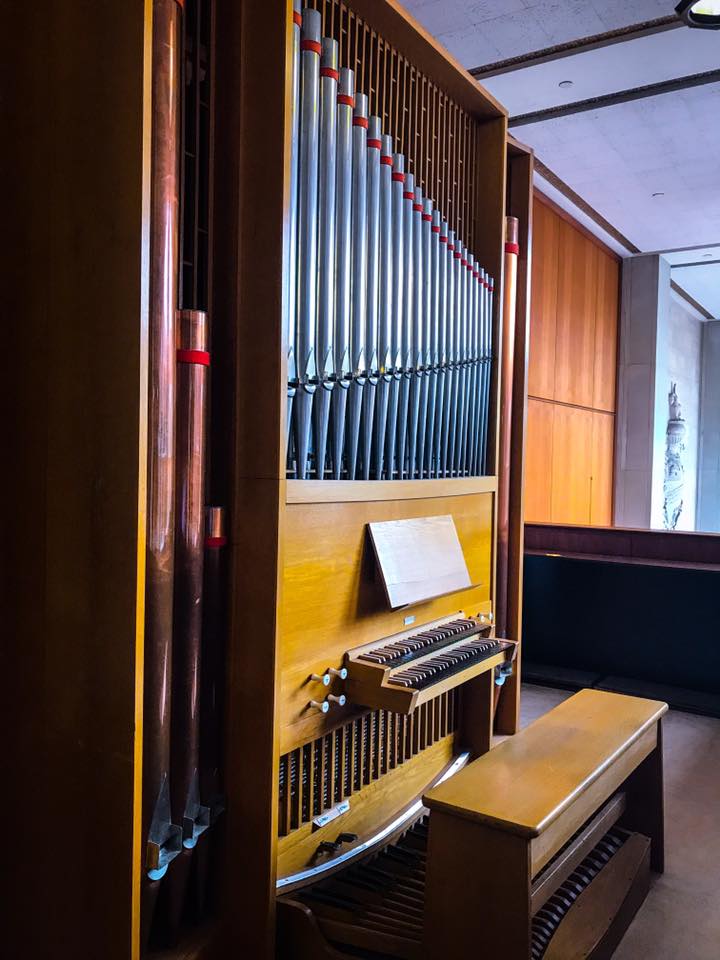

2017-08-23 - Organ case fro left side (Photograph from an archival source: Southern Methodist University Organ Dept. facebook page, submitted by Jim Stettner/Jim Stettner)

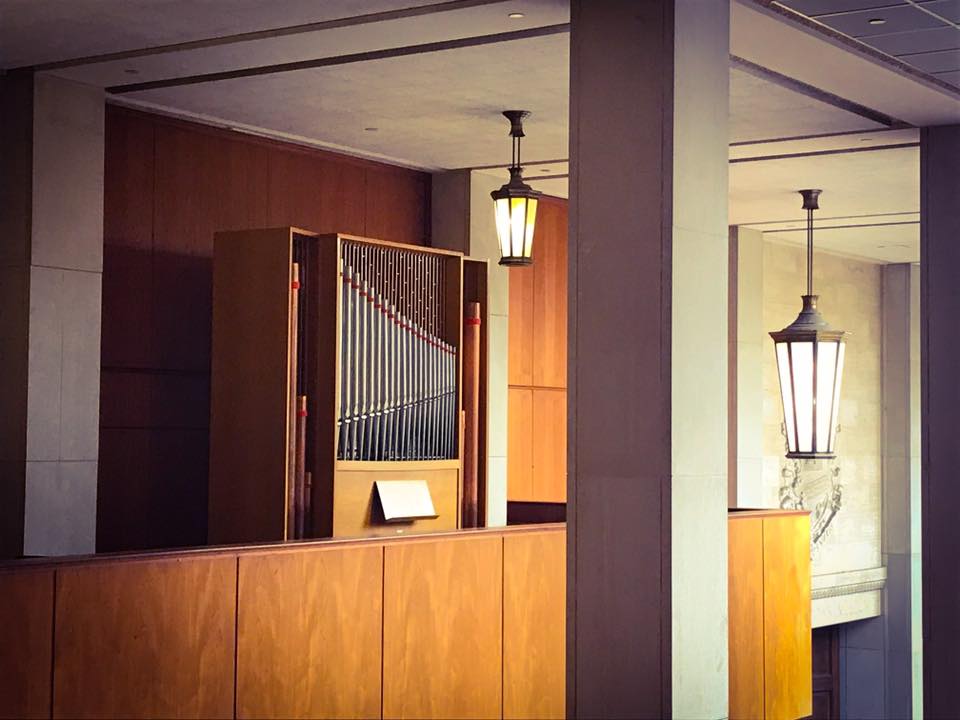

2016-08-23 - Organ case (Photograph from an archival source: Southern Methodist University Organ Dept. Facebook page, submitted by Jim Stettner/Jim Stettner)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Keydesk Attached
- 2 manuals
- 6 stops
- 6 registers
- 3 divisions
- Key action Type: Mechanical (Details Unknown)
- Stop action Type: Mechanical
- Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
- Manual compass: 56 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Details Unknown)
- Expression Type: No Enclosed Divisions
- Combination action: None
- Has hitchdown couplers
Notes
2023-01-12 - This entry reresents the installation of a new organ. Identified from another SMU OHS Database entry. One of two von Beckerath organs installed. -Jim Stettner
Stoplist
Source: Stoplist taken from 2017 keydesk photos January, 2023
Dallas, Texas
Southern Methodist University
Rudolf von Beckerath (1966)
MANUAL I
8' Quintadena
4' Rohrflöte
MANUAL II
8' Gedackt
2' Prinzipal
PEDAL
16' Pommer
4' Nachthorn
COUPLERS
I / Ped (h-d)
II / Ped (h-d)
Manual-koppel (d-k)
